Cutmaster 82 Plasma System, 80 Amp, SL60, 75 Deg Head, 50 ft Leads, 460V, 3Ph, 50/60Hz Ready, Multi-Voltage/Phase #1-1131-2

Part Numbers: 1-1131-2
UPCs: 0699488003698

Included with your purchase ():

Cutmaster 82 #1-1131-2
Cutmaster 82 Plasma System, 80 Amp, SL60...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$3,599.00 + Free Shipping $4,499.00*
SAVE $900.00
$3,599.00 + Free Shipping $4,499.00*
SAVE $900.00

Cut capacity:

3/4" Capacity

3/4" Capacity

Plasma torch:

Handheld

Handheld

Power supply:

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 460V
  • 1" and higher capacity
  • 50 ft leads
  • 4 Year warranty
  • Lightweight and Portable
  • Multivoltage

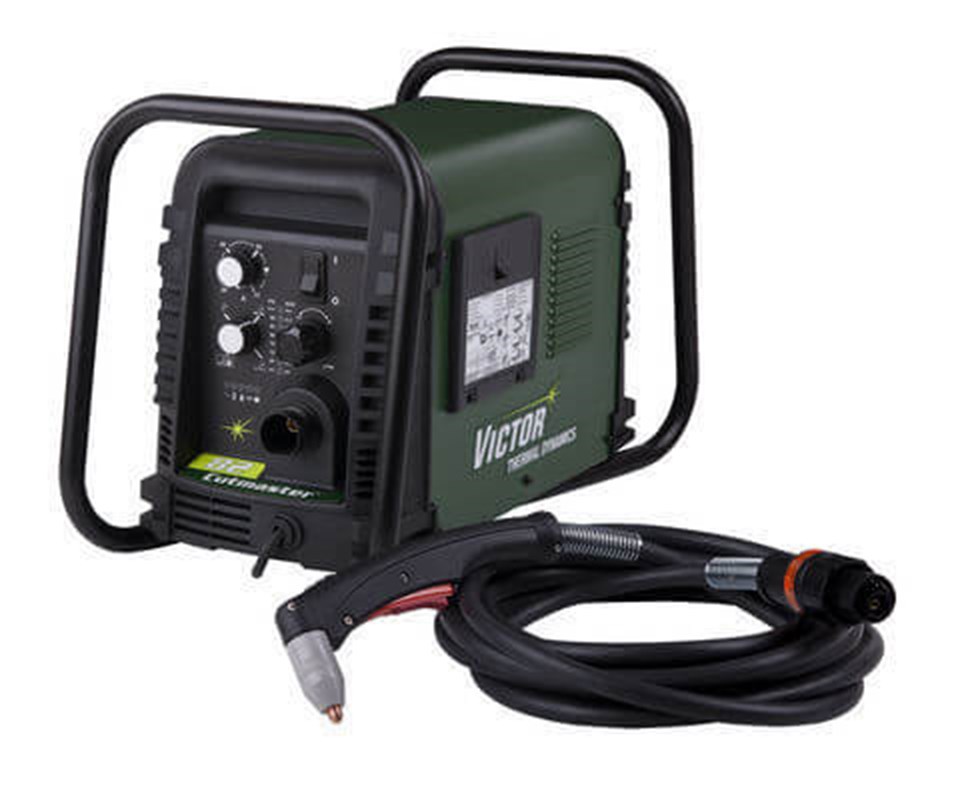

Cutmaster 82 Plasma System #1-1131-2

CUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 82 weighs in at a mere 43 lbs. (19.5 kg) almost 50% less than its leading competitor, while still offering superior cutting power. Don’t let the size of this unit fool you, it’s more than capable of cutting 3/4.

Warranty: 1 Year

Included Features

  • TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
  • Color Coded LED’s indicate pressure status and setup errors
  • All user controls are conveniently located on the front panel
  • Lightweight design improves portability (Reduced nearly 50%)
  • Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Multiple Torch Capability (Hand, Mechanized, Automation)

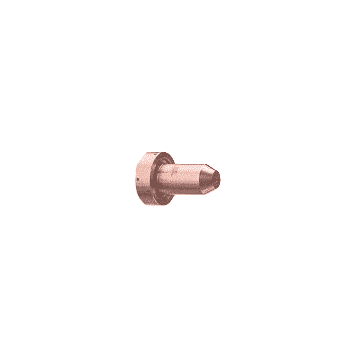

  • The Industry’s only 60 Amp Drag Tip
  • Convenient storage compartment for spare and consumable parts
  • Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
  • Power Supply
  • 50ft. (15.2m) Lead
  • 1Torch SL60, 75 deg. Head
  • 10 ft. (3.0m) Input Power Cable 3Ph without plug
  • Work Cable and Clamp
  • Spare Parts Kit
  • Operating Manual

Features & Benefits

Front Panel LEDs indicate status conditions for maximum efficiency. Storage compartment for convenient access to spare parts and consumables. Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch. True Guard roll bar provides easy transportation and protection for unmatched durability. Multi-voltage allows operation from 208 to 480 Volts in a single power supply. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals. Lighter weight design for maximum portability.

Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and Accessories

Other Versions:
1-1130-1 230V 20 Ft. Hand Torch
1-1131-1 208/230V 50 Ft. Hand Torch
1-1130-5 600V 20 Ft. Hand Torch

General Specifications

Process(es)

Manual Air Plasma Cutting

Industrial Applications

Heavy Fabrication

Manufacturing

Contractors

Maximum Amperage Output

80A

Output Power

9 kW

Recommended Cut

3/4" (20 mm)

Maximum Cut

1 1/2" (40 mm)

Pierce Rating

5/8" (15 mm)

Amperage Range

20-80 Amps

Input Voltage

460V, 3Ph, 50/60 Hz Ready




Duty Cycle (@ 40 deg C)

40% @ 80A

60% @ 65A

100% @ 55A

Amperage Draw

21A @460V, 3Ph




Dimensions: (H x W x D)

15" ( 381 mm) x 12" (305 mm) x 24" (610 mm)

Weight

43 lbs (19.5kg)

Pilot

Start Cartridge

Control

Hand Torch Switch or Hand Pendant Control

Warranty (Parts & Labor)

4 Years

Certifications

IP23S





Torch Specifications

Hand Automated & Mechanized

SL60

Air Pressure

70 psi (4.8 bar)

Flow

6.7 cfm (190 l/m)

Torch

SL60 with ATC (hand), SL100 (mechanized)

SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 12.00 Inches
Length: 24.00 Inches
Weight: 43 Lb(s) 0 Oz

Product Questions and Answers


Q - What voltage does this need? A - It has a multiple voltage design that allows use of 208v to 480v.
Q - Can this be used for mechanized cutting? A - Yes, it can be set up for mechanized cutting.

How to remove cover on Cutmaster 82:

  1. Remove upper and lower screws securing cover.

    Do not mix the upper screws and lower screws. The upper screws are for threading into the plastic of the front and rear panels. Do NOT use the finer threaded lower screws for this. Also, do not loosen the lower screws inside the cut out slots in the bottom of the cover.

  2. Pull cover away from unit.

    Carefully lift the cover up and away from the machine.

  3. Reinstall cover.

    When reinstalling the upper screws, try to reuse the original threads. This can be done by turning the screw counter-clockwise until you feel the threads line up, then start screwing clockwise to tighten. Do not over tighten screws or you risk cracking the plastic cover.

Have a question about this product? Submit your question using the form below

Related Products

Thermal Dynamics Crafted Plasma Torch #7-5204
$891.90
$1,036.04
SAVE $144.14
Victor Technologies 7-5204 Thermal Dynamics 20' SL60 TORCH & LEADS ASSY
Free Shipping
ESAB Rebel Foot Control Part#W4014450
$288.45
$335.69
SAVE $47.24
Victor Technologies ESAB Rebel Foot Control

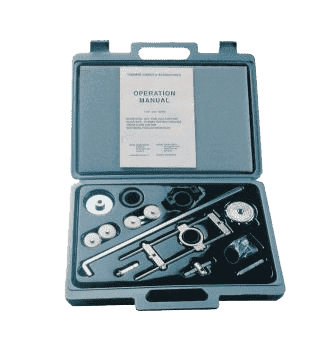

Deluxe circle Cutting Guide Part# 7-8910
