Miller SuitCase X-TREME 12VS, Bernard BTB 300 A Gun #951543

Part Number: 951543
Out of Stock

Welding type:

Mig

Mig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

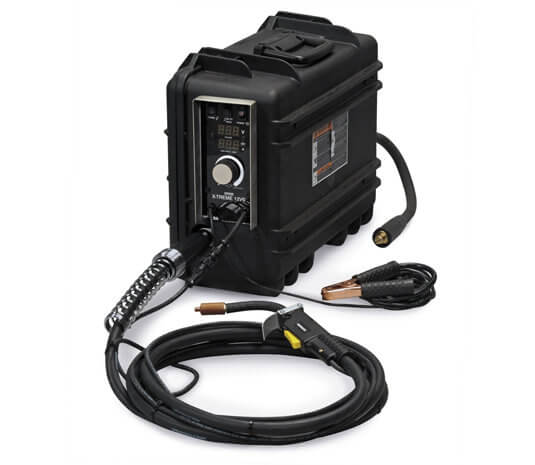

Miller SuitCase® X-TREME™ 12VS, Bernard ™ BTB 300 A Gun #951543

Voltage-sensing, portable feeders are designed to run off of arc voltage from almost any MIG welding power source, providing extreme reliability for construction and fabrication.

WHAT'S INCLUDED

  • SuitCase® X-TREME™ 12VS
  • Bernard™ BTB Gun 300 AMP, 15FT
  • .045 - 1/16 reversible dual VK drive rolls
  • CENTERFIRE contact tips, .045 (QTY 3), .052 (QTY 2)

Setting the Standard for Performance

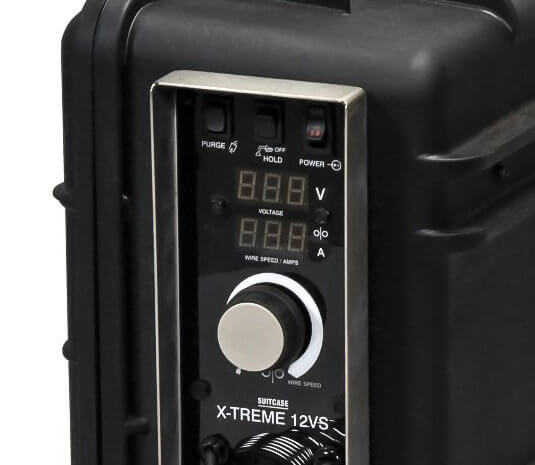

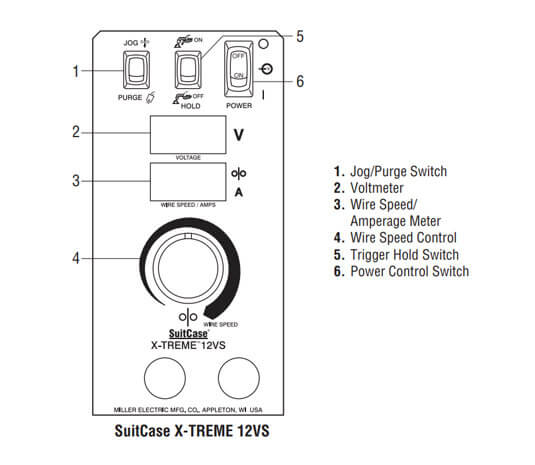

The heavy-duty drive motor with tachometer control provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from one weld to the next, which provides consistent arc quality. The front panel has trigger hold, wire jog, and gas purge for easy operator access. It also features a wide voltage range for small and large wires with no contactor chatter or arc outages.

Unique and Durable Case

The impact-resistant, flame-retardant case provides strength and durability. It protects components and welding wire from moisture, dust and other contaminants. Built-in slide rails allow you to drag the feeder into position for welding. The innovative feeder door design allows you to change the wire whether the feeder is standing upright or laying down.

Extreme Reliability

A potted and trayed main printed circuit board for the harshest environment adds exceptional reliability. The board has full-trigger isolation so a shorted gun trigger will not affect feeder operation. A gun locking tab works with guns having corresponding locking grooves to prevent the gun from being pulled out if the feeder is dragged by the gun. The gas inlet is recessed into the back of the case to protect it from incidental contact by the weld cable, ensuring consistent and contaminant-free shielding gas delivery to the gun. A double-filtered gas valve helps keep dirt from clogging and affecting gas flow.

Ultra-low Drag Inlet Guide Pins

Ultra-low drag guide pins make loading the wire easy and does not deform the wire on the way into the drive rolls improving wire feeding performance.

Scaled Wire Pressure Knob

The scale wire pressure knob provides easy adjustment and consistent pressure on the drive rolls and wire.

Digital Meters with SunVision™ Technology

Display voltage, wire feed speed, and also amperage if desired. Meters can be seen clearly even in direct sunlight.

Sizing

12VS model is sized for an 8- or 12-inch spool of wire. 12-inch spools are the most common in structural steel and fabrication.

Browse all welding machines available at Welders Supply.

PROCESSES

  • Flux Cored (FCAW)
  • MIG (GMAW)
Title SuitCase® X-TREME™ 12VS, Bernard ™ BTB 300 A Gun
Industries Interests Aerospace
Boat / Yacht
Construction
Heavy Equipment Manufacturing
High Purity Processing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Cooling Air-Cooled
Input Circuit Welding Rating 425 A at 60% Duty Cycle
Power Source Compatibility DC
Spool Size 12 in (305 mm)
Welding Power Source Type CC/CV
Wire Feeder Type Portable
Wire Feed Speed 50 IPM - 780 IPM
Wire Diameter Solid Wire 0.023 in 0.062 in
Flux Cored 0.03 in 0.078 in
Net Width 9 in
Net Height 15.5 in
Net Length 21 in
Net Weight 35 lbs
Warranty Miller's True Blue Warranty
Portability Handle(s)

SHIPPING DIMENSIONS

Height: 9.00 Inches
Width: 22.00 Inches
Length: 35.00 Inches
Weight: 53 Lb(s) 0 Oz

Product Questions and Answers


Q - What is the wire feed rate on this? A - 50 to 780 ipm
Q - This has been discontinued, but do you have any still in stock? A - We occasionally have demo units and used models available. Check our Used inventory.

Have a question about this product? Submit your question using the form below

Related Products

Bernard TGX MIG Gun, 260A, 15 ft. #MXS2615-35
Bernard TGX MIG Gun, 260A, 15 ft., 0.035 in. #MXS2615-35
$441.10
Bernard TGX MIG Gun, 260A, 15 ft., 0.045 in. #MXS2615-45
Bernard TGX MIG Gun, 260A, 15 ft., 0.045 in. #MXS2615-45
$441.10

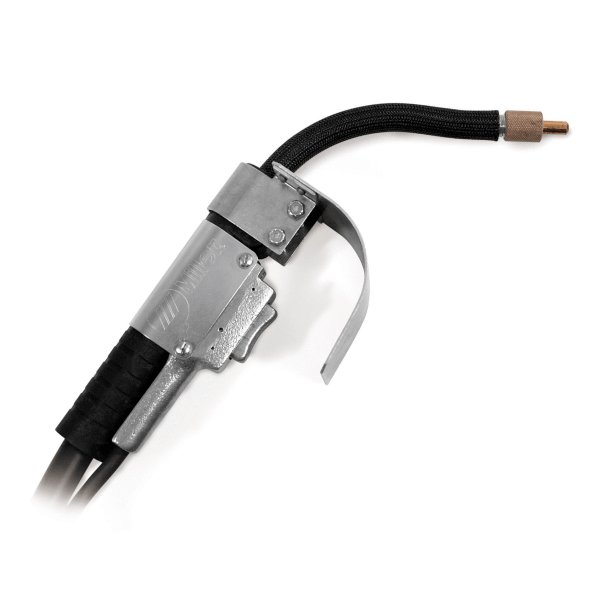

Ironmate Welding Gun for Miller S-22P/Super S-32P #195732
FC-1260 Ironmate™ Gun, 350 A, 10 ft #195732
$758.15
$758.16
Miller S-22P/Super S-32P Welding Gun #195729
FC-1260 Ironmate™ Gun, 350 Amps, 15 ft #195729
$854.35
$854.36
Miller .023 Two roll Drive Roll Kit #087131
Miller .023 Two roll Drive Roll Kit #087131
$55.10
$65.92
Miller .030 V-Groove Drive Roll Kit — for Solid Wire #079594
Miller .030 V-Groove Drive Roll Kit — for Solid Wire
$54.75
$65.92
.035 U-Groove Drive Roll Kit #044749
Miller .035 U-Groove Drive Roll Kit #044749
$65.00
$74.86
Miller .035 V-Groove Drive Roll Kit — for Solid Wire #079595
Miller .035 V-Groove Drive Roll Kit — for Solid Wire
$56.00
$65.92
Miller .035 V-Knurl Drive Roll Kit — for Flux Cored Wire #079606
Miller .035 V-Knurl Drive Roll Kit — for Flux Cored Wire
$101.40
$115.88
Miller .045 V-Groove Drive Roll Kit — for Solid Wire #079596
Miller .045 V-Groove Drive Roll Kit — for Solid Wire
$56.00
$65.92
Miller .045 V-Knurl Drive Roll Kit — for Flux Cored Wire #079607
Miller .045 V-Knurl Drive Roll Kit — for Flux Cored Wire
$101.40
$115.88
V Groove Drive Roll Kit for Millermatic and SuitCase Welding Machines
Miller .047 U-Groove Drive Roll Kit #079599
$74.85
$74.86

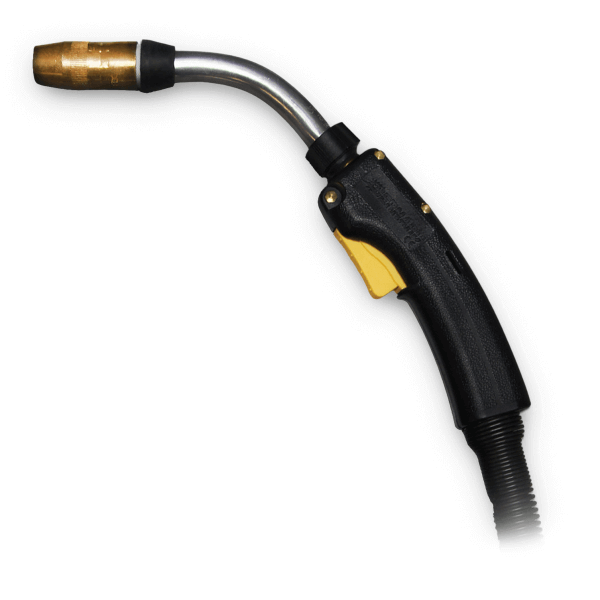

Bernard BTB MIG Gun , B Small Curved Handle, 300A, 15 ft. #Q3015AE8HMC
