Miller SuitCase® X-TREME™ 8VS, Bernard™ BTB 300 A Gun #951583

Part Number: 951583

Discontinued - Replaced by Miller SuitCase® 12RC, BTB 300A Gun #951580

Out of Stock
Starts at $350.00/month with

Welding type:

Mig

Mig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

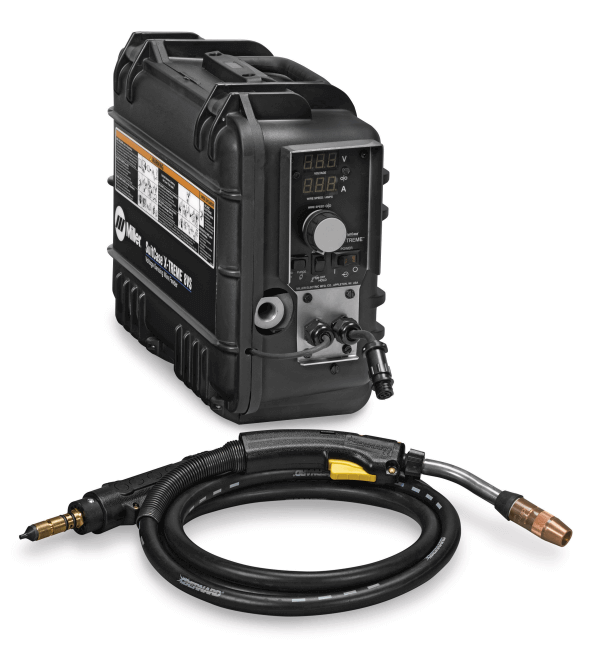

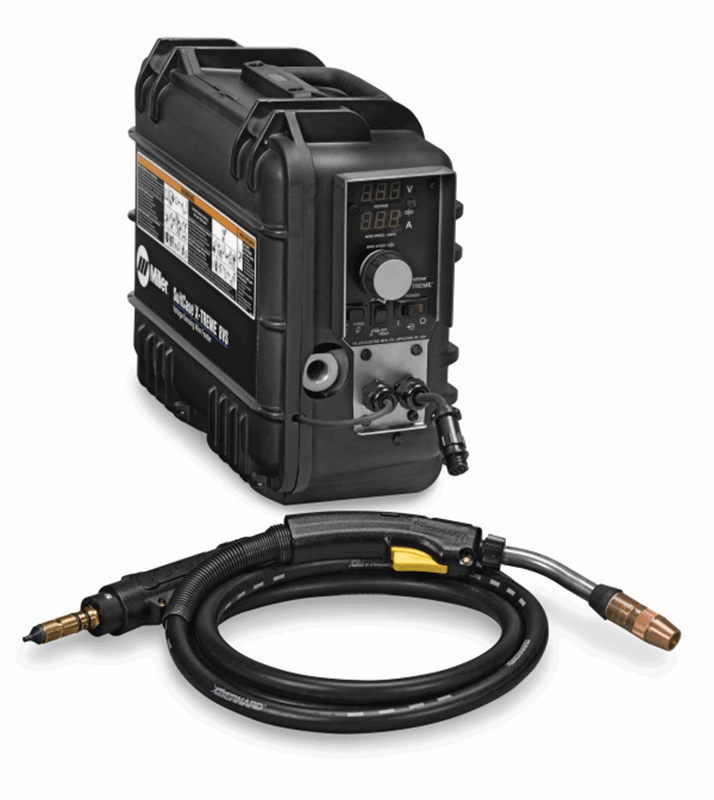

SuitCase® X-TREME™ 8VS, Bernard™ BTB 300 A Gun #951583

Voltage-sensing, portable feeders designed to run off of arc voltage from almost any welding power source, provides extreme reliability for construction and fabrication. Ideal for MIG welding.

WHAT'S INCLUDED

  • SuitCase® X-TREME™ 8VS
  • .045 - 1/16 reversible dual VK drive rolls
  • Bernard Q300 Gun

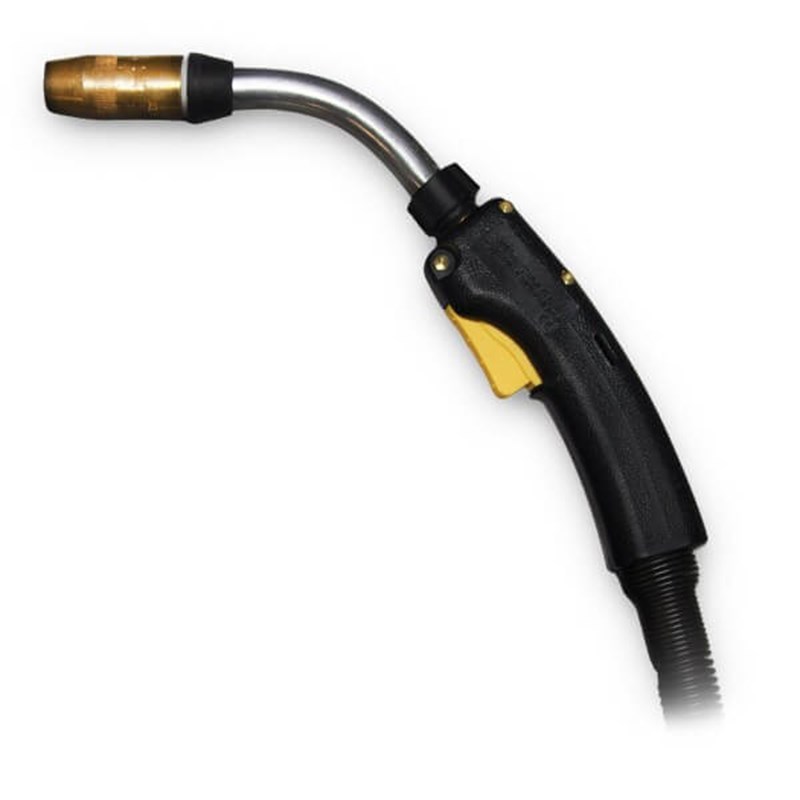

  • Bernard™ BTB 300A Gun
  • BTB 300A Gun
  • CENTERFIRE contact tips, .045 (QTY 3), .052 (QTY 2)

Setting the Standard for Performance

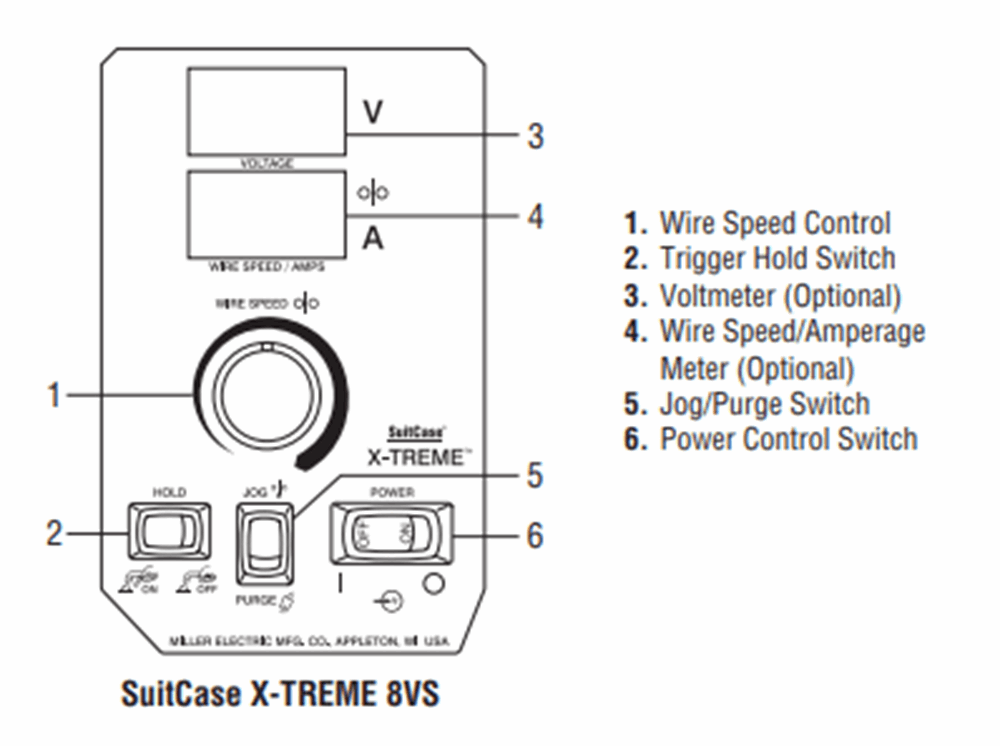

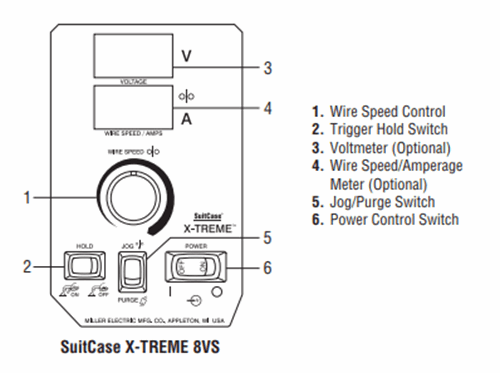

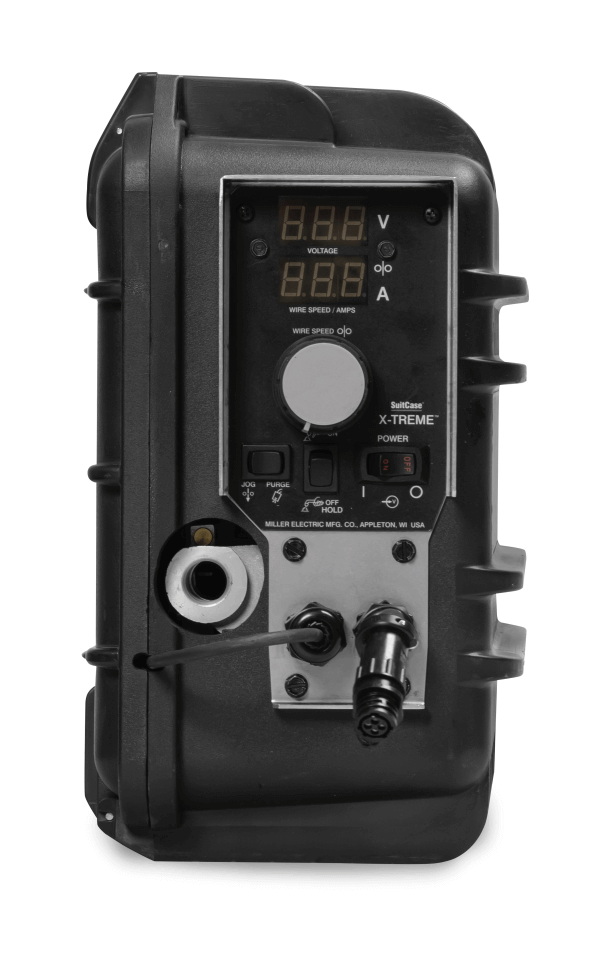

Heavy-duty drive motor with tachometer control provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from one weld to the next, which provides consistent arc quality. Front panel has trigger hold, wire jog, and gas purge for easy operator access. Wide voltage range for small and large wires with no contactor chatter or arc outages.

Unique and Durable Case

Impact-resistant, flame-retardant case provides strength and durability, and protects components and welding wire from moisture, dust and other contaminants. Built-in slide rails allow you to drag the feeder into position for welding. Innovative feeder door design allows you to change wire while feeder is standing upright or laying down.

Extreme Reliability

Potted and trayed main printed circuit board for the harshest environment adds exceptional reliability. Board has full-trigger isolation so a shorted gun trigger will not affect feeder operation. Gun locking tab works with guns having corresponding locking grooves to prevent gun from being pulled out if the feeder is dragged by the gun. Gas inlet recessed into back of case is protected from incidental contact by the weld cable, ensuring consistent and contaminant-free shielding gas delivery to the gun. Double-filtered gas valve helps keep dirt from clogging and affecting gas flow.

Ultra-low Drag Inlet Guide Pins

Makes loading the wire easy and does not deform the wire on the way into the drive rolls improving wire feeding performance.

Scaled Wire Pressure Knob

Provides easy adjustment and consistent pressure on the drive rolls and wire.

Digital Meters with SunVision™ Technology

Display voltage, wire feed speed, and also amperage if desired. Meters can be seen clearly even in direct sunlight.

Optional Digital Meters with SunVision™ Technology

Display voltage, wire feed speed, and also amperage if desired. Meters can be seen clearly even in direct sunlight.

Sizing

8VS model is sized for an 8-inch spool of wire, can be carried to remote welding sites and fits through a 14-inch manhole/manway.

Shop for the best welding machines on the market. Buy all your welding equipment online.

PROCESSES

  • Flux Cored (FCAW)
  • MIG (GMAW)
Title SuitCase® X-TREME™ 8VS, Bernard™ BTB 300 A Gun
Industries Interests Aerospace
Boat / Yacht
Construction
Heavy Equipment Manufacturing
High Purity Processing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Cooling Air-Cooled
Input Circuit Welding Rating 330 A at 60% Duty Cycle
Power Source Compatibility DC
Spool Size 8 in (203 mm)
Welding Power Source Type CC/CV
Wire Feeder Type Portable
Wire Feed Speed 50 IPM - 780 IPM
Wire Diameter Solid Wire 0.023 in 0.052 in
Flux Cored 0.03 in 0.078 in
Net Width 7.25 in
Net Height 12.75 in
Net Length 18 in
Net Weight 28 lbs
Warranty Miller's True Blue Warranty
Portability Handle(s)

SHIPPING DIMENSIONS

Height: 14.00 Inches
Width: 22.00 Inches
Length: 22.00 Inches
Weight: 4300 Lb(s) 0 Oz

Product Questions and Answers


Q - What input power is needed? A - It operates on open-circuit voltage and arc voltage: 14 – 48 VDC/110 max OCV
Q - What is the largest spool it will take? A - 8 in. (203 mm)M 14 lb. (6.4 kg)

Have a question about this product? Submit your question using the form below
