Miller SuitCase® 12RC, BTB 300A Gun #951580

Part Numbers: 951580
$4,177.00
$4,824.00* Save $647.00

Included with your purchase:

Select your Bundle!
Edit

    Welding type:

    Mig

    Mig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    •  Single Phase
    •  Lightweight and Portable
    •  3-Year Power Warranty

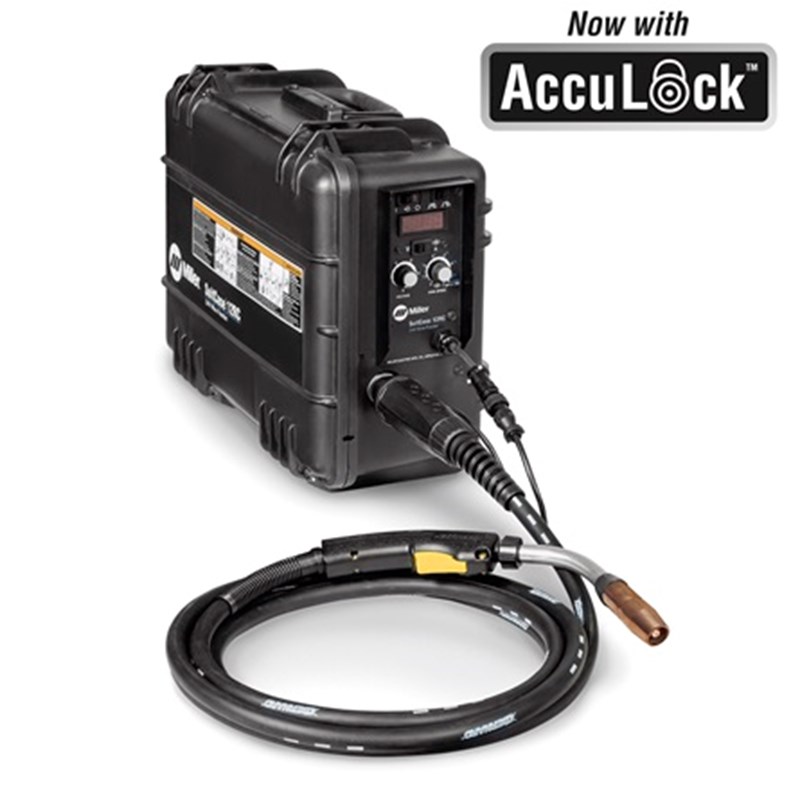

    Miller SuitCase® 12RC, BTB 300A Gun #951580

    Portable feeder for MIG welding with standard remote voltage control, for applications where the feeder is within 100 feet of the power source and control cords are acceptable.

    WHAT'S INCLUDED

    • .045 - 1/16 reversible dual VK drive rolls

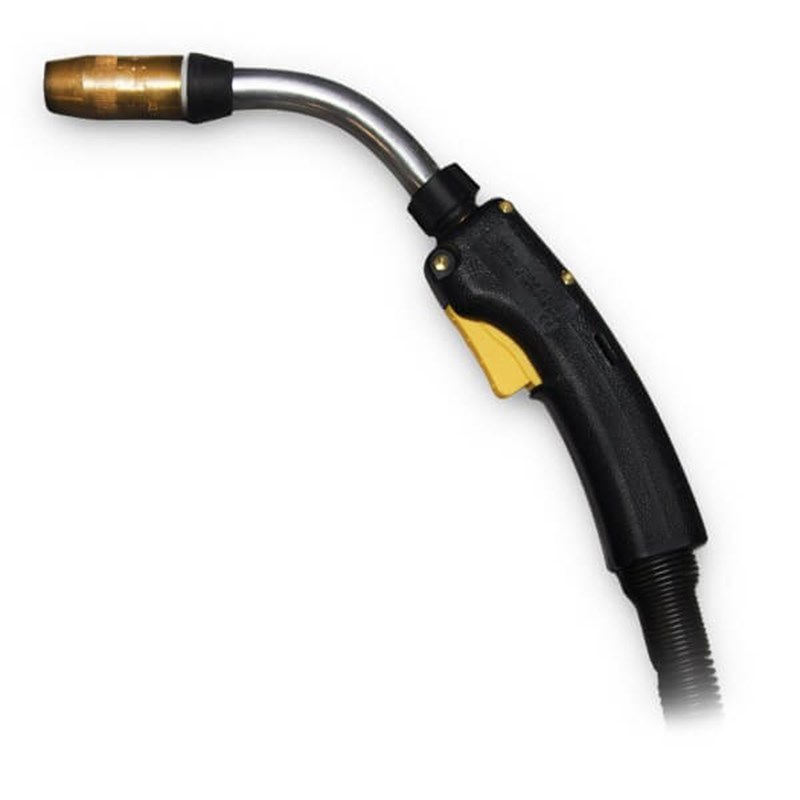

    • Bernard™ BTB Gun 300 AMP, 15FT
    • CENTERFIRE contact tips, .045 (QTY 3), .052 (QTY 2)

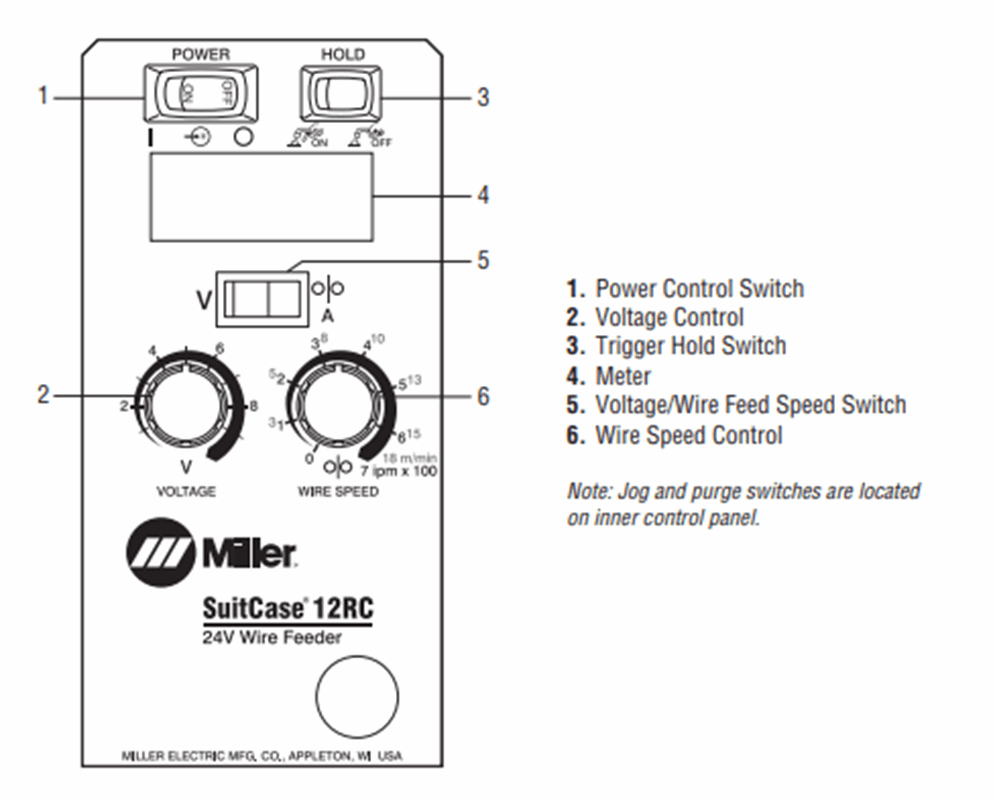

    Remote Voltage Control

    Saves the operator a trip back to the power supply for welding adjustments. For applications where the feeder is within 100 feet of the power source and control cords are acceptable.

    Setting the Standard for Performance

    Heavy-duty drive motor with tachometer control provides wire feed speed that is accurate and consistent from the start of the weld to the finish and from one weld to the next, which provides consistent arc quality. Wide voltage range for small and large wires with no contactor chatter or arc outages.

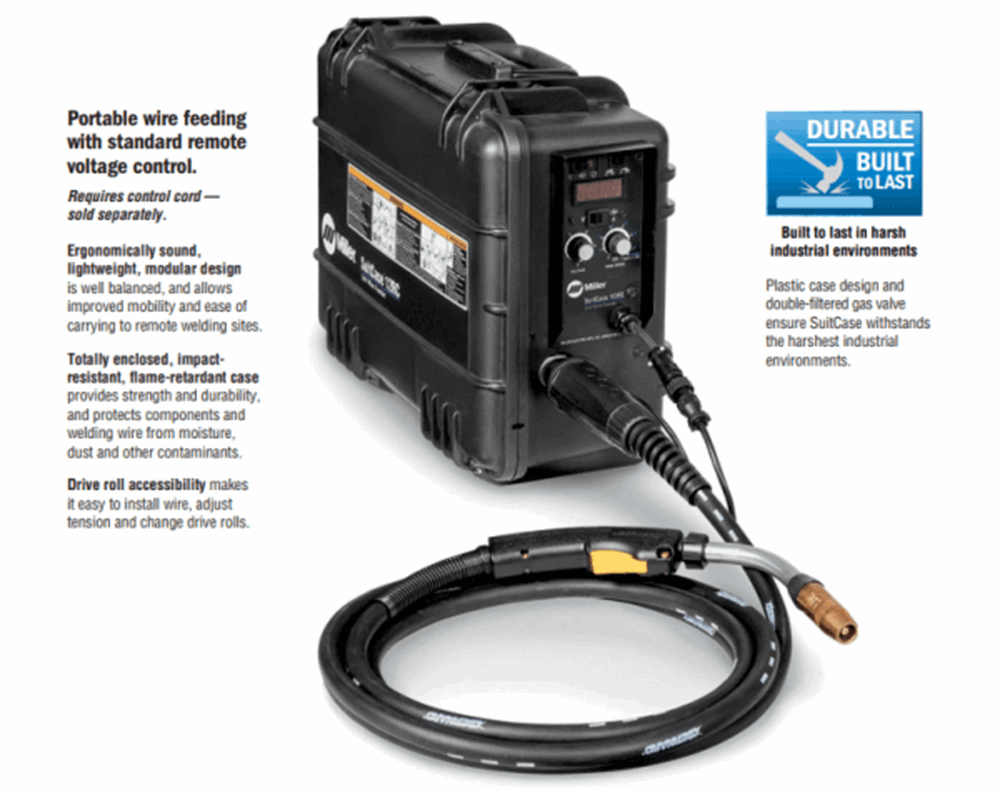

    Unique and Durable Case

    Impact-resistant, flame-retardant case provides strength and durability, and protects components and welding wire from moisture, dust and other contaminants. Built-in slide rails allow you to drag the feeder into position for welding. Innovative feeder door design allows you can change wire while feeder is standing upright or laying down.

    Extreme Reliability

    Potted and trayed main printed circuit board for the harshest environment adds exceptional reliability. Board has full-trigger isolation so a shorted gun trigger will not affect feeder operation. Gun locking tab works with guns having correspon - ding locking grooves to prevent gun from being pulled out if the feeder is dragged by the gun. Gas inlet recessed into back of case is protected from incidental contact by the weld cable, ensuring consistent and contaminant-free shielding gas delivery to the gun. Double-filtered gas valve helps keep dirt from clogging and affecting gas flow.

    Ultra-low Drag Inlet Guide Pins

    Make loading the wire easy and does not deform the wire on the way into the drive rolls improving wire feeding performance.

    Scaled Wire Pressure Knob

    Provides easy adjustment and consistent pressure on the drive rolls and wire.

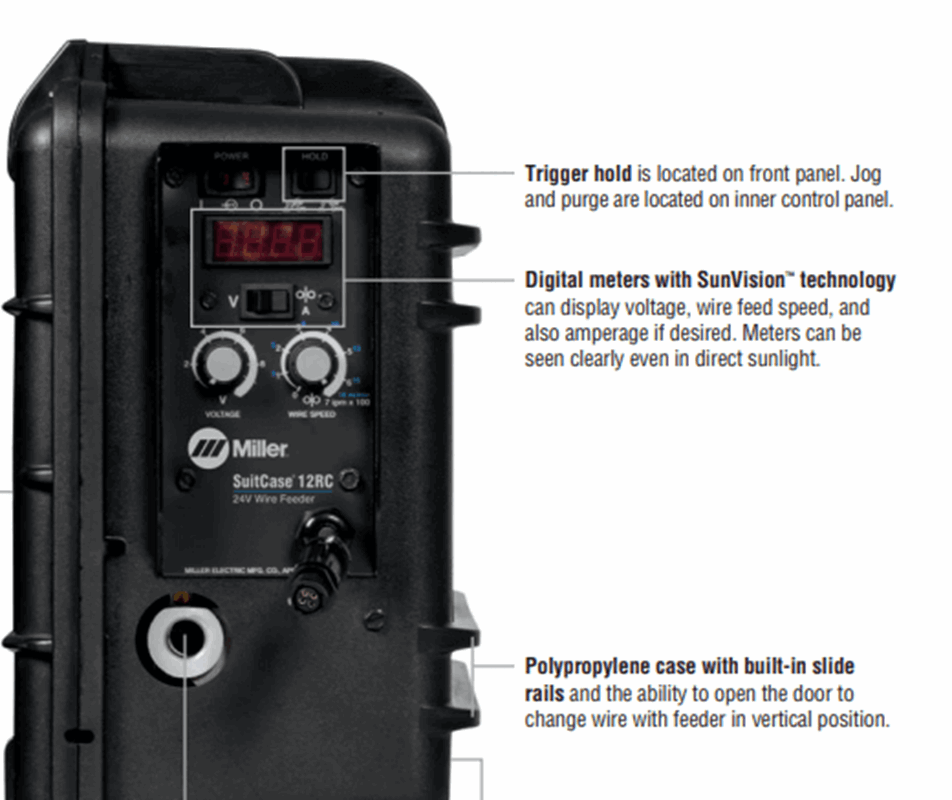

    Digital Meters with SunVision™ Technology

    Display voltage, wire feed speed, and also amperage if desired. Meters can be seen clearly even in direct sunlight.

    Find more welding machineswelding accessories and equipment online.

    PROCESSES

    • Flux Cored (FCAW)
    • MIG (GMAW)

    GENERAL SPECIFICATIONS

    Title SuitCase® 12RC, BTB 300A Gun
    Industries Interests Aerospace
    Boat / Yacht
    Construction
    Heavy Equipment Manufacturing
    High Purity Processing
    Infrastructure
    Manufacturing
    Railcar
    Shipbuilding
    Cooling Air-Cooled
    Input Circuit Welding Rating 425 A at 100% Duty Cycle
    Power Source Compatibility DC
    Spool Size 12 in (305 mm)
    Welding Power Source Type CV
    Wire Feeder Type Portable
    Wire Diameter Solid Wire 0.052 in 0.052 in
    Flux Cored 0.03 in 0.078 in
    Net Width 9 in
    Net Height 15.5 in
    Net Length 21 in
    Net Weight 31 lbs
    Warranty Miller's True Blue Warranty
    Portability Handle(s)

    SHIPPING DIMENSIONS

    Height: 16.00 Inches
    Width: 17.00 Inches
    Length: 26.00 Inches
    Weight: 47 Lb(s) 0 Oz

    Product Questions and Answers


    Q - Can you connect a spoolgun to this to run aluminum? A - No, the Suitcase 12RC is a feeder only. You can't connect a spoolgun.
    Q - What do you use for a ground cable on this? A - The Suitcase 12RC uses the ground cable from your power source.
