Miller Digital Infinity™ CAT® 2nd Edition #282007

Part Number: 282007
Out of Stock
$299.00 $428.45*
SAVE $129.45

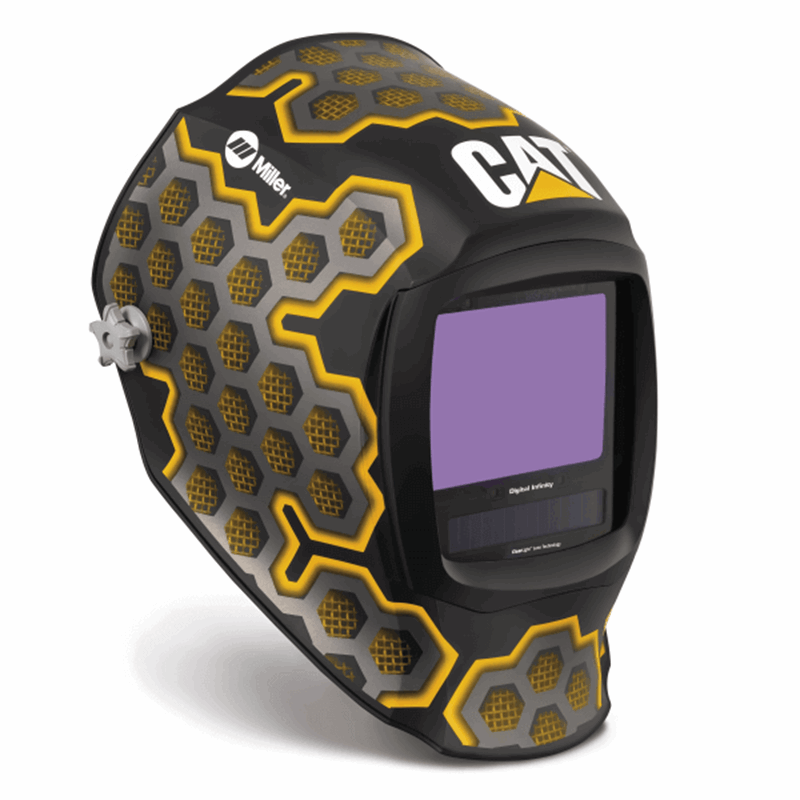

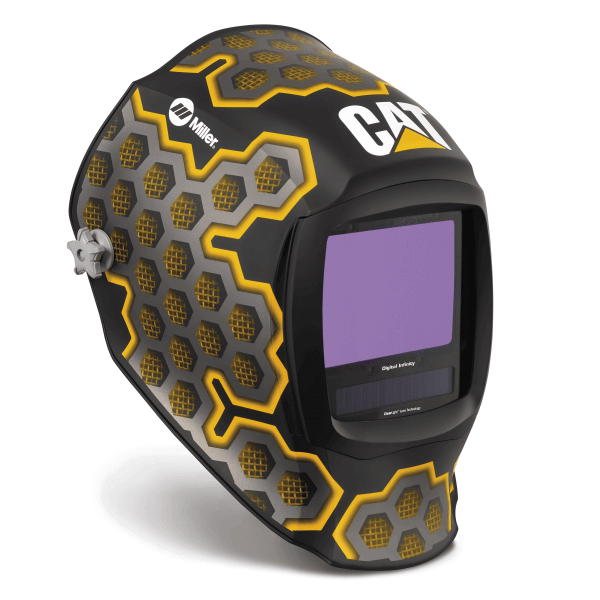

Miller Digital Infinity™ CAT® 2nd Edition #282007

If you're a fan of CAT and Miller, this auto-darkening welding helmet in the Digital Infinity Series is right for you. This helmet comes with all of the Digital Series features that welders love:

WHAT'S INCLUDED

  • 5 outside cover lenses
  • 2 inside cover lenses
  • Helmet bag
  • Clip-on Top Comfort Cushion—LIMITED TIME!

Exclusive arc tracking technology features arc time, time and timer functions, and a multi-language help menu.

Digital Controls

Intuitive design and large push buttons allow user to easily adjust mode and settings.

Four Operating Modes

Weld, Cut, Grind, and X-Mode provide ultimate versatility.

Four Arc Sensors

Four independent arc sensors provide superior lens response for obstructed or low amp welding.

X-Mode

Electromagnetically senses the weld to eliminate sunlight interference and continuously detects the arc even if sensors are blocked.

Auto-On/Off

Lens automatically turns on at the strike of an arc.

13.4 sq. in. Viewing Area

Provides the largest view in the industry.

Redesigned Headgear

Oversized comfort cushion provides extensive adjustability, settings, and enhanced support.

ClearLight™ Lens Technology

Optimizes contrast and clarity in welding and light states

Miller Digital Infinity™ Cat® 2nd Edition #282007 Specs

Viewing Area 13.4 sq. in (86.45 sq. cm)
Operating Modes Weld, Cut, Grind, X-Mode
Shade Range Cut: 5-8
Weld: 8-13
Arc Sensors 4
TIG Rating 5 amps & below
Switching Speed 1/20,000 sec
Delay Control Yes
Digital Yes
Grind Mode Yes
New Headgear Yes
Low Amp TIG Rated Yes
Low Battery Indicator Yes
Sensitivity Control Yes
Shell Material Nylon
Net Width 10.5 in
Net Height 8.5 in
Net Length 12.5 in
Weight 1.44 lbs (23 oz, 652 g)
Warranty 3 Years - Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 12.00 Inches
Width: 12.00 Inches
Length: 12.00 Inches
Weight: 5 Lb(s) 0 Oz

Product Questions and Answers


Q - What headgear is in this helmet? A - Miller's Gen 3.5 headgear.
Q - What external cover lens does this take? A - #271320. This comes in a 5-pack.
