Expanded capabilities from 74D, adds push-pull aluminum capabilities. Optimized with Invision™ MPa or XMT® MPa power sources.
Trigger Schedule Select
Save time when switching between two weld settings by simply tapping gun trigger.
Accu-Mate™
Properly seats the MIG gun power pin for best feeding performance.
Alumination™
Gives you the ability to use the extended reach of a push-pull system for consistent, versatile and dependable aluminum wire feeding.
Digital Meters
Ensure accuracy when presetting and reading actual voltage, amperage and wire feed speed.
Remote Voltage Control
Allows you to set both voltage and wire feed speed at the feeder, saving time and increasing weld quality because optimal weld parameters are easy to set.
Complete Your System

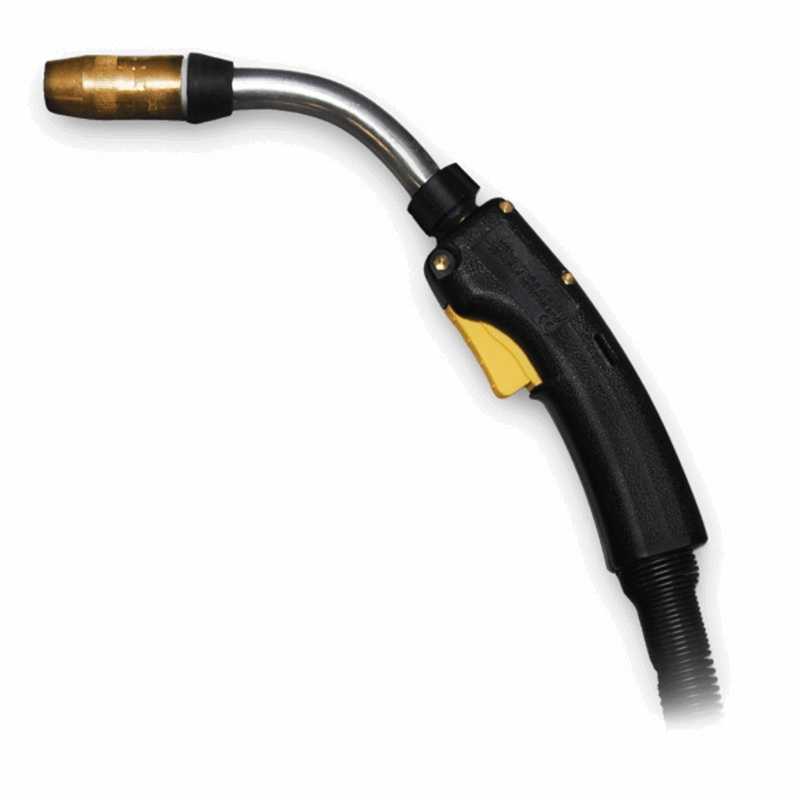

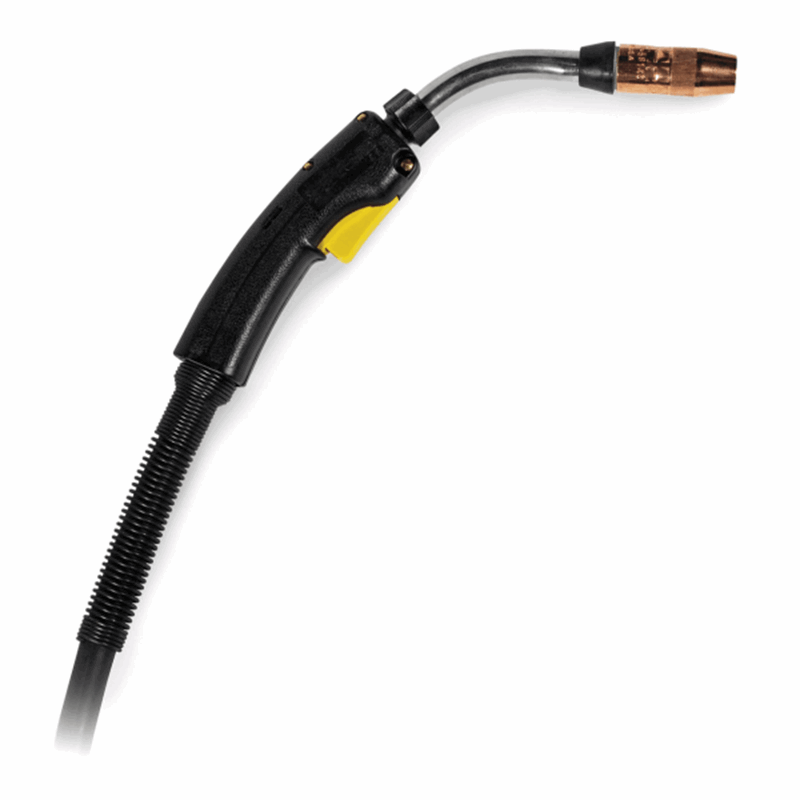

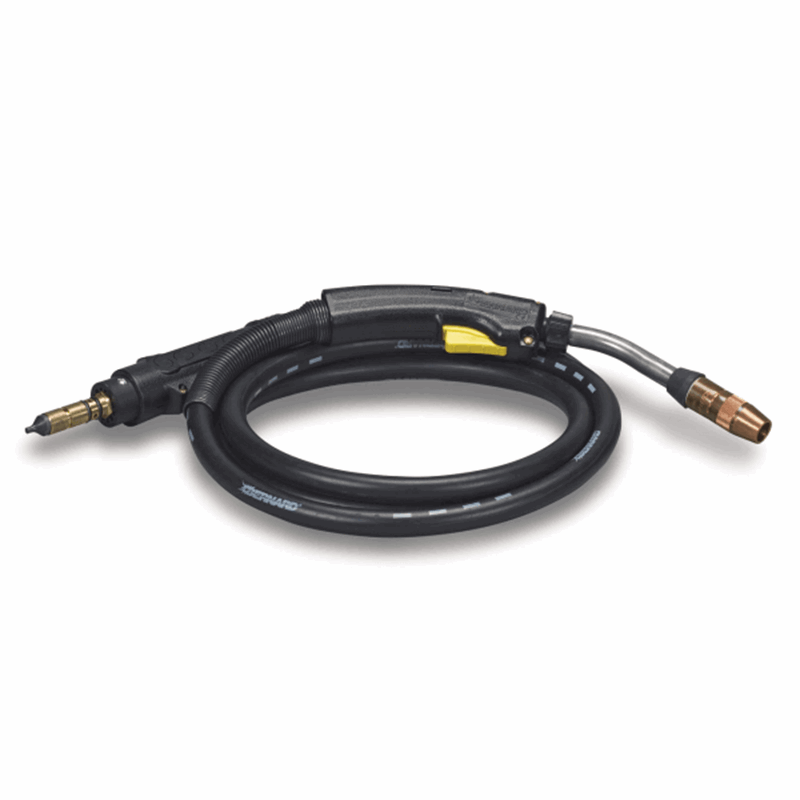

Dedicated XR™-Pistol Plus and XR-Aluma-Pro™ Plus guns work with this feeder to coordinate wire feed speed of the gun and the feeder. This provides optimized aluminum feeding and welding performance.
Additional features when used with Invision MPa or XMT MPa power sources
Synergic Pulsed MIG. As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments. Profile Pulse™ provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.
Remote Configurations
Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.

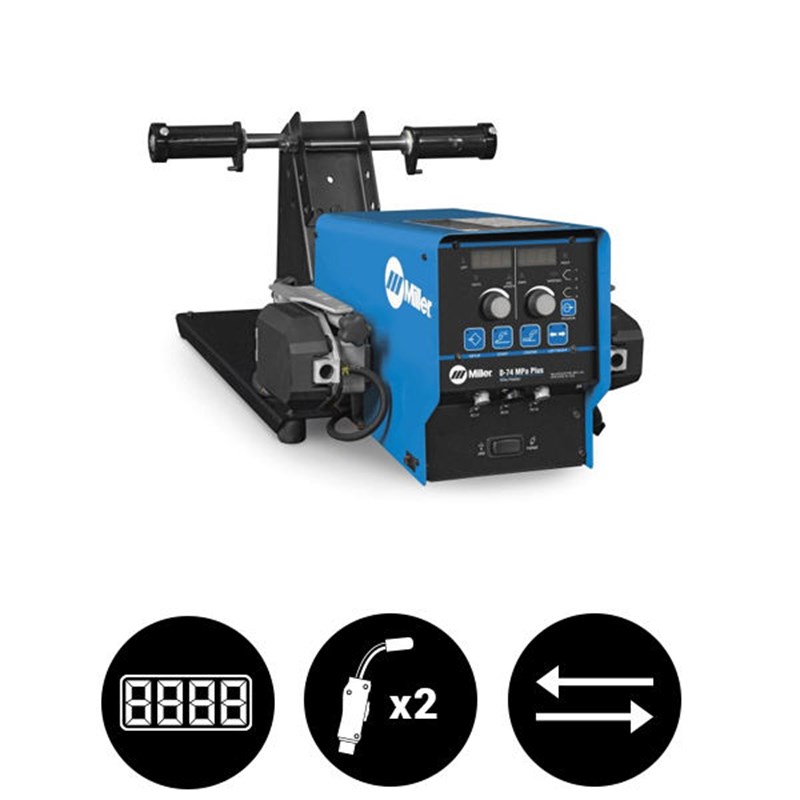

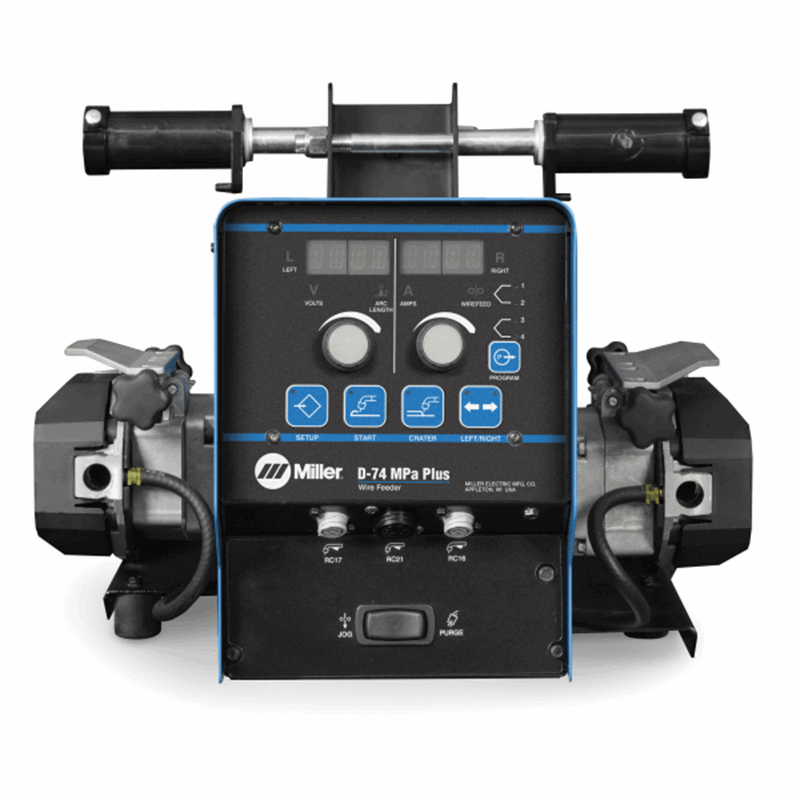

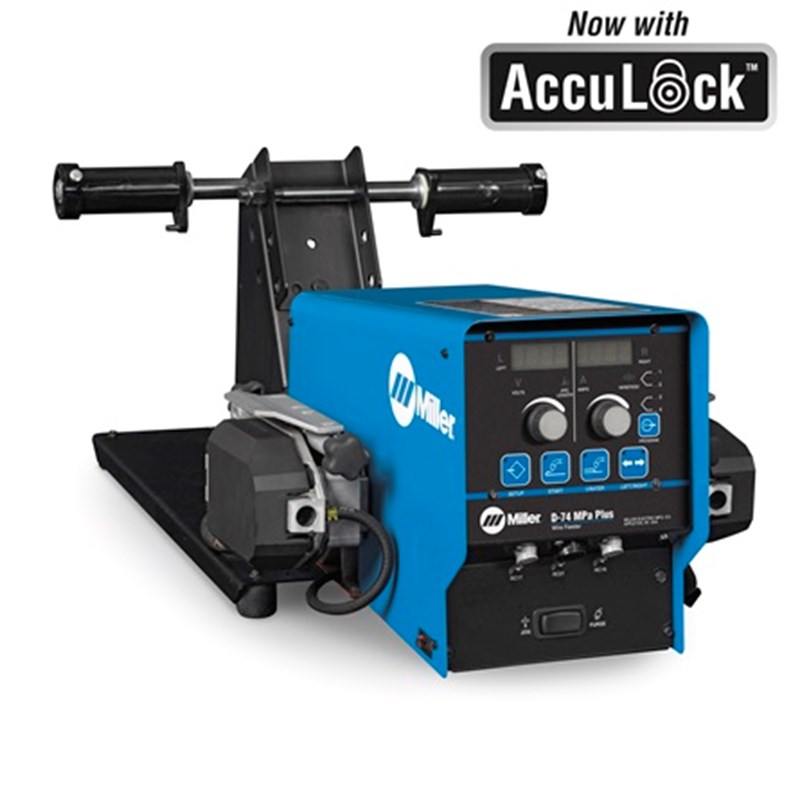

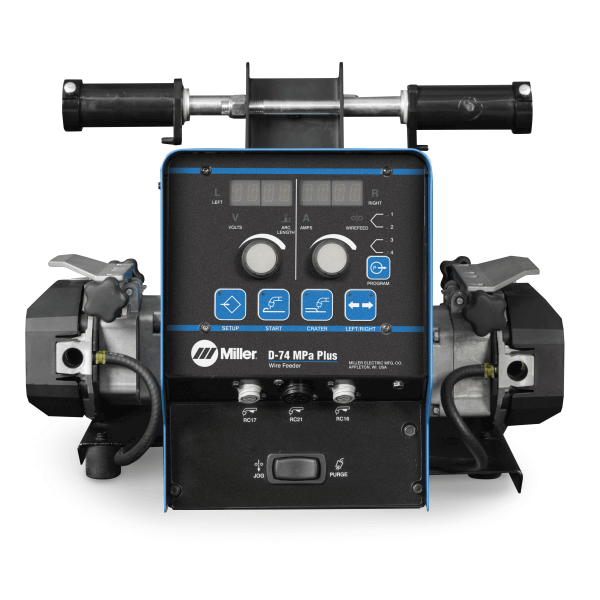

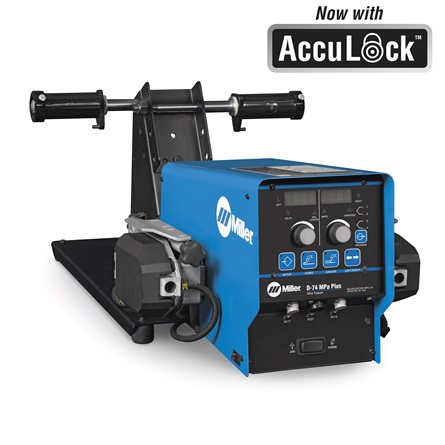

Miller D-74 MPa Plus Specifications: |
|
| Industries Interests | Aerospace Construction Infrastructure Heavy Equipment Manufacturing Manufactring Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Input Circuit Welding Rating |
750A at 100% Duty Cycle |
| Power Source Compatibility |
CV |
| Welding Power Source Type |
CV |
| Wire Feeder Type |
Bench |
| Wire Feeder Speed |
50 IPM - 780 IPM |
| Wire Diameter |
Solid Wire 0.023 in 0.094 in Flux Cored 0.023 in 0.094 in Aluminum 0.03 in 0.0625 in |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 15.00 Inches |
| Width: | 21.00 Inches |
| Length: | 37.00 Inches |
| Weight: | 99 Lb(s) 0 Oz |
