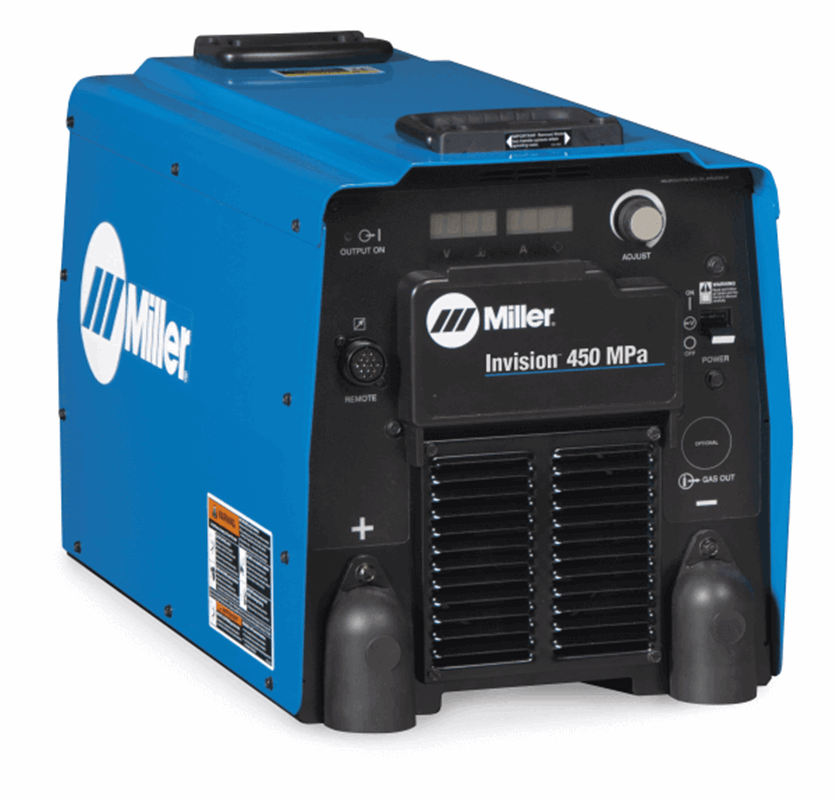

Miller Invision™ 450 MPa #907486

Part Numbers: 907486
$9,013.00
$10,409.00* Save $1,396.00

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    • MIG & Pulsed MIG
    • Three Phase Input
    • Multiprocess Compatible
    • 3-Year Miller Warranty

    Miller Invision™ 450 MPa 575 V #907486

    Using cutting edge technology like the 'Miller Invision MPa Plus System' puts the Invision 450 MPa ahead of the competition. This MIG Welding Power Source uses MPa(MIG Pulse Advanced Arc Control) which improves the pulse welding arc. It also provides a more robust and stable arc at very low arc length, decreasing heat input, and providing the option to weld on a wider array of material thickness.

    The Miller Invision 450 MPa features an easy setup which consists of selecting wire diameter, wire type, gas being used and wire speed. Then you simply strike an arc and your MIG Welding Power Source is ready for use.



    Miller Invision 450 MPa #907486 Additional Features

    • Wind Tunnel Technology - Protects electrical components from contamination
    • Fan-on-Demand - The fan cooling system operates only when a heat temperature thresh-hold is met. This helps to reduce noise, energy use and the amount of contaminants pulled through MIG Welding Power Source.

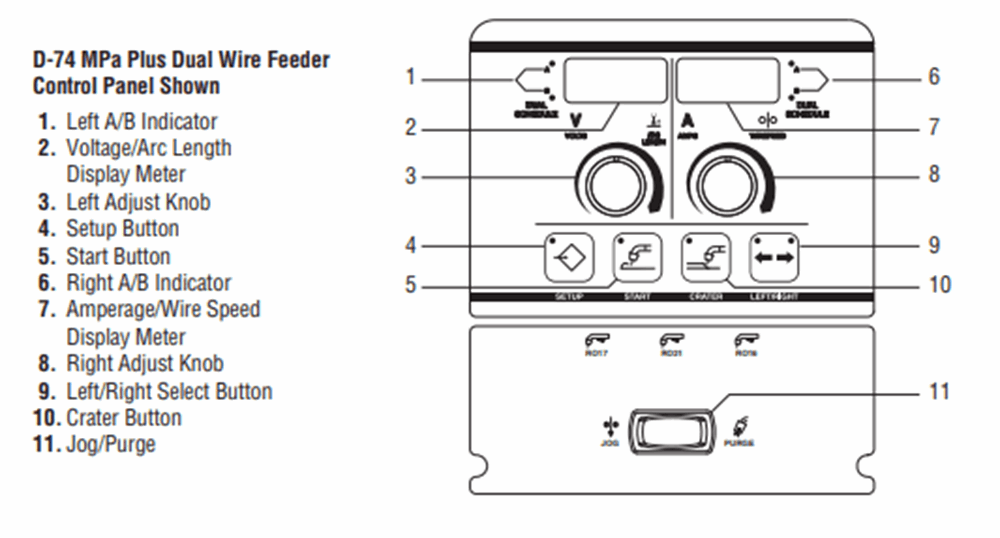

    • Dual Wire Feeder - Two wire accessible, the Miller Invision 450 has the flexibility to switch between jobs on the fly without having to set up again, reducing time and money spent.
    • Much more!



    Miller Invision 450 MPa #907486 MIG programs

    Standard built-in Pulsed MIG programs with synergic capability for the following metals:

    • Steel
    • Metal Core
    • Aluminum
    • Stainless Steel
    • Nickel
    • Silicon Bronze
    • Copper Nickel



    Miller Invision 450 MPa #907486 Built in Pulsed MIG Program Specs

    Wire Types   Gas Types
    Steel .035 STL, .045 STL

    90% ARGN / 10% CO2 (argon/carbon dioxide)
    95% ARGN / 5% OXY (argon/oxygen)

    .052 STL (450 model only)
    1/16 STL (450 model only)

    90% ARGN / 10% CO2 (argon/carbon dioxide)
    95% ARGN / 5% OXY (argon/oxygen)
    Metal Core

    .035 MCOR
    .045 MCOR
    .052 MCOR
    1/16 MCOR (450 model only)

    90% ARGN / 10% CO2 (argon/carbon dioxide)
    Stainless Steel

    .035 SSTL, .045 SSTL

    TRI MIX, Tri-gas mixture:
    81% ARGN / 18% HE / 1% CO2
    (argon/helium/carbon dioxide)
    98% ARGN / 2% OXY (argon/oxygen)
    98% ARGN / 2% CO2 (argon/carbon dioxide)

    1/16 SSTL (450 model only)

    98% ARGN / 2% CO2 (argon/carbon dioxide)
    Aluminum

    .035 AL4X (4000 series)
    .040 AL4X (4000 series)
    3/64 AL4X (4000 series)
    1/16 AL4X (4000 series)

    100% ARGN (argon)

    .035 AL5X (5000 series)
    .040 AL5X (5000 series)
    3/64 AL5X (5000 series)
    1/16 AL5X (5000 series)

    100% ARGN (argon)
    75% HE / 25% ARGN (helium/argon)

    .035 AL49
    3/64 AL49
    1/16 AL49

    100% ARGN (argon)
    Nickel

    .035 NI, .045 NI

    75% ARGN / 25% HE (argon/helium)

    1/16 NI (450 model only)

    100% ARGN (argon)
    Silicon Bronze

    .035 SIBR

    100% ARGN (argon)
    Copper Nickel

    .045 CUNI

    75% HE / 25% ARGN (helium/argon)
    Check out our selection of Mig, Tig and Stick welders available for purchase online

    OTHER VERSIONS:

    • 907431: Miller Invision™ 352 MPa Power Source
    • 907485: Miller Invision™ 450 MPa Power Source 230/460 VAC Input
    • 951457: Miller Invision™ 450 MPa Running Gear Package
    • 951499: Miller Invision™ 450 MPa MIGRunner™ Package

    Miller Invision™ 450 MPa Specifications:

    Input Voltage Options 575 VAC, 60 Hz, 3-phase power
    Welding Output Range CC mode: 15–600 A
    CV mode: 10–38 V
    Max Open Circuit Voltage 90 VDC
    Processes MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW), & Air Carbon Arc Cutting and Gouging (CAC-A, 5/16-in. carbons max)
    Industrial Applications Aerospace, Construction, Heavy Equipment Manufacturing, Infrastructure, Manufacturing, Railcar, Shipbuilding, Boat / Yacht, & High Purity Processing
    Weldable Metals Steel, Metal Core, Aluminum, Stainless Steel, Nickel, Silicon Bronze, & Copper Nickel
    Rated Output 450 A at 36.5 VDC, 100% duty cycle
     Ancilliaries
    Net Width 14.5 in. (368 mm)
    Net Height 17.25 in. (438 mm)
    Net Length 27.125 in. (689 mm)
    Net Weight 122 lb. (55.3 kg)
    Portability Handles
    Running Gear / Cart (Optional)
    Warranty 3-year Miller's True Blue Warranty

    Product Questions and Answers


    Q - What coolant does this take? A - Miller Coolant #043 809. This is sold in cases of four one-gallon recyclable plastic bottles. It contains a base of ethylene glycol and deionized water to protect against freezing to -37 degrees Fahrenheit or boiling to 227 degrees.
    Q - Is there a cover for this? A - Yes, the Miller Protective Cover #195 478
