Miller Invision™ 450 MPa Pkg 951457 Miller Invision 450 MPa Running Gear Pkg

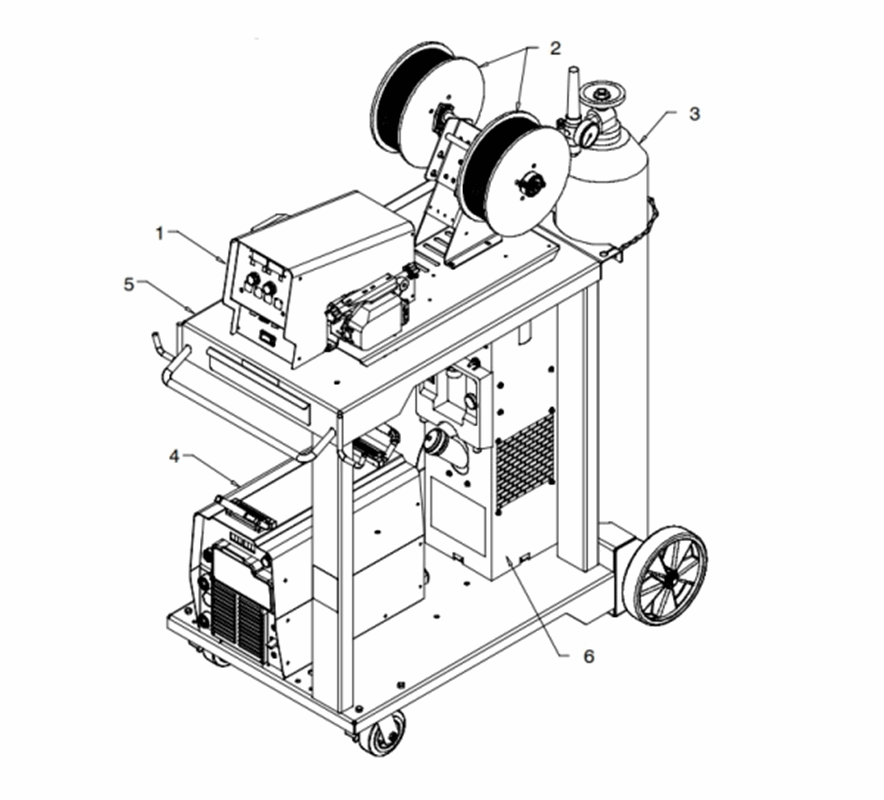

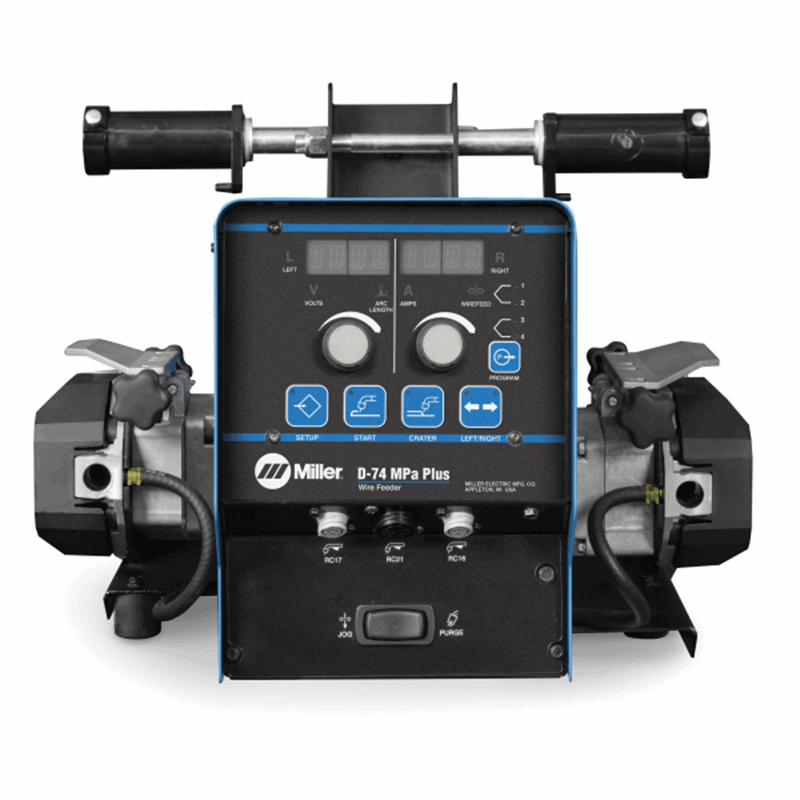

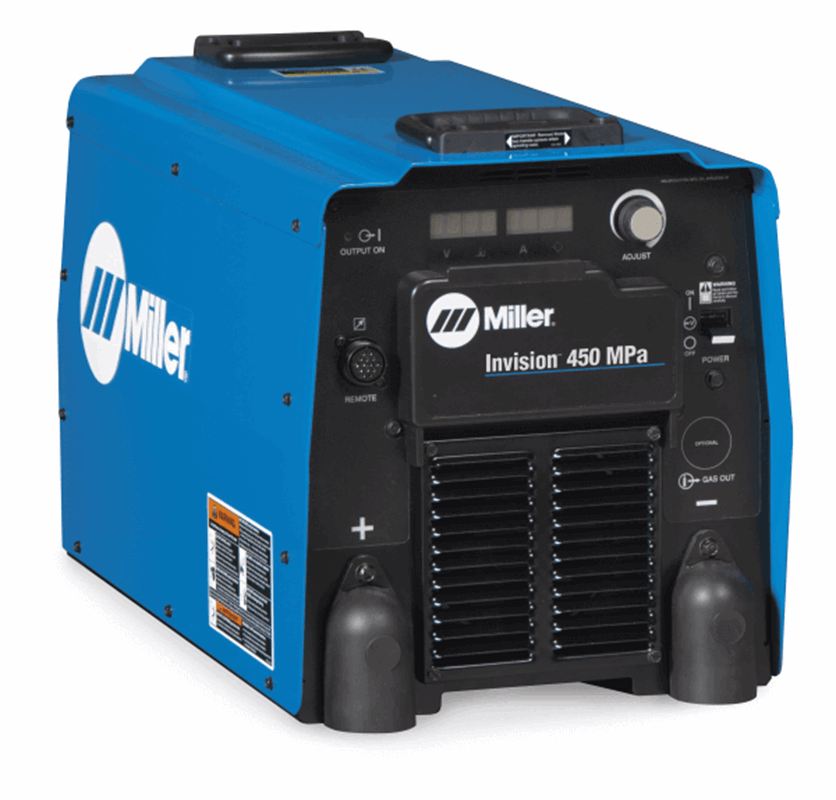

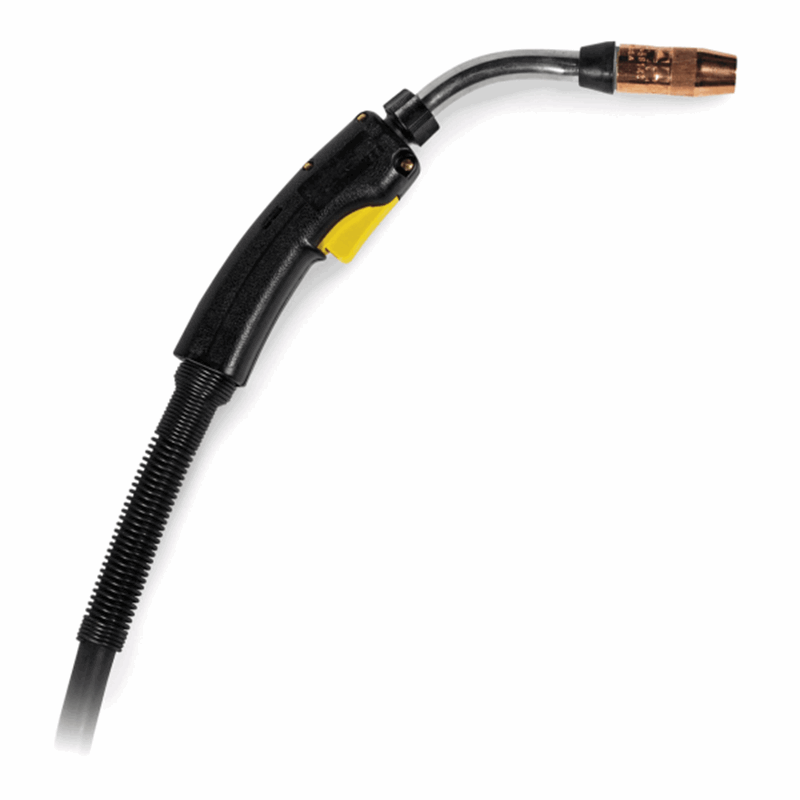

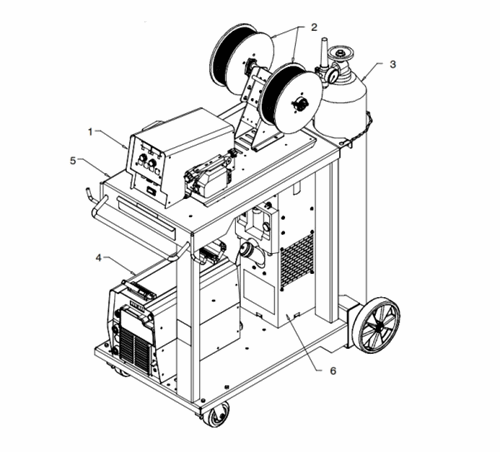

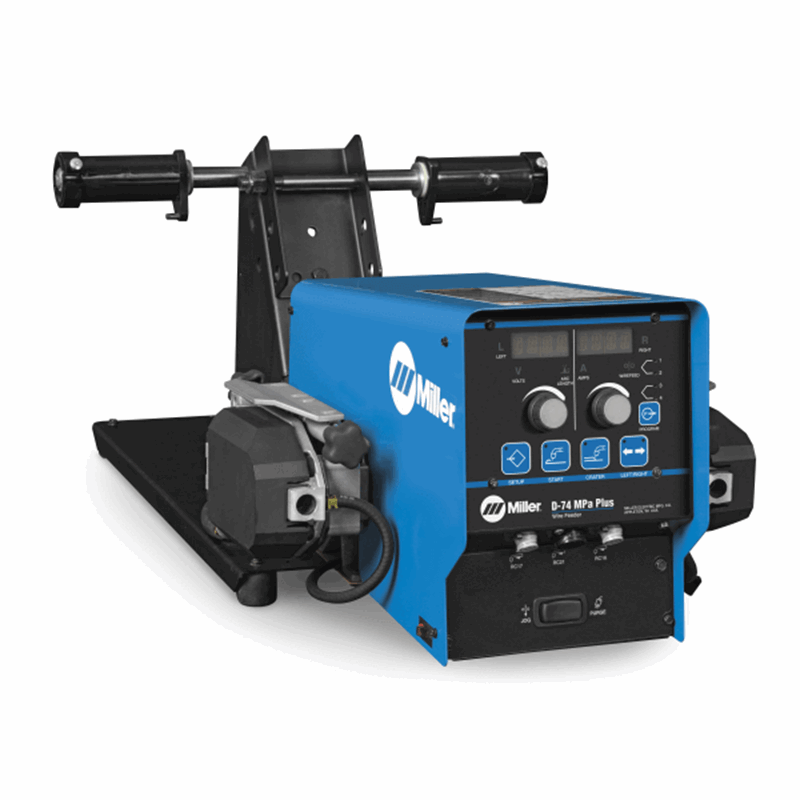

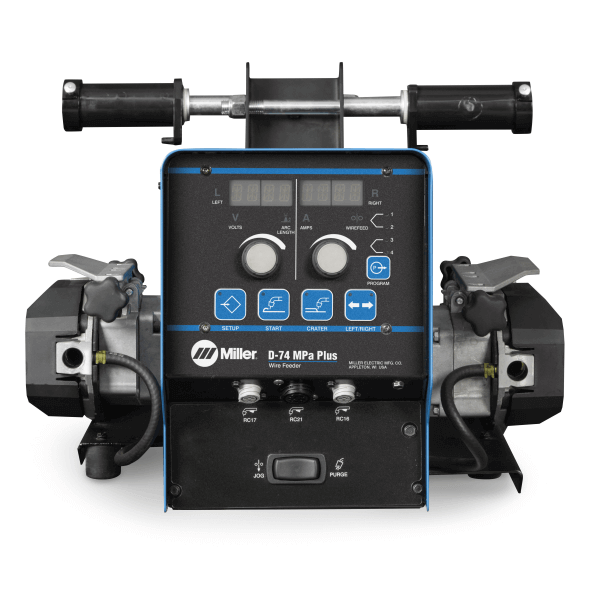

Miller Invision™ 450 MPa Pkg 951457 Miller Invision 450 MPa Welding Machine Profile D-74 MPa Plus Welding Dial Feeder Front D-74 MPa Plus Welding Dial Feeder Angled Profile Miller Bernard Q400 Welding Gun Miller Invisionâ„¢ 450 MPa Pkg 951457 Runner Schematic

Miller Invision™ 450 MPa Running Gear Pkg 951457

Part Numbers: 951457
$20,507.00
$23,684.00* Save $3,177.00

Included with your purchase:

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    220V 3 Phase

    220V 3 Phase

    460V

    460V

    • MIG Welding
    • 3-Phase Input
    • 3 Year Warranty

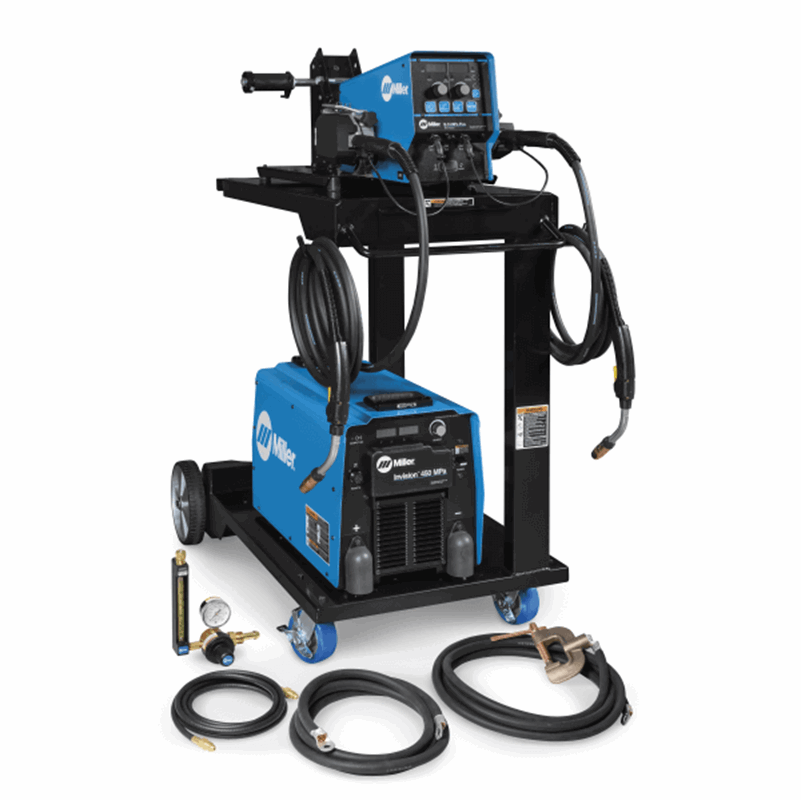

    Miller Invision™ 450 MPa 230/460 V, D-74 MPa Plus (Dual), 2 Bernard™ BTB 400 A 15 Ft, Running Gear Pkg #951457

    The Invision 450 comes equipped with optimized MIG and synergic pulsed MIG programs. Thanks to Fan-On-Demand™, the Invision 450's cooling system only runs when needed, significantly reducing noise to improve communication around the job site and reduce the amount of contaminants drawn into the machine. Synergic Pulsed MIG automatically adjusts parameters to match the wire speed, making operation much more convenient for welders who no longer need to make any additional adjustments.

    What's Included:

    • Invision 450 MPa
    • Dual 74 MPa Plus Feeder
    • BTB 400A Gun (qty 2)
    • Centerfire contact tips, .035 (QTY 3), .045 (QTY 2) 2 sets
    • .035-.045 reversible dual V drive rolls (2 sets)
    • Running gear, cylinder rack
    • 4/0 weld cables, Gas valve and gas hose

    Features:

    • Built-in MIG and Pulsed MIG programs
    • Synergic Pulsed MIG
    • Profile Pulse™
    • Wind Tunnel Technology™
    • Fan-On-Demand™
    • SharpArc® technology
    • Recommended Aluminum Solution
    Check out the wide selection of Miller welders,  CK worldwide welding machines, and Victor ESAB welders available at Welders Supply Company.


    Other Versions of the Miller Invision™ 450 MPa:

    Miller Invision™ 450 MPa Specifications:

    Input Voltage Options 230/460 or 575 VAC, 60 Hz, 3-phase power
    Welding Output Range CC mode: 15–600 A
    CV mode: 10–38 V
    Max Open Circuit Voltage 90 VDC
    Processes MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW) & Air Carbon Arc Cutting and Gouging (CAC-A, 5/16-in. carbons max)
    Industrial Applications Aerospace, Construction, Heavy Equipment Manufacturing, Infrastructure, Manufacturing, Railcar, Shipbuilding, Boat / Yacht & High Purity Processing
    Weldable Metals Steel, Metal Core, Aluminum, Stainless Steel, Nickel, Silicon Bronze & Copper Nickel
    Rated Output 450 A at 36.5 VDC, 100% duty cycle
     Ancilliaries
    Net Width 14.5 in. (368 mm)
    Net Height 17.25 in. (438 mm)
    Net Length 27.125 in. (689 mm)
    Net Weight 122 lb. (55.3 kg)
    Portability Handles
    Running Gear / Cart (Optional)
    Warranty 3-year Miller's True Blue Warranty

    SHIPPING DIMENSIONS
    Height: 48.00 Inches
    Width: 48.00 Inches
    Length: 72.00 Inches
    Weight: 465 Lb(s) 0 Oz

    Product Questions and Answers

    Q - What guns do I need to weld aluminum? A - XR Pistol Plus or XR Aluma Pro Plus guns will work with the 74 MPA Plus feeder to optimize feeding and welding performance.
    Q - Does it have pulse on pulse? A - Yes. it has pulse on pulse, which Miller calls "profile pulse."
