Miller SubArc DC 650 Digital Portable Welding System #951675

Part Numbers: 951675

Included with your purchase: ()

Professional mobile welder Miller SubArc DC 650 Digital Portable Welding System quick shipping
Miller SubArc DC 650 Digital Portable We...
Miller Classic Series Welding Helmet with ClearLight™ Lens Technology, VS Black #287803
FREE!
Miller Classic Series Welding Helmet wit...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$87,882.00 + Free Shipping $87,882.00*
SAVE $0.00
$87,882.00 + Free Shipping $87,882.00*
SAVE $0.00

Call 844-682-0205 or CHAT for more options

Welding type:

Submerged Arc

Submerged Arc

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  • Fork Pockets for Portability
  • Horizontal & Vertical Torch Positions
  • Column Requires 1-Phase Power
  • Power Source Requires 3-Phase Power
  • 3-Year Miller Warranty

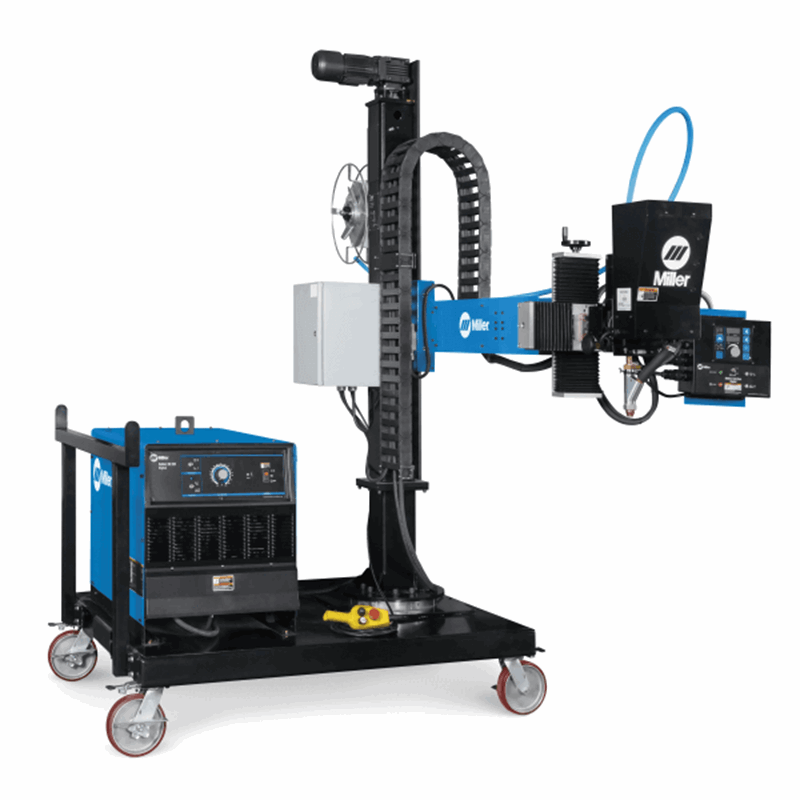

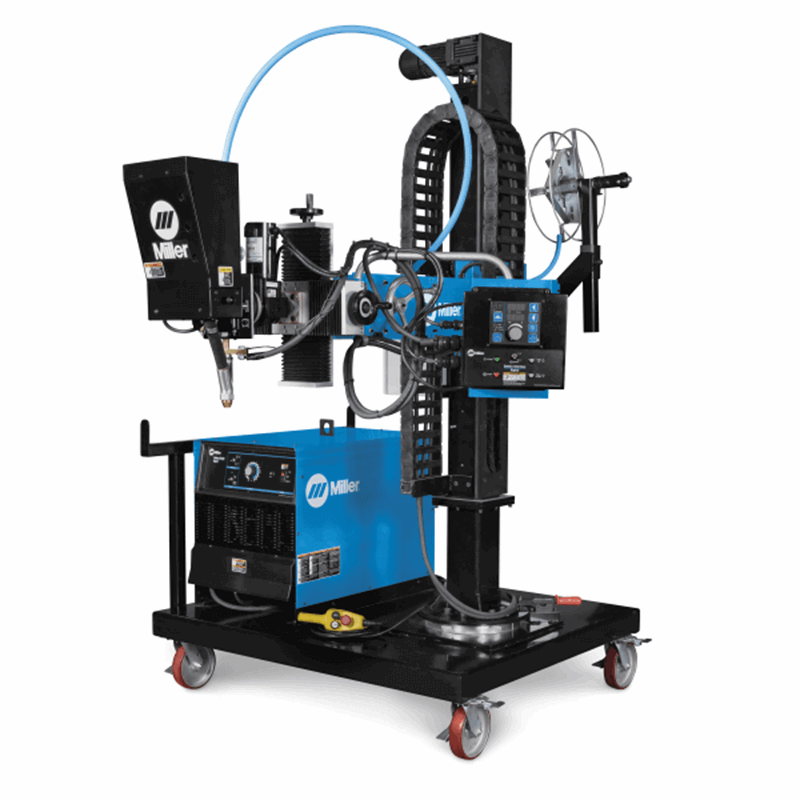

Miller SubArc DC 650 Digital Portable Welding System 951675

SubArc Portable Welding System is a ready-to-weld submerged arc system for pressure vessel, pipe and welding that requires positioning equipment which can adapt to your application.

What's Included:

  • SubArc Portable Column & Boom

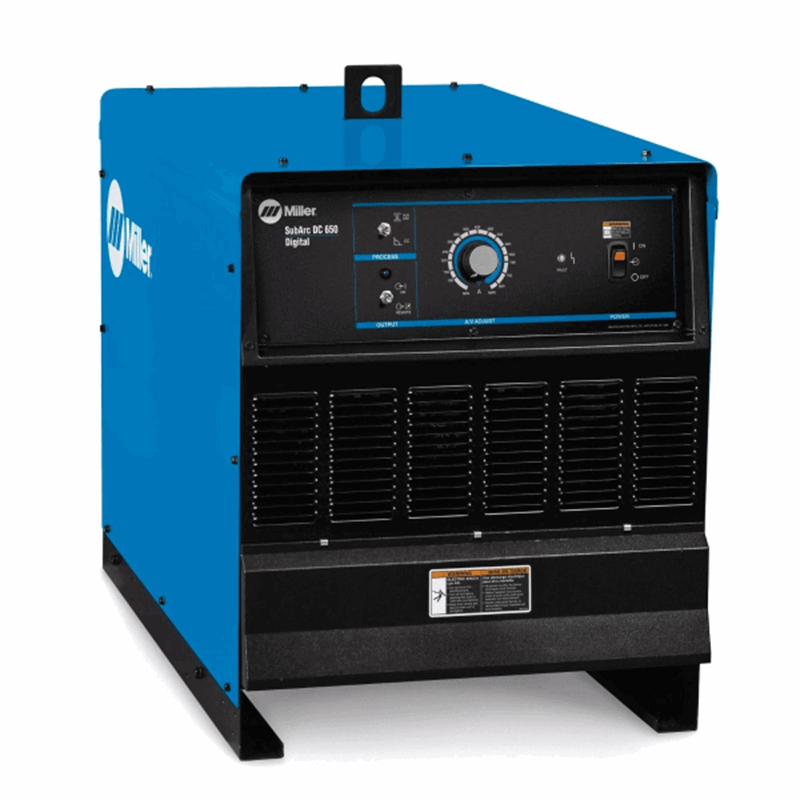

  • SubArc DC 650 Digital
  • SubArc Interface Digital
  • SubArc Control Cable, 30 ft.
  • SubArc Wire Drive 400 Digital Low Voltage
  • Single Wire Straightener
  • SubArc Flux Hopper Digital Low Voltage
  • OBT 600 SubArc Torch
  • Wire Reel Assembly
  • Spool Support Assembly
  • SubArc Manual Slide

Features:

  • Self-contained system - contains the power source and holds column & boom on mobile platform for a convenient and compact welding tool.
  • Built-in fork pockets and caster wheels - for improved mobility around a job site, great for garages and workshops.

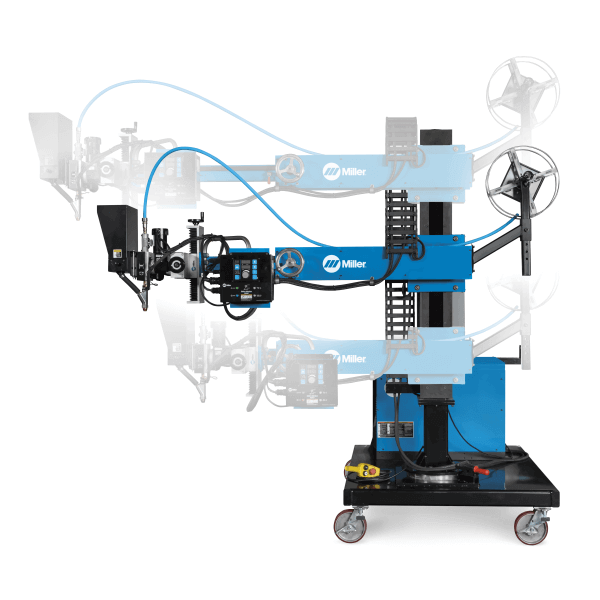

  • Ease of positioning the weld head - thanks to a motorized, 360-degree rotating column and manual telescoping boom.
  • Motorized column with pendant control - 44 inches (1,117 mm)of vertical range for working at a variety of heights.
  • Manual telescoping boom - 31 inches (787 mm) of horizontal range
  • Manual cross slides - provide 7.87 (200 mm) of precise horizontal torch movement.

Check out our options for welding accessories to complete your purchase

Browse different welding tools to find handy items to make your work more efficient and safe.

View our large selection of Mig, Tig, and Stick welders with the greatest values online.

Other versions of the SubArc DC:

Miller SubArc DC 650 Digital Portable Welding System Specifications

Industrial Applications Fabrication
Manufacturing
Pipe Fabrication / Construction
Pressure Vessel
Processes Submerged arc (SAW)
Weldable Metals Stainless Steel
Steel
Rated Output 650 A at 44 V, 100% duty cycle
815 A at 44 V, 60% duty cycle
Output Voltage Range
20 V - 44 V in sub-arc mode
Amperage Range
50 A - 815 A in CC mode
Amps Input at Rated Load Output, 60 Hz 230V: 126, 3.8 while idling
460V: 63, 1.9 while idling
575V: 50.4, 1.9 while idling
KVA: 50, 1.52 while idling
KW: 34.8, 0.76 while idling
Maximum Open-Circuit Voltage DC 75 Vpk
Carbon Diameter 3/8 in (9.5 mm)
Current Type DC
Portability Fork Pockets
Warranty 3 Years
Miller's True Blue Warranty

Miller SubArc DC 650 Portable Column and Boom Specifications

Column Stroke 44 in. (1,117 mm)
Column Travel Constant speed
Boom Stroke 31 in. (787 mm)
Boom Travel Manual
Base Rotation 360°
Working Height Range
33.5 in. (851 mm) - 77.5 in. (1,969 mm)
Overall Height 102 in. (2,590 mm)

SHIPPING DIMENSIONS

Height: 95.00 Inches
Width: 63.00 Inches
Length: 51.00 Inches
Weight: 2050 Lb(s) 0 Oz

Product Questions and Answers


Q - Is the height adjustment electric or manual? A - It can be adjusted electrically to fit the height of the material being worked on.
Q - What kind of welding is this machine best for? A - SubArc Portable Welding System is a ready-to-weld submerged arc system for pressure vessel, pipe and welding that requires positioning equipment that can adapt to your application.
