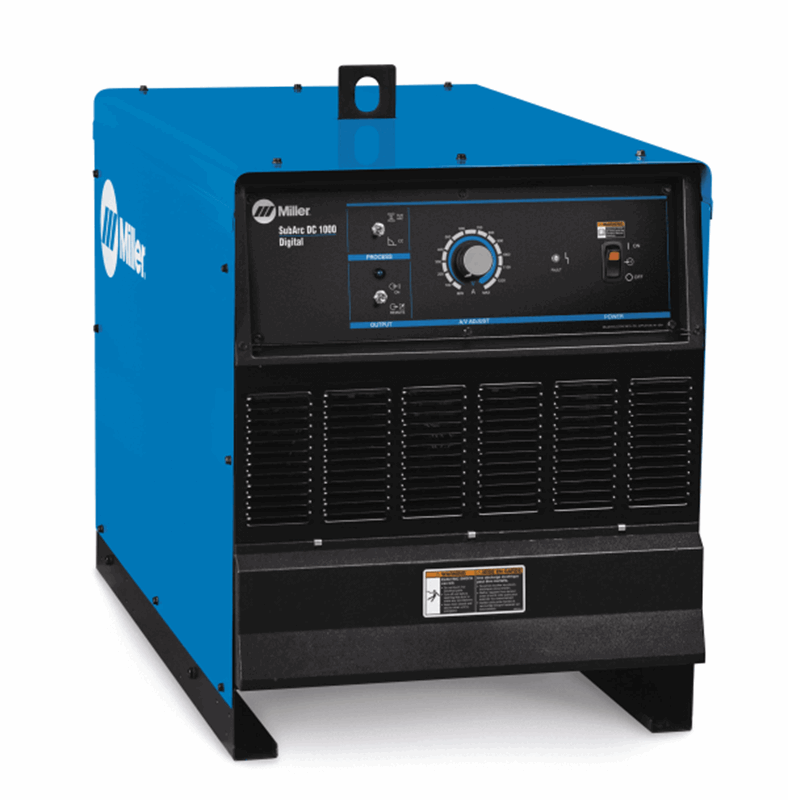

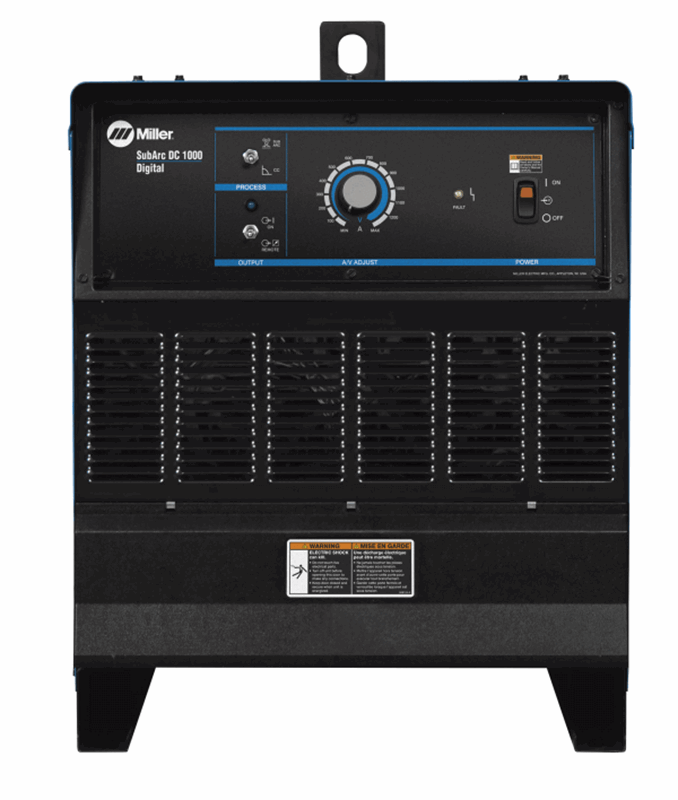

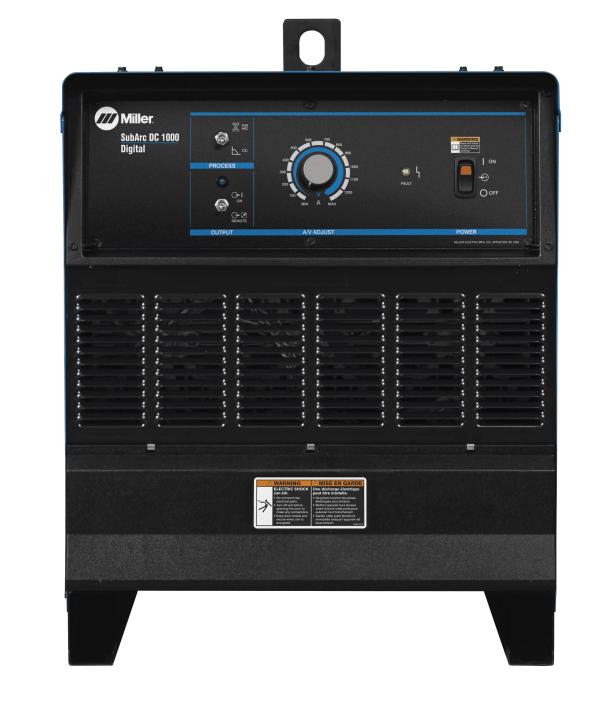

Miller SubArc DC 1000 Digital 907624
Share
Print
$13,737.00
$15,864.00
Reduced Price You Save $2,127.00
Product Number: 907624
Worldwide manufacturer shortages are impacting delivery times. Lead times are more variable than other websites imply. We are a top distributor for Miller Welding; nobody will get you this faster. Call 1-844-682-0205.
QTY:
Financing
AVAILABLE!
×
Documents
VideoMiller SubArc DC 1000 Digital 907624
Digital Series of power sources, interface controls, and accessories include digital control and communication electronics designed to improve weld performance and simplify the integration of the equipment in more advanced applications.
Features:
- Miller's SubArc DC Series
- Low-voltage accessory operation and improved environmental protection
- Easy to integrate
- Easy paralleling
- Easier setup and operation
- Easy-to-understand interface
- Improved flux delivery system
- Insight Core™ Capable
View our large selection of welders, plasma cutting machines, and welding helmets with the greatest values online.
Other versions of the SubArc DC:
Miller SubArc DC 1000 Digital Processes
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Electroslag (ESW)
- Submerged Arc (SAW)
Miller SubArc DC 1000 Digital Specifications: |
|
| Industries Interests | Railcar Shipbuilding Fabrication Pipe Fabrication / Construction Pressure Vessel Manufacturing |
| Carbon Diameter | 1/2 in (12.7 mm) |
| Current Type | CC / CV DC |
| Input Voltage | 575 V 460/480 V |
| Output Voltage Range | 20 V -44 V |
| Input Phase | 3-Phase |
| Input Hz | 60 Hz |
| Portability | Lift Eye (Standard) |
| Net Height | 30 in |
| Net Length | 38 in |
| Net Weight | 682 lbs |
| Weldable Metals | Stainless Steel Steel |
| Net Width | 23 in |
| Rated Output | 1000 A at 44 V, 100% duty cycle |
| Amperage Range | 100 A - 1250 A |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 29.00 Inches |
| Width: | 24.00 Inches |
| Length: | 39.50 Inches |
| Weight: | 692 Lb(s) 0 Oz |
Product Questions and Answers
Q - What is the output on this?
A - 1,000 A at 44 v, 100% duty cycle; 1,250 A at 44 v, 60% duty cycle
Q - What input power does this need?
A - It requires 3-phase power.
