CK WorldWide WF-5 Tig Cold Wire Feeder

$3,750.00 $3,950.00 Reduced Price You Save $200.00
Product Number: WF5
QTY:
Financing AVAILABLE!

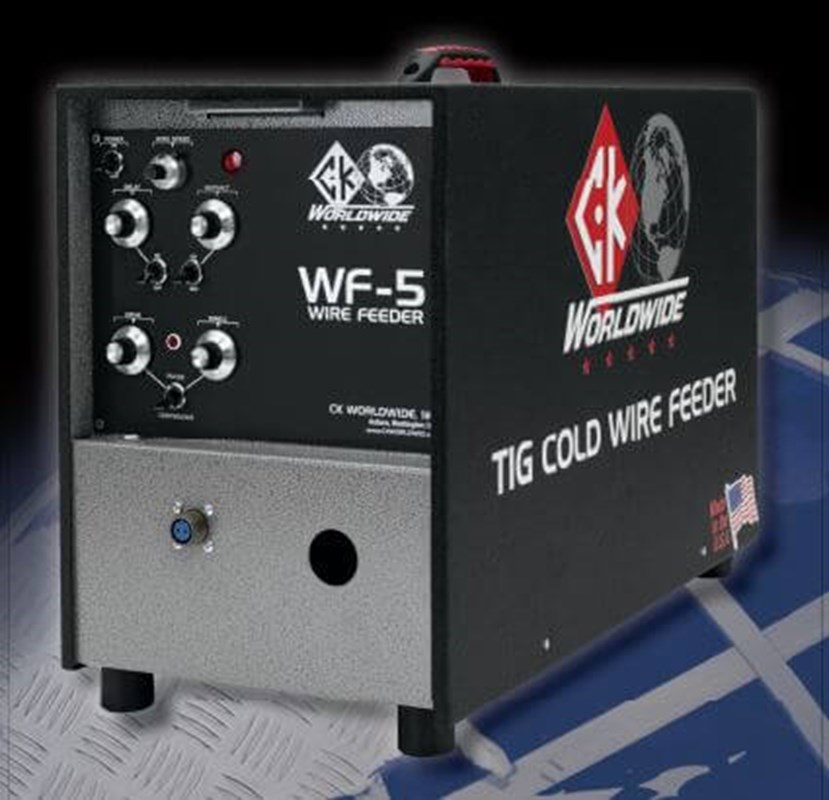

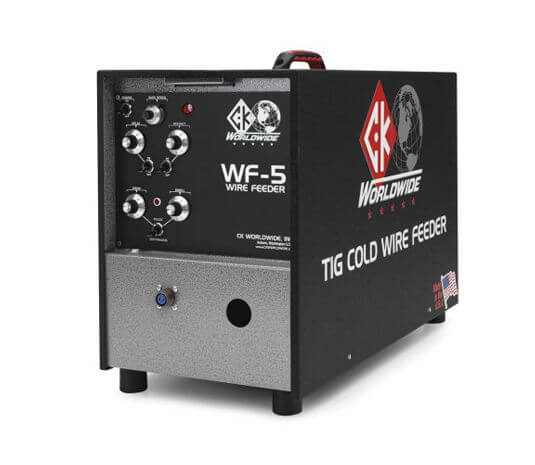

CK WorldWide WF-5 Tig Cold Wire Feeder

The answer to automated filler metal in TIG welding is the CK Worldwide WF-5 Cold Wire Feeder. Designed for use with the “CWH” series hand torches for semi-automatic welding applications, and “CWM” series machine mounted torches, the WF-5 automates the addition of filler metal with just the touch of a button.

To install a Cold Wire Feed system, you need both the Cold Wire Feeder and a Wire Feed Application method for your welding machine. The Cold Wire Feeder works independent of the welder and needs its own power source.

Benefits:

  • Increase productivity by up to 30%
  • Automates adding of filler metal
  • All parameters can be duplicated for consistency

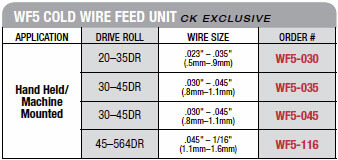

  • Dual groove drive roll accepts multiple wire sizes
  • Accepts standard wire spool sizes
  • Eliminates filler rod stub loss
  • Machine cover keeps filler metal clean and uncontaminated
  • Makes fully-automated, or one-handed, TIG welding possible





Quick Specs
• Voltage - 115V
• Single phase
• Frequency - 50/60 Hz
• Dims - 15in H x 10in W x 21in L
• Weight - 54lbs
• Motor type - DC permanent magnet
• Motor rating - 1/3 HP at 4,000 rpm
• Filler wire spool size - 12 in
• Filler wire size - .023 - 1/16
• Wire feed speed range - 0-500 ipm

SHIPPING DIMENSIONS

Height: 16.00 Inches
Width: 11.00 Inches
Length: 22.00 Inches
Weight: 55 Lb(s) 0 Oz

CK WorldWide Tig Cold Wire Feeder #WF-5 Features & Demo

Part 1

Part 2

Product Questions and Answers


Q - What is the wire feed speed? A - It has a range of 0 to 500 ipm.
Q - What type of torch does this require? A - You need a hand held or machine TIG torch with cold wire TIG capability.
