CK Worldwide MT200-AC/DC Tig Welding System #MT200-ACDC

Part Numbers: MT200-ACDC
$1,989.00
$2,395.00* Save $406.00

Included with your purchase:

Select your Bundle!
Edit
    CK WorldWide

    CK WorldWide

    Welding type:

    Tig

    Tig

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    Power supply:

    220V Single Phase

    220V Single Phase

    • TIG Welding
    • Stick Welding
    • 1 or 3-Phase Power Input
    • 3 Year Warranty

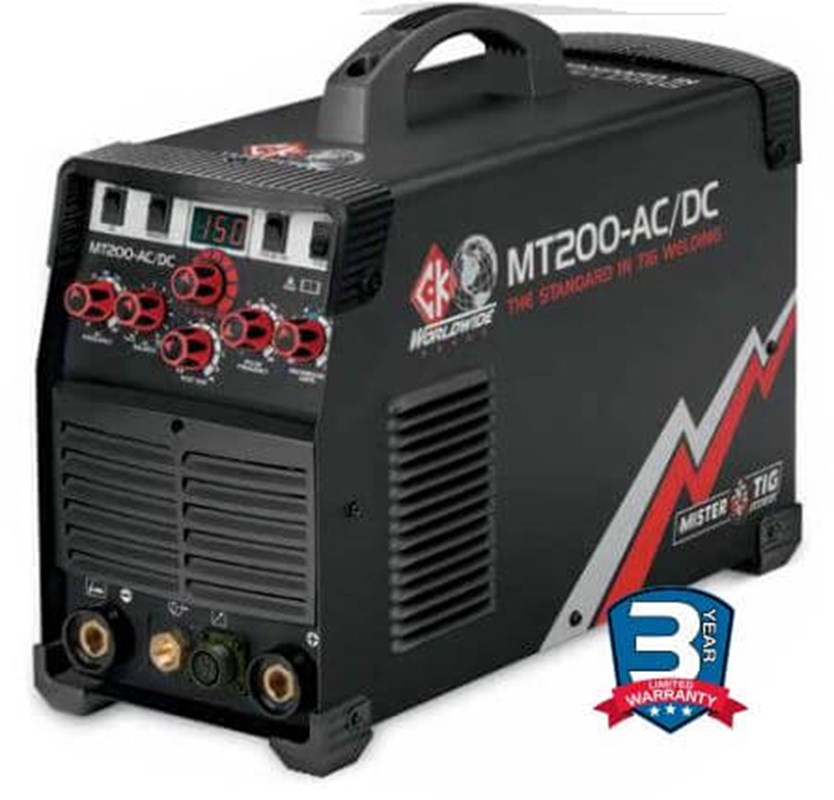

    CK Worldwide MT200-AC/DC Tig Welding System

    The MT200-AC/DC was designed to address the needs of both creative driven and production line TIG welding. It can quickly adapt to a wide range of welding scenarios, from vocational training to aerospace and nuclear applications, all while maintaining the same high quality experience welders expect from CK Worldwide. A compact size and a weight of just 32 lbs. make it exceptionally portable. Whether you weld for fun or to pay the bills, the MT200 is ready for any welding challenge.

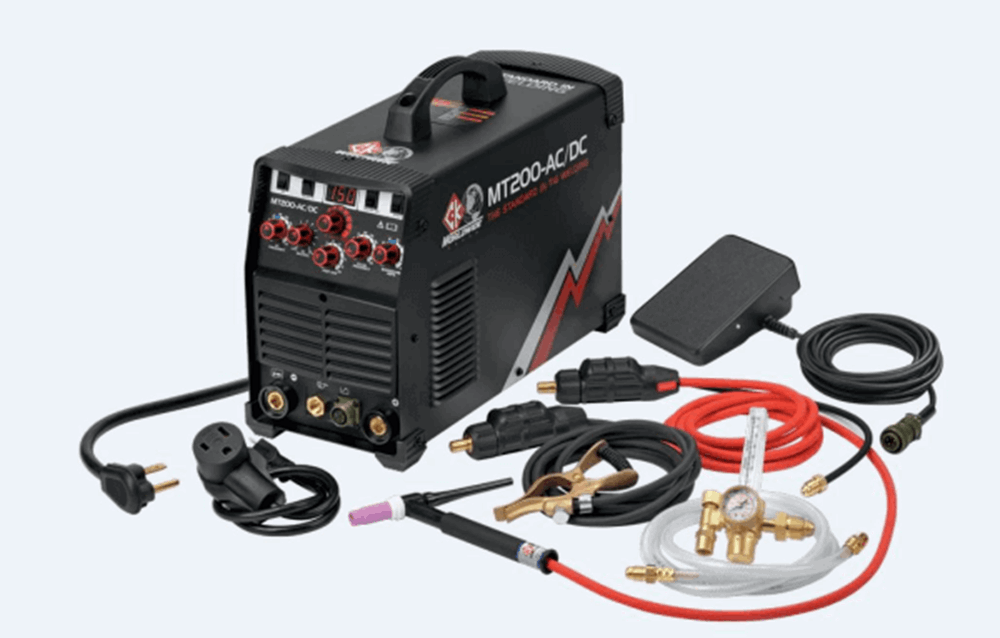

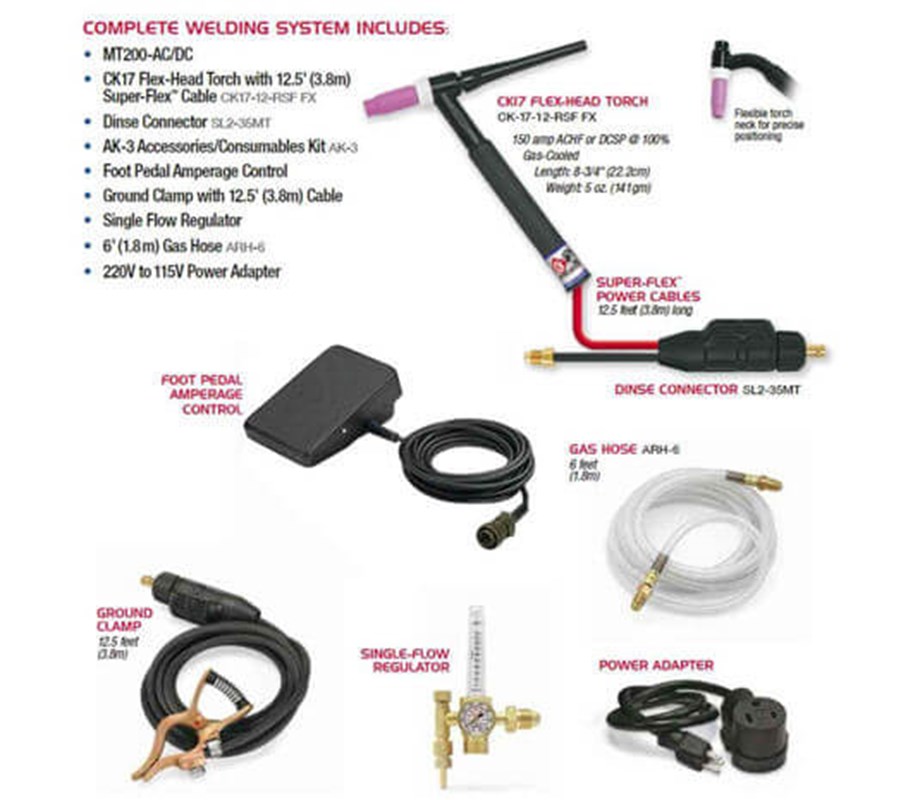

    COMPLETE WELDING SYSTEM INCLUDES:CK WorldWide MT200 Tig Welder

    • MT200-AC/DC
    • CK17 Flex-Head Torch with 12.5' (3.8m) Super-Flex™ Cables CK17-12-RSF FX
    • Dinse Connector SL2-35MT
    • AK-3 Accessories/Consumables Kit AK-3
    • Foot Pedal Amperage Control
    • Ground Clamp with 12.5' (3.8m) Cable
    • Single Flow Regulator
    • 6' (1.8m) Gas Hose ARH-6
    • 220V to 115V Power Adapter

    Use the MT200-AC/DC to weld:

    • Aluminum
    • Titanium
    • Magnesium
    • Stainless Steel
    • Low Alloy Steel
    • Deoxidized Copper
    • And More!
    Browse all TIG welders, CK worldwide welding equipment, and used welding equipment for more great deals.

    CK Worldwide MT200-AC/DC Tig Welding System Specs

    Input Voltage 115VAC ±15%, 50/60Hz
    220VAC ±15%, 50/60Hz,single phase
    Input Current (I max) 115V: 21 Amps
    220V: 34 Amps
    Output Current Range GTAW 115V: 5 – 140 Amps
    220V: 5 – 200 Amps
    Output Current Range SMAW 115V: 10 – 110 Amps
    220V: 10 – 160 Amps
    Rated Output GTAW 115V: 140A @ 15.6V, 40% duty cycle
    220V: 200A @ 18.0V, 25% duty cycle
    Rated Output SMAW 115V: 110A @ 24.4V, 25% duty cycle
    220V: 160A @ 26.4V, 30% duty cycle
    Maximum Open Circuit Volts 74 Volts
    Gas Pre-flow 0.5 seconds
    Gas Post-flow 0.5 – 20 seconds
    AC Frequency 20 – 250 Hz
    Pulse Frequency 1 – 200 Hz
    Pulse Width 50%
    Base Current 10 – 100%
    Arc Start High Frequency
    Net Height 15 in. / 381mm
    Net Length 20 in. / 502mm
    Net Width 8.5 in. / 217mm
    Net Weight 32 lb. / 14.5 kg
    Metals Aluminum
    Titanium
    Magnesium
    Stainless Steel
    Low Alloy Steel
    Deoxidized Copper
    Applications Repairs
    Motor Sports
    Off Road
    Fabrication
    Marine
    Customization
    Warranty CK 3-Year Limited Warranty

    SHIPPING DIMENSIONS

    Height: 15.00 Inches
    Width: 8.50 Inches
    Length: 21.00 Inches
    Weight: 35 Lb(s) 0 Oz

    Product Questions and Answers


    Q - Is this just a TIG welder? A - No, it has two modes: TIG (GTAW) and Stick (SMAW).

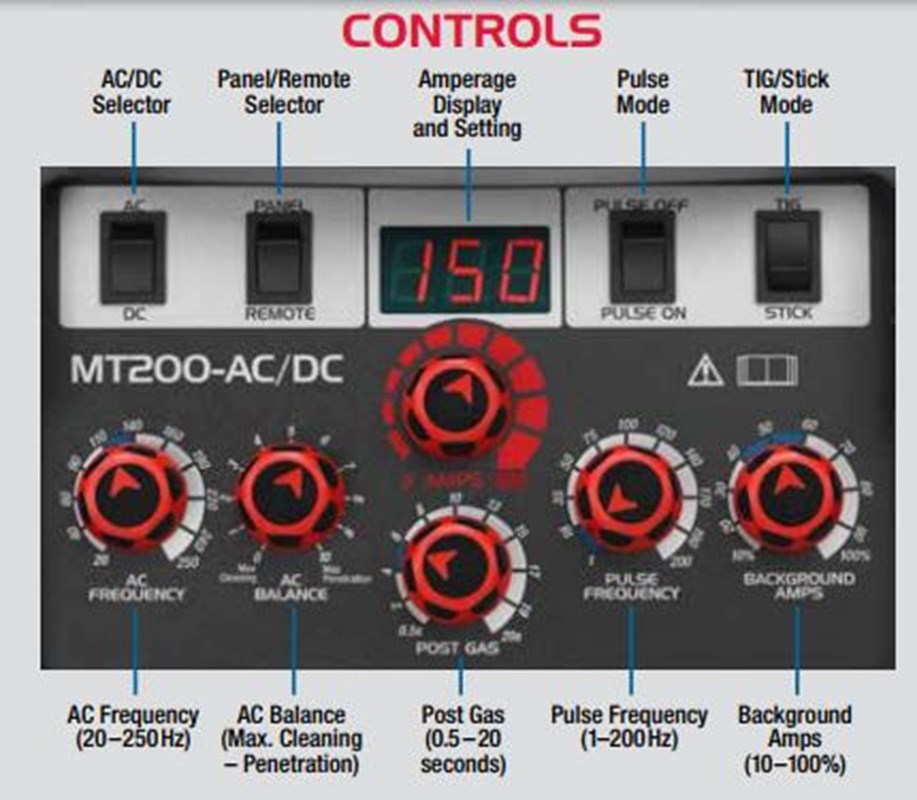

    How to install & set-up for DC TIG welding:

    1. Turn on machine.

      Turn on machine using the ON/OFF switch (back of machine).

    2. Select the TIG function.

      Select the TIG function with the TIG/STICK slector switch.

    3. Select DC.

      Select DC using the AC?DC selector switch.

    4. Connect TIG torch.

      Connect the TIG torch connector to the negative terminal and tighten it.

    5. Connect ground cable connector.

      Connect the ground cable connector into the positive terminal and tighten it.

    6. Connect foot pedal remote.

      Connect the foot pedal remote lead into the remote socket.

    7. Connect the torch gas connector.

      Connect the torch gas connector into the gas receptacle.

    8. Connect gas regulator.

      Connect gas regulator to the cylinder and connect gas line to the regulator.

    9. Open gas valve.

      Carefully open the valve of the gas cylinder, set the flow to 15-25CFH (7-12LMN).

    Have a question about this product? Submit your question using the form below

    Related Products

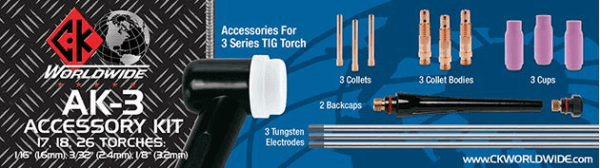

    CK Accessory Kit #AK-3A
    CK Accessory Kit #AK-3
    $53.28

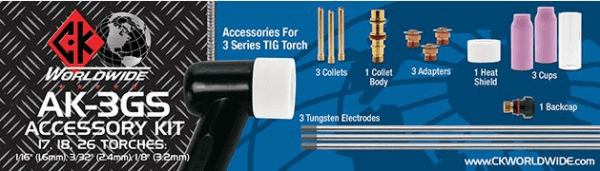

    CK Accessory Kit #AK3GS (gas saver)
    CK Accessory Kit #AK3GS (gas saver)
    $74.55
    $126.20

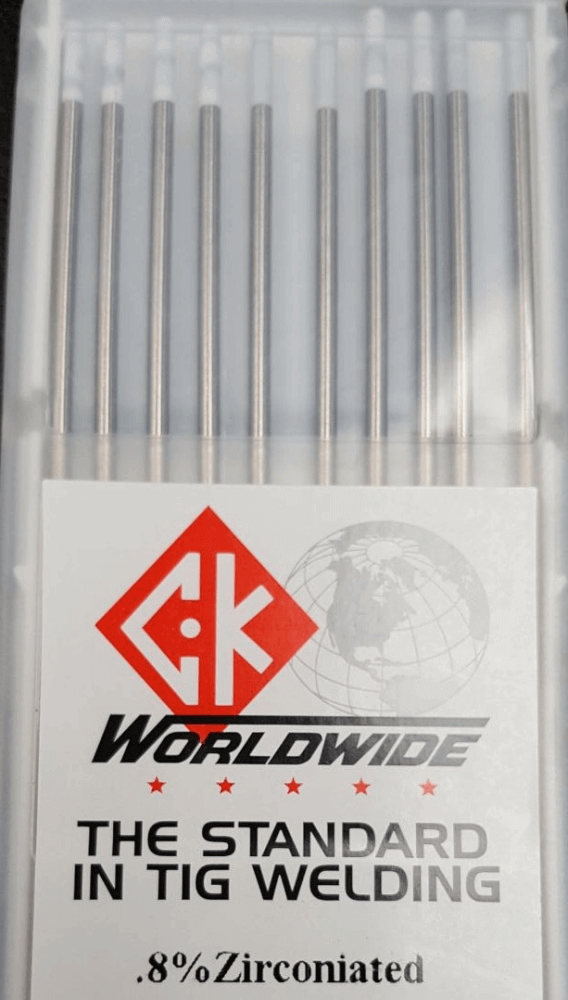

    CK Tungsten 0.8% Zirconiated (White)10/PAK #T1167GZ
    CK Tungsten 0.8% Zirconiated (White)10/PAK
    $15.90
    $17.50

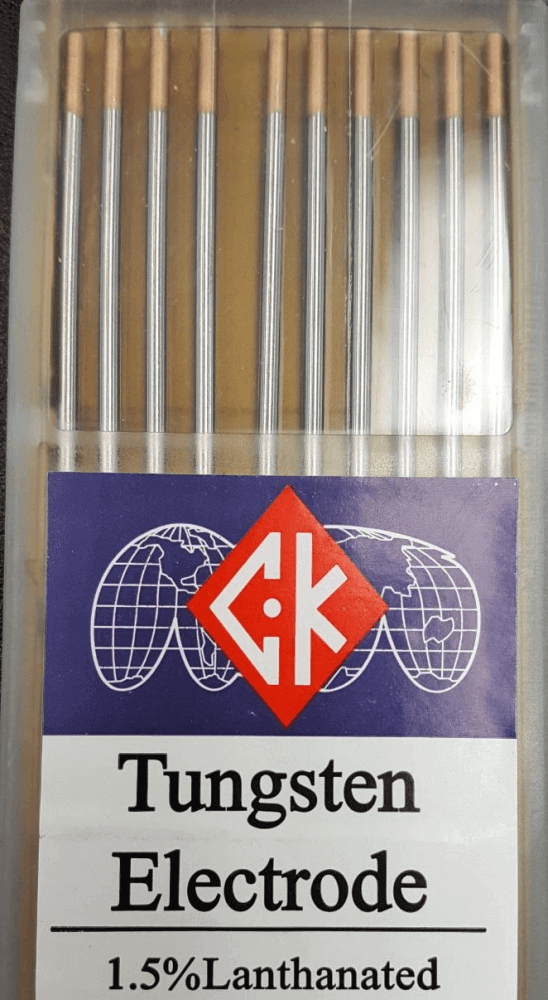

    CK Tungsten 1.5% Lanthanated (Gold) #T1167GL
    CK Tungsten 1.5% Lanthanated (Gold)
    $15.95
    $17.00
    CK Tungsten 2% Ceriated (Grey) (Formerly Orange) #T1167GC2
    CK Tungsten 2% Ceriated (Grey) (Formerly Orange)
    $15.50
    $16.00

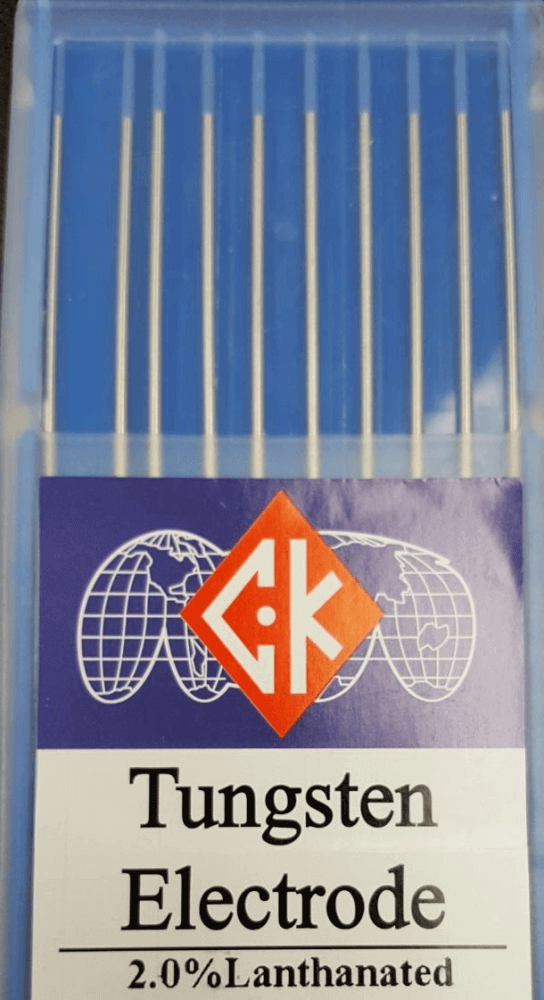

    CK Tungsten 2% Lanthanated (Blue) #T1167GL2
    CK Tungsten 2% Lanthanated (Blue)
    $15.90
    $17.50

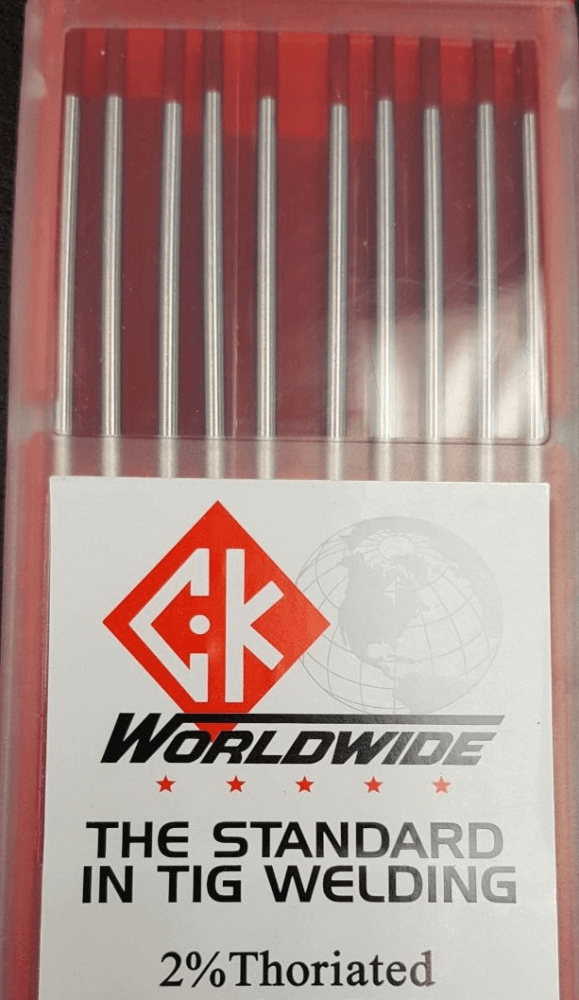

    CK Tungsten 2% Thoriated (red) 10/PK #T1167GT2
    CK Tungsten 2% Thoriated (red) 10/PK
    $15.95
    $17.00

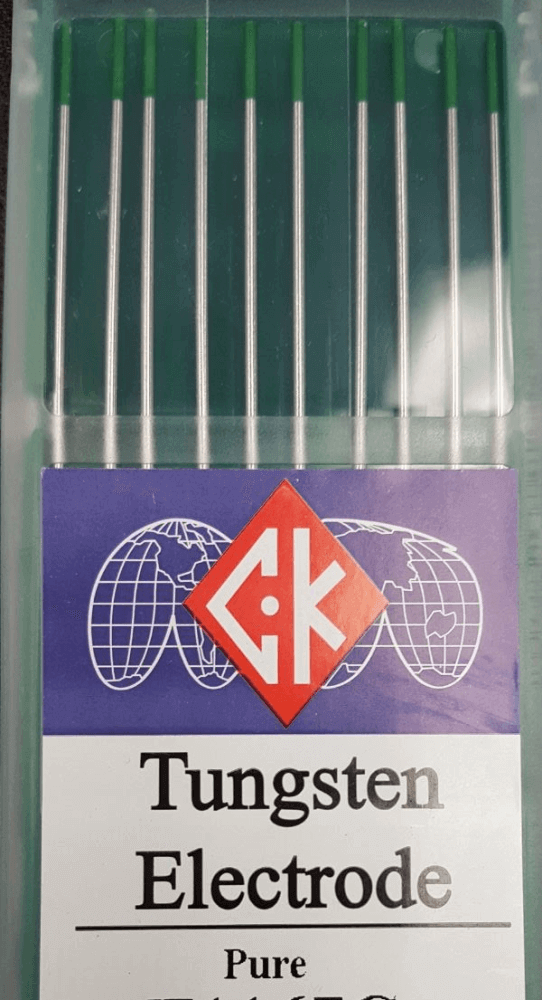

    CK Tungsten Pure (Green) #T1167G
    CK Tungsten Pure (Green)
    $15.50
    $16.00
    TechSouth Power Point Adjustable Head Tungsten Grinder #TS-PPE
    $275.00
    $299.95
    WeldPorn Premium OG Welding Sleeves
    $24.95

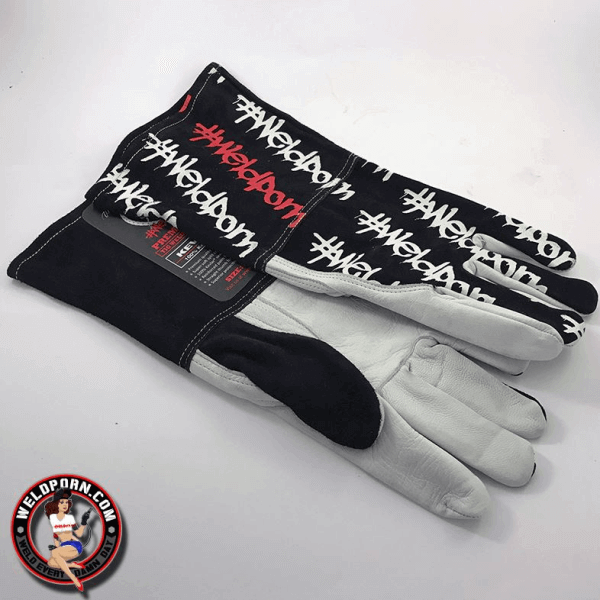

    WELDPORN® OG TIG Gloves
