Miller FILTAIR® Capture 5 460 V, 12 ft. Arm 951575

Part Numbers: 951575
UPCs: 715959632263

Included with your purchase ():

Miller FILTAIR® Capture 5 460 V, 12 ft. Arm 951575
Miller FILTAIR® Capture 5 460 V, 12 ft. ...
Miller Classic Series Welding Helmet with ClearLight™ Lens Technology, VS Black #287803
FREE!
Miller Classic Series Welding Helmet wit...
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$19,538.00 + Free Shipping
$19,538.00 + Free Shipping
  • MIG Welding
  • Stick Welding
  • TIG Welding
  • 2 Year Warranty

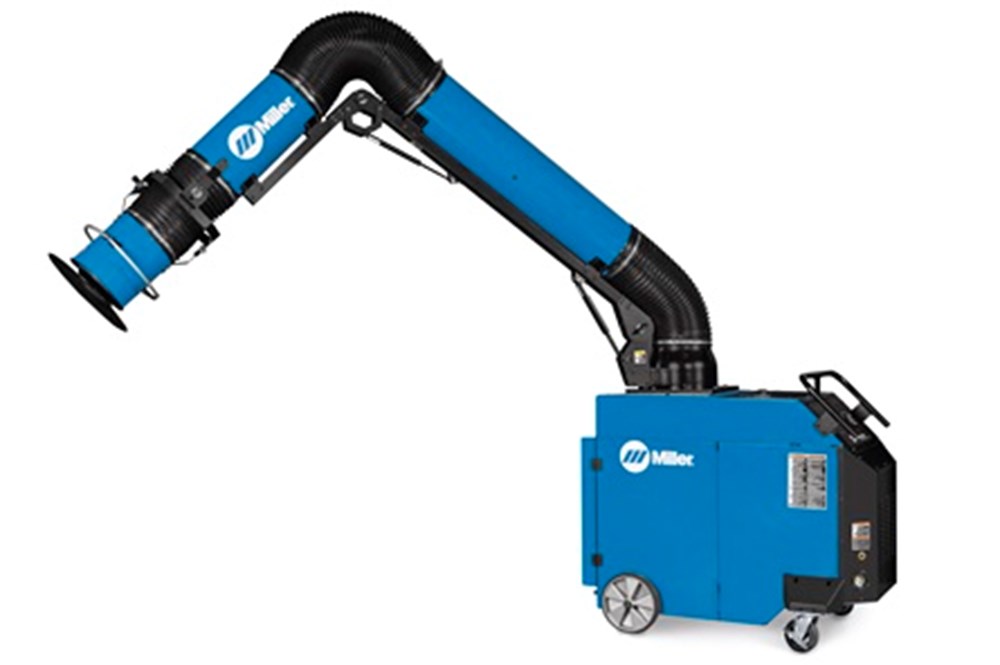

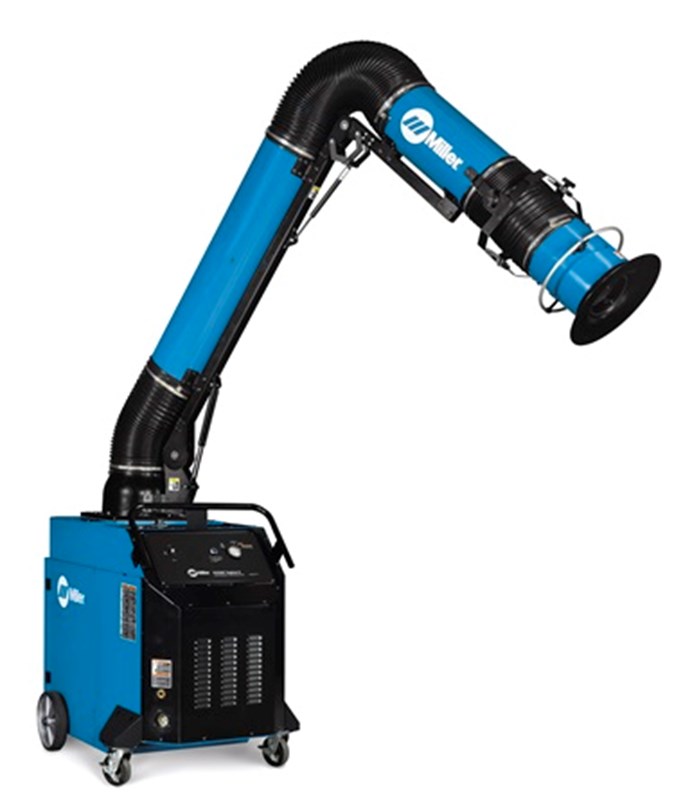

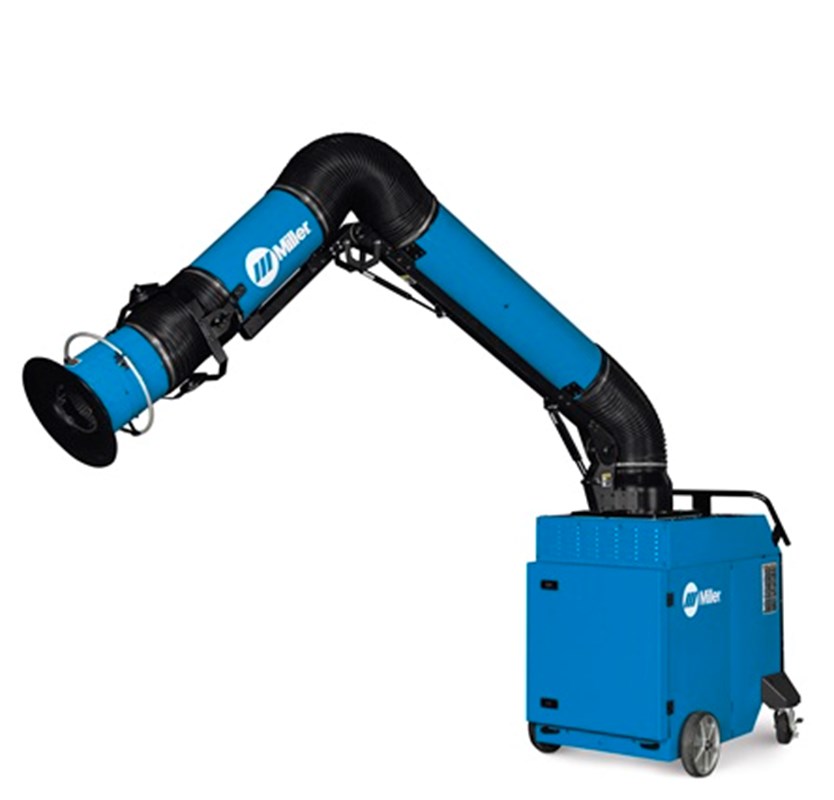

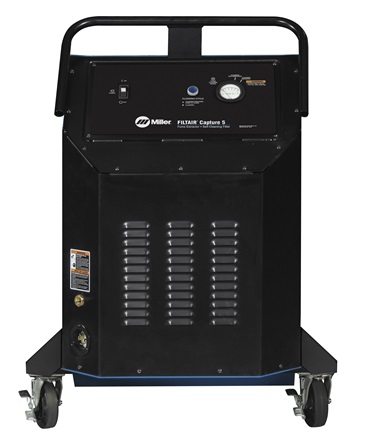

Miller FILTAIR® Capture 5 460 V, 12 ft. Arm 951575

The Capture Zone, redefined. Innovative, extended-capture, fume extraction system designed specifically for welding. Exclusive ZoneFlow™ technology creates a much larger capture area than existing source-capture products. Ideal for fabrication shops, manufacturing and training centers.

What's Included:

  • Mobile Capture 5 Extractor 460 V
  • 12 ft. Extraction Arm
  • FilTek XL Filter
  • Primary Power Connector
  • Note: Primary Cord Sold Separately

Features

  • Capture 5 Arm with ZoneFlow™ Technology. Creates a negative pressure zone that funnels air to the center of the arm from greater distances, up to 5 feet away. The arm features convenient 360-degree rotation for unlimited positioning, which means fewer hood adjustments and extended welding time.
  • Less Arm Movement. With a capture zone that is 3 times larger than traditional systems, users have less interaction with the arm, increasing arc-on time and productivity.
  • Pre-Assembled Arm. Made of aluminum and steel it is extremely durable for long-lasting performance.
  • Balanced Arm Design. The arm is easy to move and stays in position. All adjustments are toolless and can be quickly adjusted by hand.
  • Easy-to-Operate Extraction Arm. With external adjustments, air can pass through with less airflow resistance, giving you stronger cfm (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Pre-assembled extraction arms are available in 10 and 12 foot lengths.
  • Miller® FilTek® XL Filter Technology. FilTek XL Filter Technology is specifically designed for welding fumes. This technology offers a longer filter life - up to 2 times that of treated cellulous filters and superior filtering of up to 95% of weld fume particulate. FilTek XL's surface loading filters vs. competitors depth loading filters gives Miller filters advantages that benefit you including easier and more complete filter cleaning results, longer filter life, and more efficient air flow thru the filter resulting in lower operating costs and stronger suction power for a cleaner work space.
  • MERV 15 Filter Rating. Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles such as those found in weld fumes.
  • Particulate Disposable Bin. Provides easy and convenient access to empty out collected particulate. Handles release drawer allowing it to slide out.
  • Automatic Filter Cleaning. Extends filter life. An automatic pulse cleaning cycle cleans the filter from the inside out every time the machine is turned off. Weld fume particulate is removed from the filter and safety deposited in the particulate disposal drawer. The manual push button and filter cleaning gauge ensures full control for highest airflow and consistent fume extraction throughout the life of the filter.
  • Metal Cabinet Design. Ensures long-lasting durability in a manufacturing environment.

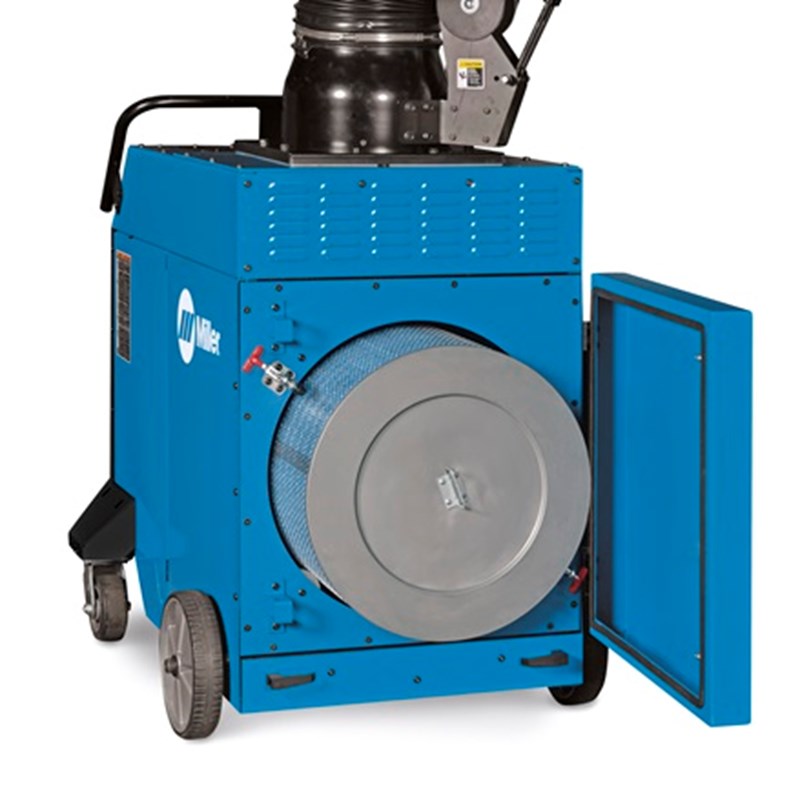

  • Hinged Filter Hatch. Features a convenient locking mechanism for easy access to the filter and tool-free replacement.
  • Filter Pressure Gauge. Easy to read and indicates when the pressure drop increases and cartridge filter needs to be replaced.
  • Convenient Air Connection. Used for dry compressed air supply. Compressed air is required to operate the cleaning mechanism.

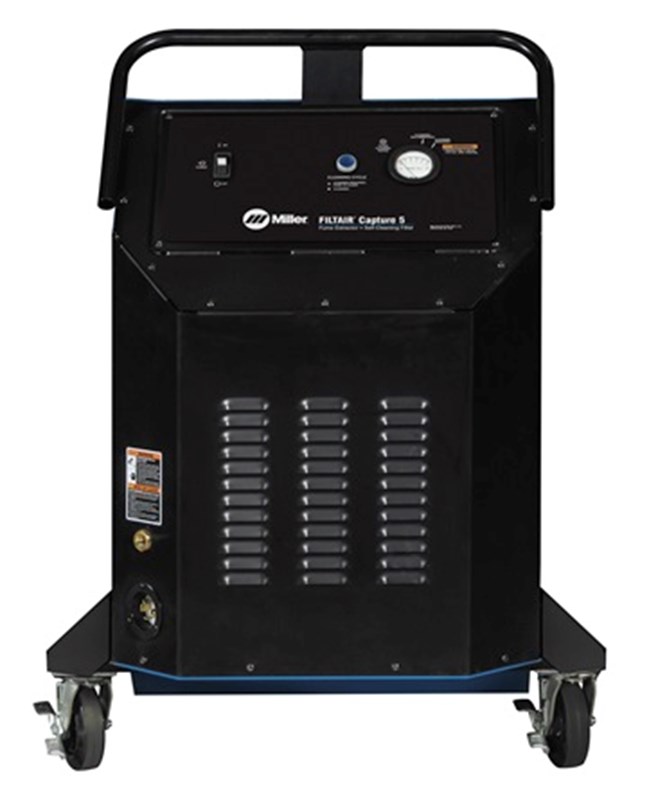

  • Easy On / Off Power Switch. Conveniently located for easy on / off access.
  • Lockable Swivel Casters. Allow users to keep fume extraction system stationary during movement of the arm.
  • Large Rear Wheels. Allow for easy movement from one work area to another.
Shop all fume extractorswelding safety equipment, and welding equipment.

Processes

  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Stick (SMAW)
  • TIG (GTAW)

Miller Filtair Capture 5 460V Specifications:

Nominal Airflor 900
Imput Voltage
460/480V
Input Phase
3-Phase
Input HZ 60 Hz
Input Amperage
5.8A
Motor Horsepower 5 hp
Number of Arcs 1
Single Phase Generator Peak Power 8000 W
Sound Rating 77 Db at 5 Feet
Extraction Arm Length 12 Ft.
Weld Fume Extractor Type Extended Capture
Filter Media 45.52
452
Warranty 3 Years
Miller's True Blue Warranty
Engine Warranties
