REPLACED BY #907832001

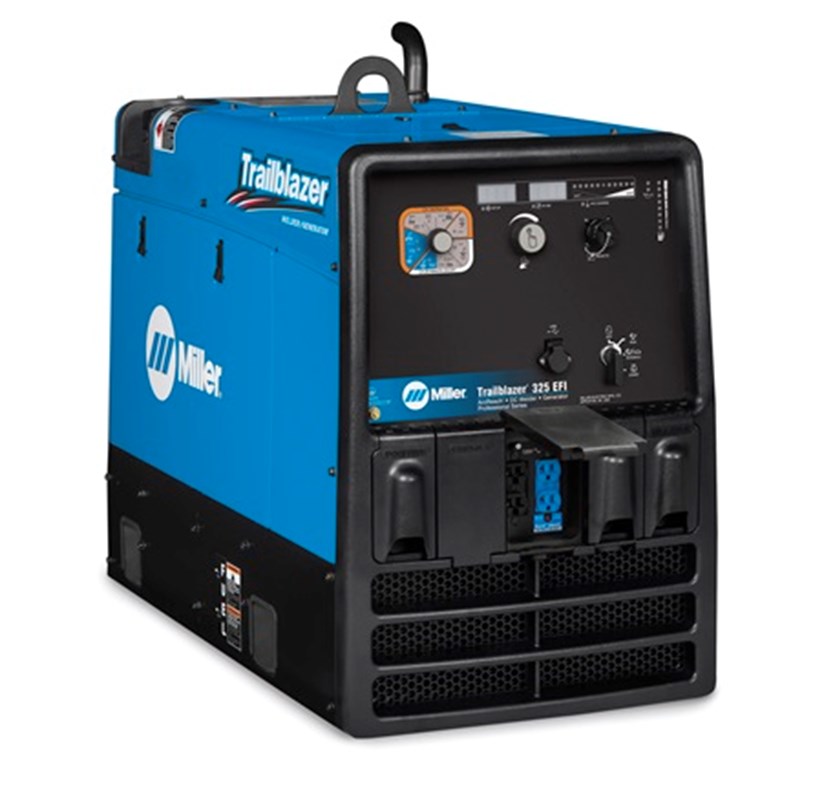

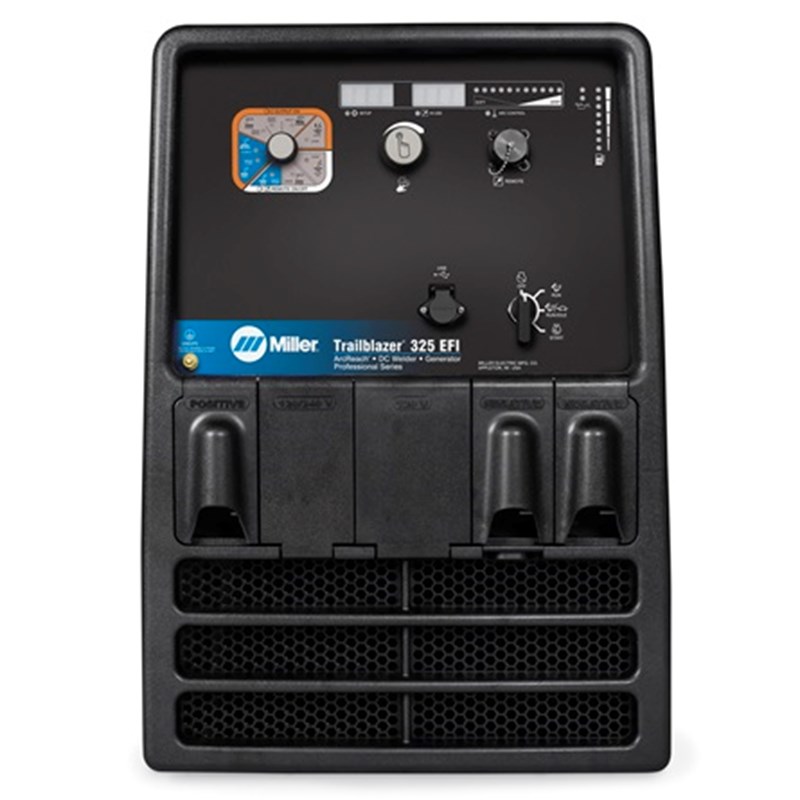

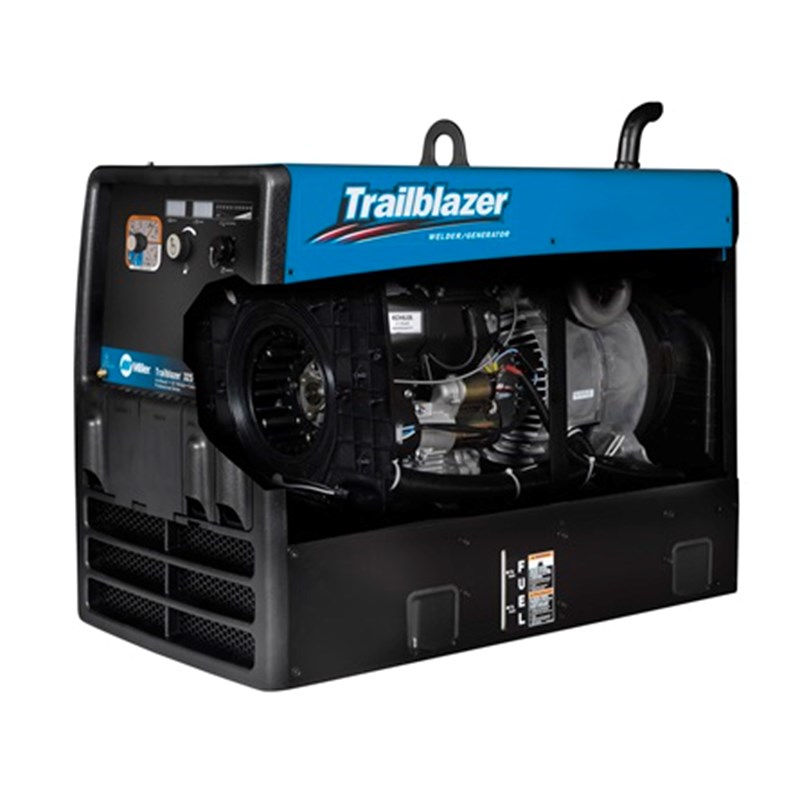

Miller Trailblazer® 325 (Kohler) EFI w/ Excel Power #907798002

Name: Trailblazer® 325 (Kohler) EFI w/ Excel Power #907798002
Brand: Miller Electric
SKU: MIL907798002
Rating: 5.0 (1 reviews)

Part Number: 907798002

UPC: 715959678438

1 Review

This Item Has Been Discontinued and has been replaced by Trailblazer® 330 Engine-Driven Welder (Kohler) EFI w/Excel Power #907832001 - Level up today!

Features
Specs
Documents
Videos
Accessories
Consumables
Reviews
FAQS

MIG Welding
Stick Welding
TIG Welding
Fuel Efficient
3-Year Power Warranty

Miller Trailblazer® 325 (Kohler) EFI w/ Excel Power #907798002

Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.

Trailblazer 325 Features:

Unmatched arc performance
Clean and powerful generator power
Minimized refueling trips
Auto-Speed Technology
ArchReach® Technology

This product replaces these legacy models:

Other Versions of the Miller Trailblazer 325:

PROCESSES

Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cores (FCAW)
MIG (GMAW)
Stick (SMAW)
TIC DC (GTAW-DC
Plasma (PAC)

Title	Trailblazer® 325 (Kohler) EFI w/Excel Power
Industries Interests	Fabrication Maintenance Repair Structural steelwork Sheet metal Pipe
Engine Brand	Kohler
Engine Idle Speed	2400 RPM
Engine Weld Speed	2400 RPM 2800 RPM 3200 RPM 3600 RPM
Fuel Tank Size	12 Gallon
Fuel Type	Gasoline
Horsepower	23 hp
Single Phase Generator Continuous Power	10500 W
Single Phase Generator Peak Power	12000 W
Carbon Diameter	3/16 in (4.8 mm)
Current Type	DC
Portability	Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional)
Net Width	20 in
Net Height	28 in
Net Length	40.5 in
Net Weight	502 lbs
Warranty	3 Years Miller's True Blue Warranty Engine Warranties
Weld Output	CC / CV

SHIPPING DIMENSIONS
Height:	20.00 Inches
Width:	28.00 Inches
Length:	41.00 Inches
Weight:	515 Lb(s) 0 Oz

Miller Trailblazer® 325 (Kohler) EFI w/ Excel Power 907798002 Spec Sheet

Accessories

Bobcat™ / Trailblazer® Protective Cover #3010...

$386.47

View

Consumables

Miller ArcReach® Smart Wire Feeder, Bernard™ PipeWorx 300 Amp Gun Pkg #951733

ArcReach Smart Feeder, Bernard PipeWorx 300 A...

$9,982.00

View

ArcReach® SuitCase® 8 Wire Feeder, Bernard™ B...

$3,947.00

View

EFI Only Tune Up Kit for Miller Bobcat or Trailblazer Welding Machines

Bobcat™ / Trailblazer® Engine Tune-Up Kits (E...

$115.42

View

Protective Cover #300919

$303.68

View

Highway Mid Frame Trailer #301438

$4,578.39

View

Miller Spectrum 375 X-Treme 907529 Build with Blue Holiday Promo

Spectrum 375 X-Treme Plasma Cutter w/ 12' Han...

$1,925.00

View

25 ft Trailblazer Battery Charge/Jump Start Cables #300422

Trailblazer® 25-foot Battery Charge / Jump St...

$443.35

View

W850-115 Metabo Angle Grinder #601232420

Angle Grinder W850-125 #603608420

$73.99

View

BSX Welders Backpack, Tool Bag, Gig Bag #GB10...

$119.25

View

Manufacturer Reviews

Brian

So quiet compared to my 302 and much lighter which is a bonus for my service truck that tops out at 17,000 lbs. Run my .045 Hobart 811N1 wire with dual shield at idle speed, you can't beat that. It is so nice to be grinding and welding in a busy area without your machine screaming away at full rpm.
