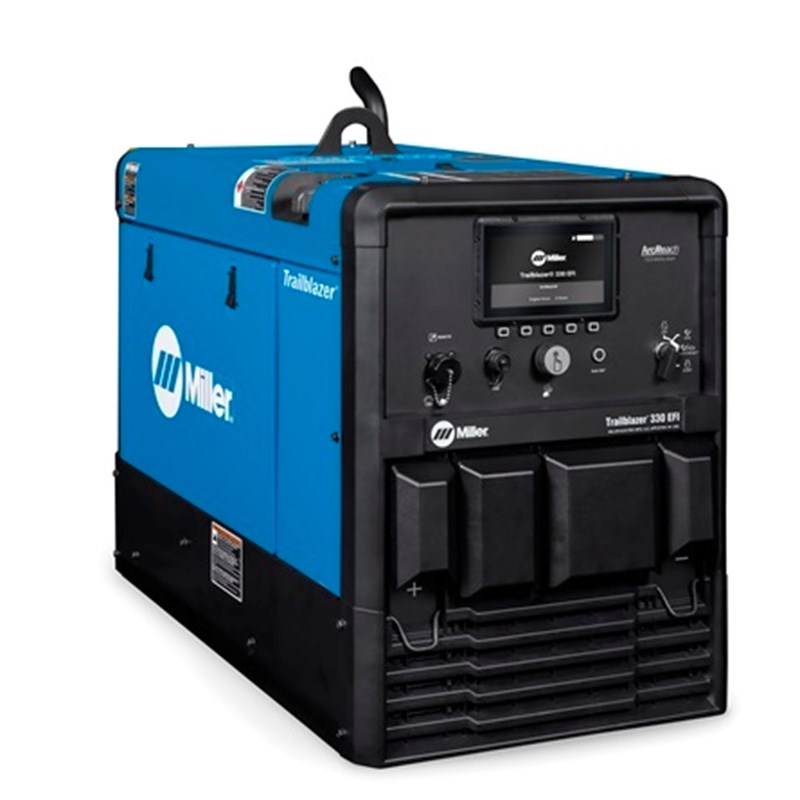

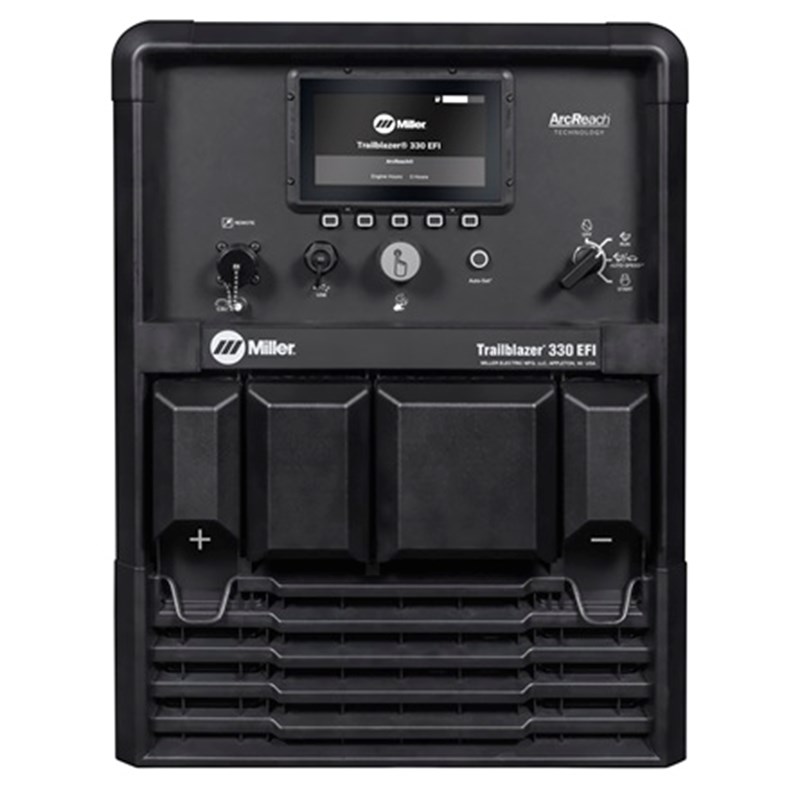

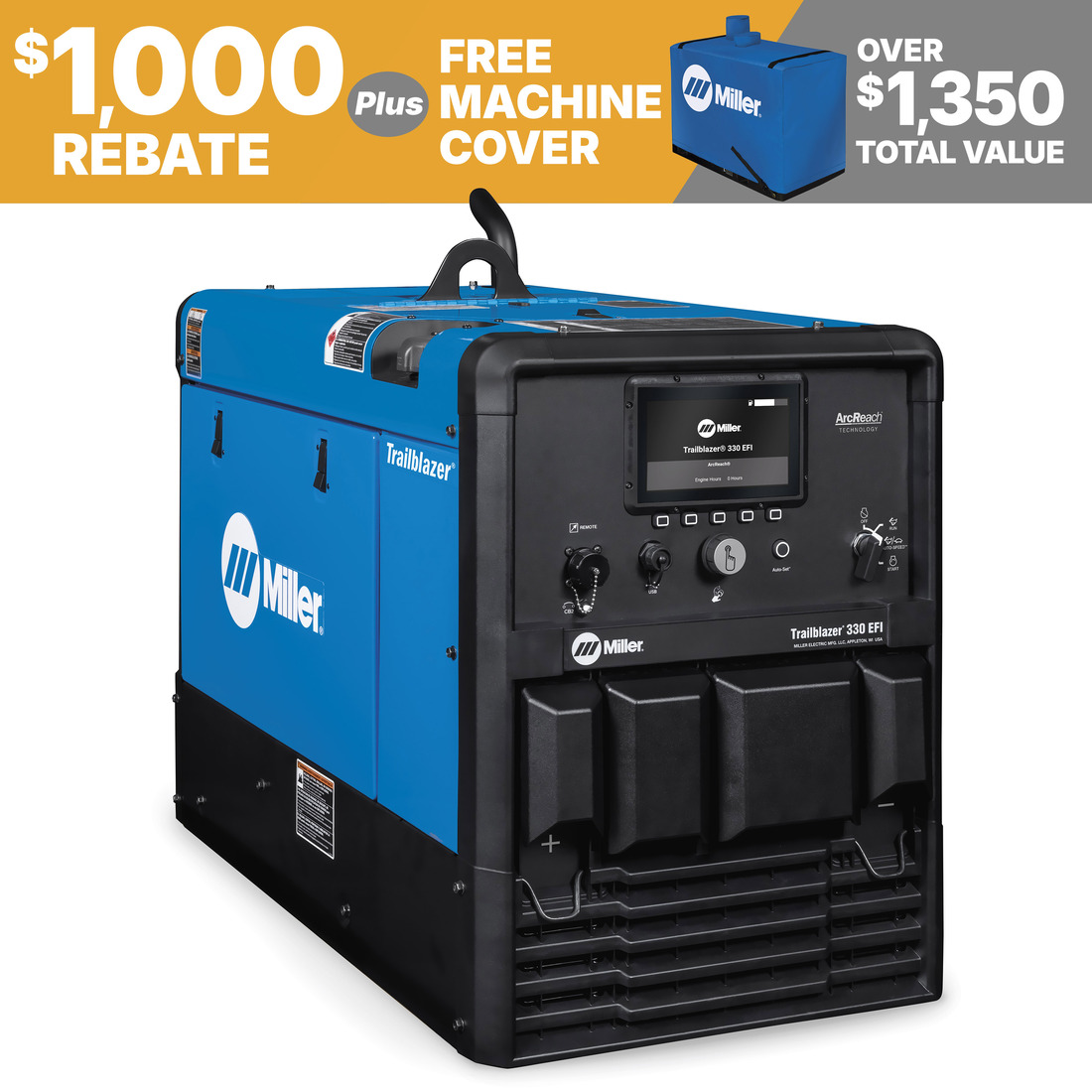

Miller Trailblazer® 330 Engine-Driven Welder (Kohler) EFI w/Excel Power #907832001

Part Number: 907832001
UPC: 715959707312
$10,927.00 + Free Shipping $13,852.00*
SAVE $2,925.00
Qualifies for Welder's Summer Sale

Call 844-682-0205 or CHAT for more options

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Fuel Type:

Gasoline

Gasoline

  • MIG/Flux Core Welding
  • Engine-driven stick weldingStick Welding
  • Gasoline Engine

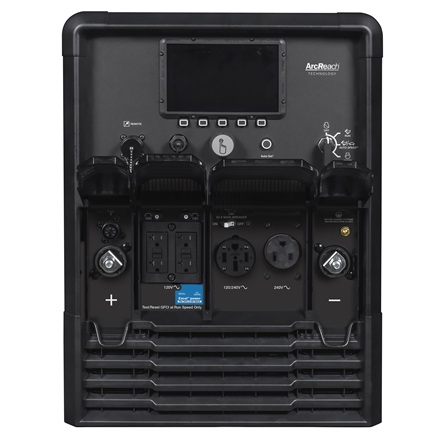

  • 12000 W output welder/generator12000W Peak
    (10500W Continuous)
  • DC output welder/generatorDC Output
  • Miller 3-Year Warranty

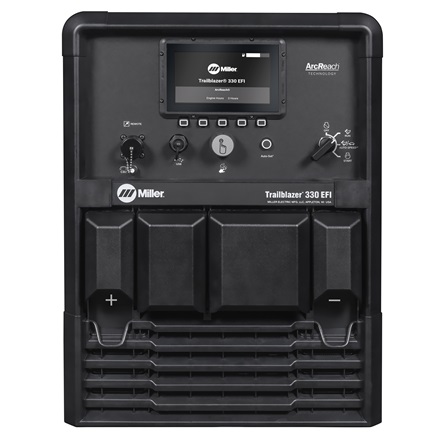

Miller Trailblazer® 330 Multiprocess Welder with Kohler Engine, Excel Power & EFI #907832001

The Miller Trailblazer® 330 Kohler is a reliable engine-driven welder with the smoothest, most stable arc in the industry. This machine delivers the most welding power of any compact machine in the 300-amp class with better fuel efficiency and less noise while Excel Power delivers a full 2,400 watts of auxiliary power at all speeds including idle. Capable of Stick, MIG, DC TIG, Flux-cored welding and Air Carbon Arc cutting and gouging, the Trailblazer® handles it all.

Miller True Blue warranty

Highlights

  • Multiprocess Capabilities - Capable of Stick, MIG, DC TIG, Flux-cored welding and Air Carbon Arc cutting and gouging on Aluminum, mild and stainless steel.
  • Electronic Fuel Injection (EFI) - Provides faster, more reliable starts in any weather and improves fuel efficiency by up to 42 percent compared to standard carbureted models.

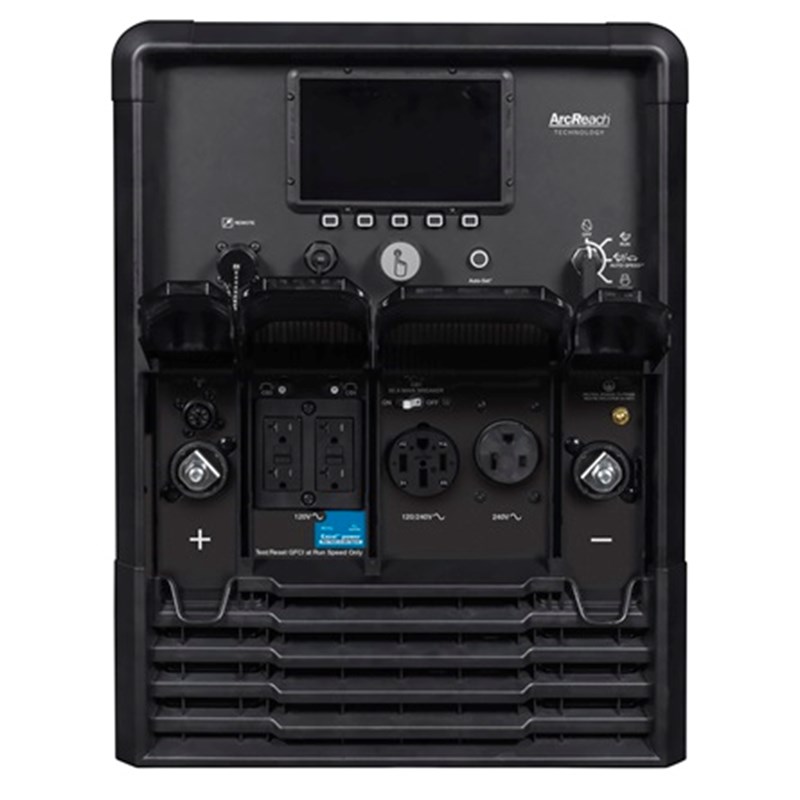

  • Excel™ Power - Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine-wave power at idle.
  • Auto-Speed™ - Engine speed is automatically adjusted to match weld and battery charge demands, reducing fuel consumption, maintenance costs and noise output.
  • ArcReach® - ArcReach® technology provides parameter control at the wire feeder or pendant without needing a control cord.
  • Auto-Set™ - This technology offers predesigned weld settings for increased ease of use for welders of all skill levels.
  • QuietPulse™ - QuietPulse is activated by changing the waveshape for DC pulse welding, creating the least possible noise with a slower, more fluid transition between the background and peak amperage.
  • Dynamic DIG™ - Miller’s proprietary Dynamic DIG automatically adjusts the amount of current required to clear a short, creating a more consistent, easily-tailored arc across multiple applications.

Industries

  • Construction & Fabrication
  • Heavy Equipment

What’s Included

  • Trailblazer® 330 w/ Kohler Engine

Benefits of the Miller Trailblazer® 330 Kohler

  • Easy to Use - Digital interface simplifies and quickens machine setup.
  • Easy Maintenance - The machine’s intuitive design allows for easier and quicker daily maintenance.
  • Direct Spool Gun Connection - Adapters are no longer required with the integrated 10-pin connection, expanding job variety and making aluminum welding easier.
  • Smaller & Lighter - The new model is over 80 pounds lighter and 13 percent smaller than previous models.

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via UPS Ground. Need special shipping? Just call 1-844-682-0205 for accommodations, including our use of your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products with a pre-approval. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Check out our selection of engine-driven welders and welding accessories from Miller at the best prices online.

This product replaces these legacy models:


Rebate Redemption

GET MORE SAVINGS WHEN YOU ADD ON MILLER® ACCESSORIES* OR HOBART® FILLER METALS.

Buy $150 in qualifying products get a $50 rebate

Buy $300 in qualifying products get a $150 rebate

Buy $500 in qualifying products get a $200 rebate

Miller Rebate

How To Submit Your Build with Blue™ Rebate Request

  1. Purchase a qualifying product.
  2. Get an electronic copy of your invoice or receipt showing the purchase of at least one of the eligible products shown below.
    • Locate the serial number of each product.
    • For the Additional Products rebate, circle each additional item and price paid on your invoice or receipt.
  3. Submit your rebate request.
Miller rebate redemption deadline

30-Day Submission Deadline

Rebate claims must be submitted within 30 days of purchase date.

Submit or track rebate

Shop all Miller welding deals, Miller accessories and Hobart filler metals for maximum rebates at the lowest prices, from Welders Supply.

Product Literature

Processes

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Pulsed TIG (GTAW-P)
  • Stick (SMAW)
  • TIG DC (GTAW-DC)

General Specifications

Title Trailblazer® 330 (Kohler) EFI w/Excel Power
Industries Interests Construction and Fabrication
Heavy Equipment
Amperage 20 A - 330 A
Weldable Metals Aluminum
Stainless Steel
Steel
Rated Carbon Diameter 1/4 in (6.4 mm)
Current Type DC
Max Open Circuit Voltage 107 VDC
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Engine Brand Kohler
Engine Idle Speed 2400 RPM
Engine Weld Speed Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 rpm to match weld output
Fuel Tank Size 11 Gallon
Fuel Type Gasoline
Horsepower 23 hp
Weld Output CC / CV
Rated Output CC/DC Stick/TIG 330 A at 30 V, 100% duty cycle, CV/DC MIG/FCAW 325 A at 30.25 V, 100% duty cycle
Single Phase Auxiliary Continuous Power 10500 W
Single Phase Auxiliary Peak Power 12000 W
Sound Rating 65 dB @ idle and 73.5 dB @ max weld
Applications Aluminum Welding
Fabrication
Mobile Fabrication & MRO
Structural Welding
Warranty 3 Years
Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 31.20 Inches
Width: 20.13 Inches
Length: 37.06 Inches
Weight: 400 Lb(s) 0 Oz
