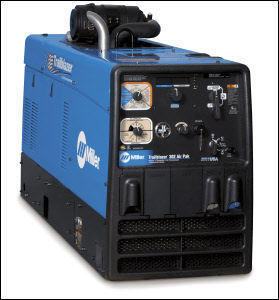

Miller Trailblazer 302 Air Pak Engine-Driven Welder w/ Battery Charge/Crank Assist #907549001
Part Number: 907549001
UPC: 715959577625
Welding type:
Engine Driven
Material type:
Mild Steel
Stainless Steel
Aluminum
Fuel Type:
Documents
Videos
Multi-Process
Multi-Phase
Engine Driven
3-Year Warranty
Miller Trailblazer 302 Air Pak Engine-Driven Welder #907549001
The Miller Trailblazer 302 Air Pak is a powerful all-in-one solution for your project. This gas engine-driven welder is designed for repair and construction with AC generator power, compressed air, and battery charge/crank assist. With easy operation and serviceability, the Trailblazer 302 Air Pak is a great choice for all industrial environments.
Features of the Trailblazer 302 Air Pak
- Optimal Size & Weight: Frees up to 50% more room on the truck for your other equipment and supplies while decreasing axle weight up to 25%.
- Batter Charge/Crank Assist: Offers selectable 12- or 24-volt battery charging, up to 450 amps of crank assist, convenient front panel access, and an optional 25-foot charge/jump cable.
- Independent Weld/Generator Advantages: Provides 13,000 watts of voltage-regulated power with no tool interference, independent generator power, and a four-pole weld generator for superior arc quality
- Industrial Rotary-Screw Air Compressor: Runs most air impact wrenches at idle, delivering 31 cfm at 100% duty cycle, 80-160 psi without a storage tank, and 100% deliverable air.
Applications:
- Fabrication
- Maintenance
- Repair
- Structural Steel Work
- Sheet Metal
Additional Field Options Available:
Options listed below can be added to the base model. Installation is required.
- GFCI Receptacles (300975)
- Electric Fuel Pump (195214)
- Cold Weather Kit (301115)
- Air Cooler w/ Separator (300420)
- Micron Filter Element (203877)
- RTI Filter and Bracket (300491)
- Desiccant Air Dryer System (300690)

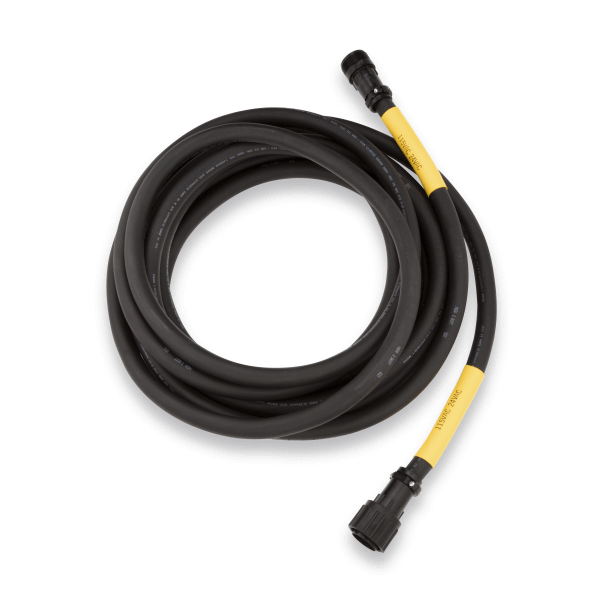

- Full KVA Adapter Cord (300517)
- Full KVA Plug (119172)
- Kohler® PRO 300 Hour Oil Change Service Kit (290695)
- Engine Tune-Up Kit (290803)
- Air Compressor Tune-Up Kit (279120)
Try these accessories with your new Trailblazer 302 Air Pak:
+

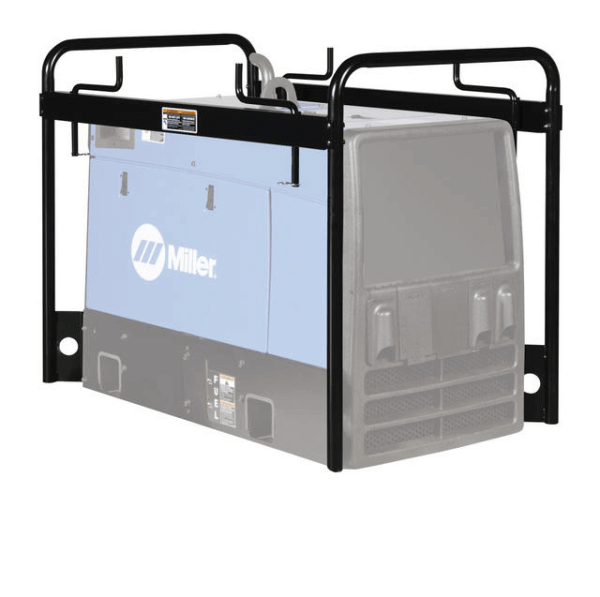

Protective Cage w/ Cable Holders
View Product+

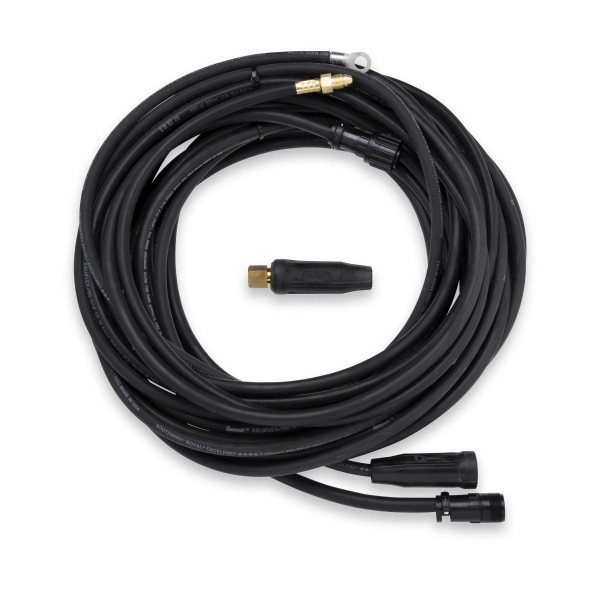

25 ft. Charge/Jump Cable
View Product+
Protective Cover (not for use with cage)
View Product
Welders Supply Company offers the best price for this best-selling single Miller Mig Welder.
Quick, Easy Shipping & Returns
Our in-stock items are dispatched the same or next day from our five distribution hubs located in WI and IL via fast UPS ground. Need customized shipping? Simply call us at 1-844-682-0205 - we cater to any special requests, including using your own shipping accounts. Benefit from straightforward 14-day returns on new, unopened items. Trust in our excellent service backed by top-tier shipping and return policies. Feel the advantage on your next purchase!
Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.
Miller Trailblazer 302 Air Pak Specifications: | |
|---|---|
| Brand | Miller |
| Model | Trailblazer 302 Air Pak |
| SKU | 907549001 |
| Processes | Stick (SMAW) MIG (GMAW) TIG (GTAW) Flux-cored (FCAW) Air Carbon Arc (CAC-A) |
| Skill Level | Professional |
| Input Power | CC/DC, Stick/TIG: 10-300 A CV/DC, MIG/FCAW: 13-35 V CC/AC, Stick/TIG: 10-225 A Battery Charge/Crank Assist: 12/24 V |
| Output | CC/DC, Stick/TIG: 280 A at 32 V, 100% duty cycle CV/DC, MIG/FCAW: 300 A at 32 V, 100% duty cycle CV/DC, MIG/FCAW: 350 A at 32 V, 60% duty cycle CC/AC, Stick/TIG: 200 A at 25 V, 60% duty cycle Charge: 10–75 A Crank assist: 450 A, 12 V |
| Welding Mode | CC/CV |
| Weldable Materials | Mild Steel, Stainless Steel, Aluminum |
| Portability | HWY-Mid Frame Trailer #301438 |
| Warranty | 3-Year Miller True Blue Warranty |
Air Compressor Specifications: | |
|---|---|
| Compressor Brand/Warranty | Miller, 3-Year Miller True Blue Warranty |
| Features | Rotary screw with electric clutch for on/off |
| Free Air Delivery | 31 cfm (0.88 m3/min.) at 3,600 rpm 28 cfm (0.79 m3/min.) at 3,000 rpm 22 cfm (0.62 m3/min.) at 2,400 rpm (idle) |
| Working Pressure Constant | 80-160 psig |
| Duty Cycle | 100% |
| Oil Capacity | 1.75 qt |
| Automatic Compressor Shutdowns | High Pressure (160 psi) |
Engine Specifications: | |
|---|---|
| Engine Brand/Warranty | Kohler CH750, 3-year warranty |
| Horsepower (HP) | 27 hp at 3,600 rpm |
| Type | Twin-cylinder, four-cycle overhead-valve, industrial air-cooled, gasoline |
| Weld Speed | 3,600/3,000 rpm |
| Idle Speed | 2,400 rpm |
| Fuel Capacity | 12 gal |
| Oil Capacity | 1.75 qt |
| Standard Shutdowns | Low oil pressure |
Shop all Miller welding machines.
SHIPPING DIMENSIONS |
|
| Height: | 20.00 Inches |
| Width: | 35.00 Inches |
| Length: | 60.00 Inches |
| Weight: | 805 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Does the Miller Trailblazer 302 have a dual power option?
A - No, only the Big Blue series Miller machines have dual power.
Q - Is the Miller Trailblazer 302 truly multiprocess? What are the limitations?
A - The Miller Trailblazer 302 is a truly versatile machine able to run MIG, TIG, Stick, ac or dc. To do this, the correct wire feeders, MIG gun, TIG torch, amperage control, and arc starter must be used.
Q - How long will the compressor last on the Miller Trailblazer 302?
A - With prescribed maintenance the compressor should outlive the machine itself.
How to start the machine:
- Pull out choke.
The choke is located to the right of the starter switch. Pull the choke all the way out.
- Start machine.
Turn Engine Control Switch to the Start position.
- Move to idle.
Release Engine Control Switch when engine starts and slowly push choke back in.
- If engine doesn't start.
Let engine come to complete rest if it doesn't start before attempting to start it again.
