ESAB Rogue EM125 MIG Welder #0700301081

Part Number: 0700301081
UPC: 7330725079986
$398.99 + Free Shipping $581.36*
SAVE $182.37

Welding type:

MIG

MIG

  • MIG
  • 110V (120V) welding machine110V Input
  • Single phase power input welding machine1-Phase
  • Lightweight, portable welding machineLightweight & Portable

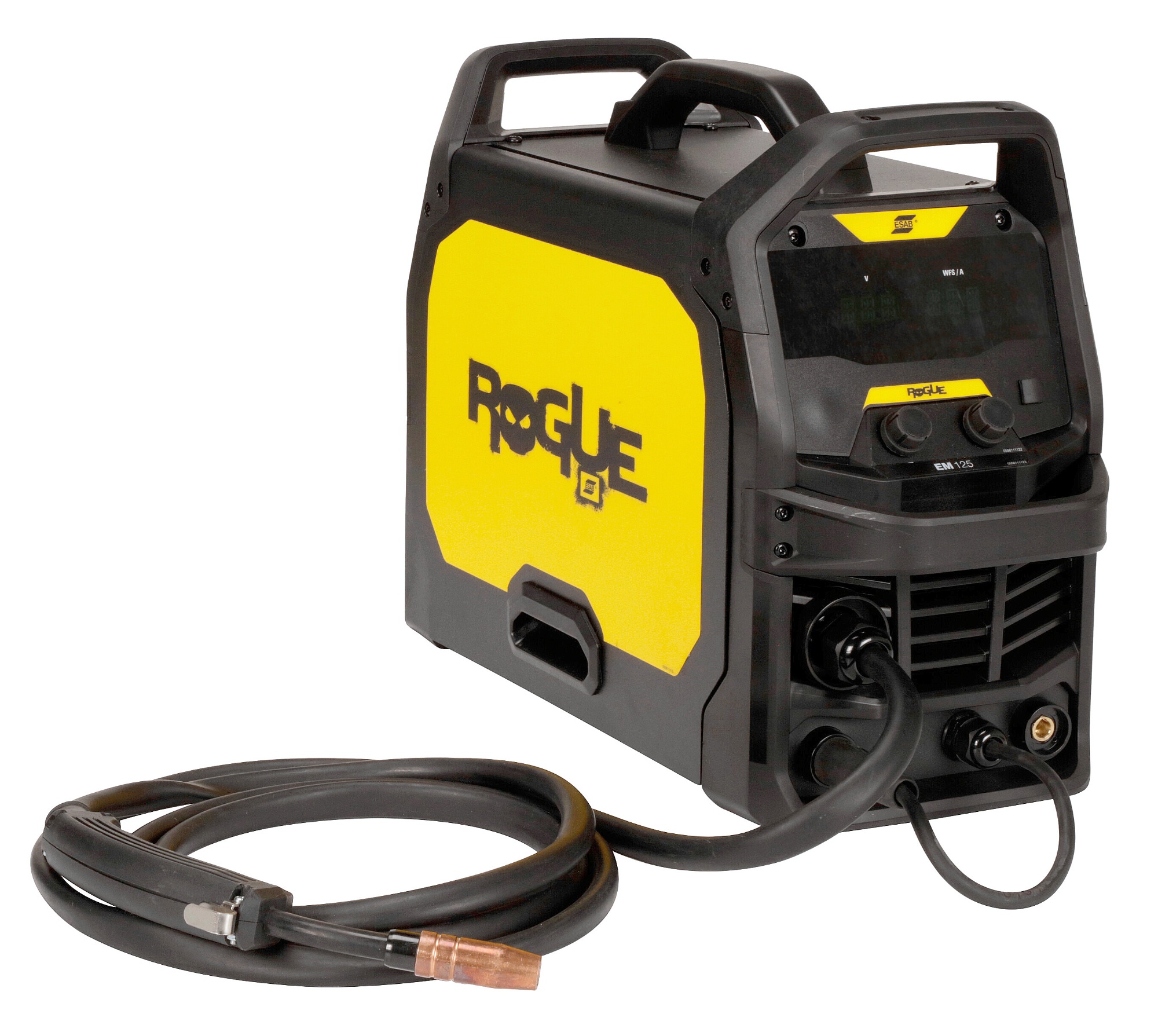

ESAB Rogue EM125 MIG Welder #0700301081

ESAB Rogue EM125 is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and controls that allow the welder to fine tune arc characteristics based on the material they are welding. With a weight of only 12.6 kg (27.7 lbs), single voltage 120V single-phase input and compatibility with 6 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.

An inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance.

Rogue EM takes single-phase welders to the next level with MIG/MAG and Flux-cored welding, proven Rogue performance and a rugged industrial design. Break away from convention with Rogue and upgrade the capabilities of your shop.

ESAB Rogue EM125 affordable MIG welding machineFeatures:

  • Large 14 Segment Display –instantaneous feedback for both voltage and wire feed speed for clear viewing
  • Unique rugged industrial design –supporting multiple lift points and cable management.
  • IP23S rated for indoor/outdoor use

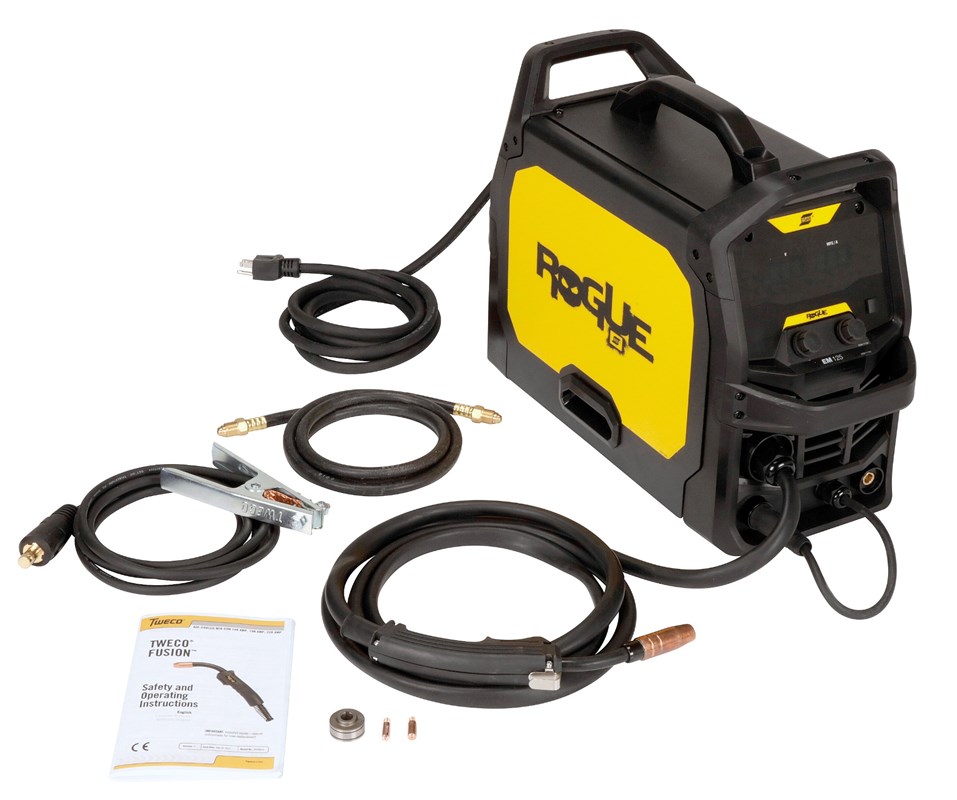

Package Includes:

  • 125A MIG/MAG power source
  • Integrated MIG Gun 3 m (10 ft)
  • Contact tips 1 ea. 0.6 & 0.8 mm (0.023/0.030 in)
  • Return cable kit, OKC 25 heady duty, 3 m (10 ft)
  • Gas hose with 5/8 in 18 RH fittings 3 m (10 ft)
  • Feed rolls 0.6/0.8 mm (0.023/0.030/0.035 in) V/K
  • Instruction manual
Shop welding machines, fume extractors and welding helmets available at Welders Supply.

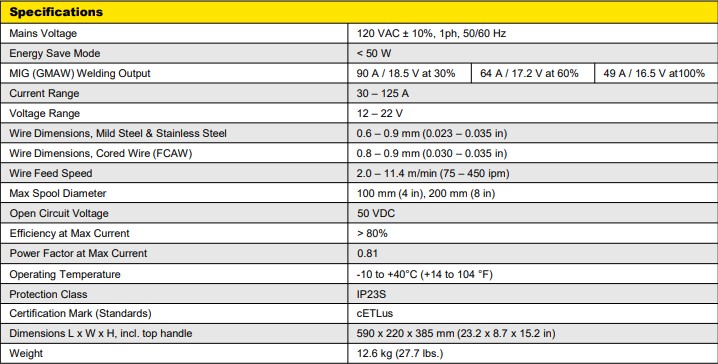

ESAB Rogue EM125 - Specifications
Mains Voltage 120 VAC ± 10%, 1ph, 50/60 Hz
Energy Save Mode < 50 W
MIG (GMAW) Welding Output
  • 90 A / 18.5 V at 30%
  • 64 A / 17.2 V at 60 %
  • 49 A / 16.5 V at 100%
Current Range 30 - 125 A
Voltage Range 12 - 22 V
Wire Dimensions, Mild Steel & Stainless Steel 0.023 - 0.035 in. (0.6 - 0.9 mm)
Wire Dimensions, Cored Wire (FCAW) 0.030 - 0.035 in. (0.8 - 0.9 mm)
Wire Feed Speed 2.0 - 11.4 m/min (75 - 450 ipm)
Max Spool Diameter 4 in. (100 mm), 8 in. (200 mm)
Open Circuit Voltage 50 VDC
Efficiency at Max Current > 80%
Power Factor at Max Current 0.81
Operating Temperature +14 to 104° F (-10 to +40° C)
Protection Class IP23S
Certification Mark (Standards) cETLus
Industries
  • Automotive
  • Automotive Bodies
  • Civil Construction
  • Mechanical Contractors
  • Repair and Maintenance
  • Light Fabrication
  • Hobbyist



SHIPPING DIMENSIONS

Height: 18.70 Inches
Width: 23.50 Inches
Length: 25.15 Inches
Weight: 38 Lb(s) 6 Oz
