Miller OptX™ 2kW, 240V Laser Welding Machine - Complete Package #951000109 - ***** CALL FOR MORE INFO *****

Part Number: 951000109
UPC: 715959711272
Out of Stock
Starts at $7,650.00/month with

Welding type:

Laser

Laser

Power supply:

220V Single Phase

220V Single Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • Laser welderLaser Welding
  • Laser welder complete packageComplete Accessory/Consumable Pkg
  • 40A, 240V Input
  • Single Phase Power
  • Portable @ 140lbs
  • Miller 3-Year Warranty

***** CALL FOR MORE INFO *****

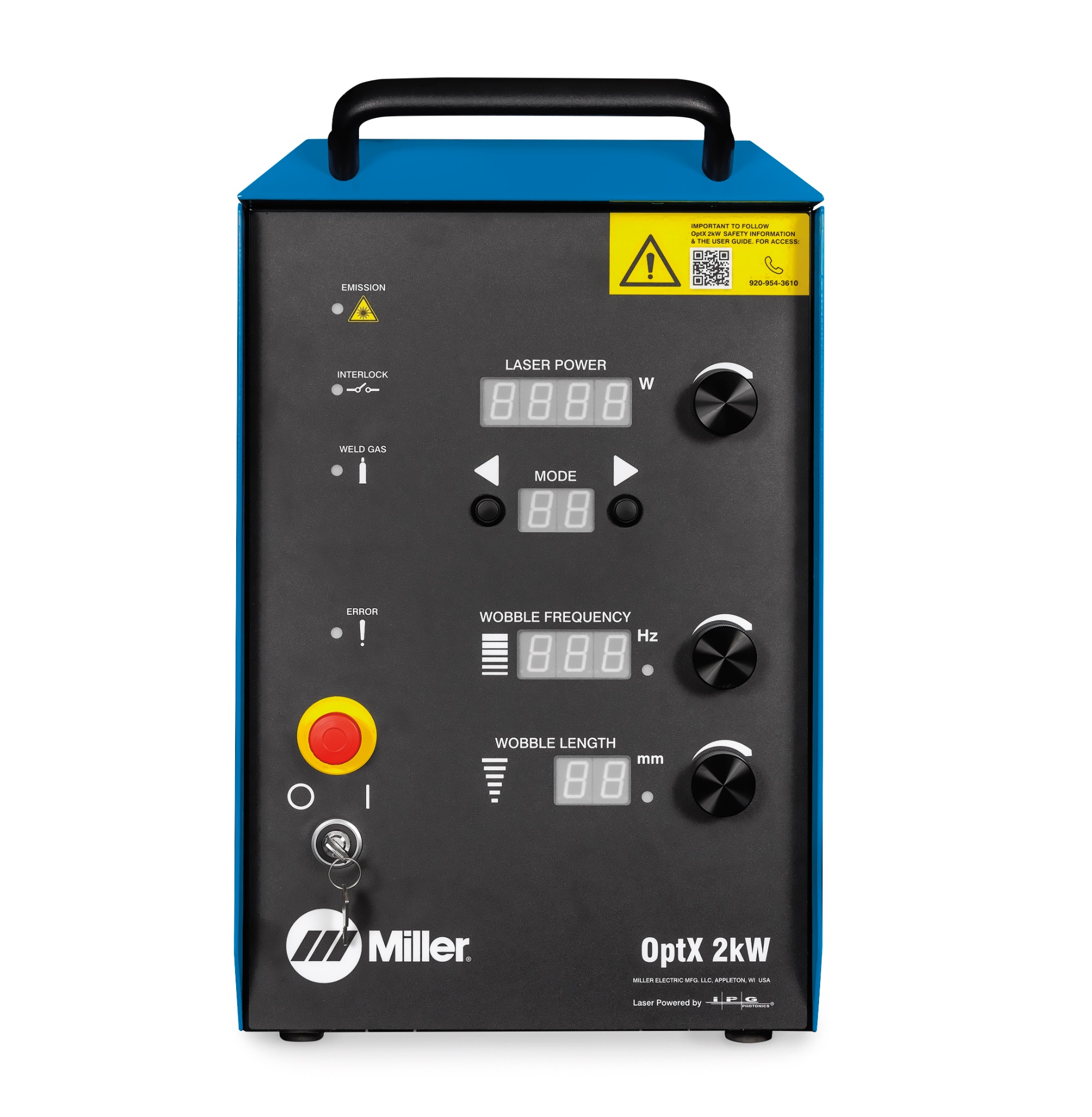

Miller OptX™ 2kW, 240V Complete Package #951000109

Miller OptX laser welder featuresAdvanced Laser Welding & Cleaning

Change the welding game with the OptX handheld laser welder. Unleash the workforce’s welding potential and significantly reduce the learning curve, so any welder can drive output and be productive. Ideal for precision welding applications with tight fit-up with minimal gaps where high productivity is needed.

Applications & Processes

  • Applications - Sheet metal, Fabrication, Manufacturing, Aerospace and defense, Transportation, HVAC
  • Processes - Laser welding, laser cleaning
  • Laser Output - Weld mode: Class 1 red guide beam, 2,000 W average power, 2,500 W peak power
  • Input Power - 40 A, 240 V, single-phase
  • Process Gas - Argon, nitrogen, argon/CO2 mix
  • Net Weight - 140 lbs

Features of the Miller OptX™

  • 2kW Output - Weld up to 5/16 in material thickness with full penetration.
  • Exclusive Weld Programs - Miller exclusive weld programs developed and design by our engineers to maximizes weld quality and ease of use.
  • Multi Function Capability - Tack, Clean and Weld functions all in one machine
  • OptX Wire Feeder - Designed to provide consistent and reliable wire feed speeds to delivery high quality welding performance.

Highly Productive

  • High speed welding that is up to four times faster than TIG, with simple material preparation and minimal post-finishing.
  • Spot, autogenous and wire welding, along with a cleaning function provide high-quality, consistent results.
  • The OptX 2kW wire feeder is designed and manufactured specifically for the handheld laser application, providing consistent results in an industrial setting.

Easy to Use

  • Simple interface with pre-built parameters for welding and cleaning applications, provide reliable results for different material types and thicknesses.
  • Nearly eliminate the need for pre- and post-weld processing where tight part fit-up is available.

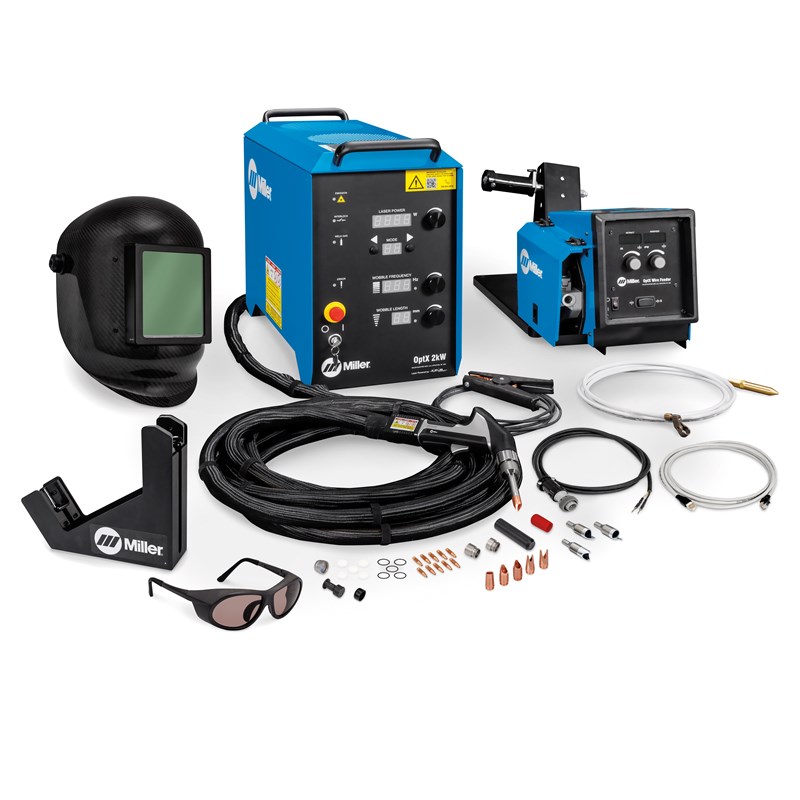

Complete Package: What's Included

  • OptX 2kW laser machine
  • OptX wire feeder
  • OptX laser torch

Miller OptX laser welding system - What's IncludedOptX accessory kit (301828) consisting of:

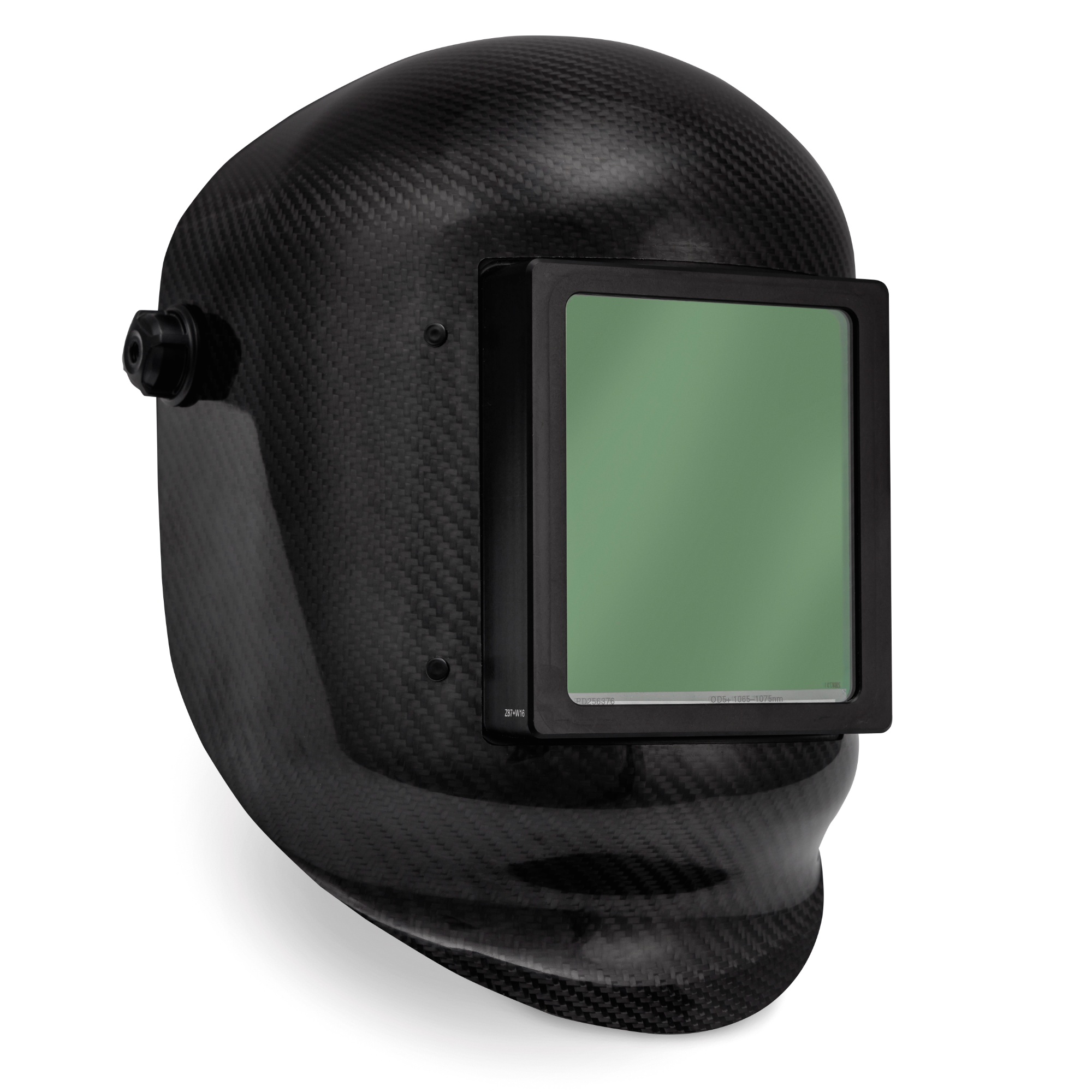

  • OptX carbon fiber laser welding helmet
  • OptX standard laser safety glasses

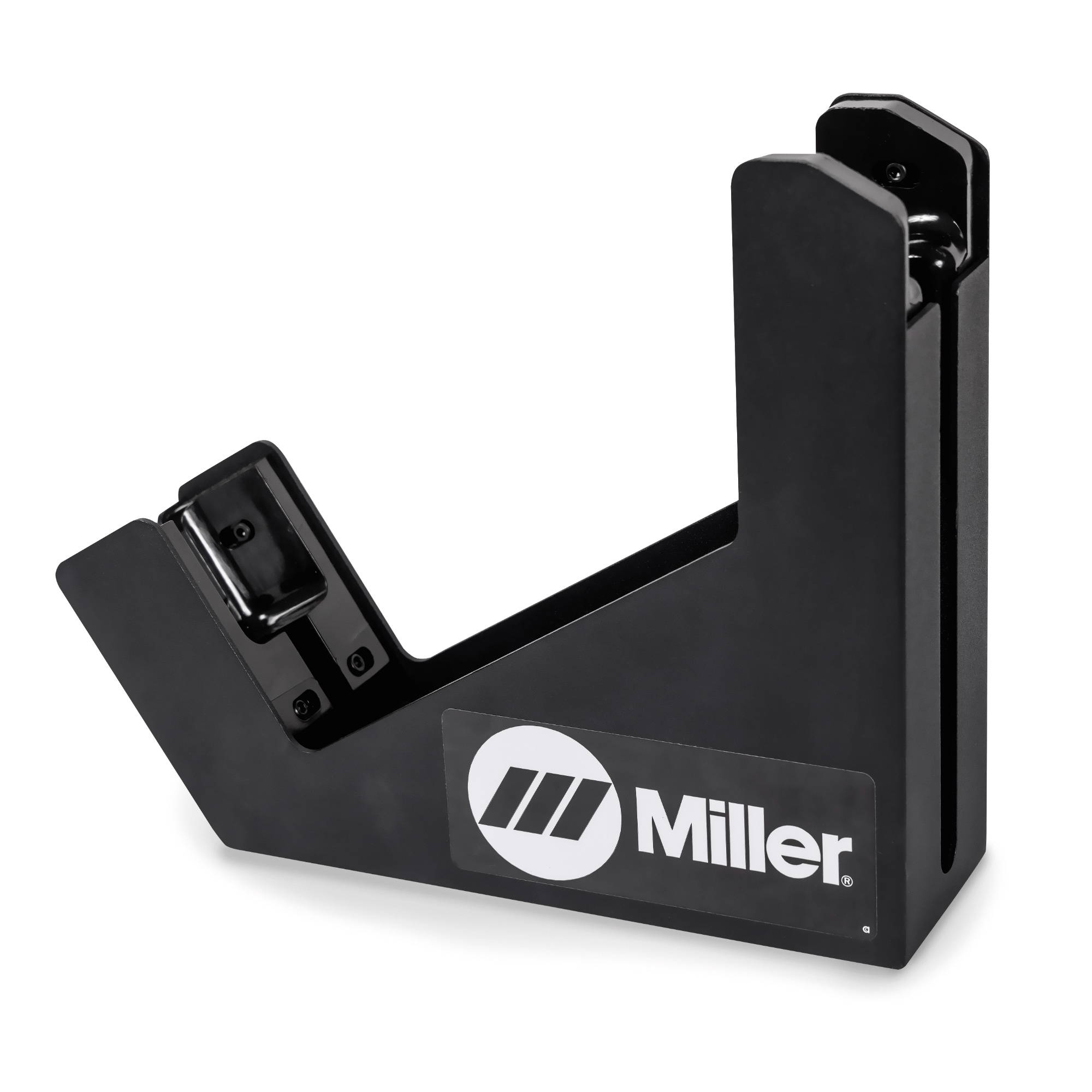

  • OptX torch cradle
  • OptX torch cover
  • Welding nozzles (set of 5)
  • Cleaning nozzles (set of 3)
  • Protective windows with o-rings (5-pack of each)

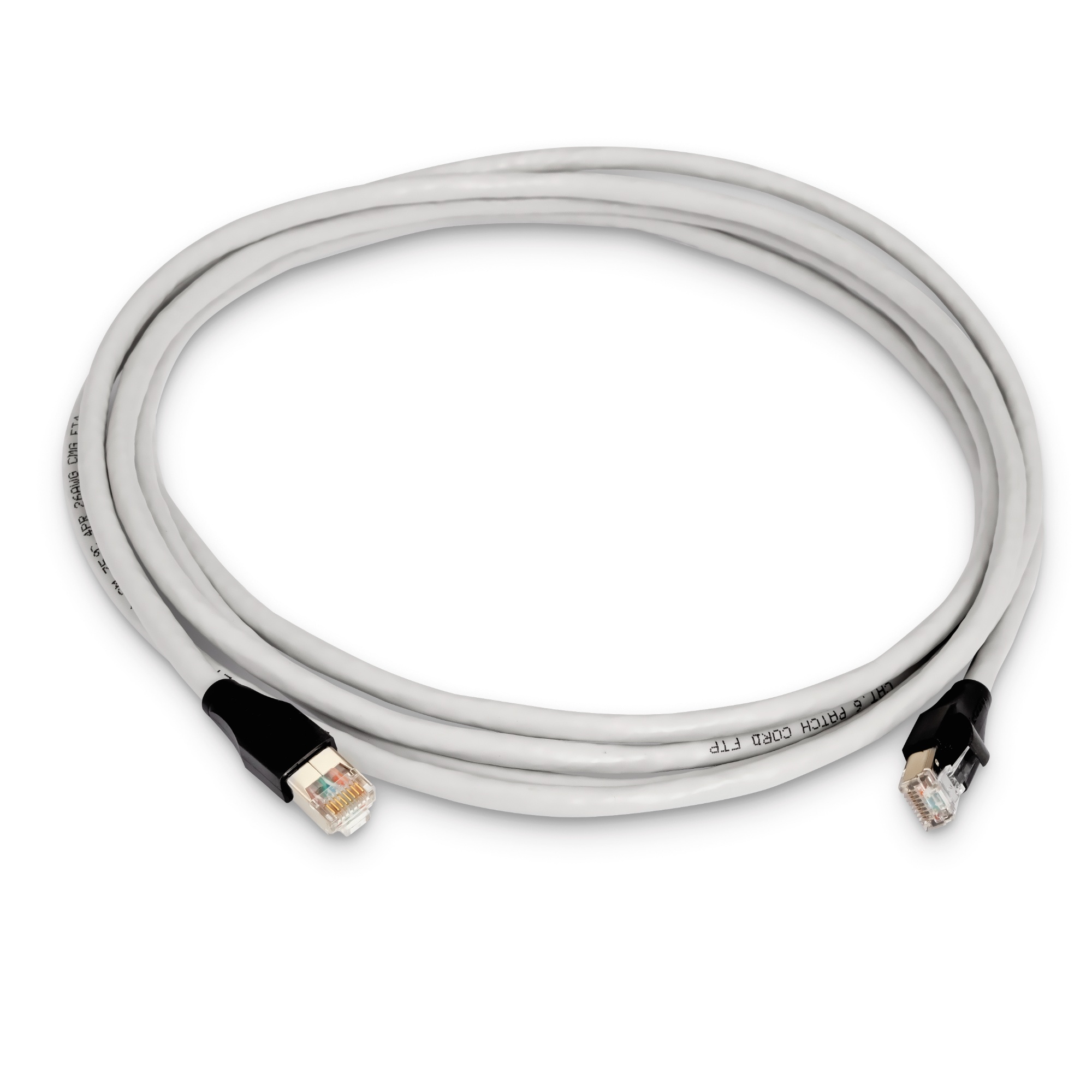

  • 10-foot (3 m) Cat 6 Ethernet cable

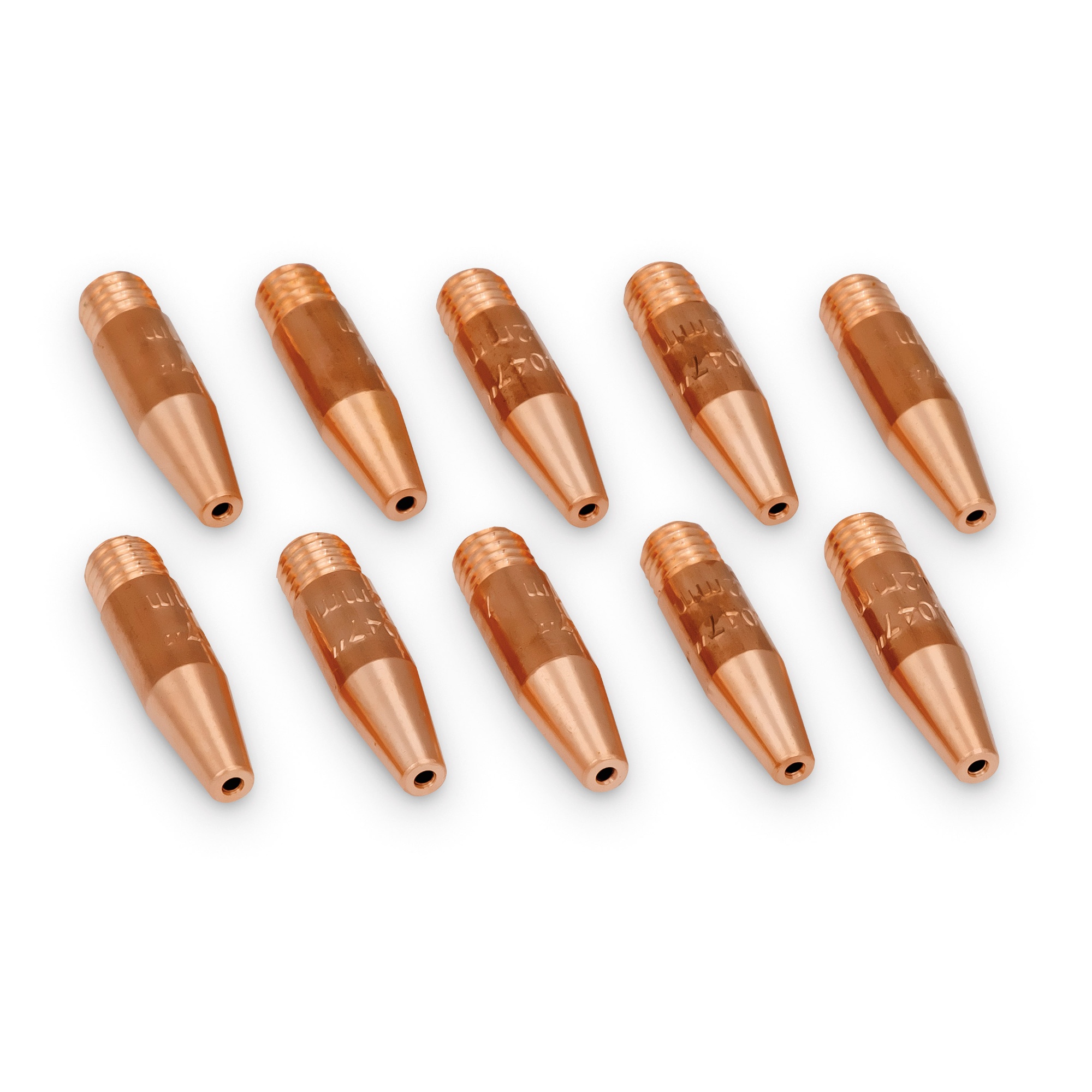

  • Contact tips
  • Additional components and tools

OptX hardware kit (301801) consisting of:

  • Work-sense clamp
  • Smith regulator (30-150-580)
  • 5-foot (1.5 m) gas hose
  • .045 V-groove 4-roll drive roll kit
  • .047 U-groove 4-roll drive roll kit
  • Trigger cable

Not included: Interlock switch

Miller True Blue 3-Year WarrantyMiller True Blue warranty

Enjoy peace of mind with the best machine coverage in the industry - Miller's True Blue Warranty.



Shop the latest gear from Miller Welding, or browse all welding machines at the best prices online, from Welders Supply.

Miller OptX™ 2kW Laser Welder Specifications

ModeInput PowerOutput

Rated Output at 100% Duty Cycle

Amps input Rated Output, 50/60 Hz

(240V, KVA, KW)

Dimensions

(H x W x D)

Net weight
Laser Welding and Cleaning 1-phase 2 kW at 30°C 2 kW at 30°C 32, 6, 5.85 21 x 12.4 x 25.2 in.
(533 x 315 x 640 mm)
140 lb.
(64 kg)

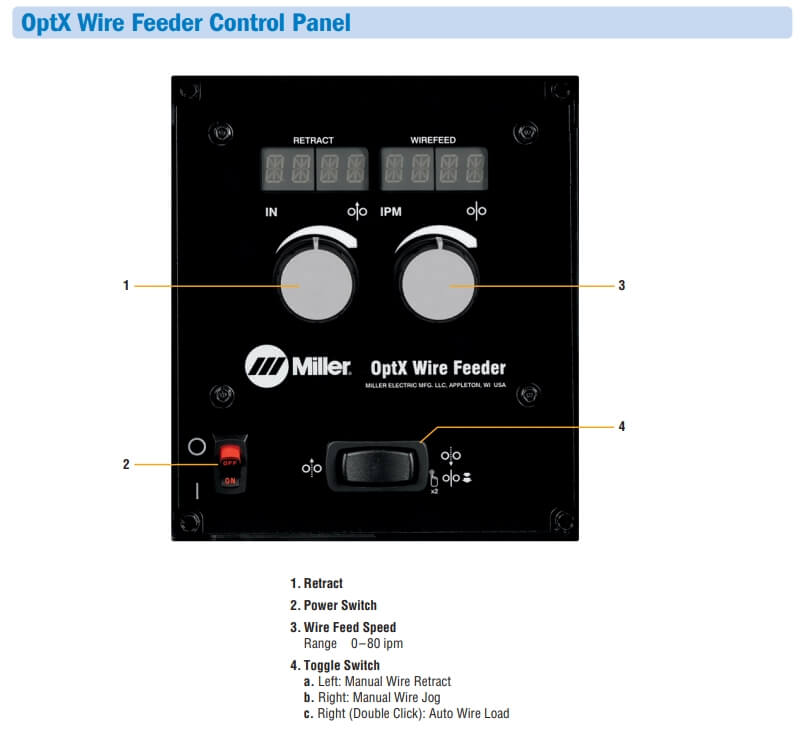

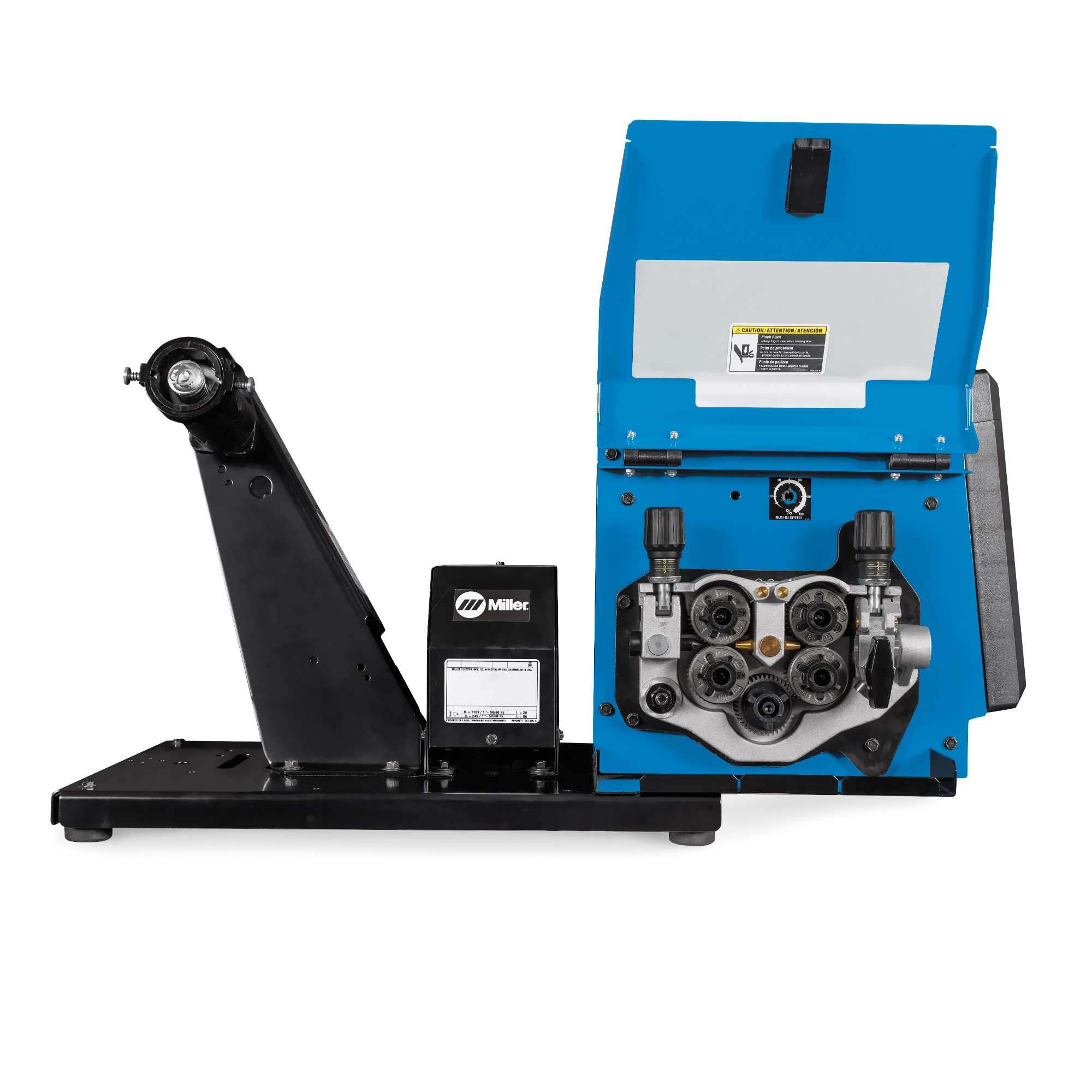

OptX Wire Feeder Specifications

Input PowerWire Feed SpeedWire Diameter Capacity

Spool Size Capacity

Dimensions

(H x W x D)

Net Weight

120 VAC, 3.5 A,
50/60 Hz
5–80 ipm
(0.127– 2.032 m/min.)
.023–1/16 in. (0.6–1.6 mm)
.045 in. (1.1 mm) recommended
8 in. (203 mm)
and 12 in. (305 mm)
16 x 12.375 x 27.875 in.
(406 x 314 x 708 mm)
46 lb. (21 kg)

OptX 2kW Performance Data

MetalMaterial Thickness Range
(Wire Autogenous)
Spot Welding
Penetration Depth

Laser Welding Travel Speed

Shielding Gas Required

Aluminum 20 gauge–1/4 in. 20 gauge–1/4 in. 15–20 ipm (0.3–0.5 mpm) Argon
Steel, Stainless Steel 20 gauge–1/4 in. 20 gauge–1/4 in. 15–20 ipm (0.3–0.5 mpm) Nitrogen
Copper 18 gauge–1/8 in. 18 gauge–1/8 in. 15–20 ipm (0.3–0.5 mpm) Nitrogen

Welding and Cleaning Parameters

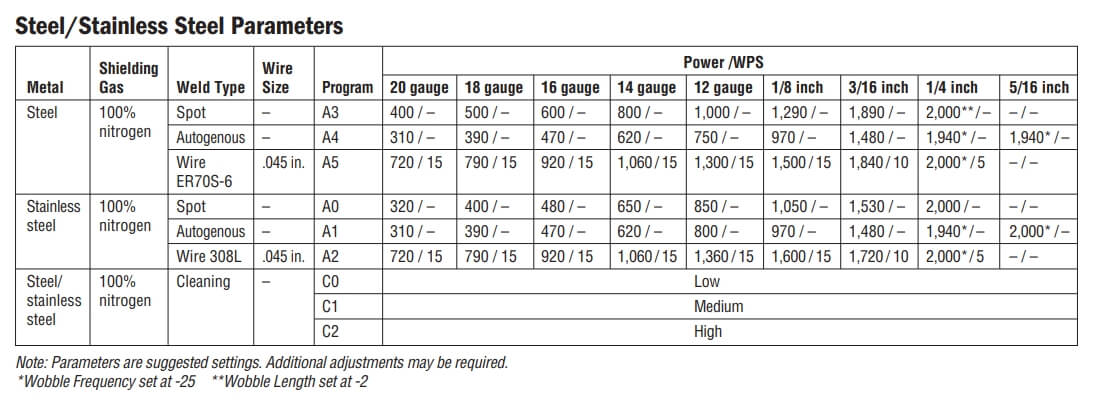

Steel/Stainless Steel Parameters

Miller OptX laser welder steel/stainless steel parameters

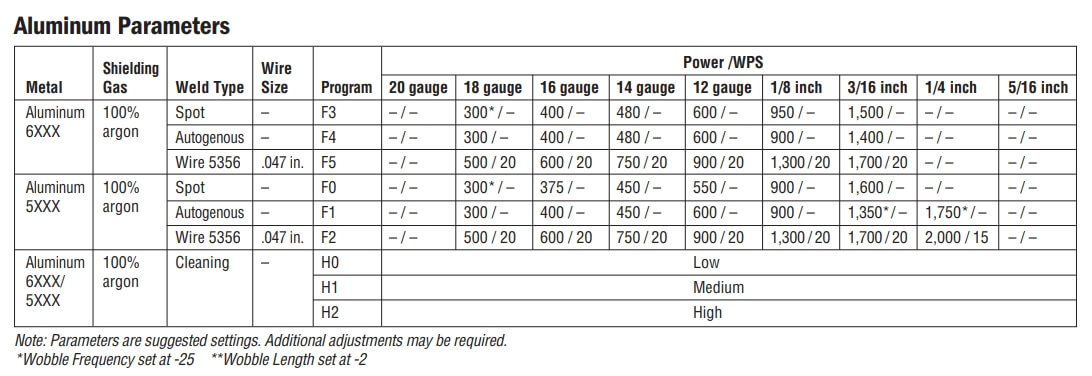

Aluminum Parameters

Miller OptX laser welder aluminum parameters

Welding Nozzle Selection

Miller OptX laser welder - Welding Nozzle Selection

Cleaning Nozzle Selection

Miller OptX laser welder - Cleaning Nozzle Selection

Feeder Consumables

Wire SizeGuide ConduitU-Groove Drive RollsV-Groove Drive RollsGuide Tips
.045 in. (1.1 mm) 301809 301825 (kit) 301822
.047 in. (1.2 mm) 301808 301826 (kit) 301822

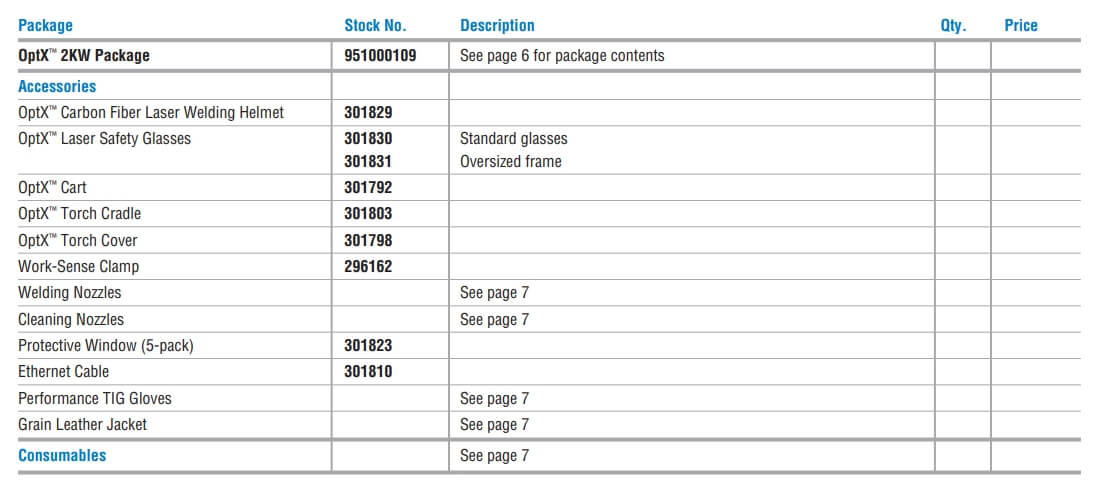

Ordering Information

Miller OptX laser welder - Ordering information

SHIPPING DIMENSIONS

Height: 45.00 Inches
Width: 40.00 Inches
Length: 20.00 Inches
Weight: 255 Lb(s) 0 Oz

Product Questions and Answers

Have a question about this product? Submit your question using the form below

Related Products

Miller Dynasty 280DX #907514001
Dynasty 280 Dx (With CPS) TIGrunner
$11,777.00
$13,603.00
(1)
JACKET, WELDING, LEATHER, 2XL
$257.70
$271.24
JACKET, WELDING, LEATHER, LG
$242.40
$255.06
JACKET, WELDING, LEATHER, XL
$242.40
$255.06
Miller diversion 180 ac/dc Miller Diversion 180AC/DC Tig Welding Package
Miller Diversion 180AC/DC Tig Welding Package
$2,825.00
(1)
Powerful, portable, and energy efficient so you can maximize productivity!
Miller Dynasty 280 (With Cps) Tigrunner
$10,889.00
$12,577.00
Ethernet Network Cable, CAT 6, 10 ft. for sale online at welders supply
Miller Ethernet Network Cable, CAT 6, 10 ft.
$70.90
$72.95
OptX™ Cleaning Nozzle, Outside Corner part of 3 Pack Cleaning Nozzle Kit for sale online at welders supply
Miller OptX Cleaning Nozzle Kit, 3 Pack
$263.66
OptX™ Welding Nozzle, Conical part of 5 Pack Welding Nozzle Kit for sale online at welders supply
Miller OptX Welding Nozzle Kit, 5 Pack
$251.68

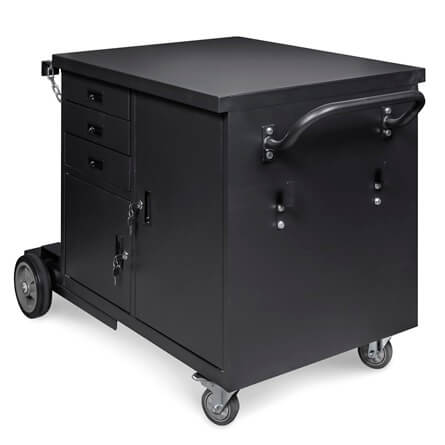

Miller Cart for OptX™ Handheld Laser Welder, Wire Feeder, & 2 Gas Bottles #301792
