ESAB® Savage™ A50 LUX Welding Helmet - 0700500950 (Shades 3/5-13)

Part Number: 0700500950
UPC: 7330725080074

Ships Free To Lower 48 States

ESAB® Savage™ A50 LUX Welding Helmet - 0700500950 (Shades 3/5-13)

Part Number: 0700500950
UPC: 7330725080074
$346.80 + Free Shipping $394.80*
SAVE $48.00

Helmet Viewing Area:

6-9.9 in²

Related Products

  • Auto-darkening welding helmetAuto-Darkening
    (Shades 3, 5-13)
  • Multi-process welding helmetMIG/TIG/Stick Welding
  • Plasma cutting helmetPlasma Cutting
  • Oxy fuel cutting helmetOxy Fuel Cutting
  • Welding helmet shade 3 for grindingGrinding
  • Lightweight welding helmetLightweight at 1.27 lbs

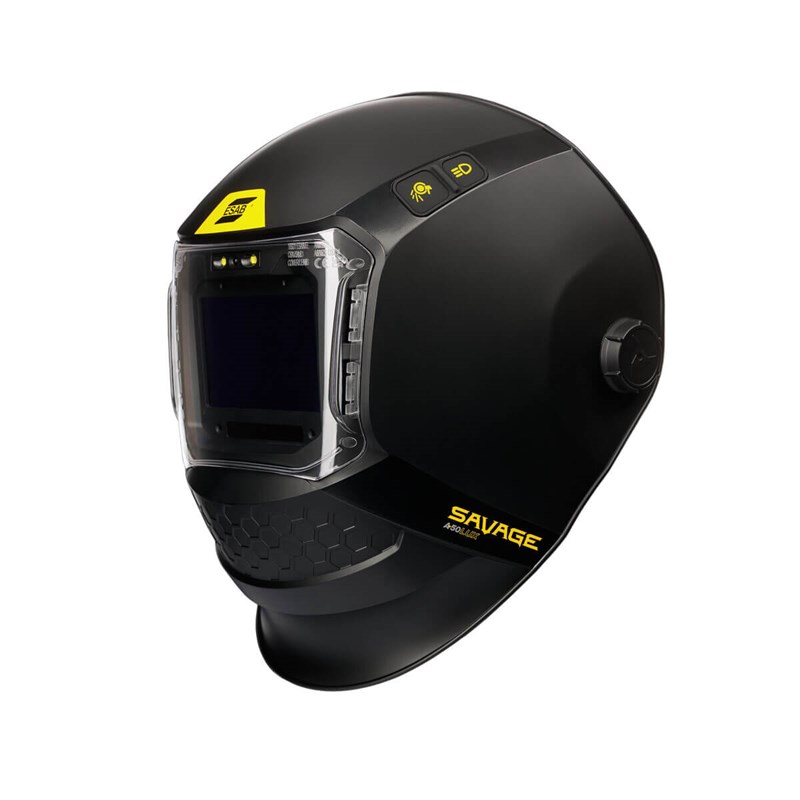

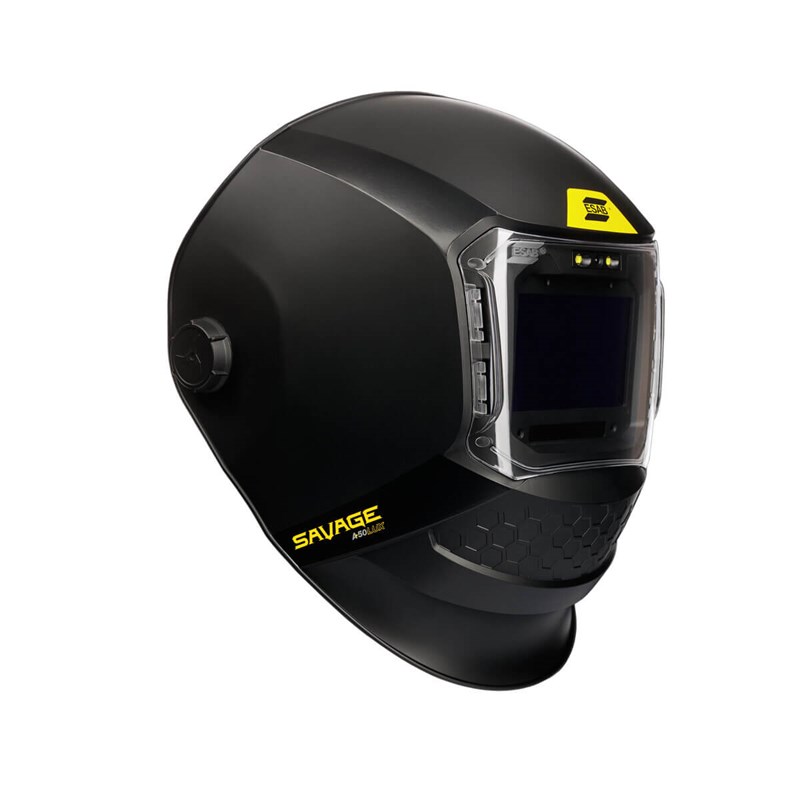

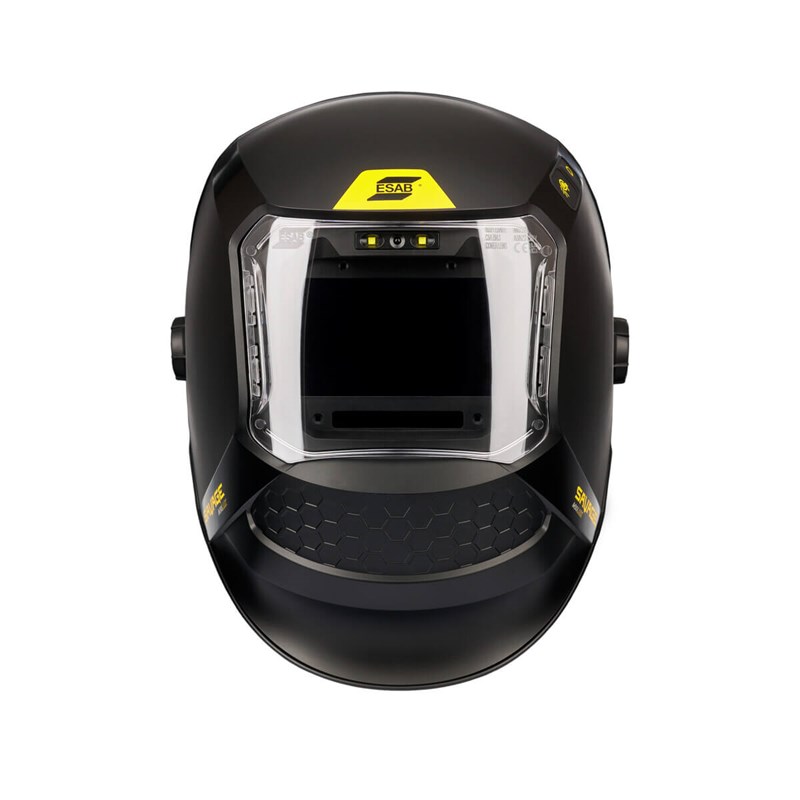

ESAB® Savage™ A50 LUX Welding Helmet, Shades 3/5-13 #0700500950

The new Savage A50 LUX welding helmet, like the well-known Sentinel A60 welding helmet, has an advanced 'True color' welding filter with of course an optical quality of EN 1/1/1/1. The welding filter has a simple, intuitive control panel that provides control over the most critical features related to all types of welding: wide choice of shades; 5 steps delay and sensitivity.

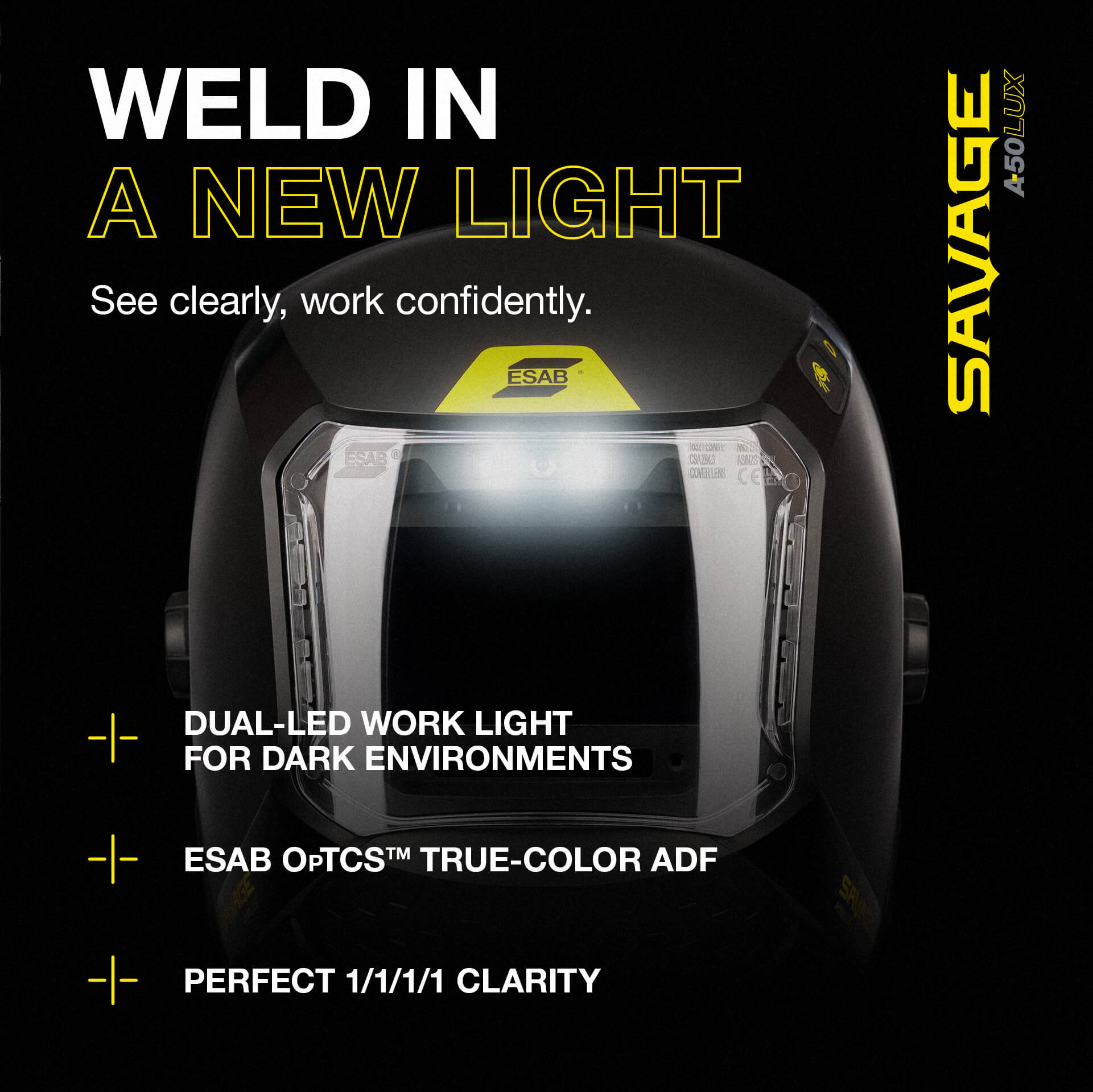

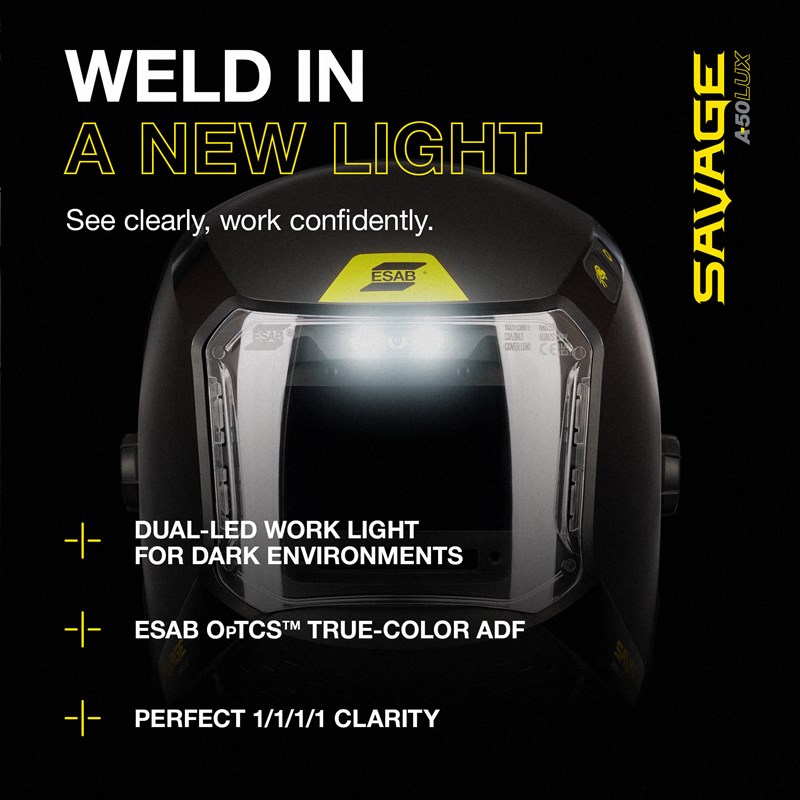

An added feature of the Savage A50 LUX is a dual 50 lumen LED work light, integrated behind the outer splash glass. The work light is powered by its own "AA" battery, which offers a long lifespan thanks to the integrated arc sensor, which only turns the lamp off when an arc or intense light is detected.

The Halo ™ headband used in the Savage A50 LUX is the same 5-point adjustable solution offered in the Sentinel A60.

Highlights

  • EN 1/1/1/1 Optical Clarity: Features flawless true-color viewing through OpTCS™ lens technology for unmatched weld visibility and eye comfort
  • Smart LED Work-Light: Dual 50-lumen LEDs integrated behind the lens; powered by its own AA battery and arc-sensor shutoff for long life

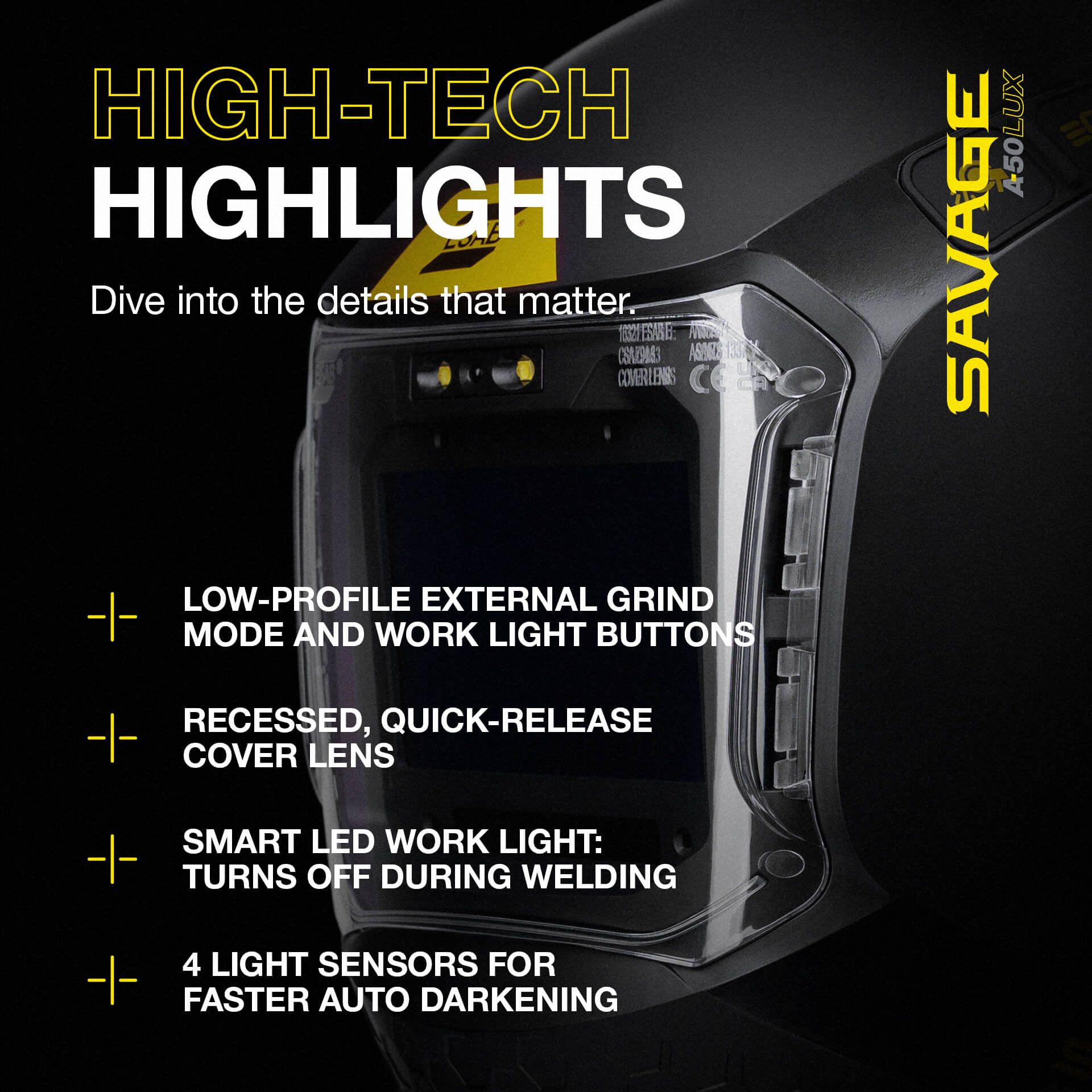

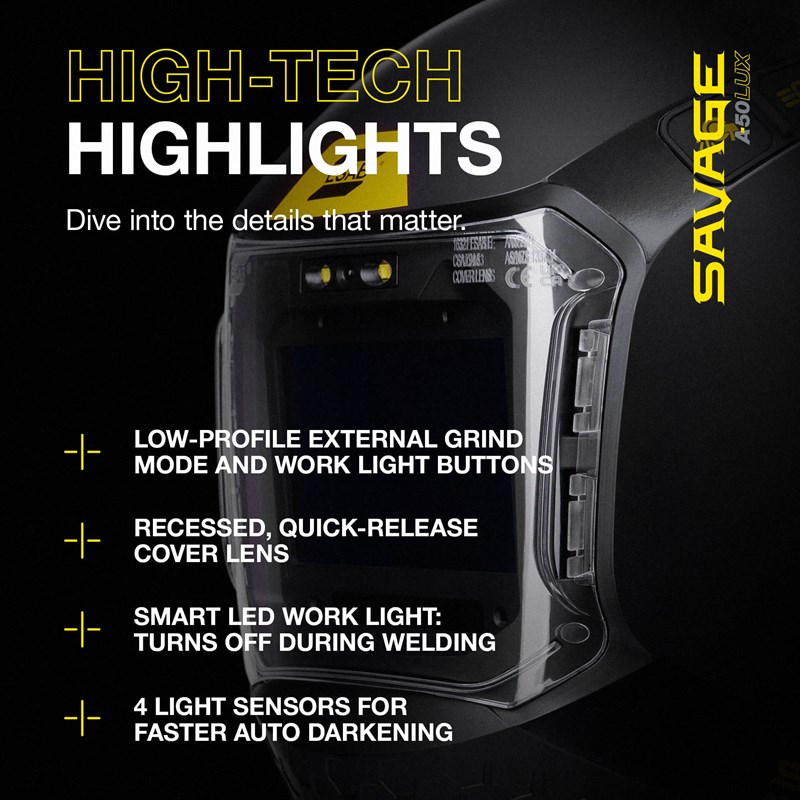

  • Quick Access Buttons: External grind mode and work-light buttons make adjustments fast and glove-friendly

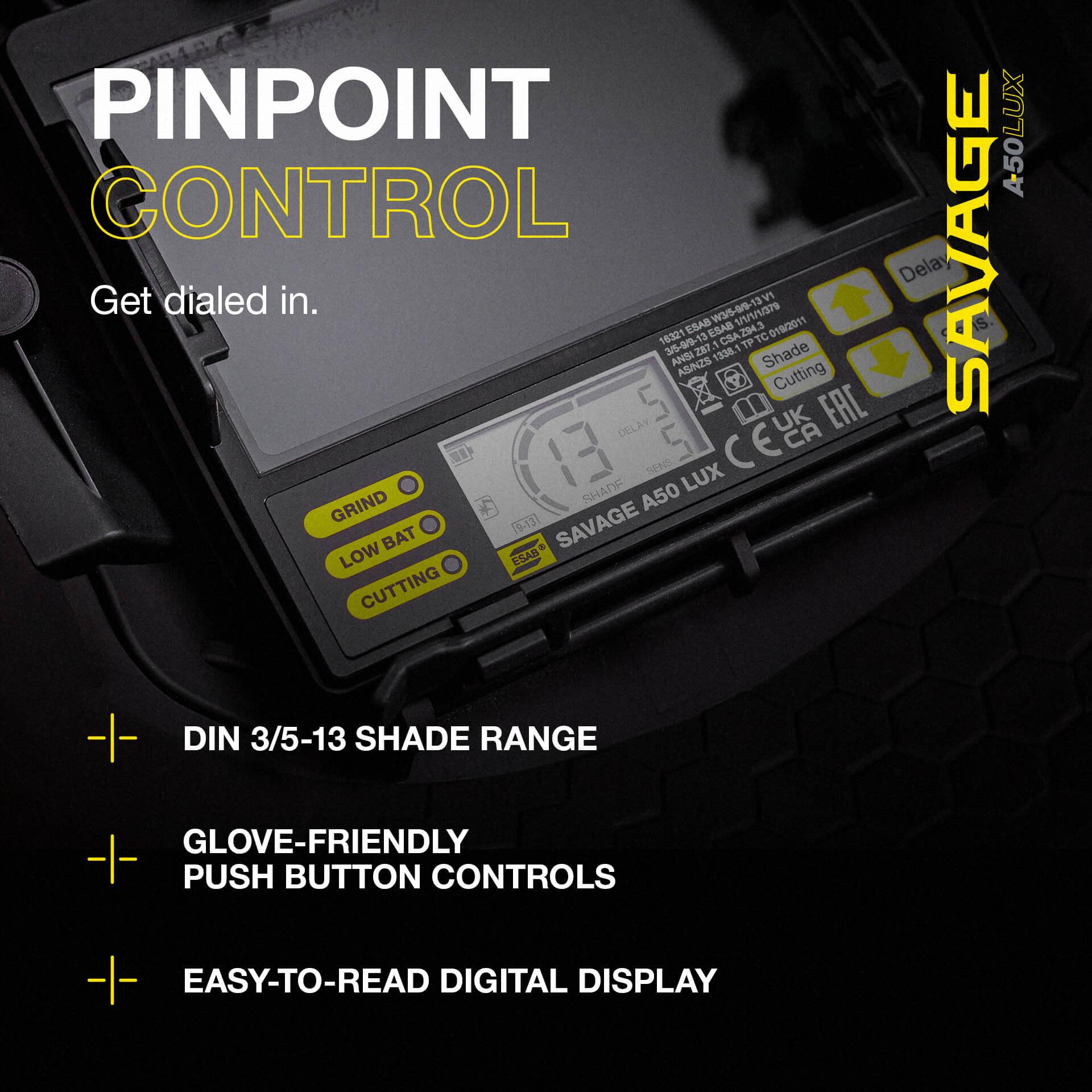

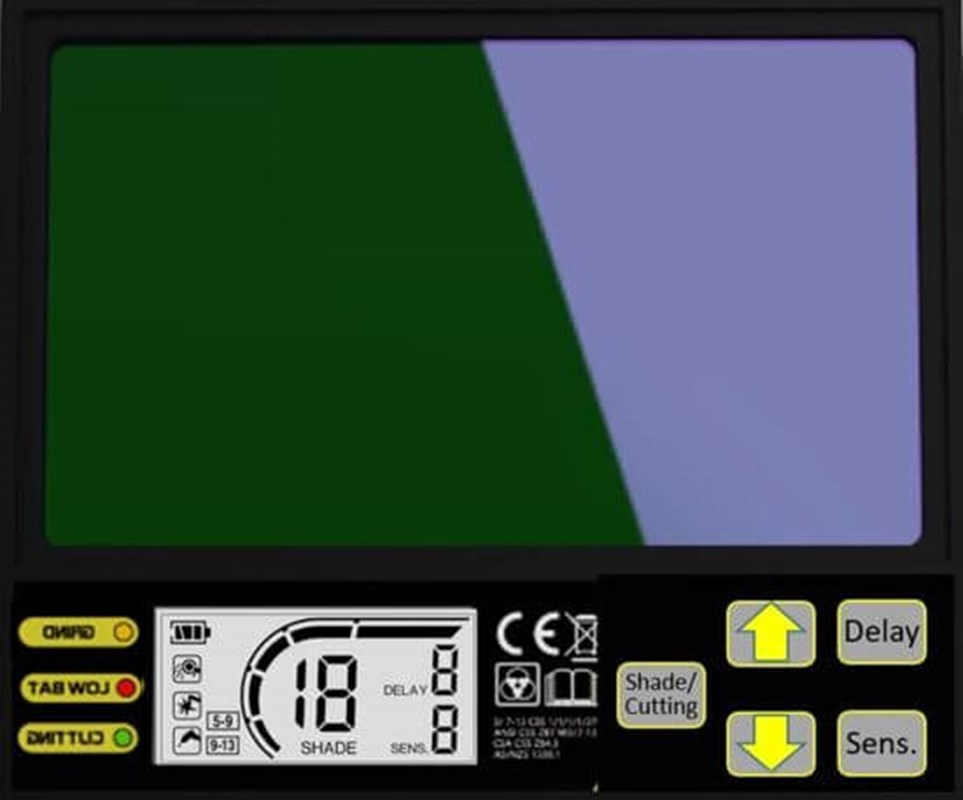

  • Versatile ADF Control Panel: Internally adjustable panel with wide DIN 3/5–13 shade range, plus 5-step delay and sensitivity settings
  • Large Viewing Area: Expanded 100 x 60 mm (3.94 x 2.36 in.) viewing window ensures full visibility during all weld processes
  • Fast Arc Detection: Four arc sensors provide a rapid 0.07 ms switching time to protect eyes instantly during arc strikes
  • True-Color Lens Technology: ESAB OpTCS™ enhances color accuracy, reducing eye strain and improving weld detail recognition
  • Comfortable Halo™ Headgear: 5-point adjustable Halo™ system delivers superior comfort and balance for all-day wear
  • Battery Status Indicators: Low battery and grind mode LED indicators keep you informed without removing the helmet
  • Replaceable Power Source: Uses a replaceable CR2450 for the ADF and a separate AA battery for the LED work-light

Processes

  • MIG/MAG - Inert gas / active gas)
  • Plasma cutting
  • Sharpen
  • Autogenous cutting
  • PAW - plasma arc welding
  • SMAW/MMA (electrodes)
  • TIG welding (tungsten inert gas)

ESAB® Savage™ A50LUX Welding Helmet #0700500950 Features ESAB® Savage™ A50LUX Welding Helmet #0700500950 Highlights ESAB® Savage™ A50LUX Welding Helmet #0700500950 Specifications

Shop all auto-darkening welding helmets and ESAB gear at the best prices online, from Welders Supply.

Rebate Redemption

ESAB Burn & Earn Welding Equipment Rebate

How To Submit Your Burn & Earn Rebate Request

  1. Purchase a qualifying product.
  2. Get an electronic copy of your invoice or receipt showing the purchase of at least one of the eligible products shown below.
    • Locate the serial number of each product.
    • For the Additional Products rebate, circle each additional item and price paid on your invoice or receipt.
  3. Submit your rebate request.

REQUIRED DOCUMENTS

  • The sales receipt showing purchase made within valid offer dates.
  • The serial number of the ESAB product purchased.

*Rebate provided on an ESAB Burn and Earn Prepaid Mastercard®.

ESAB rebate redemption deadline

Submission Deadline

View rebate submission deadline on esab.com.

Submit or track rebate

Shop all ESAB welding rebates or shop all welding deals at the best prices, from Welders Supply.
ESAB® Savage™ A50LUX #0700500950 - Specifications
Viewing Area 3.94 x 2.36 in. (100 x 60 mm)
Active Lens Shade 5–13
Passive Lens Shade 3
Power Supply – ADF / LED work light 1 CR2450 battery / AA alkaline battery
Arc Sensors 4
Switch Time (Light to Dark) 0.07 ms
Switch Time (Dark to Light) Digitally adjustable from 0.1 to 0.9 second
CE Optical Classification 1/1/1/1
Standards and Certifications CE: EN175; EN379; EN166 | ANSI: Z87.1 | CSA: Z94.3 |
AS/NZS 1338.1 | ISO 16321 +TIG
Accessories
  • 0700600867 - Savage A50 LUX / Sentinel A60 Halo Headband
  • 0700600869 - Savage A50 LUX / Sentinel A60 front sweatband
