Miller Maxstar® 800 208-575 V 907718

Part Numbers: 907718

Included with your purchase ( ) :

$22,130.00 $25,560.00*
SAVE $3,430.00
$22,130.00 $25,560.00*
SAVE $3,430.00

Call 1-844-682-0205 or CHAT for more options

Welding type:

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • Stick Welding
  • TIG Welding
  • 1 and 3-Phase Input
  • 3 Year Warranty

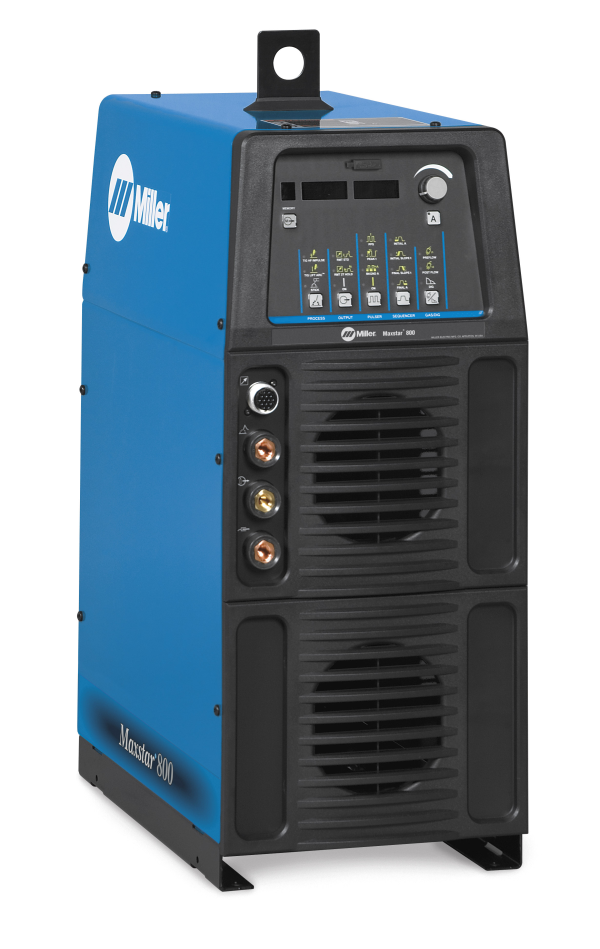

Miller Maxstar® 800 208-575 V #907718

The Maxstar 800 is a powerful, compact power source capable of welding up to 1” material. High speed pulse control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.


What's Included:

  • Maxstar® 800
  • (1) Water cooled thread lock torch adapter (225028) for #18 or #20 torches

Features:

  • DC TIG Features - Exceptionally smooth and precise arc for welding exotic materials. High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.
  • Stick Features - Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
  • Blue Lightning™ - High Frequency Arc Starter - For more consistent non-contact starts and greater reliability compared to traditional HF arc starters.
  • Program memory - Program memory features 9 independent program memories that maintain/save your parameters.
  • Cooler Power Supply (CPS) - An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 3.5. The power switch on the Dynasty also activates the receptacle to help prevent torch failure.
  • Meter Calibration - Allows meters to be calibrated for certification.
  • Auto-Line Power Management Technology - Allows for any input voltage hookup (208 - 575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
  • Upgradeable and Expandable - Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
  • Cooler-On-Demand™ - Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.

Check out all of our welding machines including Mig Welders, Tig Welders, and Stick Welders.

Processes

  • Stick (SMAW)
  • TIG (GTAW)
  • TIG DC (GTAW-DC)
  • Air Carbon Arc Cutting and Gouging (CAC-A)

Miller Maxstar 800 208-575 V Specifications:

Industries Interests Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
Material Thickness  Steel 0.020 in. (0.5 mm) - 1 in. (25.4 mm)
Weldable Metals Specialty Metals
Stainless Steel
Steel
Input Voltage 208 V
220/230/240 V
380/400 V
460/480 V
575 V
Iput Phase 1- and 3-Phase
Input Hz 50/60 Hz
Current Type DC
Max Open Circuit Voltage 75 VDC
CACA Thickness 3/8 in
Amperage Min 5 A
Amperage Max 800 A
Portability Lift Eye (Standard)
Running Gear / Cart (optional)
Net Height 34.5 in
Net Length 22 in
Net Weight 780 lbs
Net Width 13.75 in
Warranty 3 Years
Miller's True Blue Warranty
