Miller Big Blue® 800 Duo Pro w/Wireless Interface Control #907751001

Part Numbers: 907751001
$59,443.00

Included with your purchase ( ) :

Select your Bundle!
Edit

    Call 1-844-682-0205 or CHAT for more options

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Engine Driven

    Engine Driven

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    • Multi-Process
    • Multi-Phase
    • Engine Driven
    • 3-Year Warranty

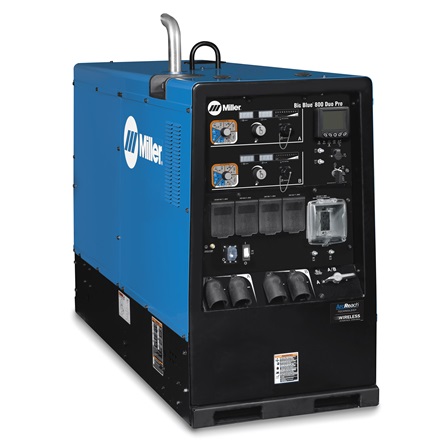

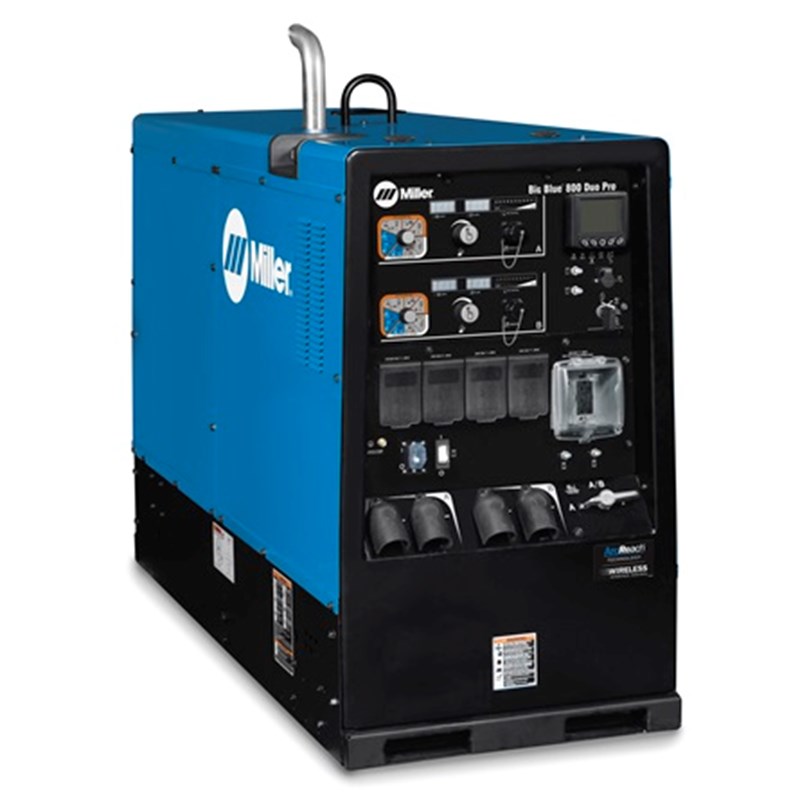

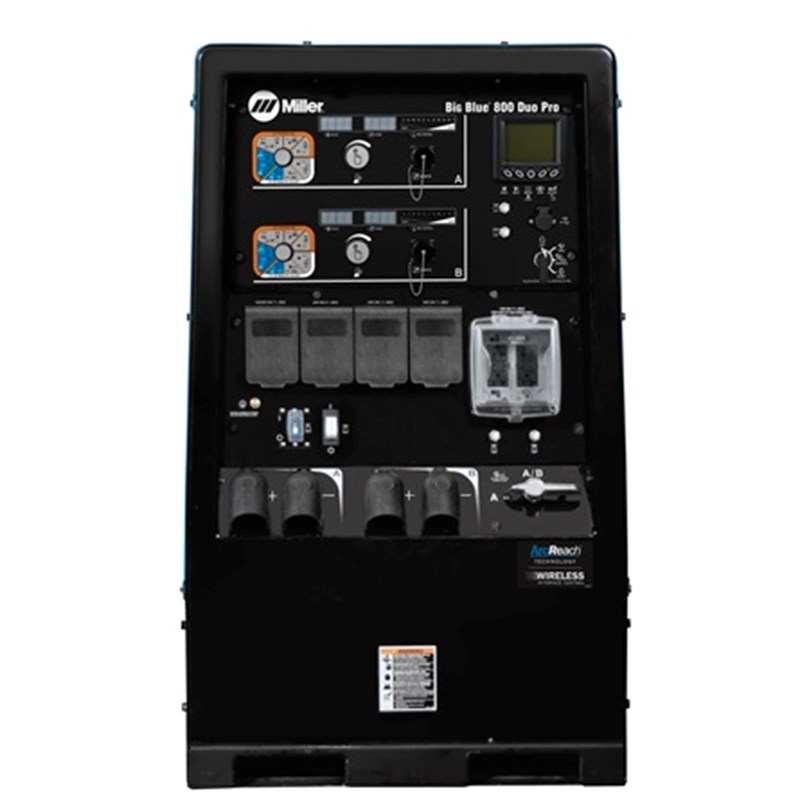

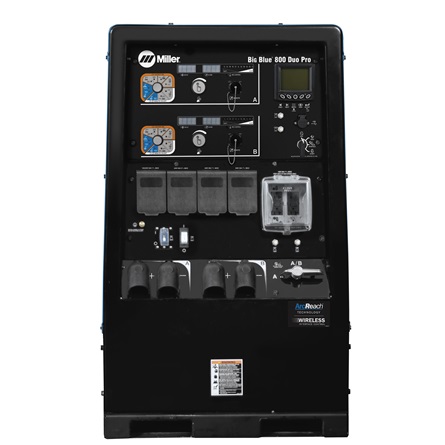

    Miller Big Blue® 800 Duo Pro w/Wireless Interface Control #907751001

    A complete multi-process & multi-operator welder/generator that delivers two independent pipe quality arcs in one complete package. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand. Equipped with ArcReach® technology, operators can change weld settings from the ArcReach feeder or remote. RMD® & Pulsed MIG welding capabilities are added with the ArcReach Smart Feeder.


    What's Included:

    • 2 Wireless Interface Control Remotes

    What's Not Included

    • Weld leads

    Features:

    Heavy-Duty DEUTZ TD2.9 L4 Tier 4 Final Engine

    The cleanest, greenest diesel power available. Utilizes Diesel Oxidation Catalyst (DOC) technology to keep the air clean with NO exhaust after treatment maintenance.

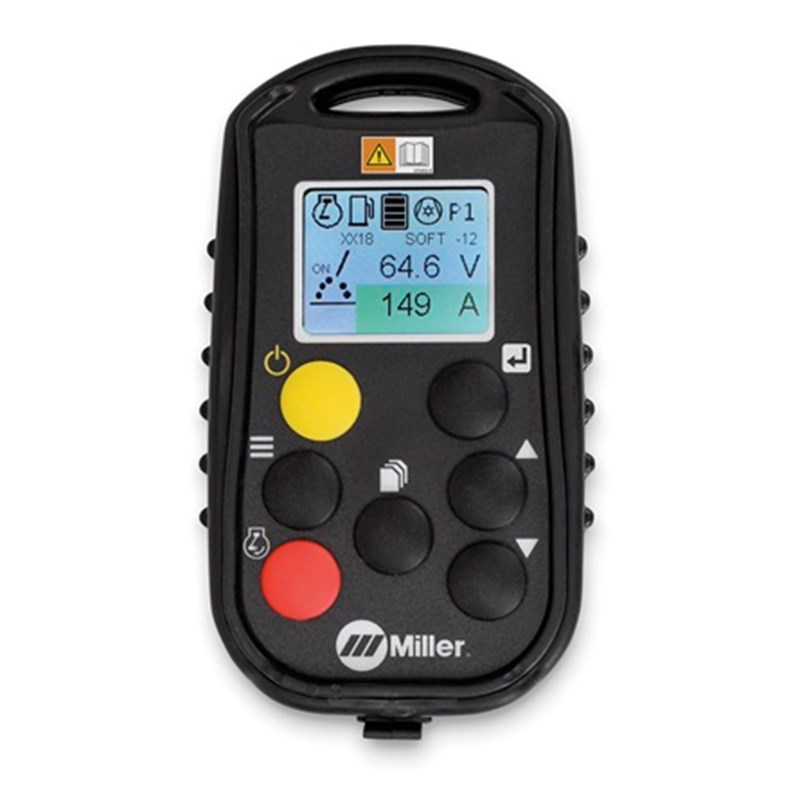

    Wireless Interface Control

    Get full control of your machine in the palm of your hand, from wherever you are on the job site, so you can work hassle-free. With wireless interface control, you can:

    • Change welding processes
    • Adjust parameters
    • Select and save preset programs
    • Turn the machine on/off
    • View service reminders
    • And more!

    Extend time between fill-ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.

    Multi-Arc Welding

    One dependable engine—two independent arcs with up to 400 amps each. Or plug in additional inverters for a true multi-operator work platform! Example: Two additional XMTs equals four operators, up to 200 amps each. Premium-quality arcs allow operators to work independently with no arc interaction. Multi-operator welding has never been easier or more versatile.

    ArcReach® Technology

    ArcReach technology uses existing weld cables to communicate process adjustment commands back to the welder generator. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.

    Standard Features

    All models include digital preset weld meters, automatic idle, 120V block heater, and vandalism lockout (protects control panel and receptacles).

    Dynamic DIG™

    Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

    Industrial USB Port

    Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.

    Electronic Engine Display

    Simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, and engine RPM. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.

    Maximum Savings

    More arcs and better fuel economy equal increased profits for your business. Estimated savings are 34 percent with a dual-operator unit versus two single-operator units. You'll save even more with Wireless Interface Control. When your welder/generator is far away, it's time-consuming to walk back to turn it off, so it ends up running all day. Use Wireless Interface Control to instantly turn your machine off when needed, saving fuel and money.

    Low OCV Stick (VRD)

    Reduces the open-circuit voltage to 15 volts when the welding power source is not in use. This feature increases operator safety without compromising arc starts.

    Check out a full selection of MIG, TIG, Stick, and Gas welders available at Welder's Supply

    Processes

    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • Submerged Arc (SAW)
    • Plasma (PAC)
    • TIG DC (GTAW-DC)
    • RMD

    Miller Big Blue® 800 Duo Pro Specifications:

    Industries Interests

    Pipe Fabrication / Construction
    Maintenance and Repair - Field Operations
    Mechanical Contracting
    Construction
    Mining

    Single Phase Generator Continuous Power

    12000 W

    Current Type

    DC

    Portability

    Lift Eye (Standard)
    Fork Pockets

    Net Width

    28.5 in.

    Net Height

    46 in.

    Net Length

    69.5 in.

    Net Weight

    1870 Ibs.
