Miller Invision™ 352 MPa, D-74 MPa Plus (Dual), 2 Bernard™ BTB 400 A 15 Ft, Running Gear Pkg #951500

Part Numbers: 951500

Included with your purchase ( ) :

$21,228.00 $24,515.00*
SAVE $3,287.00
$21,228.00 $24,515.00*
SAVE $3,287.00

Call 1-844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • MIG Welding
  • Multi-Voltage
  • Single or 3 Phase
  • 3 Year Warranty

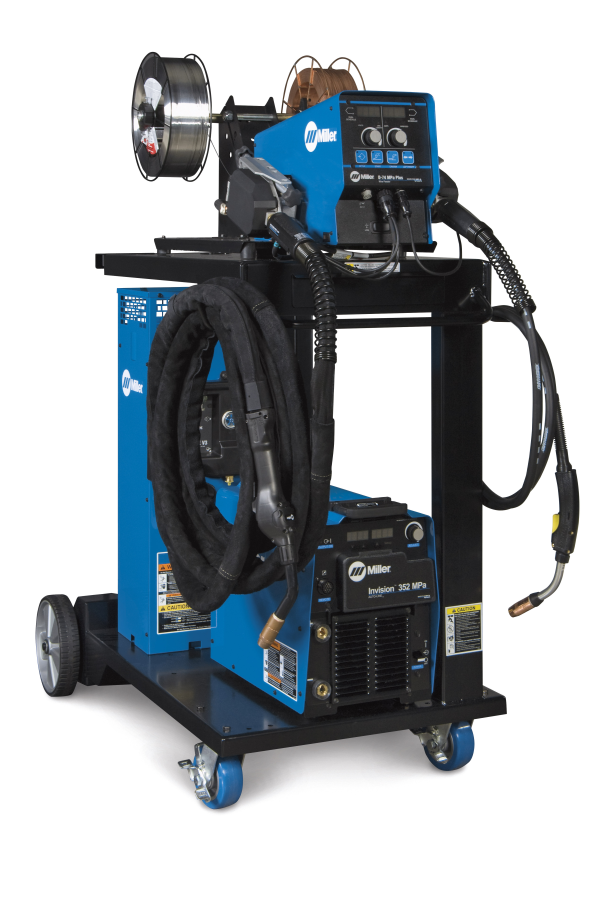

Miller Invision™ 352 MPa, D-74 MPa Plus (Dual), 2 Bernard™ BTB 400 A 15 Ft, Running Gear Pkg #951500

What's included

  • Invision 352 MPa
  • Dual 74 MPa Plus Feeder
  • BTB 400A Gun (qty 2)
  • Centerfire contact tips, .035 (QTY 3), .045 (QTY 2) 2 sets
  • .035-.045 reversible dual V drive rolls (2 sets)
  • Running gear, cylinder rack
  • 4/0 weld cables, Gas valve and gas hose

Auto-Line™ Power Management Technology - Allows for any input voltage hookup (208-575 VAC, single- or three phase) with no manual linking, providing convenience in any job setting,. Ideal solution for dirty or unreliable input power.

Wind Tunnel Technology™ - Protects internal components, greatly improving reliability.

Built-in MIG and Pulsed MIG programs - Automatically set the optimal parameters for a wide variety of wires making it easy to set up and use.

Fan-On-Demand™ - Cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine.

Synergic Pulsed MIG - As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments.

SharpArc® technology - Fine tunes puddle fluidity in Pulsed MIG (GMAW-P) welding.

Profile Pulse™ - Provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.

Recommended Aluminum Solutions - Dedicated XR™-Pistol Plus and XR-Aluma-Pro™ Plus guns work with the 74 MPa Plus feeder to coordinate wire feed speed of the gun and the feeder. This provides optimized aluminum feeding and welding performance.

View our selection of multi-process Miller welders, welding machineswelding safety equipment, and plasma cutting machines.
Invision™ 352 MPa, D-74 MPa Plus (Dual), 2 Bernard™ BTB 400 A 15 Ft, Running Gear Pkg #951500 Specifications
Industries Interests Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel
Input Voltage 208 V
220/230/240 V
380/400/440 V
575 V
Input Phase  1 - and 3 Phase
Input Hz  50 / 60 Hz
Rated Output 10 - 38 V, 5 - 425 A
Max Open Circuit Voltage 90 VDC
Portability Handle(s)
Running Gear / Cart (Standard)
Running Gear / Cart (Optional)
Warranty 3 Years
Miller's True Blue Warranty
