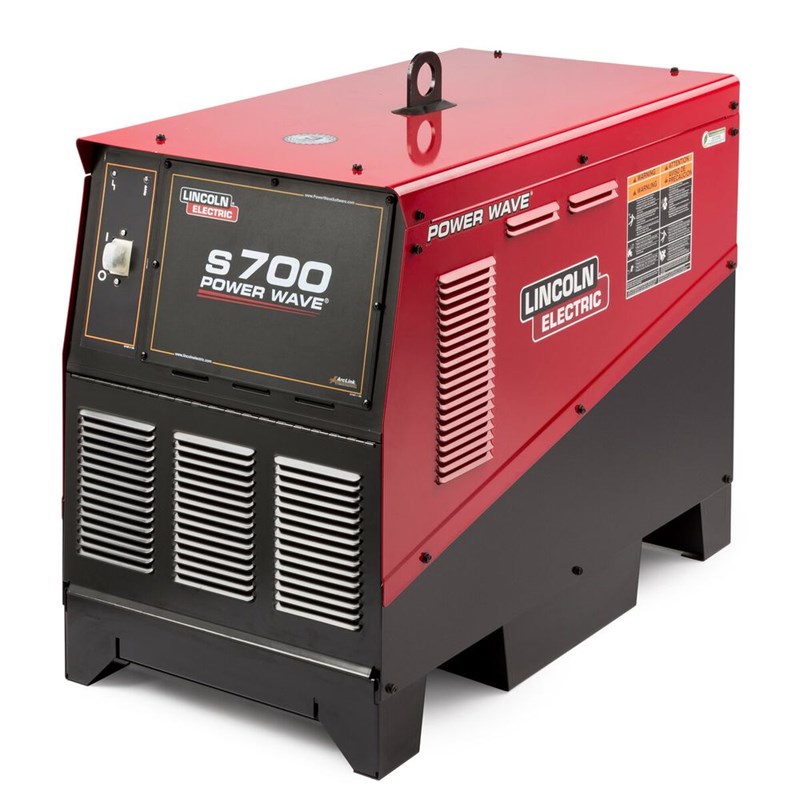

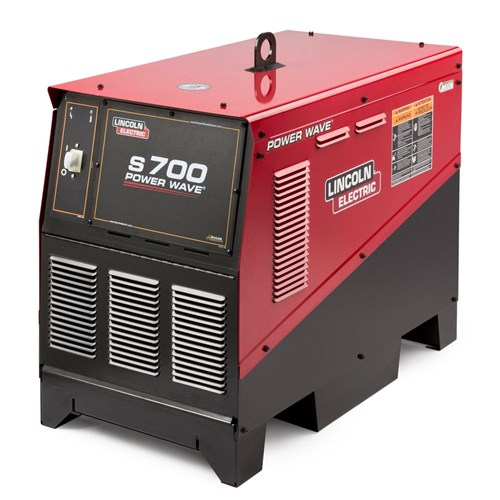

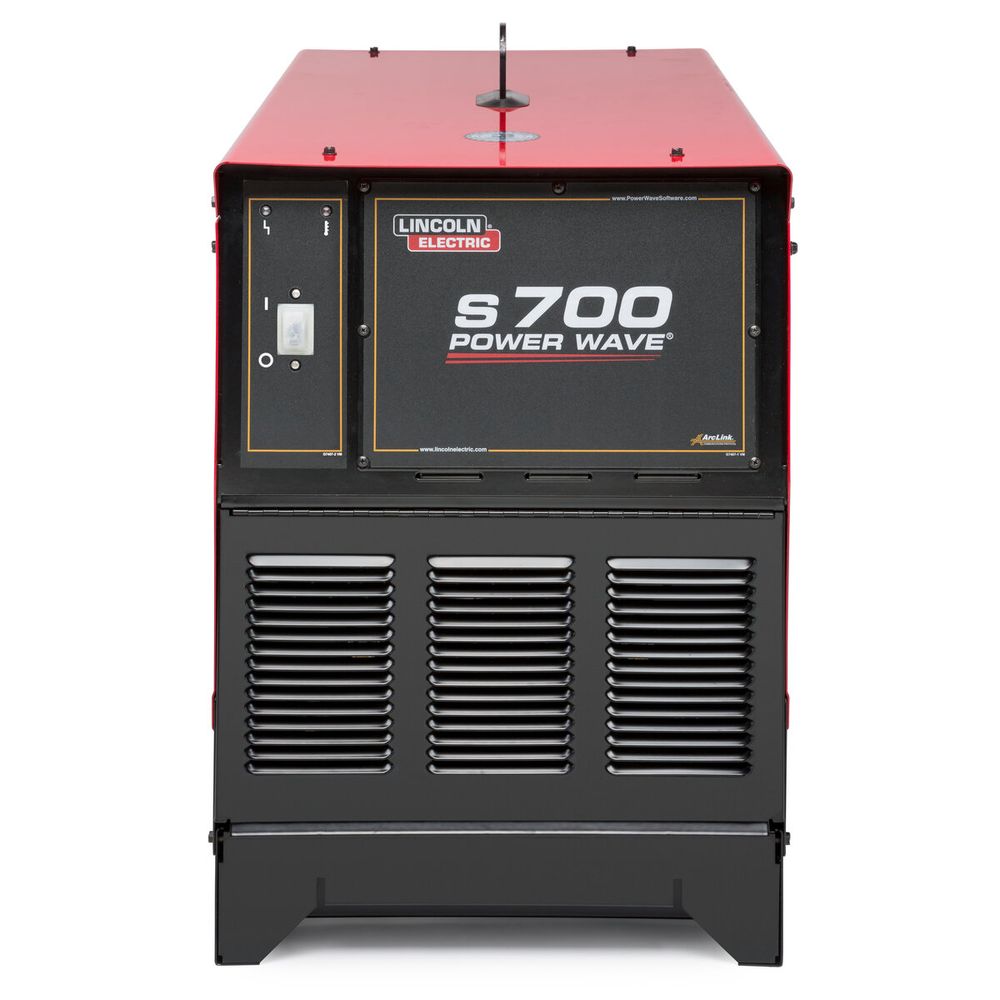

High-Output, Advanced Welding Technology for Heavy Fabrication

The Lincoln Electric Power Wave® S700 is engineered for the most demanding applications in the heavy fabrication industry, delivering exceptional performance and versatility. With advanced process control and capabilities, the Power Wave® S700 is designed to excel in high-output, high-duty cycle environments.

Highlights

• 700 amps at 100% Duty Cycle
• Maximum output of 900 amps
• Multi-process capability for a range of welding processes (GMAW, FCAW, GTAW and more)

Industries

• Heavy Fabrication
• Shipbuilding
• Structural Steel
• Pipe Welding
• Automotive Manufacturing

Benefits of the Power Wave® S700

• Robust design and advanced technology deliver consistent arc stability and quality

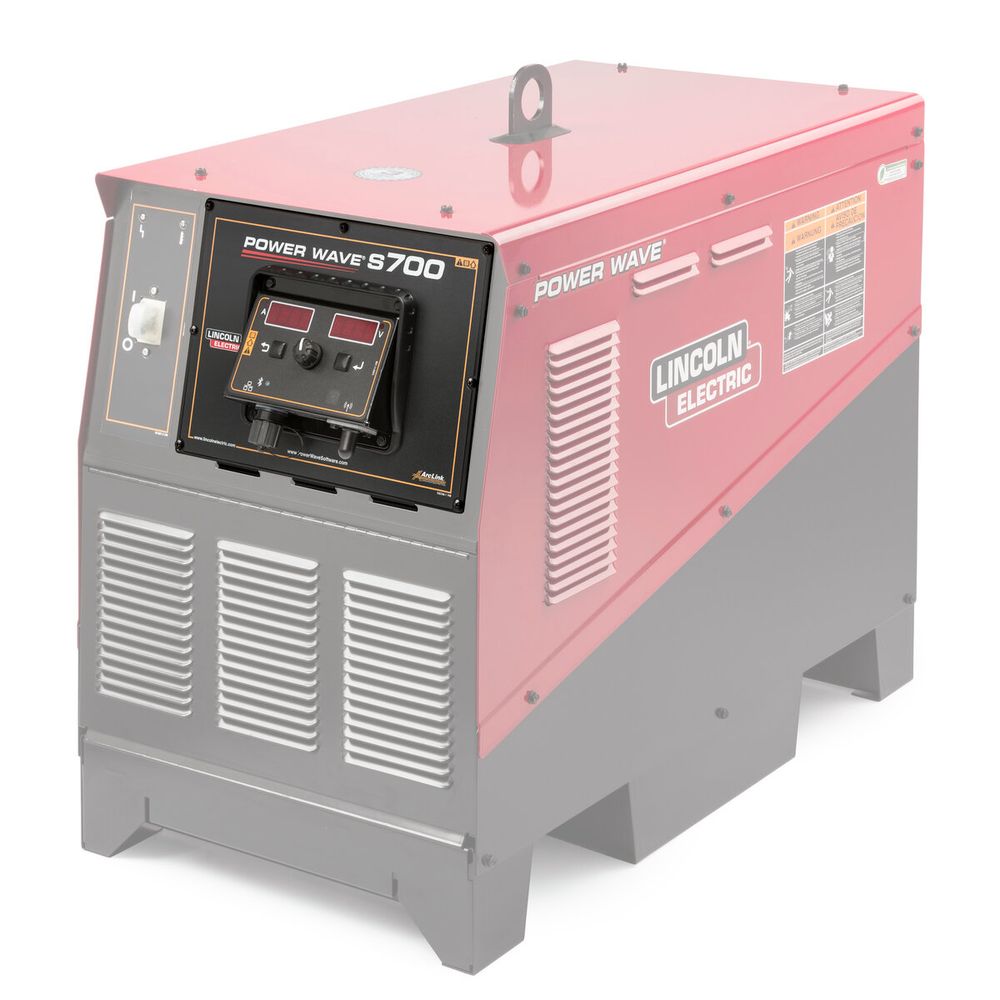

• Intuitive controls and a clear display allow for easy operation and quick adjustments
• Built to withstand the rigors of heavy-duty environments

Fast, Free Shipping & Easy Returns

At Welders Supply, we focus on providing quick, dependable shipping and seamless returns. If you're unsatisfied, return the product within 14 days for an exchange, credit, or refund. All returns must be freight prepaid, in the original packaging, with all manuals and accessories. A restocking fee of up to 25% may apply depending on the condition of the returned product. Certain exclusions apply, including custom orders, PPE, and demo items. For more details, contact our customer service team at (844) 682-0205.

• Product Weights & Dimensions

  Dimensions (H x W x D)	30.1 in x 19.1 in x 36.7 in (765 mm x 485 mm x 932 mm)
  Net Weight	400 lbs (181 kg)

  Machines

  Max Rating	900
  Number of Operators per Machine	1

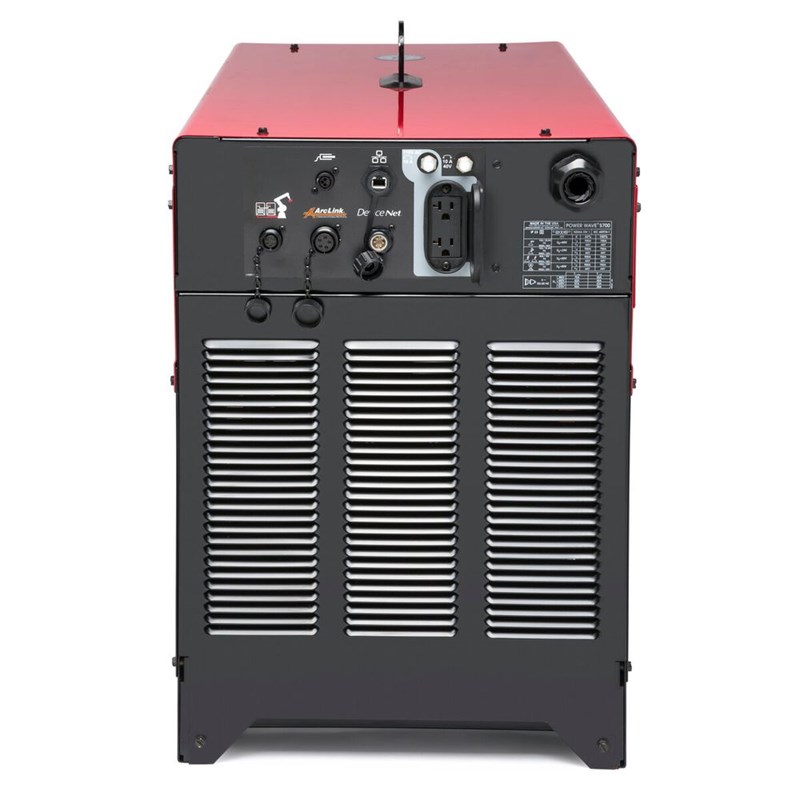

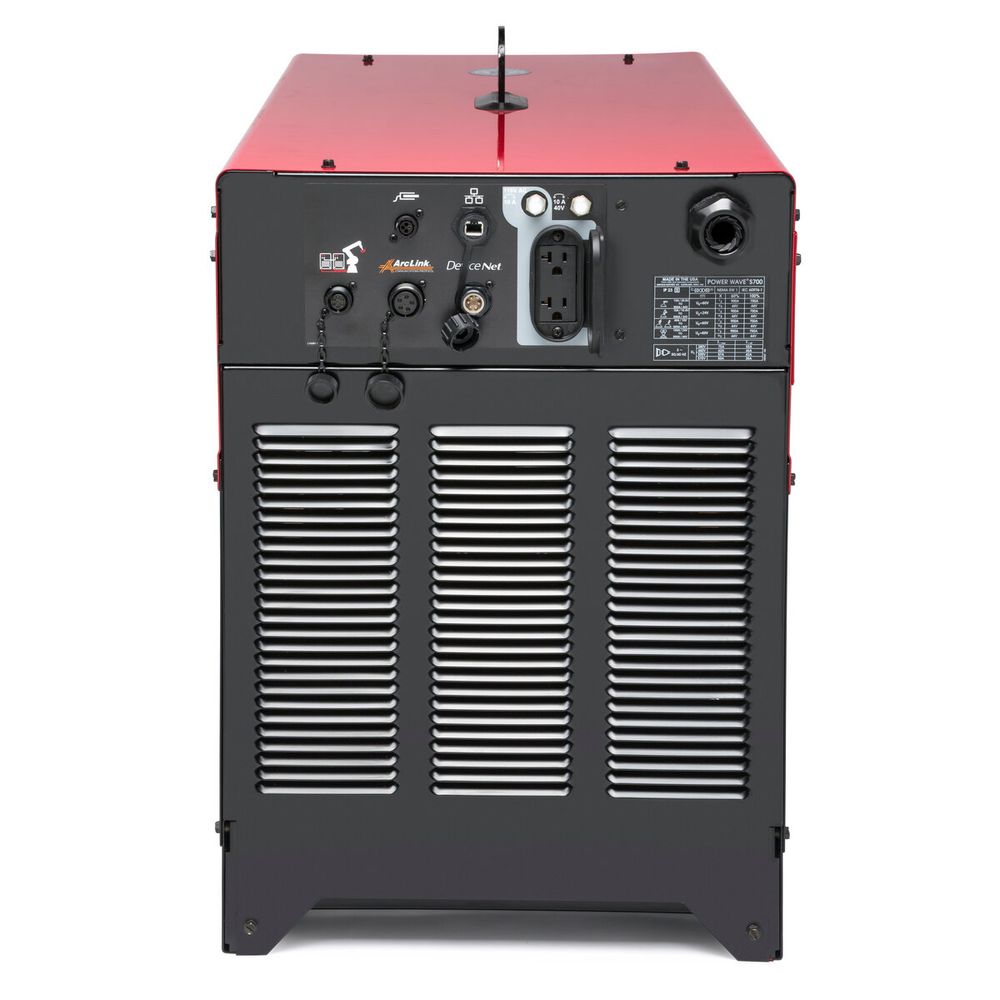

  Data Technologies	Ethernet
  Machines Communication Technology	ArcLink
  Wire Feeder Supply Voltage	40VDC
  Amphenol Pins (type of connector)	5

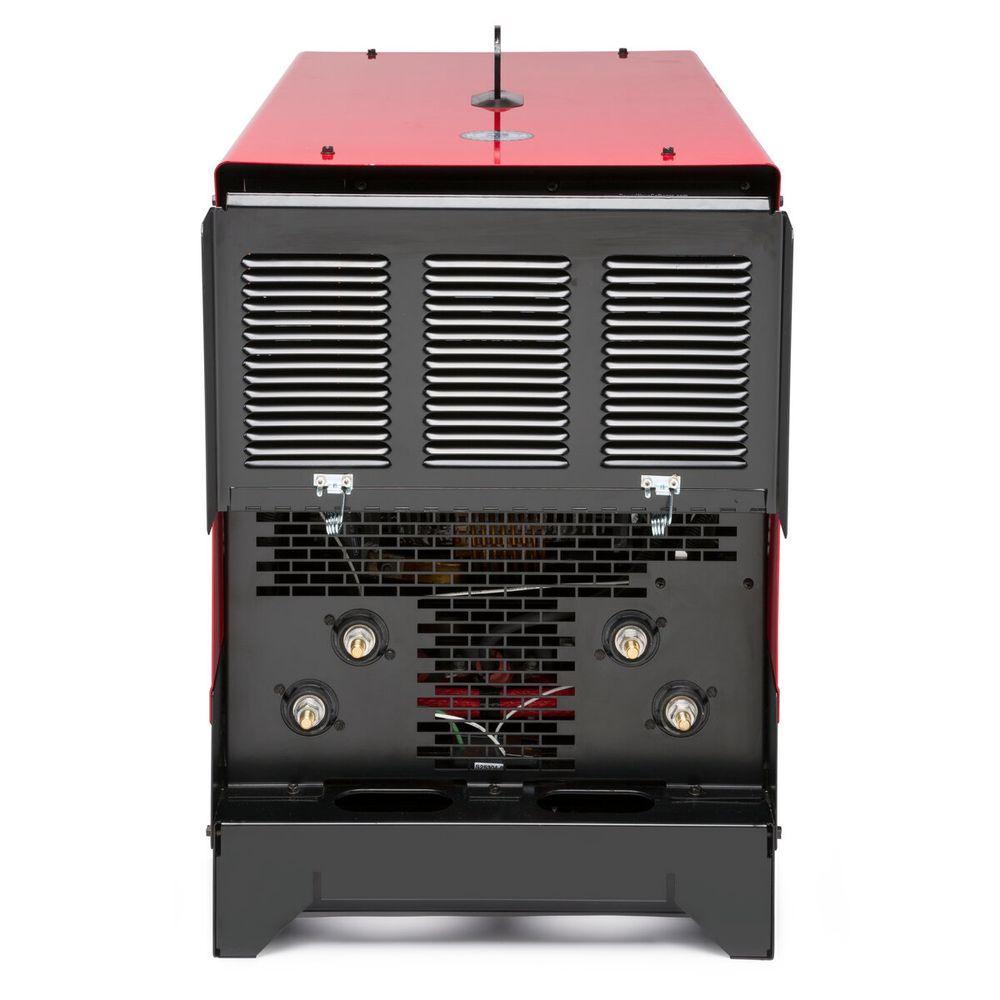

  Work Lead Connector Type	Lug

  Wire and TIG Feeders

  Communication Technology

  ArcLink

  Basic Specification

  Input Voltage	460,380/400/415,575
  Input Current	55A/46A/42A/38A , (74A/60A/56A/49A)
  Input Hertz	50,50/60,60
  Input Phase	3
  Input Power	380/415/460/575/3/50/60
  Mode Icon	CC/CV
  Output Range	20 - 900A
  Polarity	DC
  Rated Output	700A/44V/100% , (900A/44V/60%)

  Warranty

  Warranty

  5 Years

• Power Wave S700 Advanced Process Welder
• Power Wave Connection Guide
