Name: Powermax45 SYNC Plasma Cutter w/ 25' Machine Torch & CPC Port (200-240V 1PH) #088580
Brand: Hypertherm
SKU: HYP088580

25' Leads/Work Clamp
CPC Port for CNC Tables
180° Machine Torch
220-240V Input
1-Phase Input
3-Year Power Warranty

Powermax45 SYNC Plasma Cutting Machine w/ CPC Port, 180° Mechanized Torch & 25ft Lead (200-240V 1PH) #088580

Unleash precision and efficiency with the Hypertherm Powermax45 SYNC plasma cutter. Operating at 200-240V, this cutter is designed to deliver unparalleled performance. With a convenient CPC port, seamlessly integrate auxiliary equipment for enhanced functionality. Maneuver with ease using the 180° machine torch, ensuring precise cuts from any angle. Plus, with a generous 25ft lead, tackle projects of any scale with confidence. Elevate your cutting experience with the reliability and versatility of the Powermax45 SYNC from Hypertherm.

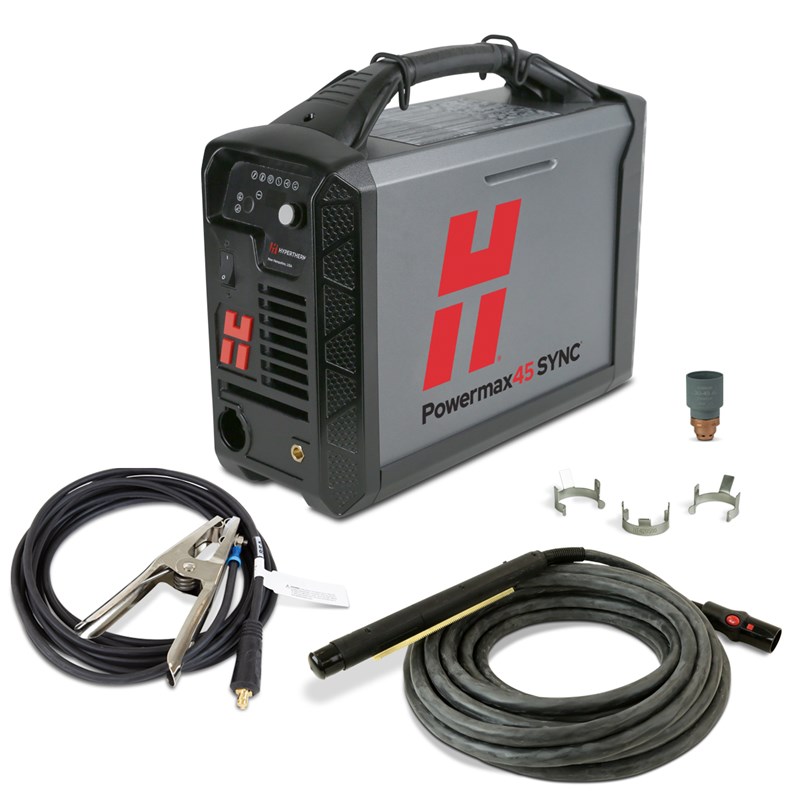

What's Included

Powermax45 SYNC power supply w/ CPC port
180° machanized SmartSYNC torch
25ft torch lead
25ft work clamp
10ft power cable
(1) Mechanized cutting cartridge
Operator and Safety Manuals

Cut Capacity

Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

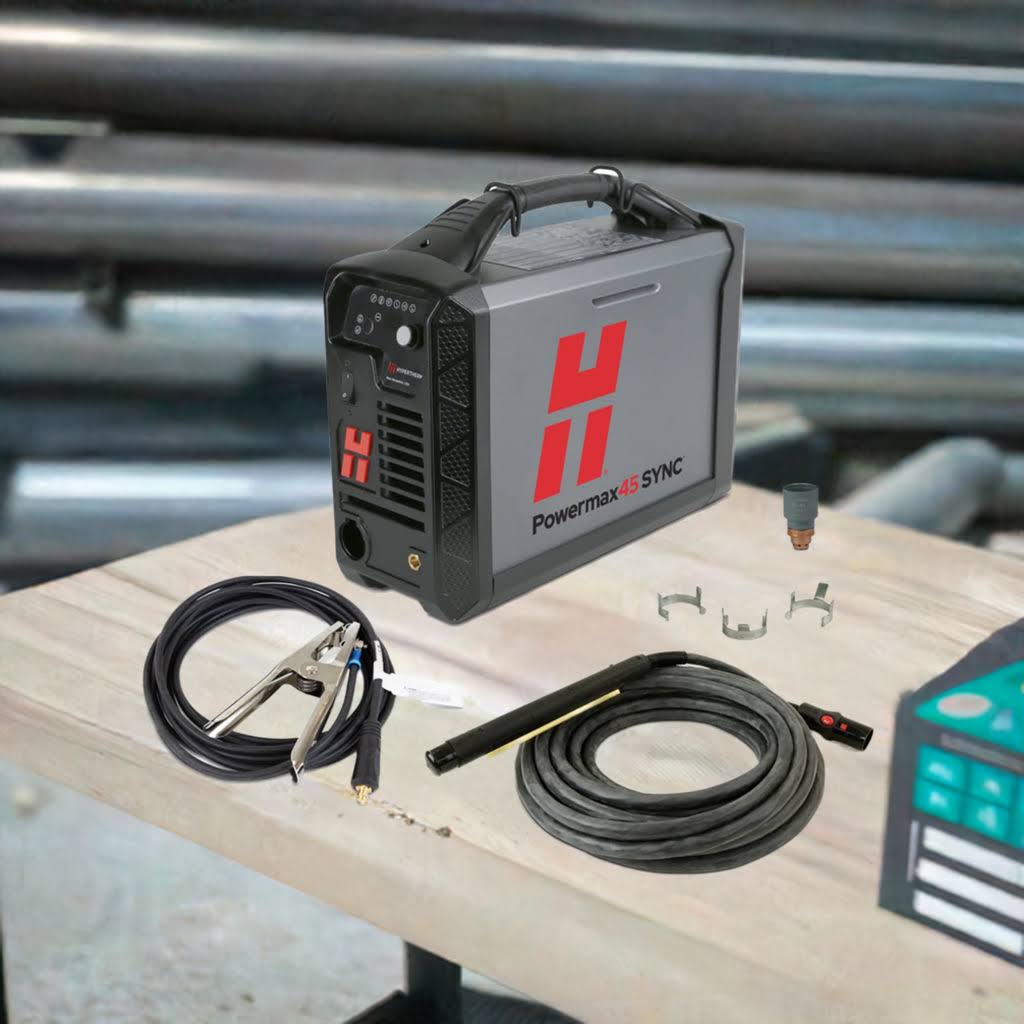

Powermax45 SYNC plasma cutter 088580 - What's Included

Plasma Cutting Applications:

Drag cutting: Maintain torch-to-workpiece contact for faster, more accurate cuts on thin materials.
Bevel cutting: Angle the torch to create chamfered edges for weld preparation or aesthetic finishes.
Gouging: Remove material selectively using a specialized nozzle and higher amperage for weld repair or plate edge preparation.
Flush cutting: Eliminate protrusions by cutting flush to a surface using specialty consumables and techniques.
Extended reach cutting: Access hard-to-reach areas with extended torch bodies or robotic arms for complex geometries.
Fine feature cutting: Achieve intricate designs and tight tolerances using lower amperage and precision plasma sources.

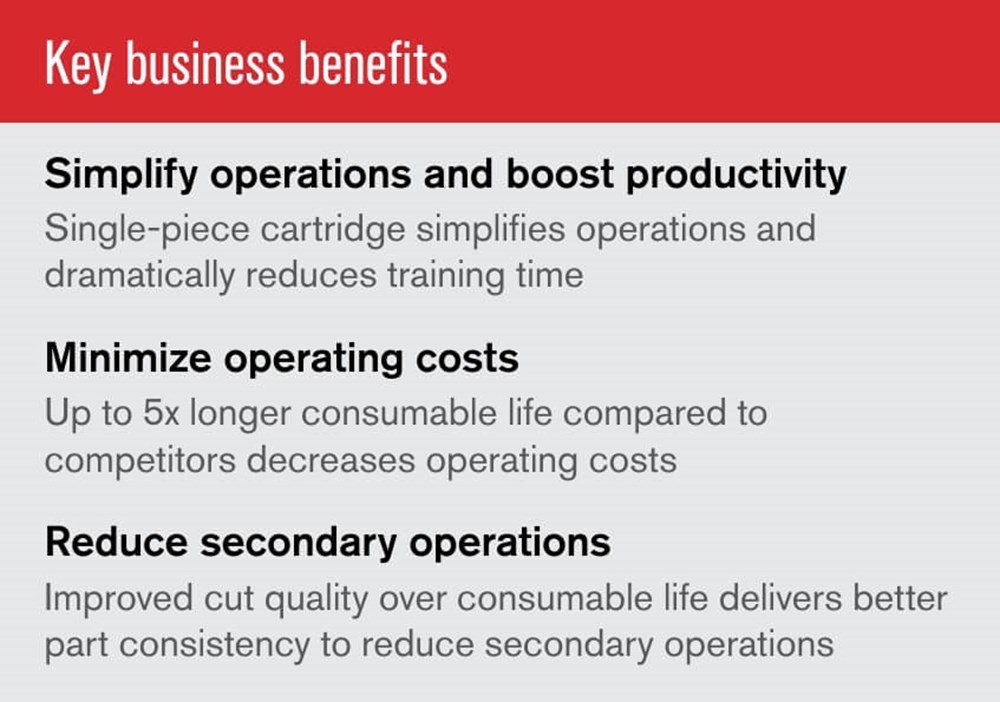

Powermax45 SYNC Benefits:

Operational Efficiency

Simplified operation: Reduce training and troubleshooting costs
Minimized downtime: Quick consumable changes, less waste
Data-driven insights: Optimize cutting and inventory management

User-Friendly Design

Error prevention: Color-coded, RFID-enabled cartridges
Auto-configuration: SmartSYNC technology adjusts settings
Ergonomic: Flexible torch lead reduces operator fatigue

Performance Optimization

Versatility: Easy switching between torch styles and cartridges
Extended lifespan: Up to 2x longer cartridge life
On-the-fly control: Adjust amperage without power supply access

Industrial Reliability

Robust construction: Engineered for harsh environments
Consistent ignition: SpringStart™ technology
Minimal downtime: Industry-leading dependability

SmartSYNC Torches

SmartSYNC Consumables

Hypertherm Accessories

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only	Power Supply Only (200-240V) #088570 Powermax45 SYNC Power Supply Only (480V) #088573	75° Handheld Torch, 20ft Lead (230V) #088560 75° Handheld Torch, 50ft Lead (230V) #088561
CPC Port	Power Supply w/ CPC Port (200-240V) #088571	CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562 CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563 CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564	CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580 CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581 CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582 CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583
CPC & Serial Port	Power Supply w/ CPC & Serial Port (200-240V) #088572		CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 XP w/ 25' 180° Machine Torch, CPC (220V) #088121

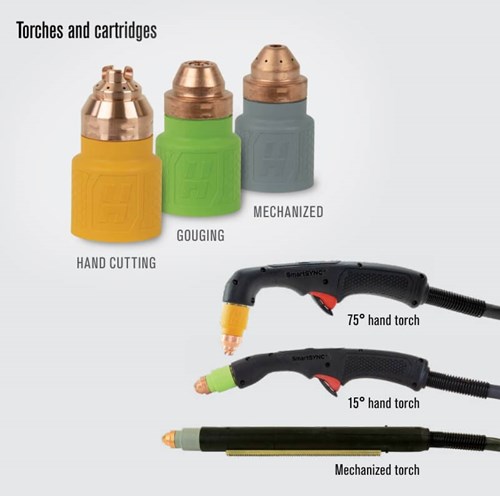

Powermax45 SYNC Torches & Consumables

Powermax45 SYNC Specs:

Cut Capacity
Recommended	5/8" (16 mm) @ 20 ipm (500 mm/min)
Severance (hand cutting)	1 1/8" (29 mm) @ 5 ipm (125 mm/min)
Pierce	1/2" (12 mm)

Input, Output & Operation
Input voltages	CSA 200-440 V, 1-PH, 50/60 Hz 480 V, 3-PH, 50/60 Hz 480 V, 3-PH, 10 A @ 6.9kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Kilowatt output	6.9kW
Input current	9-45 A
Output current	155 VDC
Rated output voltage	CSA 200-240 V, 1-PH 39/32 A @ 6.5 kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Duty Cycle @ 104° F	CSA 50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH CE 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)	CSA 275 VDC 200-240 V 275 VDC 480 V CE 265 VDC 400 V

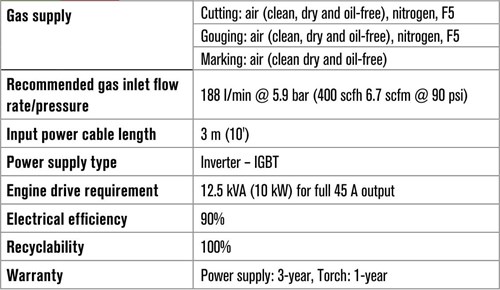

Gas supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure	400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length	10 ft (3 m)
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10 kW) for full 45 A output
Electrical efficiency	90%
Certifications	CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS
Height:	14.00 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz
