Miller Maxstar 280 TIGRunner, Water Cooled (208-575 V 1PH/3PH) #907538002

Part Number: 907538002
UPC: 715959578301
$9,360.00 + Free Shipping $9,360.00*
SAVE $0.00

Welding type:

Stick

Stick

Tig

Tig

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • Industrial fabrication TIG welderTIG Welding
  • Industrial fabrication stick welderStick Welding
  • Multiphase welder input1PH or 3PH Input
  • Multi-voltage power input208–575V Input
  • 3-Year Power Warranty

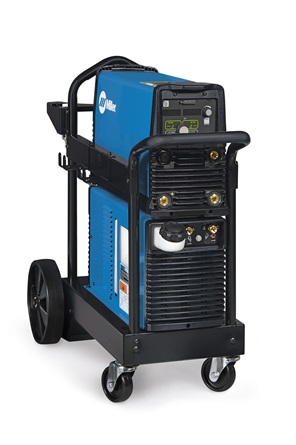

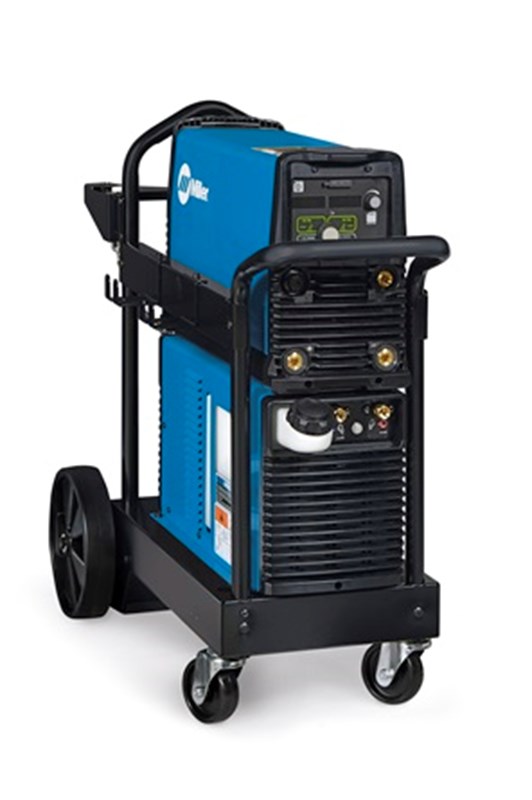

Miller Maxstar 280 TIGRunner w/ Coolmate 1.3 (208-575 V 1PH/3PH) #907538002

The Miller Maxstar 280 is a powerful TIG welder combining capability and portability. The machine can weld material up to ⅜ inch thick, while features like Auto-Line Technology, an integrated CPS, a standard cart & more raise the overall welding experience.

Miller True Blue warranty

Highlights

  • Auto-Line™ Technology - Allows for any single-phase input voltage hookup (208-480 V) with no manual linking, the ideal solution for dirty or unreliable power.
  • Pro-Set Feature - Pro-Set eliminates the guesswork when setting weld parameters, providing speed, convenience and confidence.
  • Upgradeable & Expandable - A front panel memory card data port lets you easily expand product features and upgrade software.
  • Fan-On-Demand™ - The cooling system reduces noise, energy use and contaminants by operating only when needed.
  • Cooler Power Supply (CPS) - Integrated 120V dedicated-use receptacle for the Coolmate™ 1.3.
  • QuietPulse - Select sine or triangular waveshape to reduce audible noise.
  • Base & Deluxe Models Available - The Maxstar 280 base model provides essential TIG/Stick functions with operator-friendly, menu-driven features. The DX model adds extended sequencer ranges, full trigger options and preflow & pulser functions

Industries

  • Aerospace
  • Shipbuilding

What’s Included

  • Maxstar 280
  • Coolmate™ 1.3
  • Small Runner Cart

Benefits of the Miller Maxstar 280

  • Program Memory - Allows easy naming, saving and recalling of weld settings.
  • USB Port - Easily update software, back-up settings and transfer saved weld programs to other units.
  • AC Frequency Control - Arc cone width adjustments between 50-150 Hertz improve directional arc control.
  • Sleep Timer - This programmable feature shuts down the machine after sitting idle for a specified time.
  • Meter Calibration - Allows digital meters to be calibrated for certification.
  • Blue Lightning™ - High-frequency (HF) arc starter provides more consistent starts than traditional HF starters.
  • Lightweight & Portable - The Maxstar 280 weighs just 47 pounds and comes with a shoulder strap for extra maneuverability.

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via UPS Ground. Need special shipping? Just call 1-844-682-0205 for accommodations, including our use of your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products with a pre-approval. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Check out our selection of TIG welders and welding kits from Miller and other brands at the best prices online.

Product Literature

Processes

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Stick (SMAW)
  • TIG (GTAW)

General Specifications

Maxstar® 280 208-575 V, TIGRunner
Industries Interests Aerospace
Shipbuilding
Weldable Metals Specialty Metals
Stainless Steel
Steel
Input Voltage 208 V
220/230/240 V
380/400 V
460/480 V
575 V
Input Phase 1- and 3-Phase
Input Hz 50/60 Hz
Current Type DC
Max Open Circuit Voltage 60 VDC
Amperage Min 1 A
Amperage Max 280 A
Portability Running Gear / Cart (Standard)
Weld Output CC
Applications Fabrication
Process Pipe
Refineries and Power Plants
Stainless Steel
Tube and Pipe Fabrication
Warranty 3 Years
Miller's True Blue Warranty

Certifications

SHIPPING DIMENSIONS

Height: 1.00 Inches
Width: 1.00 Inches
Length: 1.00 Inches
Weight: 1 Lb(s) 0 Oz
