Name: Powermax45 SYNC Plasma Cutter w/ 20' 75° Hand Torch (200-240V 1PH) #088560
Brand: Hypertherm
SKU: HYP088560

20' Leads
75° Hand Torch
220-240V
1-Phase
No CPC/Serial Port
3-Year Power Warranty

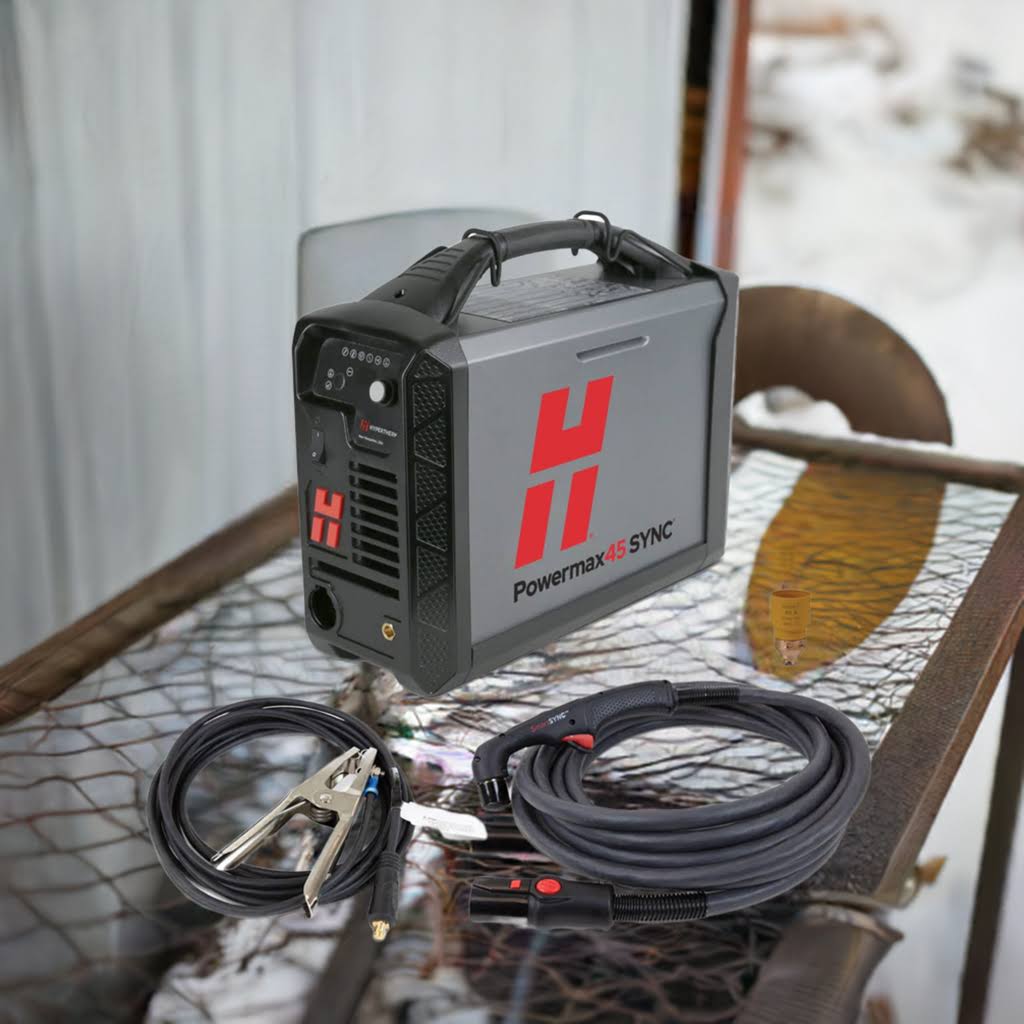

Powermax45 SYNC Plasma Cutting Machine w/ 75° Hand Torch & 20ft Lead (200-240V 1PH) #088560

Experience precision and power with Hypertherm's Powermax45 SYNC line of plasma cutters. Designed for versatility, this cutter operates at 200-240V and comes equipped with a 75 degree handheld torch, ensuring optimal maneuverability and control. A generous 20ft lead and work cable let you tackle projects with ease and efficiency. From intricate cuts to heavy-duty tasks, unleash your creativity, productivity and versatility with the Powermax45 SYNC.

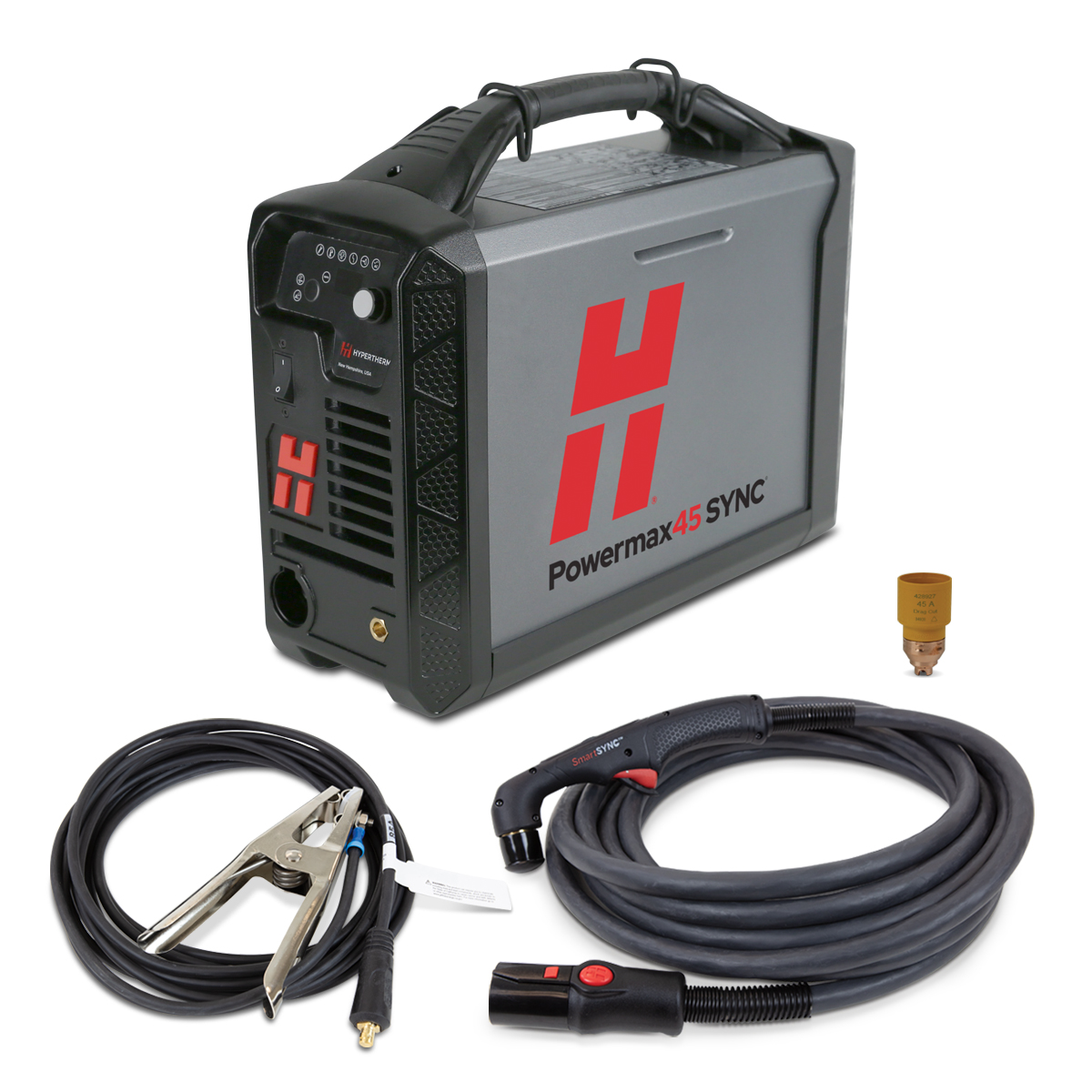

What's Included

Powermax45 SYNC power supply

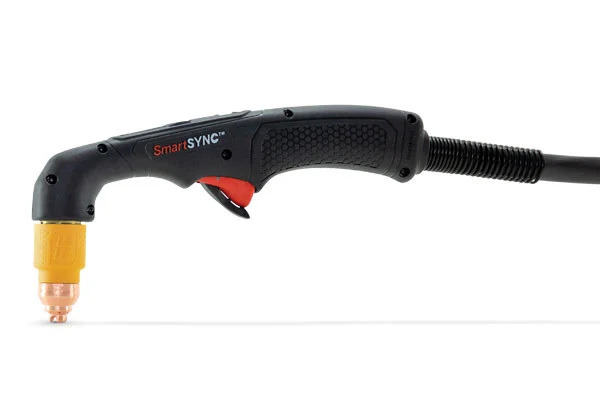

75° handheld SmartSYNC torch
20ft torch lead

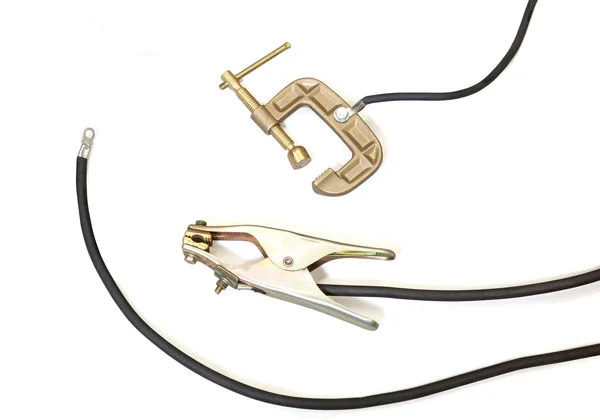

20ft work clamp
10ft power cable
(1) 45A Drag Cut Cartridge
Operator and Safety Manuals

Cut Capacity

Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

Powermax45 SYNC 088560 - What's Included

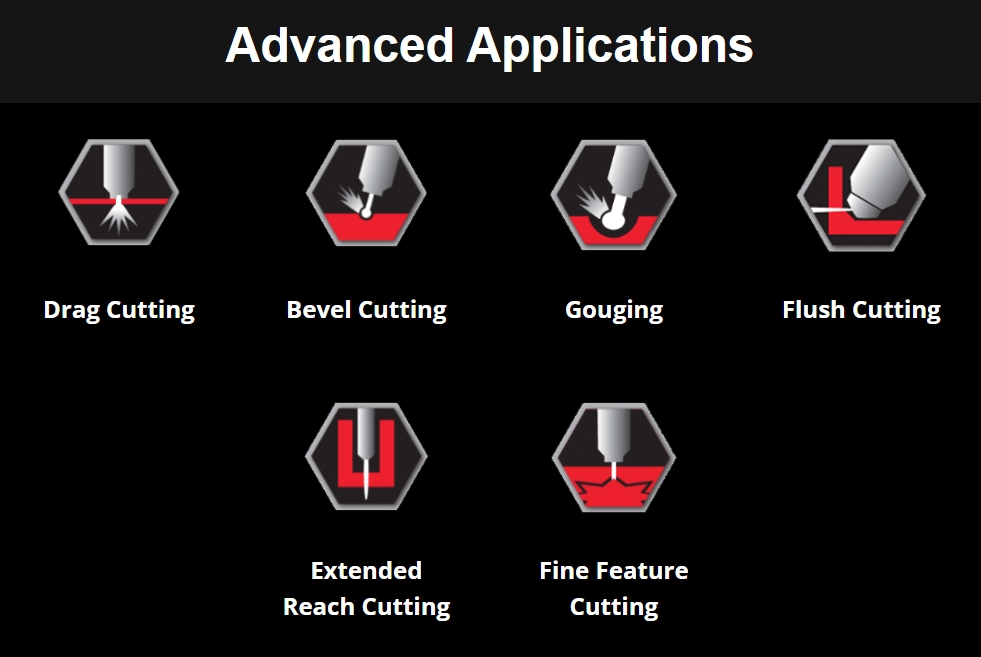

Plasma Cutting Applications:

Drag Cutting - Ideal for straightforward applications where the torch is dragged directly across the workpiece, commonly used for general cutting tasks
Fine Feature Cutting - Designed for precision with a narrow kerf width, minimal dross, and reduced heat-affected zone, perfect for detailed cuts
Flush Cutting - Enables cutting close to base materials with a 45-degree angle, useful for trimming and finishing
Max Removal Gouging - For heavy-duty metal removal with deep gouge profiles and extensive metal washing, ideal for aggressive material removal
Max Control Gouging - Provides precise metal removal with shallower gouge profiles and light metal washing, suited for detailed and controlled gouging tasks

Powermax45 SYNC Benefits:

Simplify Operations

Reduce training and troubleshooting time & costs
Decreased downtime during consumable change-outs
Eliminate premature consumable disposal costs
Cartridge usage data enhances cutting and helps managing consumable inventory

Easy to Use

Consumable cartridges are laser marked and color coded, reducing part mix-ups
RFID SmartSYNC torches automatically adjust amperage and mode, preventing setup errors
End-of-life consumable detection maximizes lifespan - up to 5X longer vs previous model
Flexible torch leads reduce fatigue without sacrificing durability

Maximize Performance

Easily switch between torch styles cartridges for diverse cutting and gouging
Optimized cartridge design maximizes consumable lifespan & cut quality
Hand torch controls save time by allowing on-the-fly amperage adjustments and cartridge changes without returning to the power supply

Industry Leading Reliability

SmartSYNC plasma torches are engineered for rugged, industrial environments
SpringStart™ technology ensures consistent starting and a more reliable torch
Industry-leading reliability reduces production downtime

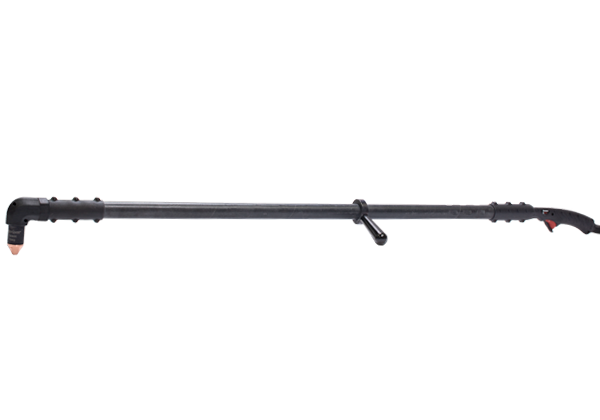

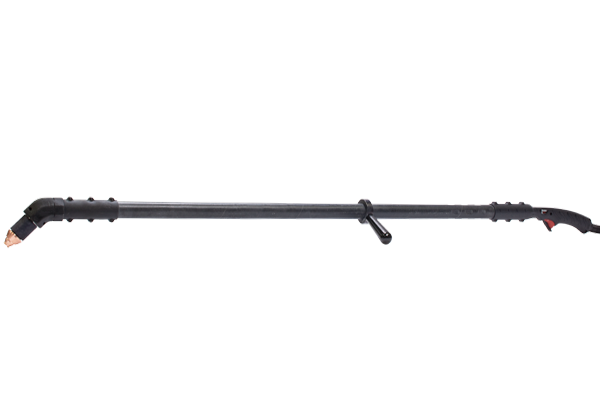

SmartSYNC Torches

SmartSYNC Consumables

Hypertherm Accessories

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only	Power Supply Only (200-240V) #088570 Powermax45 SYNC Power Supply Only (480V) #088573	75° Handheld Torch, 20ft Lead (230V) #088560 75° Handheld Torch, 50ft Lead (230V) #088561
CPC Port	Power Supply w/ CPC Port (200-240V) #088571	CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562 CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563 CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564	CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580 CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581 CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582 CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583
CPC & Serial Port	Power Supply w/ CPC & Serial Port (200-240V) #088572		CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 SYNC Torches & Consumables

Powermax45 SYNC Specs:

Cut Capacity
Recommended	5/8" (16 mm) @ 20 ipm (500 mm/min)
Severance (hand cutting)	1 1/8" (29 mm) @ 5 ipm (125 mm/min)
Pierce	1/2" (12 mm)

Input, Output & Operation
Input voltages	CSA 200-440 V, 1-PH, 50/60 Hz 480 V, 3-PH, 50/60 Hz 480 V, 3-PH, 10 A @ 6.9kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Kilowatt output	6.9kW
Input current	9-45 A
Output current	155 VDC
Rated output voltage	CSA 200-240 V, 1-PH 39/32 A @ 6.5 kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Duty Cycle @ 104° F	CSA 50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH CE 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)	CSA 275 VDC 200-240 V 275 VDC 480 V CE 265 VDC 400 V
Gas supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure	400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length	10 ft (3 m)
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10 kW) for full 45 A output
Electrical efficiency	90%
Certifications	CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS
Height:	14.00 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz
