Miller OptX™ 1kW, 240V Handheld Laser Welding Machine - 951000204 - ***** CALL FOR MORE INFO *****

Part Number: 951000204
UPC: 715959717687
Call for availability 844-682-0205 or Submit Order Form:

Welding type:

Laser

Laser

  • Laser welderLaser Welding
  • Laser welder complete packageComplete Accessory/Consumable Pkg
  • 20A, 240V Input
  • Single Phase Power
  • Portable @ 140lbs
  • Miller 3-Year Warranty

***** CALL FOR MORE INFO *****



Miller OptX™ 1kW, 240V Handheld Laser Welding Machine #951000204

Miller OptX laser welder featuresAdvanced Laser Welding & Cleaning

Change the welding game with the OptX handheld laser. Unleash the workforce's
welding potential and significantly reduce the learning curve, so any welder can
drive output and be productive. Increase throughput with distortion control that
eliminates post weld straightening and reduced pre-weld processing.

Applications & Processes

  • Applications - Sheet metal, Fabrication, Manufacturing, Aerospace and defense, Transportation, HVAC
  • Processes - Laser welding
  • Laser Output - 1,000 W average power, 1,500 W peak power
  • Input Power - 20 A, 240 V, single-phase
  • Process Gas - Argon, nitrogen
  • Net Weight - 140 lbs

Features of the Miller OptX™

  • 2kW Output - Weld up to 5/16 in material thickness with full penetration.
  • Exclusive Weld Programs - Miller exclusive weld programs developed and design by our engineers to maximizes weld quality and ease of use.
  • Multi Function Capability - Tack, Clean and Weld functions all in one machine
  • OptX Wire Feeder - Designed to provide consistent and reliable wire feed speeds to delivery high quality welding performance.

Highly Productive

  • High speed welding that is up to four times faster than TIG, with simple material preparation and minimal post-finishing.
  • Spot, autogenous and wire welding provide high-quality, consistent results.
  • The OptX wire feeder is designed and manufactured specifically for the handheld laser application, providing consistent results in an industrial setting.

Easy to Use

  • Simple interface with pre-built parameters for welding provide reliable results for different material types and thicknesses.
  • Nearly eliminate the need for pre- and post-weld processing where tight part fit-up is available.

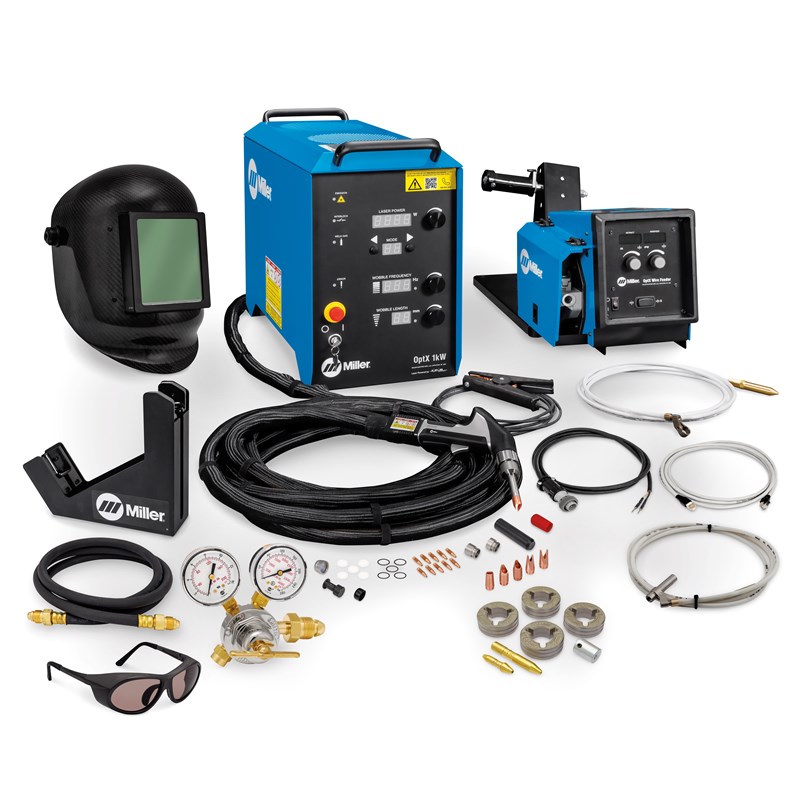

Complete Package: What's Included

  • OptX 1kW laser machine
  • OptX wire feeder
  • OptX laser torch
  • 11-foot (3.4 m) conduit wire, steel

Miller OptX laser welding system - What's IncludedOptX accessory kit consisting of:

  • OptX carbon fiber laser welding helmet
  • OptX standard laser safety glasses
  • OptX torch cradle
  • OptX torch cover
  • Welding nozzles (set of 5)
  • Contact tips
  • Protective windows with o-rings (5-pack of each)
  • 10-foot (3 m) Cat 6 Ethernet cable
  • Additional components and tools

OptX hardware kit consisting of:

  • Work-sense clamp
  • Smith regulator (30-150-580)
  • 5-foot (1.5 m) gas hose
  • .045 in. V-groove 4-roll drive roll kit
  • Trigger cable

Miller True Blue 3-Year WarrantyMiller True Blue warranty

Enjoy peace of mind with the best machine coverage in the industry - Miller's True Blue Warranty.



Shop the latest gear from Miller Welding, or browse all welding machines at the best prices online, from Welders Supply.

Miller OptX™ 1kW Laser Welder Specifications

ModeInput PowerOutput

Rated Output at 100% Duty Cycle

Amps input Rated Output, 50/60 Hz

(240V, KVA, KW)

Dimensions

(H x W x D)

Net weight
Laser Welding 1-phase 1 kW 1 kW at 30°C 20, 6, 5.85 21 x 12.4 x 25.2 in.
(533 x 315 x 640 mm)
140 lb.
(64 kg)

OptX Wire Feeder Specifications

Input PowerWire Feed SpeedWire Diameter Capacity

Spool Size Capacity

Dimensions

(H x W x D)

Net Weight

120 VAC, 3.5 A,
50/60 Hz
5–80 ipm
(0.127– 2.032 m/min.)
.023–5/64 in. (0.6–2.0 mm)
.045 in. (1.1 mm) recommended
8 in. (203 mm)
and 12 in. (305 mm)
16 x 12.375 x 27.875 in.
(406 x 314 x 708 mm)
46 lb. (21 kg)

OptX 1kW Performance Data

MetalMaterial Thickness Range
(Wire Autogenous)
Spot Welding
Penetration Depth

Laser Welding Travel Speed

Shielding Gas Required

Aluminum 20–12 gauge 20–12 gauge 15–20 ipm (0.3–0.5 mpm) Argon
Steel, Stainless Steel 20–12 gauge 20–12 gauge 15–20 ipm (0.3–0.5 mpm) Nitrogen
Copper 18–14 gauge 18–14 gauge 15–20 ipm (0.3–0.5 mpm) Nitrogen

Welding and Cleaning Parameters

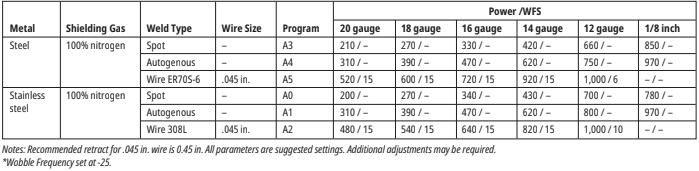

Steel/Stainless Steel Parameters

Miller OptX laser welder steel/stainless steel parameters

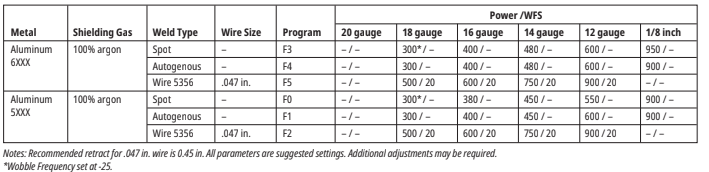

Aluminum Parameters

Miller OptX laser welder aluminum parameters

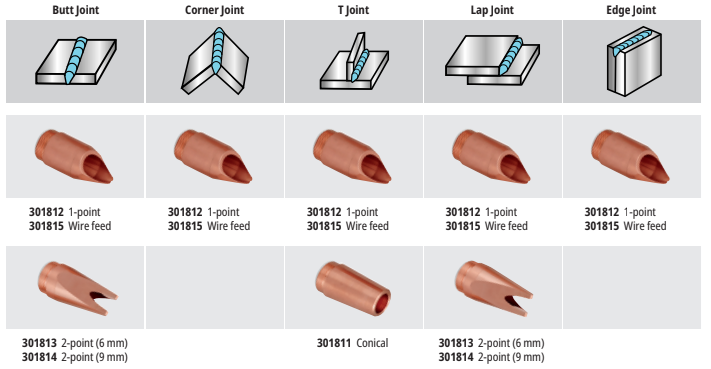

Welding Nozzle Selection

Miller OptX laser welder - Welding Nozzle Selection

Feeder Consumables

Wire SizeGuide ConduitU-Groove Drive RollsV-Groove Drive RollsGuide Tips
.045 in. (1.1 mm) 301809 301825 (kit) 301822
.047 in. (1.2 mm) 301808 301826 (kit) 301822

SHIPPING DIMENSIONS

Height: 21.00 Inches
Width: 12.40 Inches
Length: 25.20 Inches
Weight: 140 Lb(s) 0 Oz
