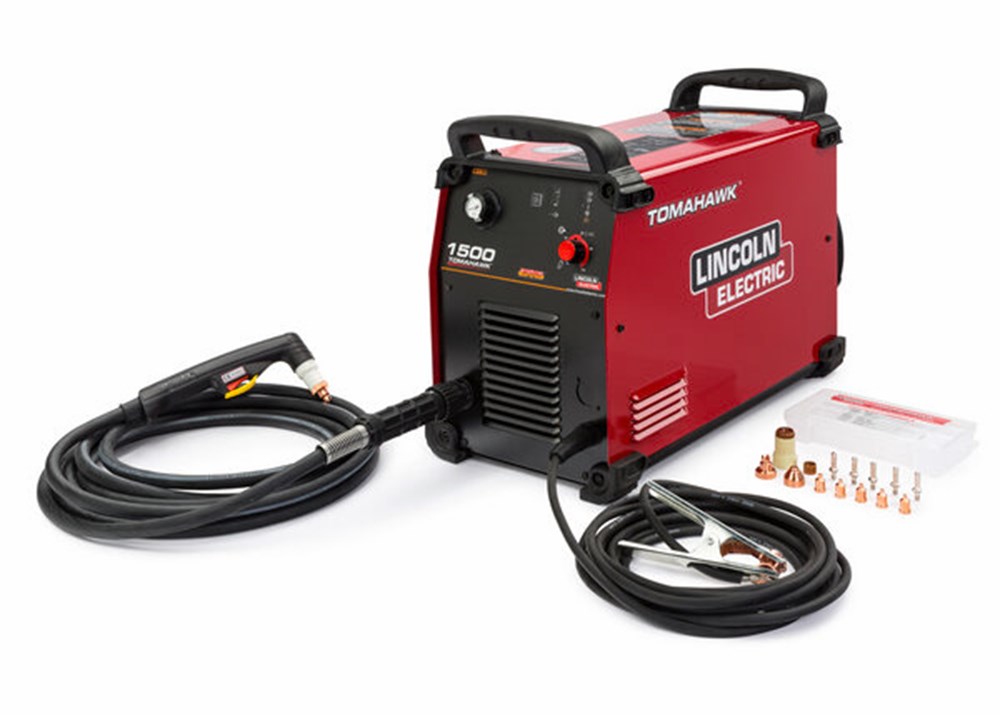

Lincoln Tomahawk® 1500 Plasma Cutter w/ 25 ft (7.6 m) Hand Torch #K3477-1

Part Numbers: K3477-1

Included with your purchase ( ) :

$5,499.00 $5,975.00*
SAVE $476.00
$5,499.00 $5,975.00*
SAVE $476.00

Plasma torch:

Handheld

Handheld

Cut capacity:

1" and Higher Capacity

1" and Higher Capacity

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • 1" cut capacity plasma cutter1" Cut Capacity
  • Multi-voltage welderMulti-Voltage Input
  • Multi-phase input plasma cutterMulti-Phase
  • Lightweight, portable plasma cutterLightweight & Portable
  • Lincoln Electric hassle-free warrantyHassle-Free Warranty

Lincoln Tomahawk® 1500 Plasma Cutter w/ 25ft Hand Torch #K3477-1

If you're cutting fine artwork or fabricating steel parts in a production setting, you will need a plasma machine that will give you the cleanest and fastest cuts possible. Heavy duty at 100 amps, 60% Duty Cycle, the Tomahawk® 1500 plasma cutting power source brings power and flexibility to hand-held torch cutting applications.

Tomahawk® 1500 Features

  • Built on a proven inverter platform, the Tomahawk 1500 is a constant current, plasma cutting power source that delivers faster cut speeds, optimal cut performance, and durability.
  • Tomahawk initiates the plasma arc with a simple yet reliable touch-start mechanism that eliminates many of the failure problems associated with high-frequency start systems.
  •  The control system includes a Parts-in-Place™ feature to ensure that the consumables are in place before the cutting or gouging process can be initiated.
  • The air regulator and pressure gauge are standard features, and the accompanying hand-held torch and consumable starter kit enables the user to get started right out of the box.
  • Tomahawk 1500 is designed to deliver. When you're cutting up to 1 1/4 in. (31.8 mm) material in a hand-held application, you can count on excellent cut quality with faster cutting speeds as compared to oxy-fuel cutting.
  • IP23 rating makes Tomahawk 1500 rugged enough for use outdoors as well as indoors.

What's Included

  • LC105 hand torch 25 ft. (7.6 m) lead (K2849-1) and cable with electrode | nozzle 100A | swirl ring | retaining cap (contact) | drag shield cap 100A
  • Tomahawk 1500 Plasma Cutter
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and 25 ft. (7.5 m) cable
  • Input power cord
  • Consumable Starter Kit for LC105 Torch (KP4141-20) includes (2) electrodes | (2) nozzles 100A | (1) swirl ring
Shop all plasma cutters and plasma cutting consumables available online from Welders Supply.
Lincoln Tomahawk® 1500 #K3477-1 Specifications
Input power

200-208/230/380/460/575V

50/60 Hz

1-Phase, 3-Phase

Output range

25-100A,

25-80A

Gas pressure required 87 to 109 PSI (6.0 - 7.5 Bar)
Gas flow rate 380 SCFH @ 80 PSI
180 SLPM @ 5.5 Bar
Typical applications Construction

SHIPPING DIMENSIONS

Height: 17.90 Inches
Width: 301.00 Inches
Length: 25.40 Inches
Weight: 50 Lb(s) 0 Oz
