Cutmaster 102 Plasma System, 100 Amp, SL100, 75 Deg Head, 50 ft Leads, 208-230V, 1Ph, 50/60Hz Ready, Multi-Voltage/Phase Capable #1-1331-1

Part Numbers: 1-1331-1
UPCs: 0699488003117

Included with your purchase ( ) :

Cutmaster 102 #1-1331-1
Cutmaster 102 Plasma System, 100 Amp, SL...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$4,699.00 + Free Shipping $5,649.00*
SAVE $950.00
$4,699.00 + Free Shipping $5,649.00*
SAVE $950.00

Cut capacity:

1" and Higher Capacity

1" and Higher Capacity

Plasma torch:

Handheld

Handheld

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 1 3/4" Cut Capacity
  • 208/230V
  • Multiphase
  • 50 ft leads
  • Hand torch included
  • 4-year Warranty

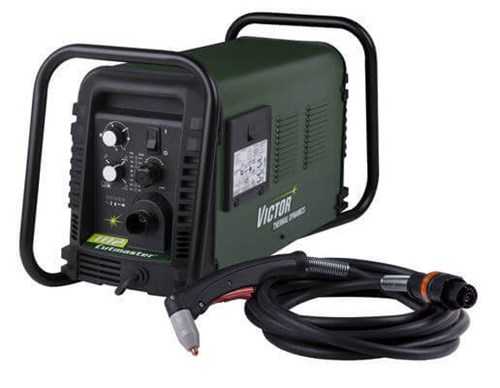

Cutmaster 102 Plasma System #1-1331-1

Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and AccessoriesCUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 102 is the fastest cutting system on the planet.

Warranty: 1 Year

Included Features

  • TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
  • Color-Coded LED’s indicate pressure status and setup errors
  • All user controls are conveniently located on the front panel
  • Lightweight design improves portability (Reduced nearly 50%)
  • Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Multiple Torch Capability (Hand, Mechanized, Automation)
  • The Industry’s only 60 Amp Drag Tip
  • Convenient storage compartment for spare and consumable parts
  • Universal selectable input power from 208 to 460 VAC + 10%, single or three-phase, 50 or 60 Hz.
  • Power Supply
  • 50 ft. (15.2m) Lead
  • 1Torch SL100, 75 deg. Head
  • 10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
  • Spare Parts Kit
  • Operating Manual

Other Features

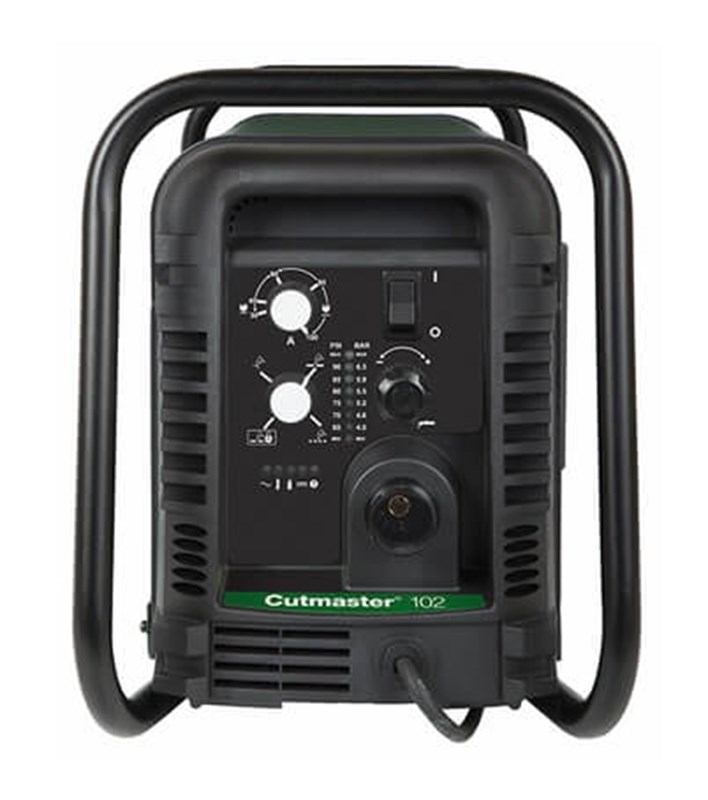

  • Front Panel LEDs indicate status conditions for maximum efficiency
  • Storage compartment for convenient access to spare parts and consumables
  • Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
  • True Guard roll bar provides easy transportation and protection for unmatched durability
  • Multi-voltage allows operation from 208 to 600 Volts in a single power supply
  • AutoPilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Lighter weight design for maximum portability
Shop other Plasma Cutting Machines, Plasma Cutting Accessories, and Plasma Cutting Consumable Parts and Accessories

General Specifications

Process(es)

Manual Air Plasma Cutting

Maximum Amperage Output

100A

Output Power

12 kW

Maximum Cut

1 3/4" (45 mm)

Pierce Rating

3/4" (20 mm)

Recommended Cut

1" (25mm)

Amperage Range

20-100 Amps

Industrial Applications

Heavy Fabrication



Manufacturing



Contractors

Input Voltage

208/230V 1/3 Phase 50/60 Hz

Duty Cycle (@ 40 deg C)

60% @ 100A



80% @ 80A



100% @ 70A

Amperage Draw

95A @ 230V, 1 ph



45A @ 230V, 3 ph

Dimensions: (H x W x D)

15" (381 mm) x 12" (305 mm) x 30" (762 mm)

Weight

62 lbs (28.1kg)

Pilot

Start Cartridge

Control

Hand Torch Switch or Hand Pendant Control

Warranty (Parts & Labor)

4 Years



Torch Specifications

Hand, Automated & Mechanized

SL100

Air Pressure

70 psi (4.8 bar)

Flow

7.5 cfm (212 l/m)

Torch

SL100 with ATC (hand)

Certifications

IP23S

SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 12.00 Inches
Length: 30.00 Inches
Weight: 62 Lb(s) 0 Oz

Product Questions and Answers


Q - What is the maximum cut capacity? A - 1 3/4", and that's a true cut capacity

How to change the input power:

  1. Remove Cover.

    Remove the Power Supply cover per instructions found in section 5.

  2. Disconnect Input Cable.

    Disconnect the input power cable from the main input contactor and the ground connection.

  3. Remove cable.

    Loosen the protector on the back panel and pull the original power cable out of power supply.

  4. Check for Factory Cable.

    If not the factory cable, use a three-conductor input power cable and strip back insulation on wires.

  5. Pass Back Cable.

    Pass the new cable through the back panel opening of the power supply. Refer to Section 2 for specs.
