Miller XMT 350 CC/CV 6-Pack Rack, Tweco®, fused for 460/575V #907406

Part Number: 907406

Discontinued - Check out other Miller Welding Tables, Mounts, & Accessories

Out of Stock
Starts at $5,379.83/month with

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Power supply:

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

  • Multi-Voltage
  • 3 Phase
  • Multi-Process
  • 3-Year Warranty

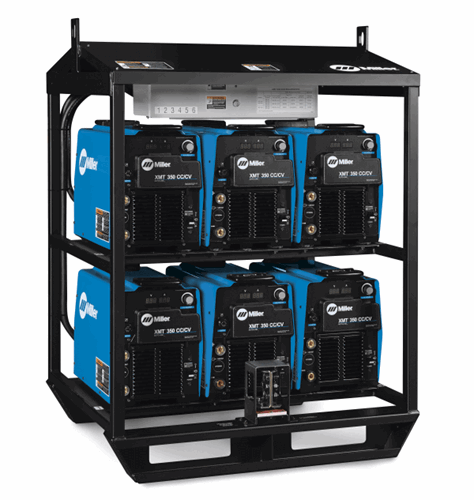

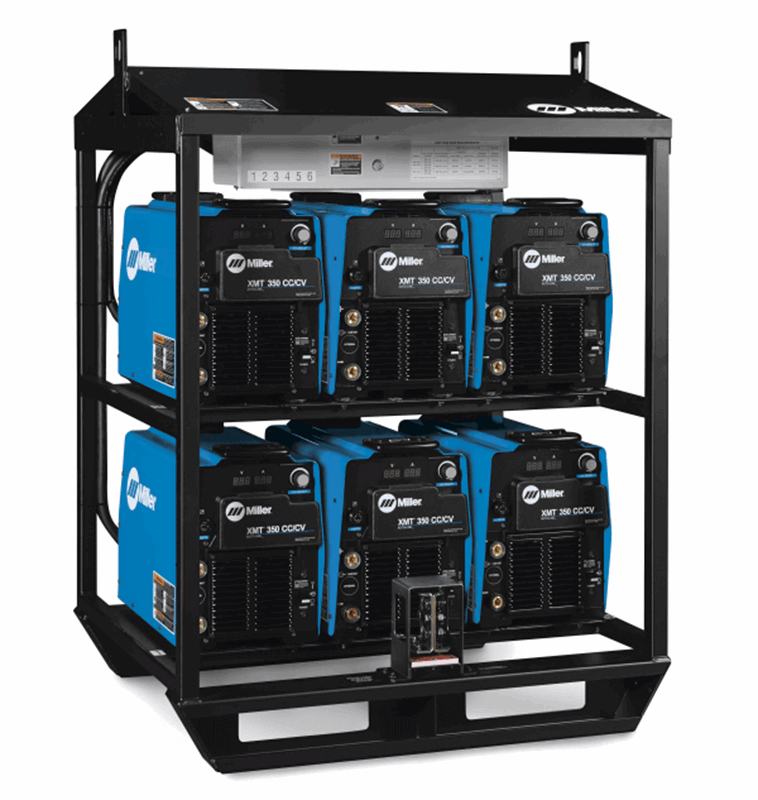

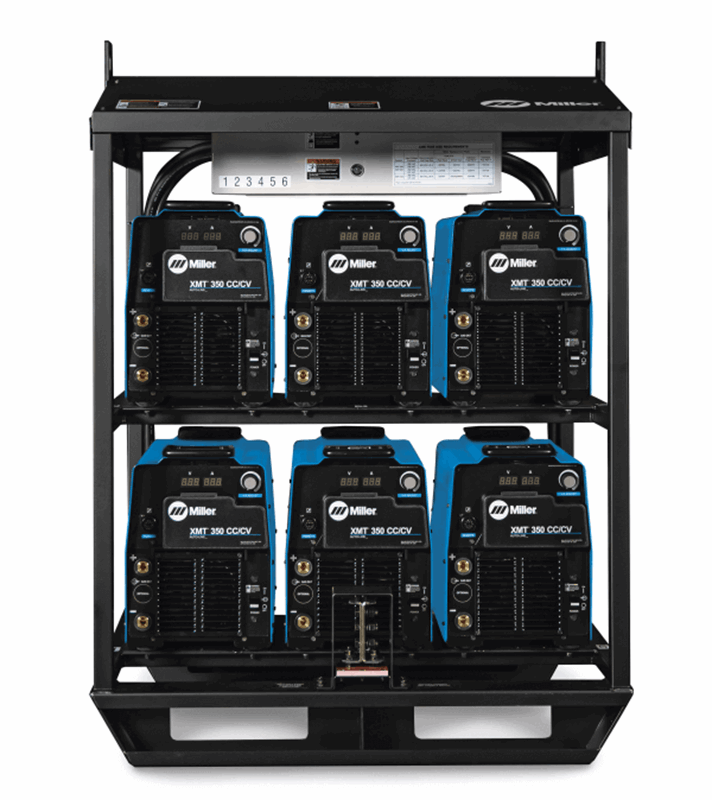

Miller XMT 350 CC/CV 6-Pack Rack / Tweco #907406

Designed for use with Miller’s SuitCase feeders, this durable 6-Pack Rack is a great way to consolidate your welding machines at construction sites and other locations with multiple welders. This rack has fused 460/575 V and provides for CC/CV welding processes (Stick, TIG, MIG and FCAW, as well as air carbon arc cutting and gouging). One easy-to-use Tweco style connection lets you connect up to six inverters with one primary power drop. Input power of 208-575 VAC at 50/60 Hz. Measures 43” L x 34.375” W x 59.375” H.


Features:

  • Primary Power Connection

One easy connection allows six welders to be connected with one primary power drop.

  • Environmental Protection

Meets IP23, which is more stringent than IP23S or IP23M ratings, providing the most reliable outdoor package.

  • Protected from the Elements

The electrical junction box is located well under the galvanized roof panel. Rack roof panel and power source shelves are fabricated from galvanized steel and painted for added protection in harsh environments.

  • Protected Electrical Connections

Liquid-tight strain reliefs provided on both welding power source and electrical junction box. Strain relief is designed to resist saltwater, alcohol, oil, grease, and common solvents.

  • Easy to Move

Lifting eyes simplify transportation using a crane or overhead lifting device. Lift truck side and end fork pockets in the base to enable loading and worksite repositioning with a forklift.

  • Work Terminal

Isolated work terminal provides a convenient connection point for common workpiece construction.

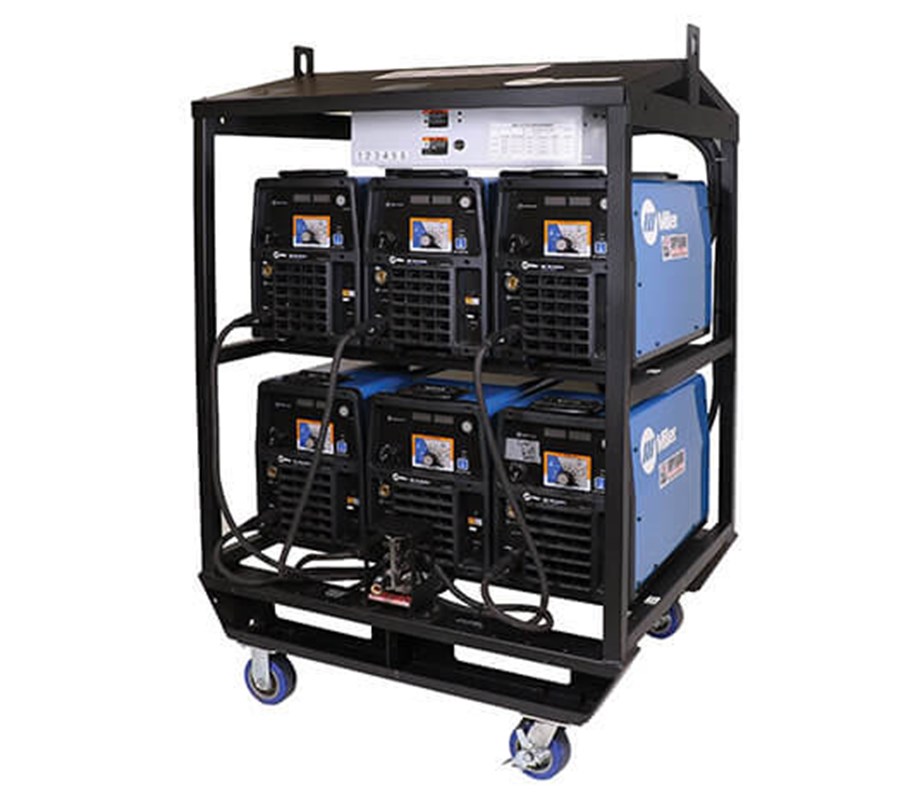

  • Running Gear (Optional)

These racks can be equipped with optional running gear. The large five-inch diameter wheels enable the rack to be moved over grating and driveway gravel.


Browse all work benches and accessories available online at Welders Supply Company. View our gas welding & cutting equipment, welding machines and our welding helmets for more great deals.

Miller XMT 350 CC/CV 6-Pack Rack Specifications

General Specifications

Industries Interests

  • Construction
  • Infrastructure
  • Shipbuilding
  • High Purity Processing

Connector Style

  • Tweco

Processes

  • MIG (GMAW)/Pulsed MIG (GMAW-P)
  • Stick (SMAW)
  • TIG (GTAW)/Pulsed TIG (GTAW-P)
  • Flux Cored (FCAW)
  • Air Carbon Arc (CAC-A)
  • Cutting and Gouging

Weldable Metals

  • Steel
  • Stainless Steel
  • Aluminum
  • Specialty Metals

Input Voltage

  • 575 V
  • 460/480 V

Input Phase

  • 3-Phase

Input Hz

  • 50/60 Hz

Current Type

  • DC

Max Open Circuit Voltage

  • 75 VDC

Rack Capacity

  • 6

Warranty

  • Miller's True Blue Warranty

Weld Output

  • CC/CV

SHIPPING DIMENSIONS

Height: 35.00 Inches
Width: 43.00 Inches
Length: 64.00 Inches
Weight: 769 Lb(s) 0 Oz

Product Questions and Answers


Q - Are these compatible with running gear? A - Yes, optional wheels enable the cart to be moved over rough surfaces like dirt and gravel.
Q - Can this be moved with a forklift? A - Yes it has forklift pockets at the base.
