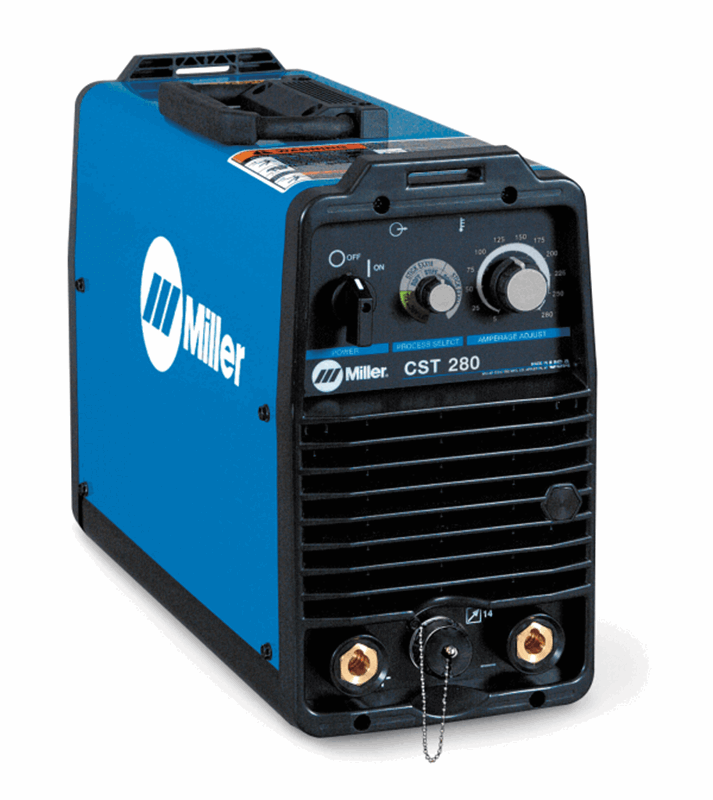

Miller CST 280 220-230/460-575 V, Tweco #907244011

Part Number: 907244011

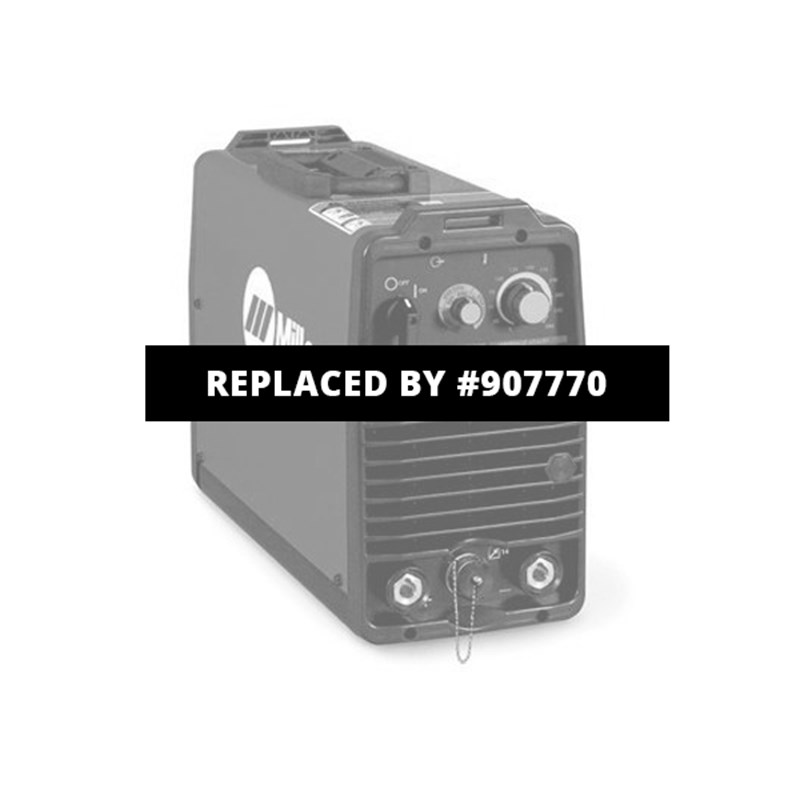

DISCONTINUED - This product has been replaced by Miller CST 282 907770

Out of Stock
$2,874.00

Welding type:

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • Stick Welding
  • TIG Welding
  • Multi-Phase

Miller CST 280 220-230/460-575 V, Tweco #907244011

DISCONTINUED

This product has been replaced by the Miller CST 282 907770

Designed for pipe and plate Stick/TIG welding in the construction industry, Miller packed 280 amps of superior Stick performance in a compact, durable package capable of welding up to 3/16” in diameter. Then they added LiftArc™ for smooth TIG starts without high frequency. That's a win in our book!

Superior Stick Arc Performance

Amperage control provided through 14-pin receptacle on front of the machine. Compatible with Wireless Remote Controls. Improve productivity, eliminate clutter and cord tangles in the work area. Eliminate cord failure and associated downtime/repair costs and extend the operator's welding range without adding cord extensions.

Lift-Arc™

Lift-Arc™ start provides TIG arc starting without the use of high frequency.

Simple Voltage Changeover

Simple voltage changeover switch saves time when changing primary voltage. Input voltage range can be changed without removal from inverter rack or removal of machine case.

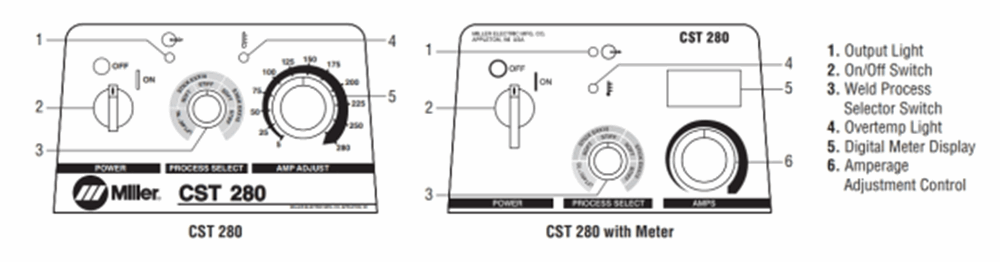

Simple To Operate

Simple to operate with a process selector knob which automatically sets the proper dig setting on E6010 and E7018 electrodes providing superior stick performance.

Optional Digital Meter

Optional digital meter for more precise control when presetting or monitoring welding amperage.

Remote Amperage Control

Amperage control provided through 14-pin receptacle on front of the machine. Compatible with Wireless Remote Controls. Improve productivity, eliminate clutter and cord tangles in the work area. Eliminate cord failure and associated downtime/repair costs and extend the operator's welding range without adding cord extensions.

4 and 8 Pack Racks

Stand-alone or rack-mounted, commonly used in construction and shipyards, are available for multiple operator applications. All controls including the power switch are located on front of the machine for easy access.

Twist Lock Receptacles

Tweco- or Dinse-style connectors available. The Dinse-style includes one set of male connectors: the Tweco-style does not.

Find welding machines for any application at Welders Supply.

PROCESSES

  • Stick (SMAW)
  • TIG DC (GTAW-DC)
Title CST™ 280 220-230/460-575 V, Tweco
Industries Interests Construction
Infrastructure
Shipbuilding
High Purity Processing
Maintenance and Repair - Field Operations
Maintenance and Repair - In Plant
Mechanical Contracting
Pipe Fabrication / Construction
Weldable Metals Steel
Stainless Steel
Carbon Diameter 3/16 in (4.8 mm)
Input Voltage 220/230/240 V
460/480 V
575 V
Input Phase 1- and 3-Phase
Input Hz 50 / 60 Hz
Current Type DC
Rated Output
  • 280 A @ 31.2 V, 35% Duty Cycle (Three Phase)
  • 200 A @ 28 V, 100% Duty Cycle (Three Phase)
  • 200 A @ 28 V, 50% Duty Cycle (Single Phase)
  • 150 A @ 26 V, 100% Duty Cycle (Single Phase)
Max Open Circuit Voltage 77 VDC
Amperage Range 5 DC - 280 DC
Net Width 7.5 in
Net Height 13.5 in
Net Length 18 in
Net Weight 41 lbs
Warranty Miller's True Blue Warranty
Portability Handle(s)
Weld Output CC

SHIPPING DIMENSIONS

Height: 12.00 Inches
Width: 15.00 Inches
Length: 24.00 Inches
Weight: 45 Lb(s) 0 Oz

Product Questions and Answers


Q - Is there a wireless remote hand control for this? A - It's not included, but you can order one (#300 430). It plugs right into the 14-pin receptacle on the machine and has a 300 ft range.
Q - Does it run on AC or DC? A - DC current.
