Worldwide manufacturer shortages are impacting delivery times. Lead times are more variable than other websites imply. We are a top distributor for Miller Welding; nobody will get you this faster. Call 1-844-682-0205.

Miller CST™ 282 208-575V, Tweco 907770

Product Number: 907770
$3,711.00 + Free Shipping
$4,285.00 You Save $574.00
Select your FREEBIES!
*
Welders Supply
T-Shirt

Call 1-844-682-0205 or CHAT for more options

Welding type:

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  • MultiPhase Power Supply
  • Stick
  • Tig
  • Miller's True Blue Warranty

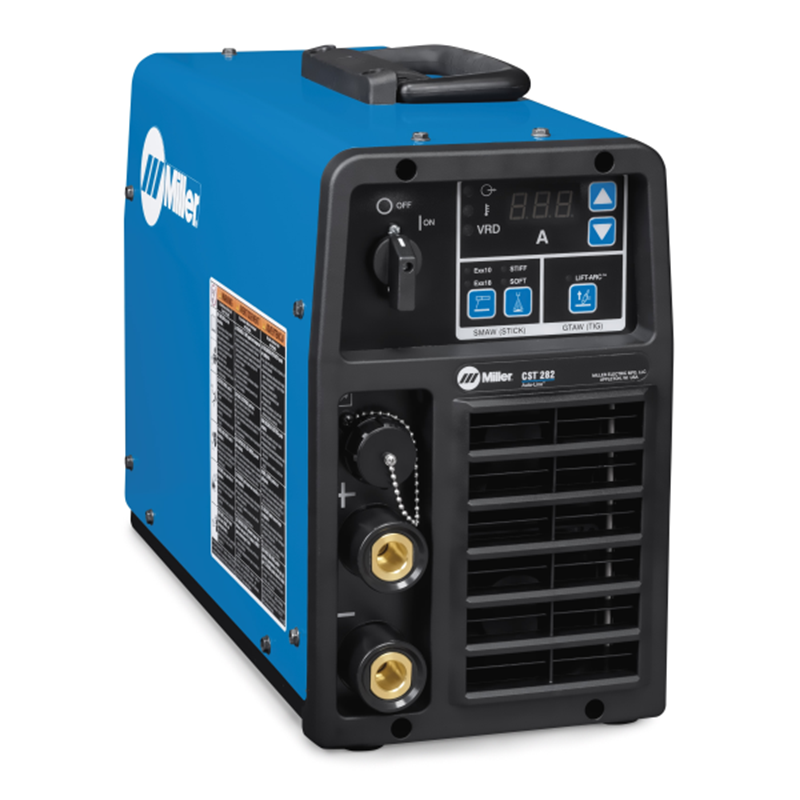

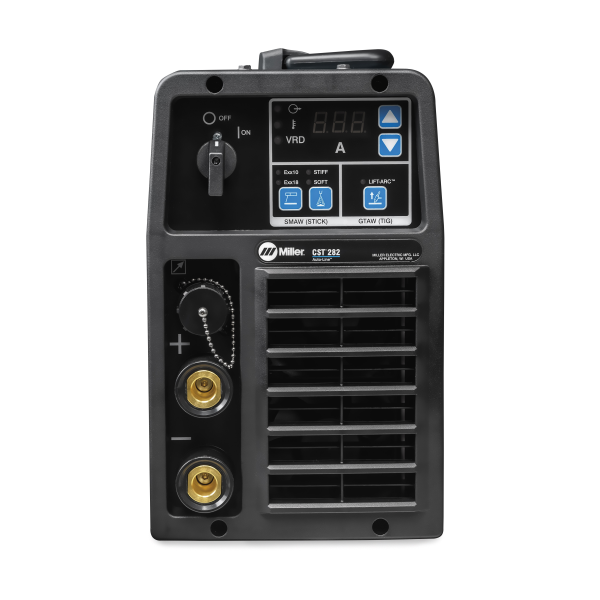

Miller CST™ 282 208-575V, Tweco 907770

Designed for welding pipe and plate in the construction industry -- this compact, 35 pound, goes-anywhere welder delivers 280 amps of superior Stick and TIG performance with Auto-Line™ Technology to utilize nearly any source of primary power on the job site. Its small and compact size makes it easy to move around unlike the older designs which needed cranes to be transferred. When it comes to maintenance, there isn't any need for a pallet truck to lift the welding machine, just use your hands to lift them out of the brackets, dismantle and air blow them clean. The Miller CST 208 ranks as one of the best in terms of maintenance, duty cycle, and performance.

The CST 282 small design makes the welding machine to be flexible and work anywhere where there are 208 to 575 volts of AC power. It allows for the CST 282 to be used for a wide range of jobsites with no manual linking needed.

Features:

  • Superior Stick Performance - Specifically designed for XX10 and XX18 electrodes, a customized arc performance is delivered based on electrode type and either a stiff or soft arc preference for pipe and plate applications.
  • Auto-Line™ Technology - Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required.
  • Portable - Weighing only 34.6 pounds, the CST 282 is easily moved around a jobsite for increased operator comfort and safety. It is 7 pounds (20%) lighter than the previous CST model.
  • Universal Connector System - New Miller-exclusive universal output connector system can be used with either Tweco- or Dinse-style connectors. Welders can convert the machine from one connector style to another — without having to take the machine apart or deal with adapters.

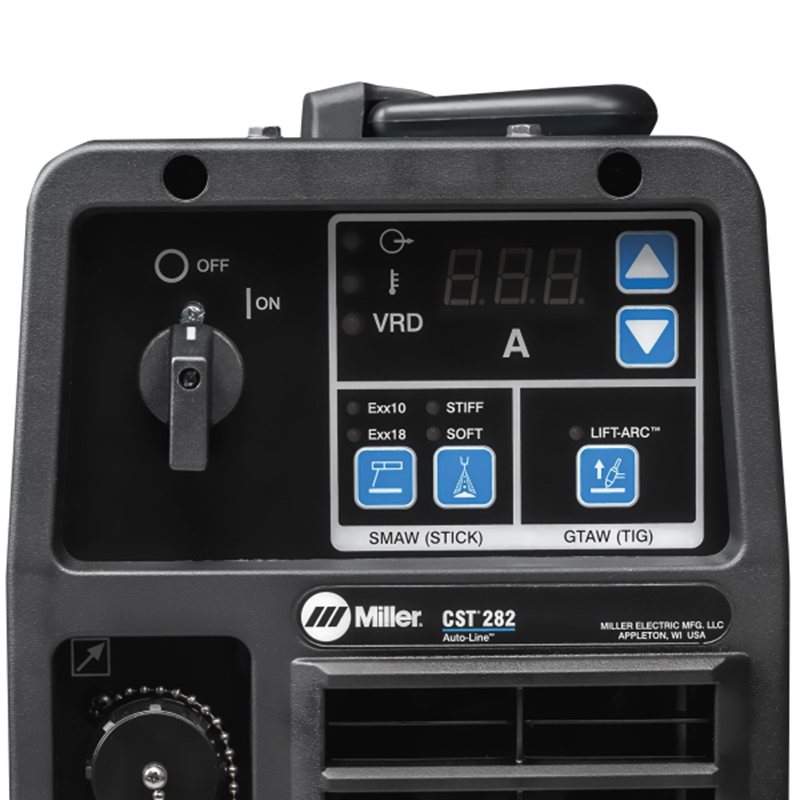

  • Simple & Accurate Interface - Digital meter and push-button controls for more precise setting when presetting or monitoring welding amperage.
  • Lift-Arc™ - Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high-frequency.
  • Adaptive Hot Start™ - Automatically makes starting stick electrodes easy without creating an inclusion.
  • Voltage Reducing Device - VRD technology reduces output when the operator isn’t welding, improving safety by reducing the potential harm from inadvertent contact with the electrode during non-welding pauses.
  • 4 and 8 Pack Racks - Rack mountable for protection, storage, and transportation of multiple power sources while using a single primary power cable.
Find welding machines for any application at Welders Supply.

The Miller CST 282 208-575V replaces these legacy models:

PROCESSES

  • Stick (SMAW)
  • TIG DC (GTAW-DC)
Title Miller CST™ 282 208-575V, Tweco
Industries Interests Construction
Infrastructure
Shipbuilding
Education / Training
Maintenance and Repair - Field Operations
Maintenance and Repair - In Plant
Mechanical Contracting
High Purity Processing
Weldable Metals Specialty Metals
Stainless Steel
Steel
Input Voltage 208 V
220/230/240 V
380/400/440 V
460/480 V
575 V
Input Phase 1- and 3-Phase
Input Hz 50 / 60 Hz
Current Type DC
Rated Output 280 A at 31.2 VDC, 35% duty cycle
Max Open Circuit Voltage 103 VDC
Net Width 8 in
Net Height 13.5 in
Net Length 18.5 in
Net Weight 34.6 lbs
Warranty Miller's True Blue Warranty
Portability Handle(s)
Weld Output Stick: 30–280 A, TIG: 5–280 A
