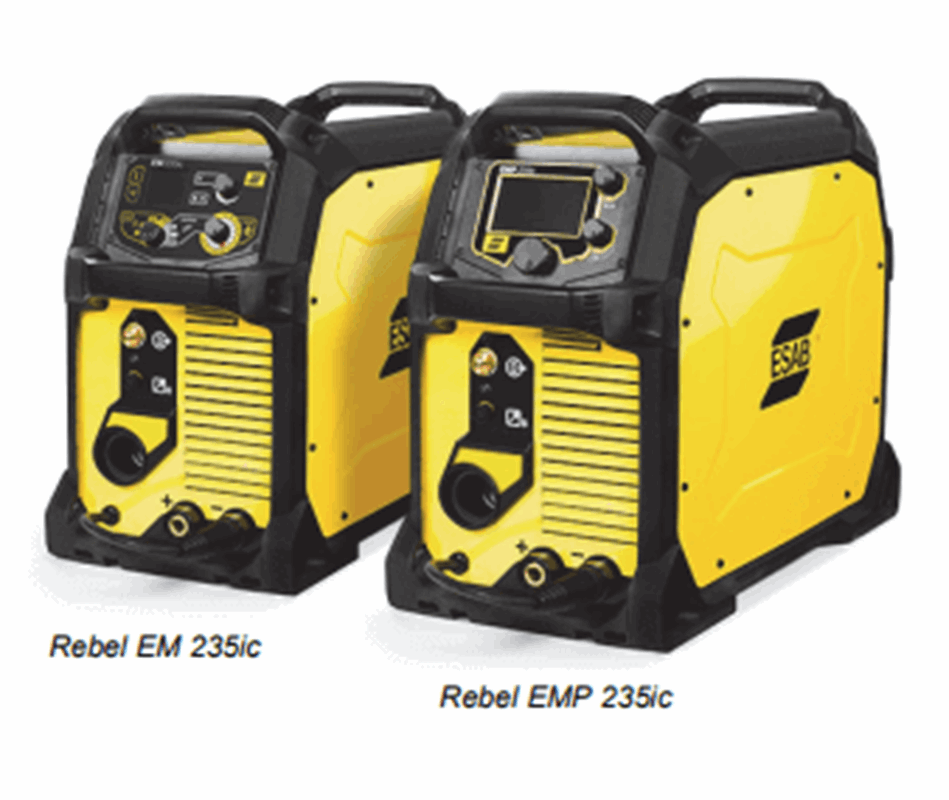

ESAB REBEL EM 235IC MIG WELDER #0558012700

$2,240.00 $2,807.00 Reduced Price You Save $567.00
Product Number: 0558012700
QTY:
Financing AVAILABLE!

ESAB REBEL EM 235IC MIG WELDER #0558012700

Features

  • Unmatched Portability – weighing in at 24 kg (53 lbs) and dual voltage capability and 4 handle roll cage. Detach the Rebel 235ic from its cart and tackle any job around the shop or out at the job site.
  • Power to Perform – have the confidence with Rebel 235ic to run the full range of 0.9 mm (.035 in.) wire –short arc and spray transfer. Also up to 1.2 mm (.045 in.) solid wire and up to 1.4 mm (.052 in.) cored wire. Plus, rods up to 4.0 mm (5/32 in.) and TIG rods up to 5.0 mm (3/16 in.)
  • sMIG Technology – Innovative “smart-Mig” feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld.

Industries

  • Agricultural Equipment
  • General Cast Iron Repair and Fabrication
  • HVAC
  • Repair and Maintenance

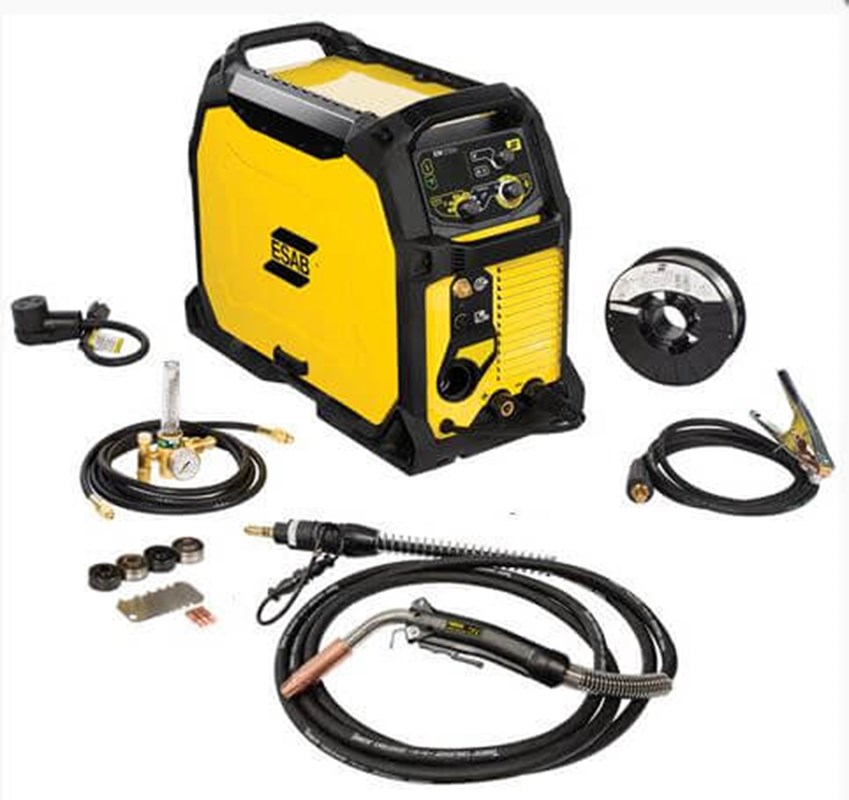

Comes Complete with:

  • Rebel EM 235ic power source (MIG ONLY)
  • 15-foot Tweco Spraymaster 250 MIG gun
  • 10-foot Tweco ground clamp with leads
  • Victor argon flow gauge regulator with 12.5-foot gas hose (0781-2743)
  • ESAB 70S-6 .035 10-lb spool of wire
  • Spare nozzle (22 series), diffuser, and 2 contact tips
  • Drive Rolls: .023/.030 smooth (7977036) | .030/.035 V-knurled (7977732) | .045 V-knurled
  • Material thickness guide
  • 120V and 230V plugs

 The optional Tweco Spool Gun (1027-1398) must be purchased separately.

Shop all welding machines for sale online at Welders Supply.

Arc Gun Consumables

Max Plate Thickness

Use With Welding Material 12.7 mm (1/2 in.)

Arc Holders Clamps & Misc

Cable 3 m (10 ft)

Dimensions

Height 26.5 in. (673 mm)
Length 19.5 in. (495.3 mm)
Width 11.5 in. (292 mm)

Input Ratings

Frequency Hz 50/60 Hz
Phases 1
VAC 120, 208/230 VAC
Volts 90-270 V

Output Ratings

Model Conditional Statement Duty Cycle Output Current DC VDC Out
MIG (GMAW/FCAW) 120V Welding Output @ 104 ° F (40 ° C) 40 % 120 A 19 VDC
MIG (GMAW/FCAW) 230V Welding Output @ 104 ° F (40 ° C) 40 % 235 A 26 VDC
STICK (SMAW) 120V Welding Output @ 104 ° F (40 ° C) 40 % 90 A 23.6 VDC
STICK (SMAW) 230V Welding Output @ 104 ° F (40 ° C) 40 % 210 A 28.4 VDC
TIG (GTAW) 120V Welding Output @ 104 ° F (40 ° C) 40 % 130 A 15.2 VDC
TIG (GTAW) 230V Welding Output @ 104 ° F (40 ° C) 40 % 240 A 19.6 VDC

Power Specifications

Enclosure Class IP23S
Max Welding Output 250 A
Open Circuit VDC High 90 VDC
Setting Range MIG/MAG (V) 10-30 V
Voltage Tolerance 30 V
Setting Range (A) 5-150 A
Setting Range (V) 120 V
Setting Range (A) 5-250 A
Setting Range (V) 230 V

Specifications

Standards CSA E60974-1-00 / UL60974-1 / IEC60974-1

Weight

Weight 24 kg (53 lb)

Wire Feeder Specifications

Max Spool Diameter 4, 8 & 12 in.
100, 200 & 300 mm
Wire Length per Minute 60-700 in./min
1.5-17.89 m/min
Metal Wire Diameter
Mild Steel .023-.045 in.
0.6-1.2 mm
Stainless Steel .030-.045 in.
0.8-1.2 mm
Flux Cored .030-.052 in.
0.8-1.3 mm
Aluminum .030-3/64 in.
0.8-1.2 mm

SHIPPING DIMENSIONS

Height: 26.50 Inches
Width: 11.50 Inches
Length: 19.50 Inches
Weight: 53 Lb(s) 0 Oz

Customer Reviews

ESAB Rebel EMP MIG Welder 235IC Review
By: Mac
on 12/21/2019
"Nice welds on 1/4 steel even running on 120v easy to use just set metal thickness and wire diameter depending on the application manual mode works better but if you are beginner welder auto mode will make you look like you kinda know what you are doing instead of like a fool. it's nice being able to run off 120 or 230 gives better range around the shop if you're not welding thick metal and don't have a 230 outlet and long extension cord. Welds as well as Miller 251 252 in my opinion and more versatile with multiple power input. 230 is best for all around use of machine but 120 is good for small projects." -

Product Questions and Answers


Q - What is the output rating? A - 235A at 40% duty cycle.
Q - What is the warranty on this? A - 3-year manufacturer warranty and ESAB's 100% satisfaction guarantee--if you're not happy with it within the first 100 days, ESAB will make it right or take it back and refund your purchase price.
