Hypertherm Powermax45 SYNC Plasma Cutter w/ CPC & Serial Ports, 180° Machine Torch, 25ft Lead #088584

Name: Powermax45 SYNC Plasma Cutter w/ CPC & Serial Ports, 25' Machine Torch (200-240V 1PH) #088584
Brand: Hypertherm
SKU: HYP088584

Part Number: 088584

UPC: 662310524043

$3,475.00 + Free Shipping

Call 844-682-0205 or CHAT for more options

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

25' Torch Leads/Work Clamp
CPC/Serial Ports for CNC Tables
180° Machine Torch
220-240V Input
1-Phase Input
3-Year Power Warranty

Powermax45 SYNC Plasma Cutting Machine w/ CPC & Serial Ports, 180° Mechanized Torch & 25ft Leads (200-240V 1PH) #088584

Transform your cutting experience with the Hypertherm Powermax45 SYNC plasma cutter. Operating at 230V, this cutter boasts unparalleled precision and power. Seamlessly integrate auxiliary equipment with both CPC and Serial ports for enhanced versatility. Maneuver effortlessly with the 180° machine torch, ensuring precise cuts from any angle. Plus, with a generous 25ft lead, tackle projects of any scale with confidence. Elevate your cutting game with the reliability and innovation of the Powermax45 SYNC from Hypertherm.

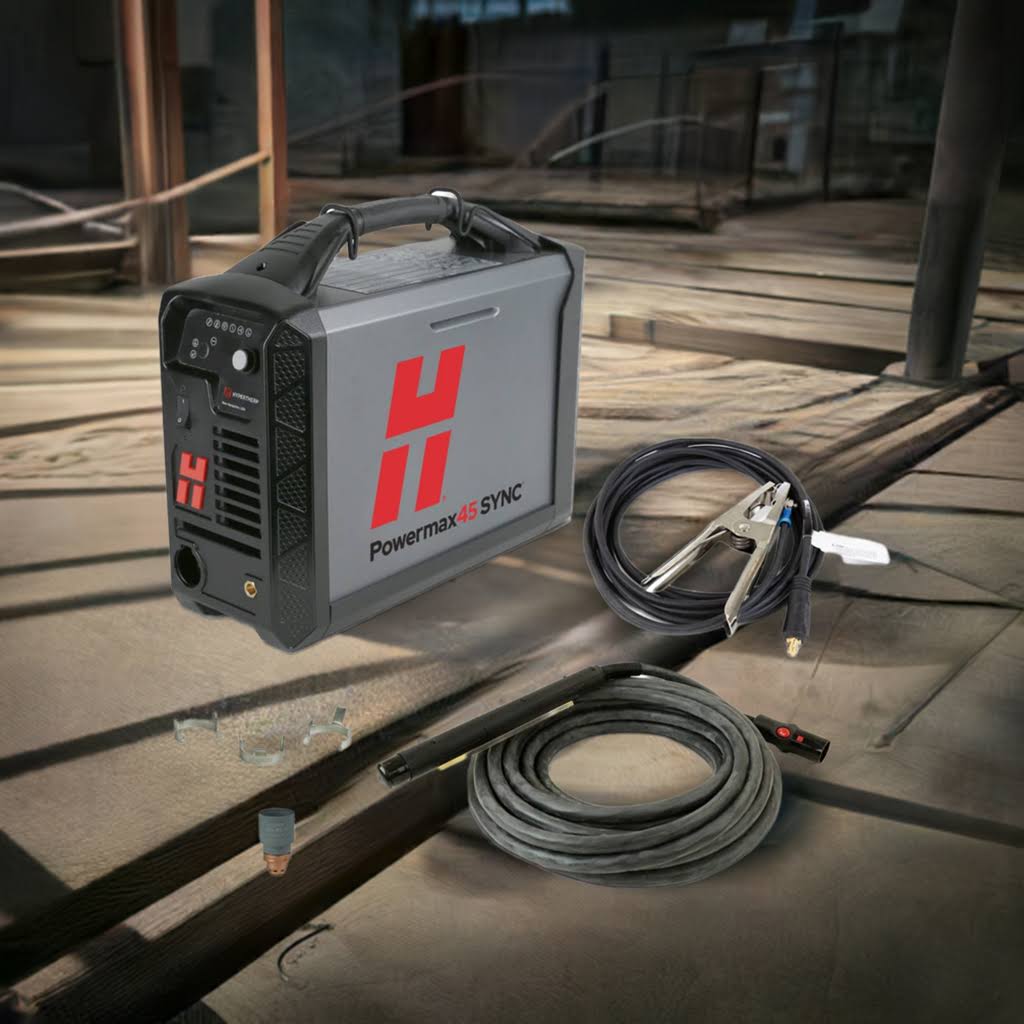

What's Included

Powermax45 SYNC power supply w/ CPC & serial ports
180° machanized SmartSYNC torch
25ft torch lead
25ft work clamp
10ft power cable
(1) Mechanized cutting cartridge
Operator and Safety Manuals

Cut Capacity

Recommended: 5/8" @ 20 ipm (16mm @ 500 mm/min)
Severance (hand cutting): 1 1/8" @ 5 ipm (29mm @ 125 mm/min)
Pierce*: 1/2" (12mm)

Max Removal Gouging - Typical Gouge

Metal removal rate: 7.5 lbs/hr (3.4kg/hr)
Groove profile: 0.12" D x 0.26" W (3.2mm D x 6.8mm W)

*Pierce rating for handheld use or with automatic torch height control.

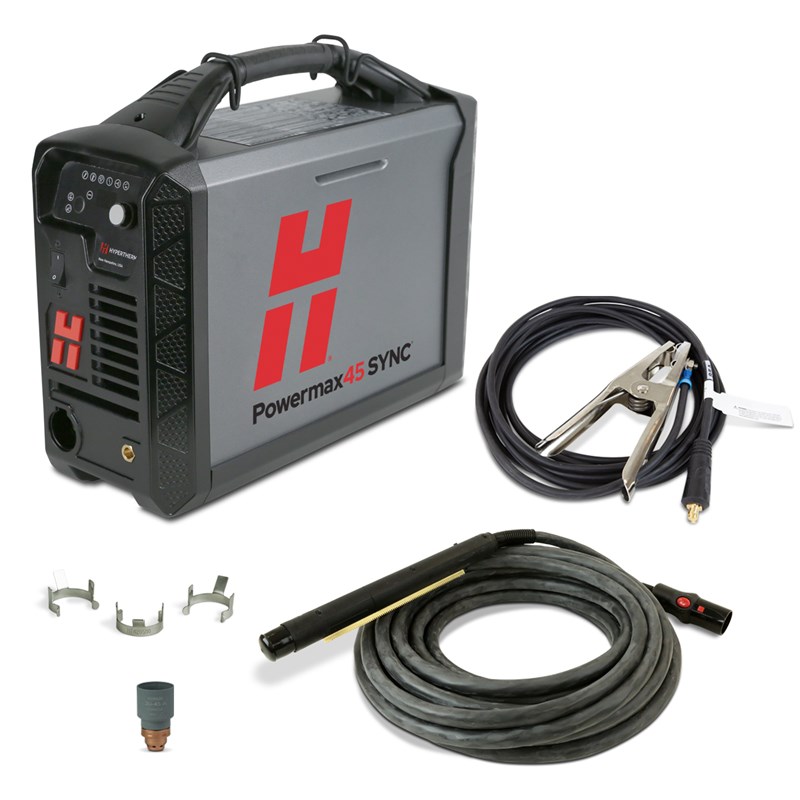

Powermax45 SYNC 088584 - What's Included

Plasma Cutting Applications:

Drag cutting: Keep the torch tip in contact with the workpiece for precise, low-angle cuts.
Bevel cutting: Tilt the torch to create angled edges, essential for weld prep and complex joint configurations.
Gouging: Use the torch to remove excess material or create grooves by cutting away metal in controlled passes.
Flush cutting: Cut metal components close to the surface with minimal standoff, leaving a smooth finish.
Extended reach cutting: Use a longer torch to access and cut in confined or hard-to-reach areas.
Fine feature cutting: Perform detailed cuts on small parts or thin materials with high precision and minimal distortion.

Powermax45 SYNC Benefits:

Simplify Operations

Reduced Training: Streamlined operation minimizes training and troubleshooting time.
Less Downtime: Quick consumable swaps and no premature disposal cut downtime.
Inventory Insights: Cartridge data optimizes cutting processes and inventory management.

Easy to Use

Clear Markings: Laser-marked, color-coded cartridges prevent mix-ups.
Auto Adjustments: RFID-enabled torches auto-set amperage and mode, avoiding errors.
Change Alerts: End-of-life detection signals when to replace cartridges.
Operator Comfort: Flexible torch lead reduces fatigue, ideal for manual and robotic use.

Maximize Performance

Versatile Cartridges: Easily switch torch styles and cartridges for different tasks.
Extended Lifespan: Optimized design doubles handheld cartridge life.
On-the-Fly Control: Adjust amperage and change cartridges directly from the torch.

Industry Leading Reliability

Rugged Build: SmartSYNC torches are built for tough industrial use.
Consistent Ignition: SpringStart™ technology ensures reliable starts every time.
Minimized Downtime: High reliability reduces interruptions in production.

SmartSYNC Torches

SmartSYNC Consumables

Hypertherm Accessories

Fast, Free Shipping & Easy Returns

Your in-stock items ship same or next day from our five distribution hubs in WI and IL via fast UPS Ground. Need special shipping? Just call 1-844-682-0205 - we accommodate any request, including using your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

All Hypertherm Powermax 45 SYNC Models
	Power Supply Only	Handheld Torch Included	Machine Torch Included
Handheld Only	Power Supply Only (200-240V) #088570 Powermax45 SYNC Power Supply Only (480V) #088573	75° Handheld Torch, 20ft Lead (230V) #088560 75° Handheld Torch, 50ft Lead (230V) #088561
CPC Port	Power Supply w/ CPC Port (200-240V) #088571	CPC Port, 75° Handheld Torch, 20ft Lead (230V) #088562 CPC Port, 75° Handheld Torch, 50ft Lead (230V) #088563 CPC Port, Dual Handheld Torches (75° & 15°), 20ft & 25ft Leads (230V) #088564	CPC Port, 180° Machine Torch, 25ft Lead (230V) #088580 CPC Port, 180° Machine Torch, 50ft Lead (230V) #088581 CPC Port, 180° Machine Torch, 25ft Lead w/ Remote (230V) #088582 CPC Port, 75° & 180° Torches, 20ft & 25ft Leads w/ Remote (230V) #088583
CPC & Serial Port	Power Supply w/ CPC & Serial Port (200-240V) #088572		CPC & Serial Ports, 180° Machine Torch, 25ft Lead (230V) #088584

Hypertherm Powermax45 SYNC Features

Shop Powermax SYNC plasma cutters and compatible SmartSYNC consumables at the lowest prices online, from Welders Supply.

This product replaces these legacy models:

Powermax45 SYNC Specs:

Cut Capacity
Recommended	5/8" (16 mm) @ 20 ipm (500 mm/min)
Severance (hand cutting)	1 1/8" (29 mm) @ 5 ipm (125 mm/min)
Pierce	1/2" (12 mm)

Input, Output & Operation
Input voltages	CSA 200-440 V, 1-PH, 50/60 Hz 480 V, 3-PH, 50/60 Hz 480 V, 3-PH, 10 A @ 6.9kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Kilowatt output	6.9kW
Input current	9-45 A
Output current	155 VDC
Rated output voltage	CSA 200-240 V, 1-PH 39/32 A @ 6.5 kW CE 230 V, 1-PH, 33 A 400 V, 3-PH, 10 A
Duty Cycle @ 104° F	CSA 50% @ 45 A, 200-240 V, 1-PH 60% @ 41 A, 200-240 V, 1-PH 100% @ 32 A, 200-240 V, 1-PH 50% @ 45 A, 480 V, 3-PH 60% @ 41 A, 480 V, 3-PH 100% @ 32 A, 480 V, 3-PH CE 50% @ 45 A, 230 V, 1-PH 60% @ 41 A, 230 V, 1-PH 100% @ 32 A, 230 V, 1-PH 50% @ 45 A, 400 V, 3-PH 60% @ 41 A, 400 V, 3-PH 100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV)	CSA 275 VDC 200-240 V 275 VDC 480 V CE 265 VDC 400 V
Gas supply	Cutting: air (clean, dry and oil-free), nitrogen, F5 Gouging: air (clean, dry and oil-free), nitrogen, F5 Marking: air (clean, dry and oil-free)
Recommended gas inlet flow rate/pressure	400 scfh @ 85 psi (188 l/min @ 5.9 bar)
Input power cable length	10 ft (3 m)
Power supply type	Inverter - IGBT
Engine drive requirement	12.5 kVA (10 kW) for full 45 A output
Electrical efficiency	90%
Certifications	CSA - certified for use in the Americas and Asia, except China CE - for use in Europe, Australia, New Zealand, Belarus, Kazakhstan, Serbia, Ukraine, and other countries where accepted. Also RCM, Ukraine and Serbian. UKCA - Great Britain
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty

SHIPPING DIMENSIONS
Height:	14.00 Inches
Width:	6.80 Inches
Length:	17.40 Inches
Weight:	31 Lb(s) 0 Oz

Powermax45 SYNC PDFs

Powermax SYNC PDFs

Other Powermax PDFs

Powermax45 SYNC®: The world’s best selling plasma system just got better.Powermax45 SYNC. Outperforms and outlasts the competition.Powermax SYNC, The World’s First Smart Plasma Cutter Series
