Miller Trailblazer® 325 (Kohler) w/ Wireless Interface Control #907797003

Part Numbers: 907797003
1 Review

$10,719.00
$13,186.00* Save $2,467.00

Included with your purchase:

Select your Bundle!
Edit

    Welding type:

    Mig

    Mig

    Stick

    Stick

    Tig

    Tig

    Engine Driven

    Engine Driven

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    • MIG Welding
    • Stick Welding
    • TIG Welding
    • Engine Driven
    • 3-Year Power Warranty

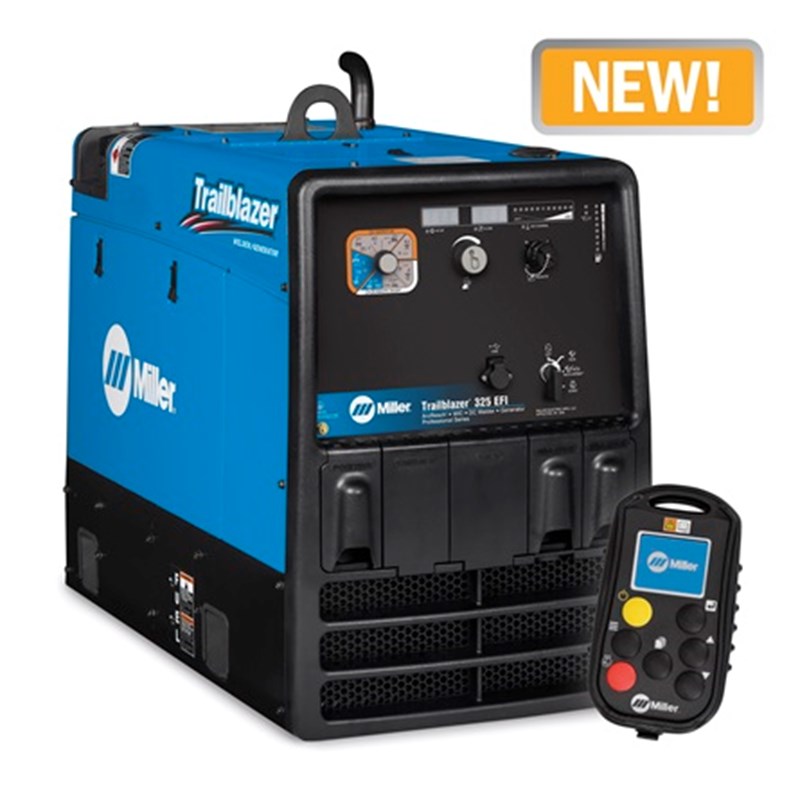

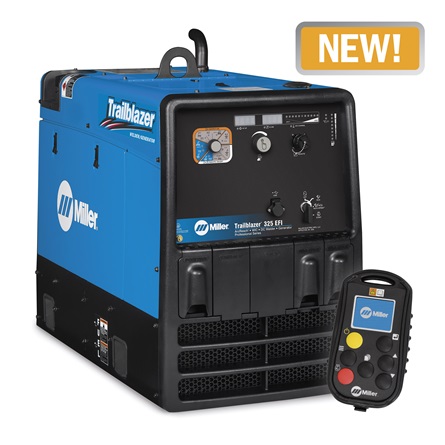

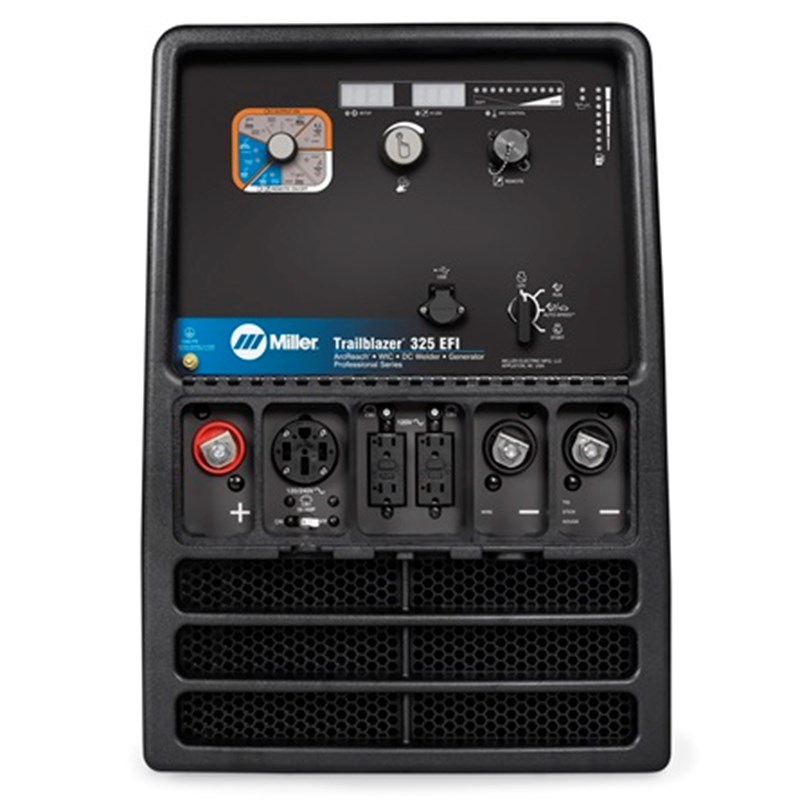

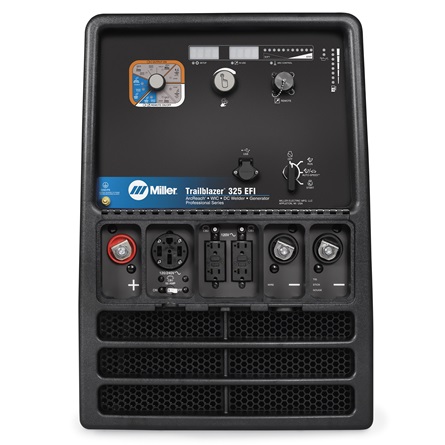

    Miller Trailblazer® 325 (Kohler) w/ Wireless Interface Control #907797003

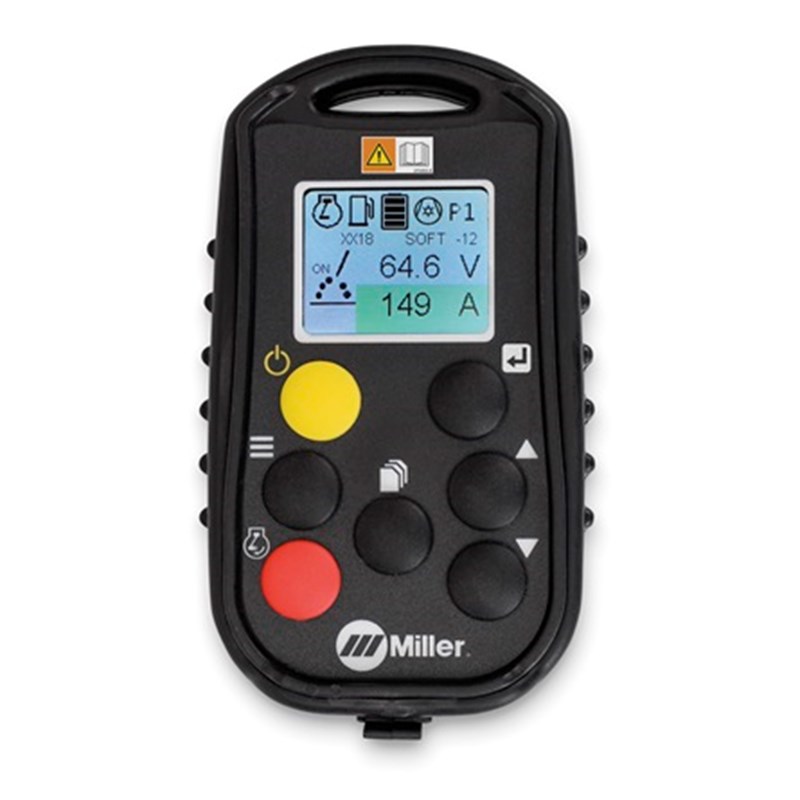

    Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

    Processes:

    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cores (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIC DC (GTAW-DC)
    • Plasma (PAC)

    Trailblazer 325 Features:

    • Unmatched arc performance
    • Clean and powerful generator power
    • Minimized refueling trips
    • Auto-Speed Technology
    • ArchReach® Technology

    PROCESSES

    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cores (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIC DC (GTAW-DC)
    • Plasma (PAC)
    Title

    Trailblazer® 325 (Kohler) w/Wireless Interface Control

    Industries Interests Fabrication
    Maintenance
    Repair
    Structural steelwork
    Sheet metal
    Pipe
    Engine Brand Kohler
    Engine Idle Speed 2400 RPM
    Engine Weld Speed 2400 RPM
    2800 RPM
    3200 RPM
    3600 RPM
    Fuel Tank Size 12 Gallon
    Fuel Type Gasoline
    Horsepower 23.5 hp
    Single Phase Generator Continuous Power 10500 W
    Single Phase Generator Peak Power 12000 W
    Carbon Diameter 3/16 in (4.8 mm)
    Current Type DC
    Portability Lift Eye (Standard)
    Net Width 20 in
    Net Height 28 in
    Net Length 40.5 in
    Net Weight 486 lbs
    Warranty

    3 Years
    Miller's True Blue Warranty
    Engine Warranties

    Weld Output CC / CV

    SHIPPING DIMENSIONS

    Height: 20.00 Inches
    Width: 28.00 Inches
    Length: 41.00 Inches
    Weight: 490 Lb(s) 0 Oz

    Manufacturer Reviews

    By: Idelle
    I welded with a 02 Miller Pipepro 304 for 11 years. It's hard to believe but,,,this Trailblazer 325 actually welds better. It's compact and half the weight. My truck drives better (breaking and turning) and saves on fuel costs.
