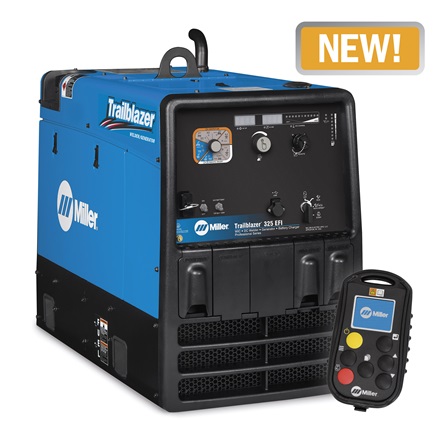

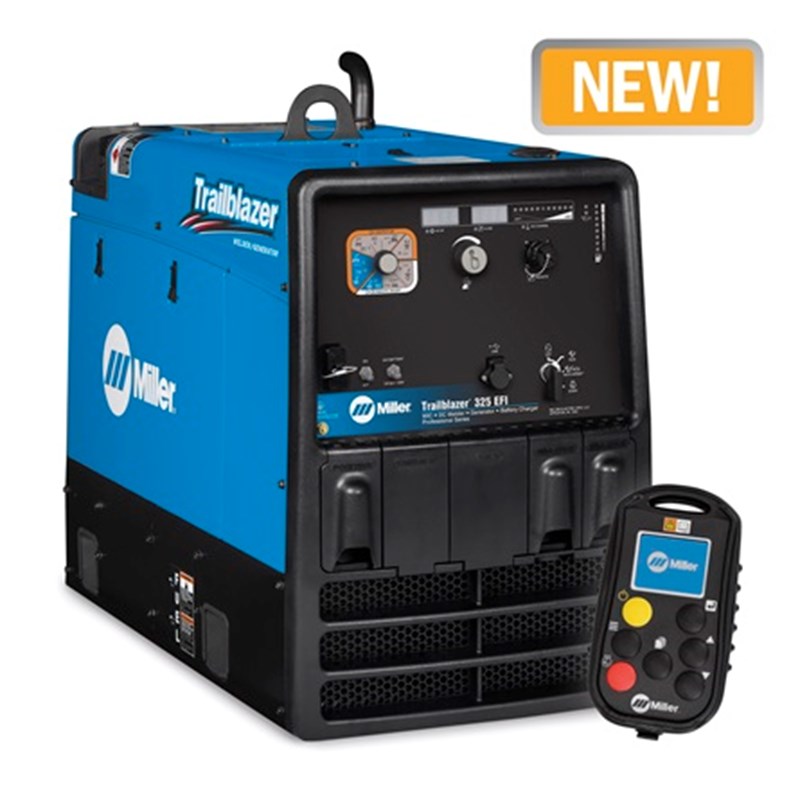

Miller Trailblazer® 325 (Kohler) EFI w/Battery Charge/Jump Start, Excel™ Interface Control 907798005

Part Numbers: 907798005
1 Review
$12,849.00
$16,282.00* Save $3,433.00

Included with your purchase:

Select your Bundle!
Edit

    Material type:

    Mild Steel

    Mild Steel

    Stainless Steel

    Stainless Steel

    Aluminum

    Aluminum

    • Portable and Compact
    • Spend Less Money on Fuel
    • MIG Welding
    • Stick Welding
    • TIG Welding
    • 3-Year Power Warranty

    Miller Trailblazer® 325 (Kohler) EFI w/Battery Charge/Jump Start, Excel™ Power & Wireless Interface Control 907798005

    Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

    Experience Cordless WeldingMiller Trailblazer 325 Wireless Control #907798005

    This Miller Trailblazer features wireless welding capability. Remote control technology increases productivity and decreases risks on the jobs. Reduce trips to and from the power source while increasing arc-on time. Other features include:

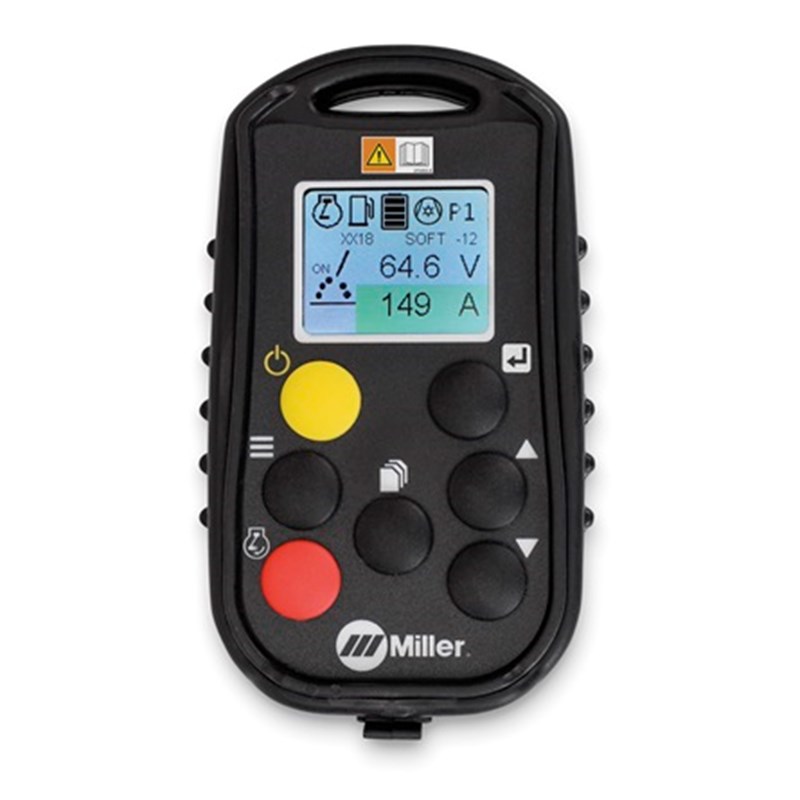

    • Wireless Interface Control. Full control of your machine in the palm of your hand, wherever you are on the job site.
    • Excel™ power. Miller machines offer the exclusive ability to power at idle.
    • Battery Charge / Jump Start. Reduce downtime with battery charge/crank assist capability.
    • Electronic fuel injection (EFI). Improved fuel efficiency means higher productivity and profitability.
    • Auto-Speed™ Technology. Miller machines exclusively offer the benefit of matching engine speed to load.
    • ArcReach® Technology. Existing weld cables communicate process adjustment commands back to the generator thanks to ArcReach technology.
    • Dynamic DIG™. Miller's proprietary Dynamic DIG works on a time-based algorithm to automatically adjust the amount of current required to clear a short.
    • Unbeatable arc performance. Get the job done faster & save money with wide amperage output and better welding deposition rates.
    • Maximum cost savings. Spend less money on fuel and enjoy more profit.
    • Fewer refueling trips. Spend more time welding and less time refueling - this machine delivers maximum runtime.
    • Portable & compact. Trailblazer welders are 17% smaller and 10% lighter than competitive machines.
    • Safer, more product job sites. A quieter job site is a more productive job site. No more shouting over loud machines!
    Browse all welding machines or see all Miller products available online at Welders Supply.

    Trailblazer® 325 (Kohler) EFI w/Battery Charge/Jump Start, Excel™ Power & Wireless Interface Control
    Industries Interests Fabrication
    Maintenance
    Repair
    Structural steel work
    Sheet metal
    Pipe
    Processes
    • Air Carbon Arc Cutting and Gouging (CAC-A)
    • Flux Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIG DC (GTAW-DC)
    • Plasma (PAC)
    Engine Brand Kohler
    Engine Idle Speed 2400 RPM
    Engine Weld Speed 2400 RPM
    2800 RPM
    3200 RPM
    3600 RPM
    Fuel Tank Size 12 Gallon
    Fuel Type Gasoline
    Horsepower 23 hp
    Single Phase Generator Continuous Power 10500 W
    Single Phase Generator Peak Power 12000 W
    Rated Carbon Diameter 3/16 in (4.8 mm)
    Current Type DC
    Portability Lift Eye (Standard)
    Weld Output CC / CV
    Net Width 20 in
    Net Height 28 in
    Net Length 40.5 in
    Net Weight 491 lbs
    Warranty

    3 Years
    Miller's True Blue Warranty
    Engine Warranties

    SHIPPING DIMENSIONS

    Height: 20.00 Inches
    Width: 28.00 Inches
    Length: 41.00 Inches
    Weight: 515 Lb(s) 0 Oz

    Manufacturer Reviews

    By: Rogelio
    This is a very good reliable welder machine,it took me about three days to get use to it,but it welds good, good on gas.

    Product Questions and Answers

    Have a question about this product? Submit your question using the form below

    Related Products

    Bobcat™ / Trailblazer® Electronic Fuel Pump #300976
    Bobcat™ / Trailblazer® Electronic Fuel Pump (gas only) #300976
    $243.40
    $261.00
    Bobcat™ / Trailblazer® Gas Cylinder Mounting Assembly #300918
    Bobcat™ / Trailblazer® Gas Cylinder Mounting Assembly #300918
    $606.85
    $672.00
    Bobcat™ / Trailblazer® GFCI Receptacles #300975
    Bobcat™ / Trailblazer® GFCI Receptacles #300975
    $173.65
    $190.00
    Bobcat™ / Trailblazer® Multi-Terrain Running Gear with Inner Tubes #300913
    Bobcat™ / Trailblazer® Multi-Terrain Running Gear with Inner Tubes #300913
    $951.75
    $1,075.00
    Bobcat™ / Trailblazer® Off-Road Running Gear with Inner Tubes #300909
    Bobcat™ / Trailblazer® Off-Road Running Gear with Inner Tubes #300909
    $1,020.95
    $1,065.00
    Bobcat™ / Trailblazer® Off-Road Running Gear with Never Flat™ Tires
    Bobcat™ / Trailblazer® Off-Road Running Gear with Never Flat™ Tires #300910
    $1,379.35
    $1,579.00
    Bobcat™ / Trailblazer® Off-Road Running Gear with Protective Cage and Never Flat™ Tires #300912
    Bobcat™ / Trailblazer® Off-Road Running Gear with Protective Cage and Never Flat…
    $1,809.25
    $2,014.00
    cover
    Bobcat™ / Trailblazer® Protective Cage with Cable Holders #300921
    $831.00
    Bobcat™ / Trailblazer® Remote Oil and Drain Kit #300923
    Bobcat™ / Trailblazer® Remote Oil and Drain Kit #300923
    $511.15
    $604.00

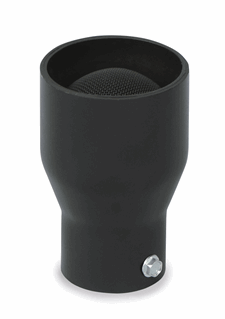

    Bobcat™ / Trailblazer® Spark Arrestor #300924
