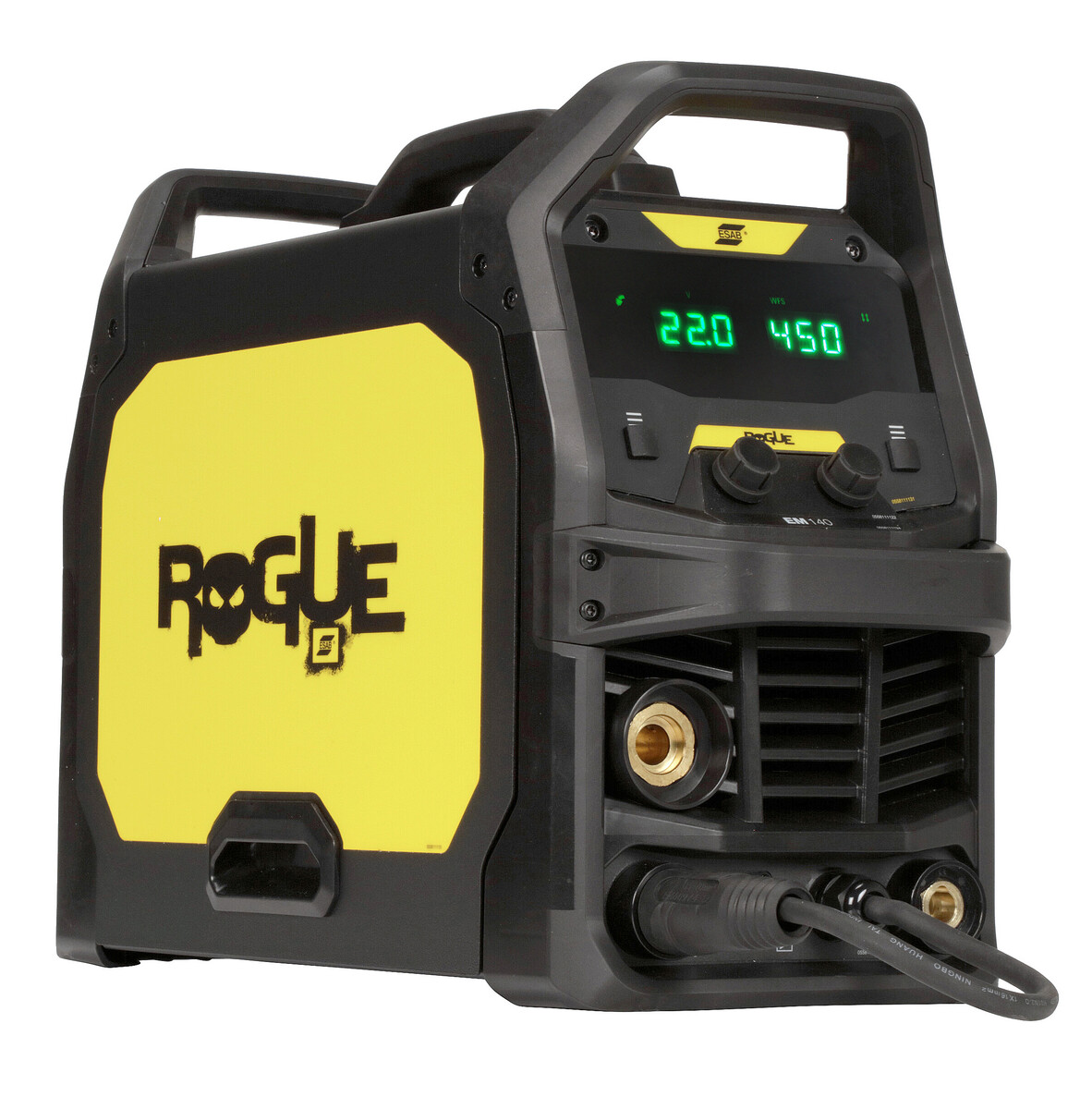

ESAB Rogue EM 140 MIG Welder - 0700301082
ESAB Rogue EM 140 MIG Welder - 0700301082

Welding type:

MIG
Power supply:

110V
Material type:

Mild Steel

Stainless Steel

ESAB Rogue EM 140 is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding. With a weight of only 13 kg (28.8 lbs), single voltage 120V single-phase input and compatibility with 6 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.
Rogue EM takes single-phase welders to the next level with MIG/MAG and Flux-cored welding, proven Rogue performance and a rugged industrial design. Break away from convention with Rogue and upgrade the capabilities of your shop.
ESAB Rogue EM 140 - Specifications | |
---|---|
Voltage | 120 VAC 1, 50/60 Hz |
GMAW Welding Output | 90 A / 18.5 V @ 30 % Duty Cycle 64 A / 17.2 V @ 60 % Duty Cycle 49 A / 16.5 V @ 100 % Duty Cycle |
Current Range | 30-140 A |
Voltage Range | 12-22 V |
Wire Feeder Specifications | 2.0-11.4 m/min ( 75-450 in./min ) |
Open Circuit Voltage | 50 VDC |
Metal Mild Steel Stainless Steel Cored Wire Aluminum |
0.6-0.9 mm ( 0.023-0.035 in. ) 0.6-0.9 mm ( 0.023-0.035 in. ) 0.8-0.9 mm ( 0.030-0.035 in. ) 0.8-0.9 mm ( 0.030-0.035 in. ) |
Max Spool Diameter | 100 & 200 mm ( 4 & 8 in. ) |
Power Factor at Maximum Current | 0.80 |
Efficiency at Maximum Current | 82.7 % |
Energy Save Mode | 20 W |
Enclosure Class | IP23S |
Certification Mark | cETLus |
Industries |
|
SHIPPING DIMENSIONS |
|
Height: | 18.65 Inches |
Width: | 19.00 Inches |
Length: | 25.60 Inches |
Weight: | 51 Lb(s) 8 Oz |
