Miller SPECTRUM 875 AUTO-LINE 208-575 E907584002

Part Number: 907584002
UPC: 715959600675
1 Review

Discontinued - Check out other Miller Plasma Cutters

Out of Stock

Call 844-682-0205 or CHAT for more options

Cut capacity:

3/4" Capacity

3/4" Capacity

Plasma torch:

Mechanized

Mechanized

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 3/4" Cut Capacity
  • Multipower Supply
  • Ultra-Quick Connect™ Torch
  • Miller's True Blue Warranty

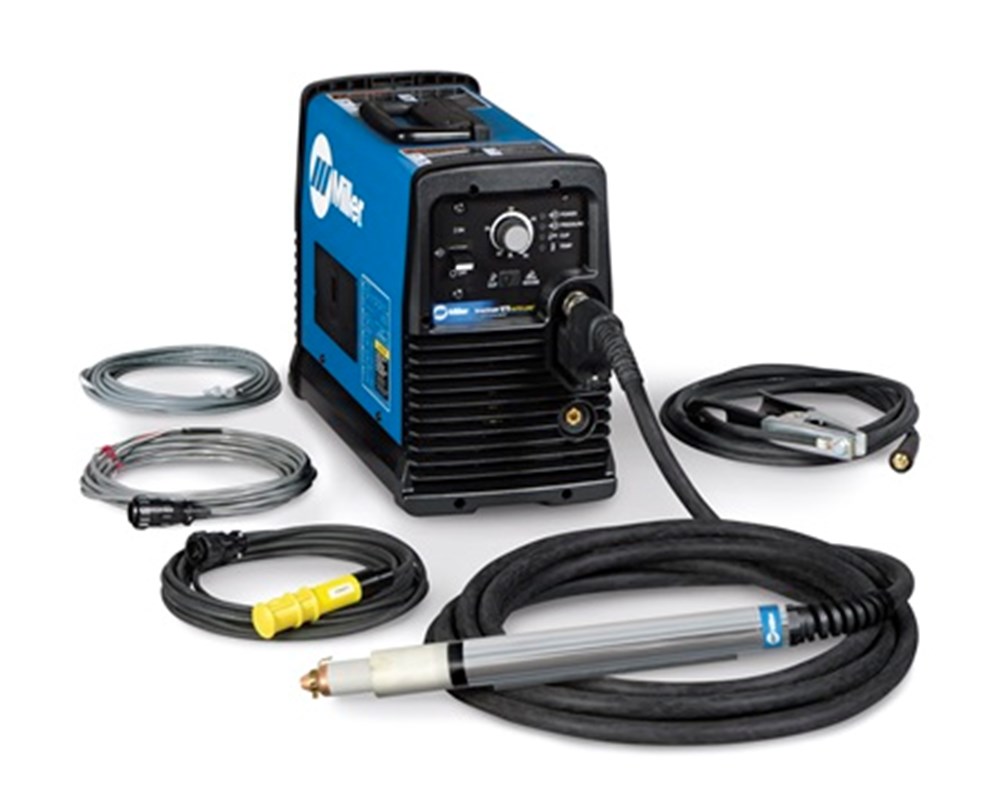

Spectrum 875 Auto-Line Plasma Cutter with XT60M Long-Body Torch with 25-ft. Cable

Compact, 56 lb, multi-voltage (208-575V 1/3PH) unit cuts up to 7/8” mild steel.

Rated Cutting Capacity - The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.

Automatic Air Regulation - For end user convenience, the unit has no pressure gauge or manual regulator knob. The unit automatically adjusts the air pressure to the torch for optimum cutting and gouging. No adjustments necessary.

Ultra-Quick Connect™ Torch - Torch and work cable offer the fastest plasma torch and work cable connection and removal in the industry.

Auto-Line™ - Automatically connects the 875 Auto-Line to any primary input voltage from 208 - 575 volts single - or three-phase, 50 or 60 Hz.

Wind Tunnel Technology™ and Fan-On-Demand™ - Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit

Can Be Powered by Miller Engine Drive/Generator - Use with generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment.

CNC/Automation Cutting Capable - Factory ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert hand held machines to be capable of CNC/Automation cutting.

Auto-Refire™ Technology - Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.

Shop all our Plasma Cutting MachinesPlasma Cutting Accessories, and Plasma Cutting Consumable Parts online at Welders Supply
Title Spectrum 875 Auto-Line Plasma Cutter with XT60M Long-Body Torch with 25-ft. Cable
Industries Interests Racing / Customizing / Restoring
Construction
DIY / Home Hobbyist
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Shipbuilding
Boat / Yacht
High Purity Processing
Capability Gouging  —
Rated Output at 104 Degrees Fahrenheit 3- Phase: 208 V: 60 A at 140 VDC, 40% duty cycle; 230 - 380 V: 60 A at 140 VDC, 50% duty cycle; 380- 575 V: 60 A at 140 VDC, 60% duty cycle; 380-575 V: 50 A at 140 VDC, 100% duty cycle 1-Phase: 208 V: 60 A at 140 VDC, 40% duty cycle; 230 V: 60 A at 140 VDC, 50% duty cycle; 230 V: 50 A at 140 VDC, 100% duty cycle
Material Thickness  Mild Steel 7/8 in.
Aluminum 5/8 in.
Stainless Steel 7/8 in.
Input Hz  50 / 60 Hz
Input Amperage 12.4 A
Metal Type {9190276B-EE44-47D3-9D9A-F3CEE1894DC2}
{35A950E3-2302-440C-9387-45563C82DAFF}
{B04BEE54-0575-4BF3-9040-C83E2EA5D629}
Stainless Steel Travel Speed - IPM 15 IPM
Aluminum Travel Speed - IPM 15 IPM
Mild Steel Travel Speed - IPM 15 IPM
Net Width 8.75 in
Net Height 13.5 in
Net Length 18.5 in
Net Weight 56 lbs
Warranty 3 Years
Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 13.50 Inches
Width: 8.75 Inches
Length: 18.50 Inches
Weight: 56 Lb(s) 0 Oz

Manufacturer Reviews

By: Brian
By far the best plasma cutter I've ever had with super quick shipping!!
