Miller Big Blue 400 Pro Industrial Engine-Driven Welder w/ Wireless Interface Control #907774003

Part Numbers: 907774003
1 Review

Included with your purchase: ()

Miller Big Blue 400 Pro Industrial Engine-Driven Welder w/ Wireless Interface Control #907774003
Miller Big Blue 400 Pro Industrial Engin...
Miller Classic Series Welding Helmet with ClearLight™ Lens Technology, VS Black #287803
FREE!
Miller Classic Series Welding Helmet wit...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$23,203.00 + Free Shipping $26,796.00*
SAVE $3,593.00
$23,203.00 + Free Shipping $26,796.00*
SAVE $3,593.00

Call 844-682-0205 or CHAT for more options

Welding type:

MIG

MIG

TIG

TIG

Stick

Stick

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Fuel Type:

Diesel

Diesel

  • TIG Welding
  • MIG Welding
  • Stick Welding
  • 3-Phase Power
  • Engine Driven
  • 3-Year Miller Warranty

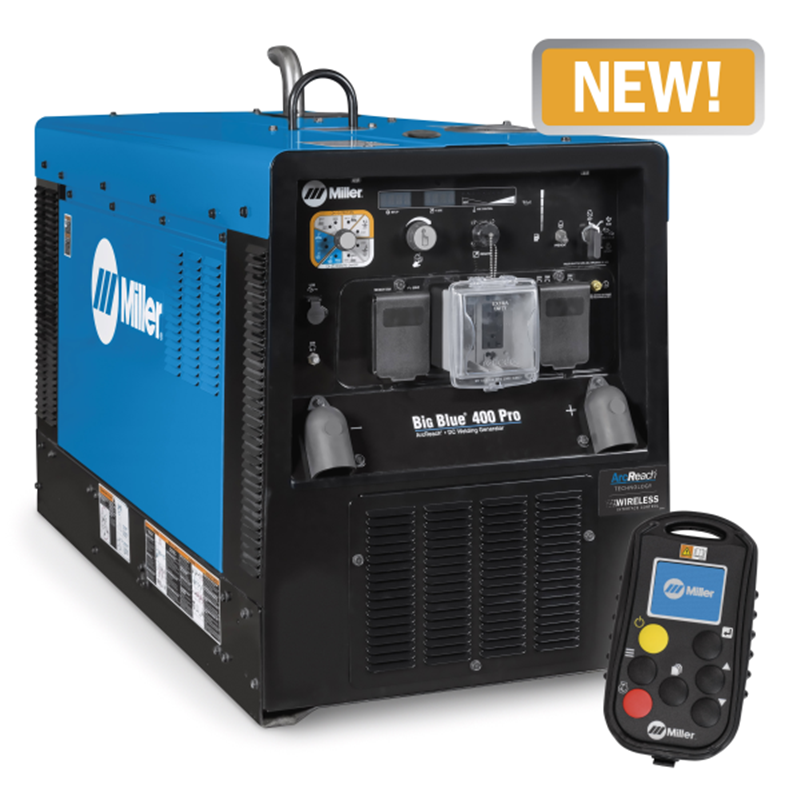

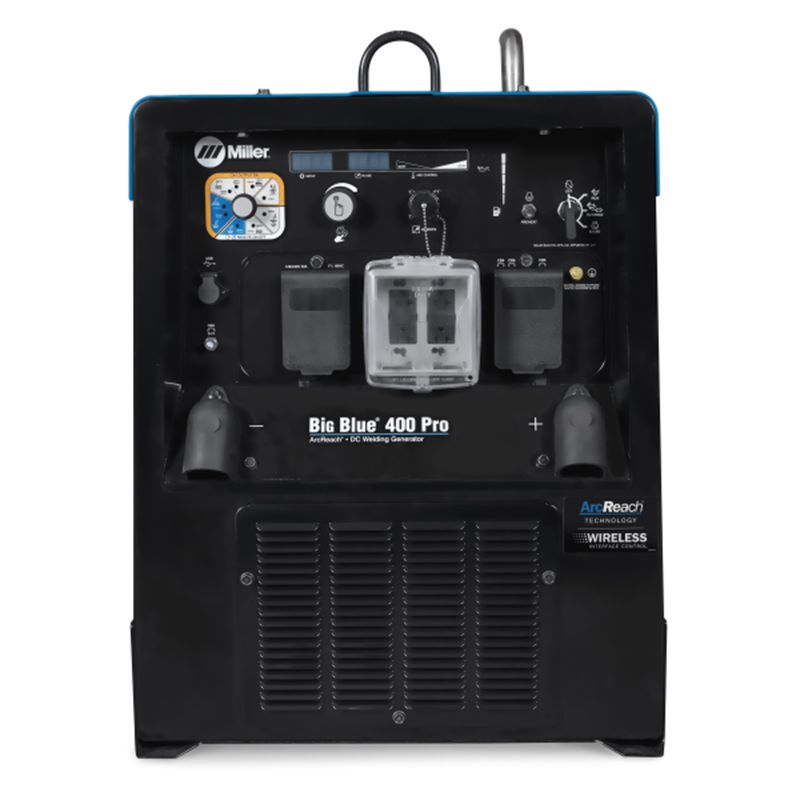

Miller Big Blue 440 Pro W/ WIC #907774003

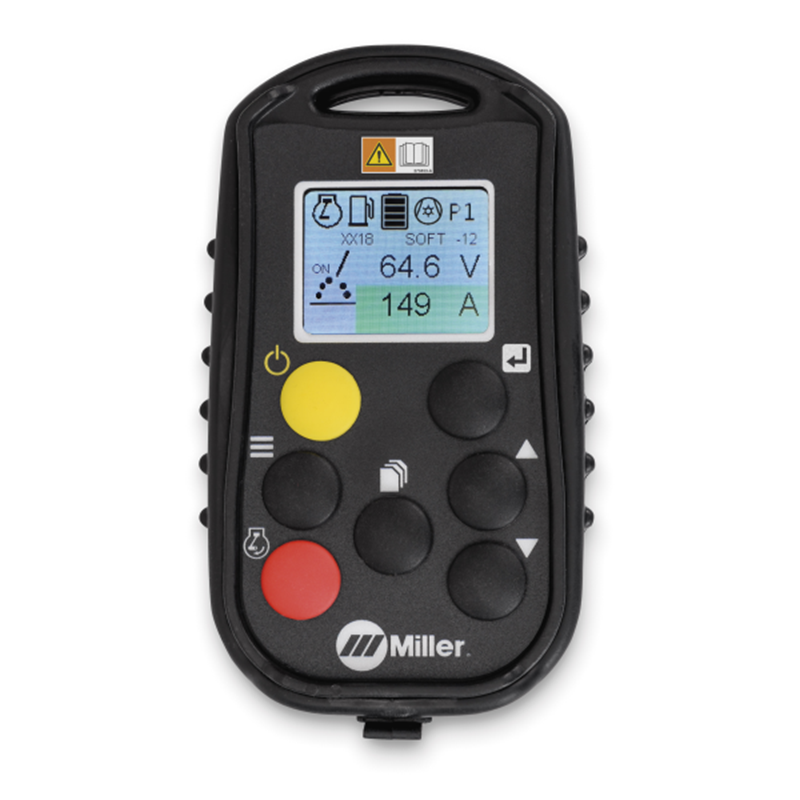

Designed with the professional in mind, the Big Blue 400 Pro is the best for ease of use, reliability and fuel economy. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand.

Features:

Heavy-Duty Low-Speed Kubota V1505 Industrial Diesel Engine

Used in industrial applications around the world, the V1505 is designed to run 10,000 hours before major overhaul. Backed by worldwide support and service.

Dynamic DIG™

Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

Quiet Operation

  • Improves work site safety and communication.
  • Digital Meters with SunVision™
  • Enables welding parameters to be viewed with greater clarity at virtually any angle. Meters can be seen clearly even in direct sunlight.

Industrial USB Port

  • Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics. Learn More
  • Auto Remote Sense™ (ARS)
  • Detects if a remote control is plugged into the 14-pin receptacle and eliminates confusion of a remote/panel switch.

Simple-to-Set Controls

Requires no elaborate procedure - just select process and weld!

HD Powder Coat

All painted sheet metal is pretreated with a zinc-rich primer to provide extra protection against rust & corrosion (comparable to stainless steel).

Advanced Features for the Professional Welder

  • Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion.
  • Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications.
  • Lift-Arc™ TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.

Low OCV Stick (VRD)

When activated, reduces the open-circuit voltage to 15 volts when the power source is not in use, increasing operator safety without compromising arc starts.

Auto Remote Sense™ (ARS)

Detects if a remote control is plugged into the 14-pin receptacle and eliminates confusion of a remote/panel switch.

Other Standard Features

Output contactor control, automatic idle, thermal overload protection, and 120-volt engine block heater.

Not Included

Weld leads

Check out a full selection of MIG, TIG, Stick, and Gas welders available at Welder's Supply

Miller Big Blue 400 Specifications

Industries Interests Construction
Fabrication
Infrastructure
Maintenance and Repair
Mechanical Contracting
Pipe Fabrication/Construction
Processes Air Carbon Arc Cutting and Gouging (CAC-A)
Stick (SMAW)
Flux Cored (FCAW)
TIG DC (GTAW-DC)
MIG (GMAW)
Carbon Diameter 3/16 in (4.8 mm)
Current Type DC
Input Voltage 575 V
Input Phase 3-Phase
Input Hz 50 / 60 Hz
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Weldable Metals Specialty Metals
Stainless Steel
Steel
Max Open Circuit Voltage
85 VDC
Weld Ouput CC
Warranty 3 Years
Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 32.00 Inches
Width: 26.25 Inches
Length: 56.00 Inches
Weight: 950 Lb(s) 0 Oz

Manufacturer Reviews

Terry
Awesome welding machine. Unfamiliar with the Maintenance of things but very worth it. Costs $18 to fill up, lasts for couple days. Would like to know how to change the voltage not amps when stick welding. But very awesome machine !
