Miller XMT® 350 FieldPro™, Tweco®, ArcReach® Smart Feeder, Bernard™ PipeWorx 300 Amp Gun Pkg 951738

Part Numbers: 951738
1 Review

Included with your purchase ( ) :

$15,953.00 $18,425.00*
SAVE $2,472.00
$15,953.00 $18,425.00*
SAVE $2,472.00

Call 1-844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

220V 3 Phase

220V 3 Phase

460V

460V

  •  MIG Welding
  • Stick Welding
  • TIG Welding
  • 1 and 3-Phase Input
  • 3-Year Power Warranty

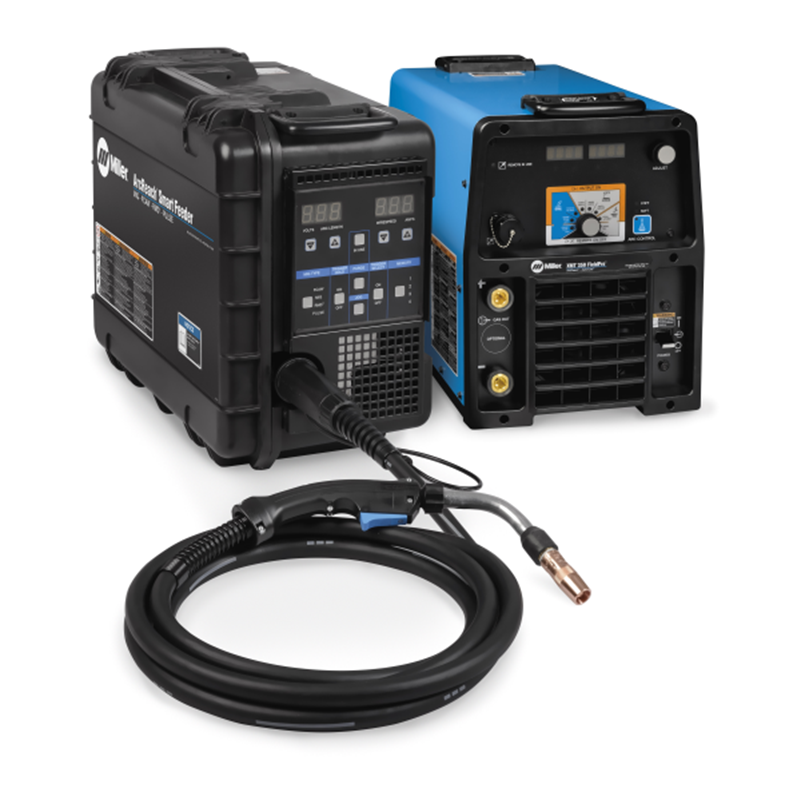

Miller XMT® 350 FieldPro™, Tweco®, ArcReach® Smart Feeder, Bernard™ PipeWorx 300 Amp Gun Pkg 951738

What's included

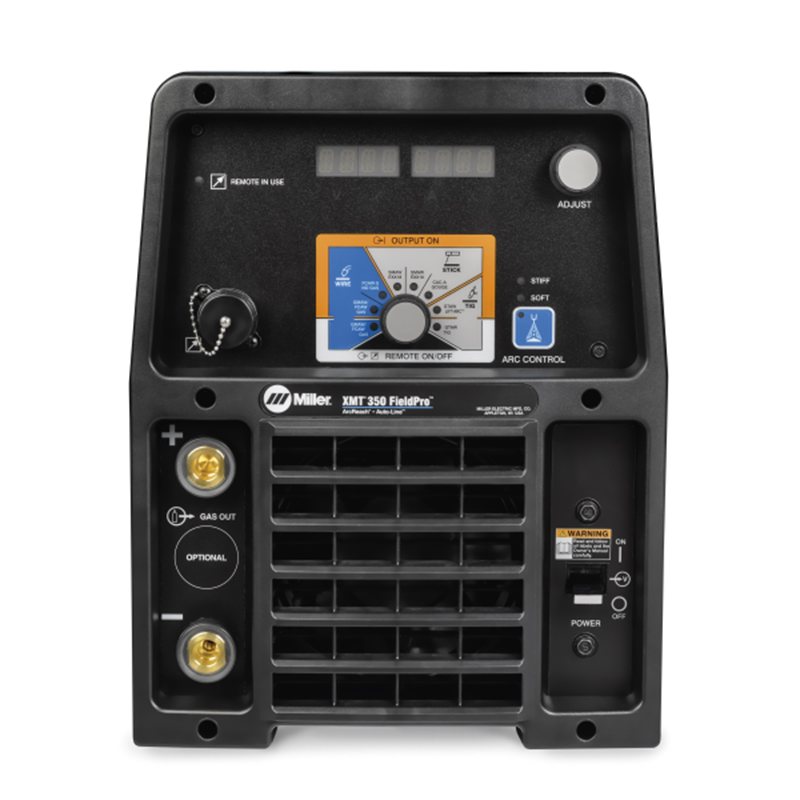

  • XMT® 350 FieldPro™, Tweco®,

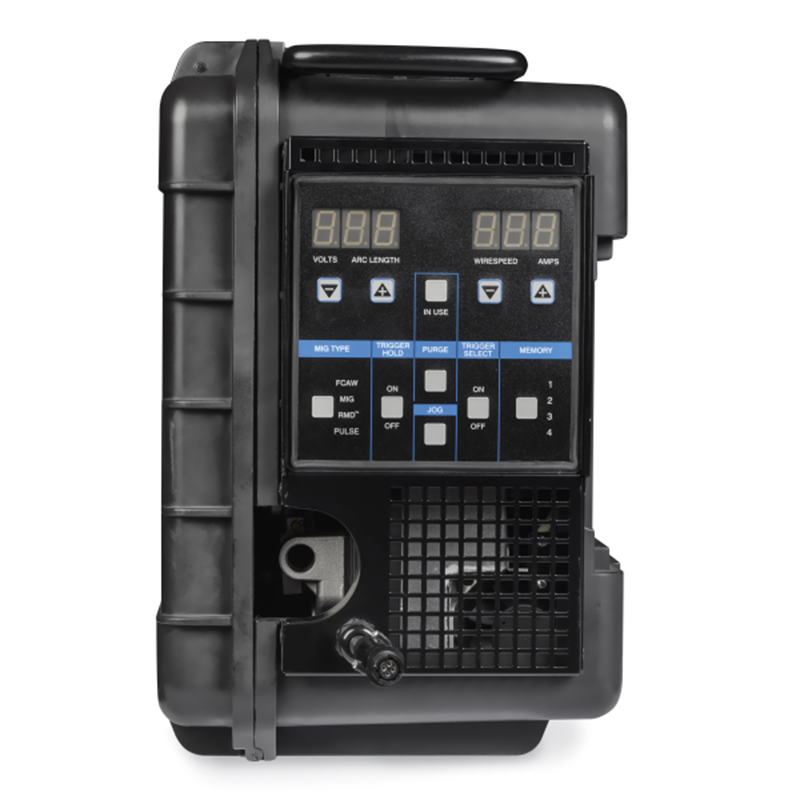

  • ArcReach® Smart Feeder with Drive Rolls
  • Bernard PipeWorx 300 Amp Gun

ArcReach® Technology - ArcReach capabilities increase jobsite productivity and efficiency by eliminating the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make voltage adjustments at the ArcReach wire feeder or remote.

Cable Length Compensation - Cable Length Compensation (CLC™) ensures that the voltage a weld operator sets is the voltage they get by automatically adjusting voltage based on weld cable length, even hundreds of feet away from the power source (available only with XMT 350 FieldPro Systems).

Exceptional Arc Performance - XMT 350 FieldPro systems maximize weld quality, reduce training time and minimize weld defects even while using weld cables that are hundreds of feet long.

Increased Uptime - XMT 350 FieldPro welders and ArcReach accessories have been extensively field-proven and deliver the performance you need with ruggedly constructed internal components and Wind Tunnel Technology™.

Improved Jobsite Safety - The chances of slip, trip and fall injuries are decreased because ArcReach technology allows weld operators to make parameter changes at the wire feeder or remote instead of having to travel through multistory and cluttered jobsites back to the power source.

Maximum Fleet Compatibility - Maximize fleet compatibility and get the benefits of ArcReach when you pair XMT 350 FieldPro welders and ArcReach feeders with other ArcReach compatible products.

Adjust While Welding - Weld operators have more control and can Adjust While Welding (AWW™) to make fast, easy weld parameter changes at the wire feeder or remote — even while the arc is on. Only Miller offers this advanced solution (available only with XMT 350 FieldPro Systems).

Control Panel Lock Out - Inadvertent parameter changes by other jobsite workers can be avoided because connecting an ArcReach accessory to the power source automatically locks out the power source’s panel controls.

Auto-Process Select™ - Decrease the chance of an incorrect weld process being used because Auto-Process Select automatically sets the power source to the correct weld process based on the polarity applied to the weld accessory.

Auto-Line™ Technology - Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required.

ArcReach Heater Compatibility - Take charge of your field preheat and bakeout applications up to 600 degrees Fahrenheit (315°C). This system uses induction heating to generate heat in workpieces, so welders can do their own preheating quickly and safely. A part of the ArcReach technology platform, the ArcReach Heater is an accessory for select ArcReach welding power sources.

Browse all MIG welding machinesMiller products or welding safety equipment available online from Welders Supply.
Miller XMT® 350 FieldPro™, Tweco®, ArcReach® Smart Feeder, Bernard™ PipeWorx 300 Amp Gun Pkg 951738 Specifications
Industries Interests Heavy Industrial Applications
Construction
Shipbuilding
Power generation plants
Rental fleets
Weldable Metals

Aluminum
Specialty metals
Stainless steel
Steel

Input Voltage 208 V
220/230/240 V
380/400/440 V
575 V
Input Phase  1 - and 3 Phase
Input Hz  50 / 60 Hz
Rated Output 10 - 38 V, 5 - 425 A
Max Open Circuit Voltage 90 VDC
Portability Handle(s)
Warranty 3 Years
Miller's True Blue Warranty

Manufacturer Reviews

By: Oliver
I have two of them now..

Product Questions and Answers

Have a question about this product? Submit your question using the form below

Related Products

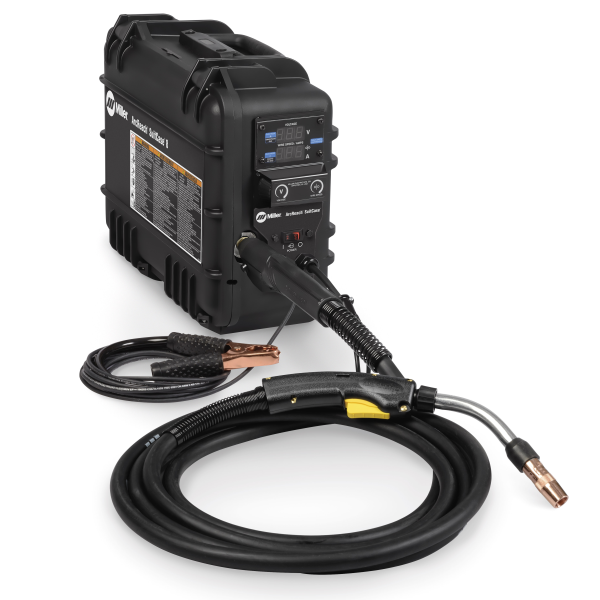

Miller ArcReach® SuitCase® 12 Gun Pkg
Miller ArcReach® SuitCase® 12 Gun Pkg
$4,189.00
$4,838.00
Miller FieldPro™ Smart Feeder #300935
Miller FieldPro™ Smart Feeder #300935
$8,885.00
$10,263.00
PKG, ARCREACH SUITCASE 12,S-GUN
PKG, ARCREACH SUITCASE 12,S-GUN
$4,187.00
$4,831.00
PKG,ARCREACH SUITCASE 8,Q300
PKG,ARCREACH SUITCASE 8,Q300
$3,703.00
$4,278.00

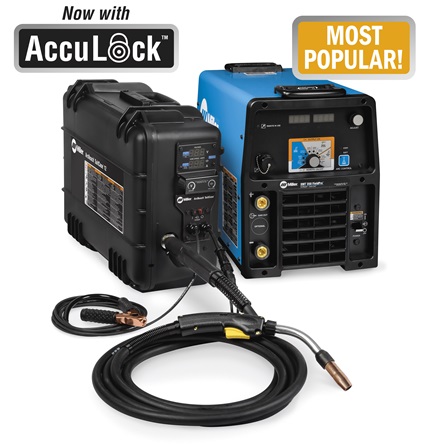

XMT® 350 FieldPro™, Tweco®, ArcReach® SuitCase® 12, Bernard™ BTB 300 A Gun Pkg 951734
