Millermatic 212 Auto-Set/Spoolgun Package 220 Volt Wire Welder Part#951177 (DISCONTINUED)

Part Number: 951177
$3,669.00
$4,648.00* Save $979.00
Out of Stock

Call 1-844-682-0205 or CHAT for more options

Welding type:

Mig

Mig

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

Power supply:

220V Single Phase

220V Single Phase

  • Mig
  • 220V Single Phase
  • Financing Available

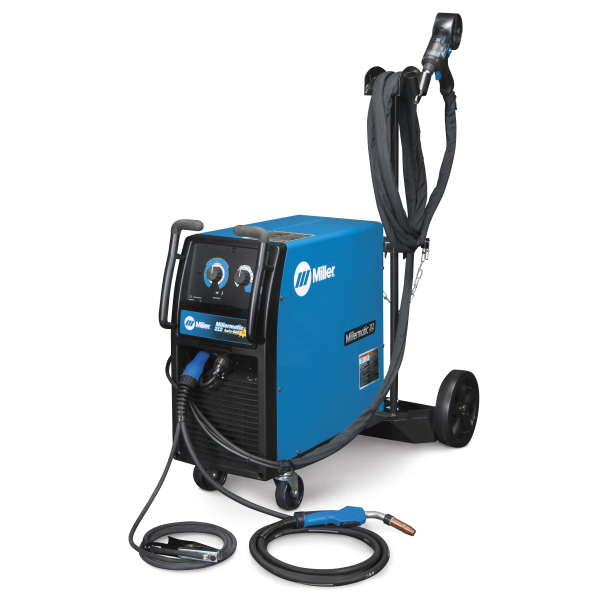

Millermatic 212 Auto-Set Wire Welder #951177 (DISCONTINUED)

FREE SHIPPING to the lower 48 states on orders over $300

If you do a lot of aluminum welding, you need the Millermatic 212 Auto-Set/Spoolgun Package. This is Miller's mid-level 220-volt wire welder, rated at 150 amps and 60% duty cycle, and it comes with a Spoolgun so you don't have to shop around for one after buying the welder.

The Millermatic 212 also comes with their breakthrough Auto-Set technology, which automatically sets the proper parameters. It's so easy, even even a novice can set it with ease.

EZ-Change Low Cylinder Rack - Easily roll your CO2, argon and combination gas cylinders on and off the rack without lifting.

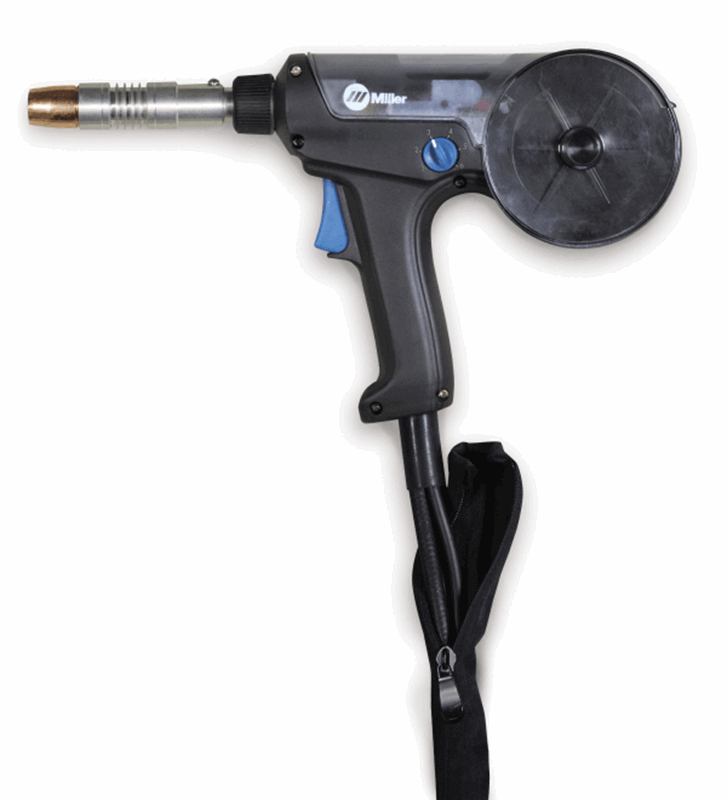

Compatible with Miller Spoolmate 200 Series Spool Gun - this gun provides a consistent feed with the power to burn in the weld.

Line Voltage Compensation - Welding output is held at a constant voltage. Even while power input varies by +/- 10%.

Fan-On-Demand Cooling System - Save money and energy by having the fan only run when necessary. This will reduce power consumption and prevent unnecessary contaminants from entering into the machine.

15 ft. MIG Gun - for better reach.

For the best price on our entire selection of welding machines including MIG welding machines, gas welders, and welding helmets, shop Welders Supply online.

Millermatic 212 Auto-Set/Spoolgun Package 220 Volt Wire Welder Part #951177 Specs

Industries
&
Interests
  • Racing / Customizing / Restoring
  • DIY / Home Hobbyist
  • Farm and Ranch
  • Metal Art / Sculpting
  • Manufacturing
Weldable Metals
  • Stainless Steel
  • Steel
  • Aluminum
Input
  • 220/230/240 V
  • 1-Phase
  • 610 Hz
Current Type
  • DC
Rated Output
  • 160 Amps @ 24.5 VDC, 60% Duty Cycle
Max Open Circuit Voltage
  • 34 VDC
Amperage Range
  • 30 A - 210 A
Wire Feed Speed
  • 1.3 m/min - 17.8 m/min
  • 50 IPM - 700 IPM
Wire Diameter
  • Solid Steel — 0.023" - 0.035"
  • Solid Steel — 0.6mm - 0.9mm
  • Stainless — 0.023" - 0.035"
  • Stainless — 0.6mm - 0.9mm
  • Flux Cored — 0.03" - 0.045"
  • Flux Cored — 0.8mm - 1.2mm
Dimensions
  • L40" x W28" x H30"
Weight
  • 183 lbs
Portability
  • Running Gear / Cart (Standard)
Weld Output
  • CV

SHIPPING DIMENSIONS

Height: 43.00 Inches
Width: 51.00 Inches
Length: 64.00 Inches
Weight: 266 Lb(s) 0 Oz

Product Questions and Answers


Q - Does this come with one regulator or 2? A - Two.
Q - Is 30 amp/220V service adequate to use this? A - Yes, a dedicated 30 amp breaker on 208 V or 230 V input power should be fine.

How to install work cable and clamp:

  1. Turn OFF.

    Turn welder OFF.

  2. Route cable.

    Route cable through the front panel opening.

  3. Slide boot.

    Slide boot onto work cable.

  4. Connect Cable and Boot.

    Connect the cable to the terminal and cover connection with the boot.

Have a question about this product? Submit your question using the form below
