Multimatic® 235 Multi-Process Welder w/ EZ-Latch™ Running Gear #951846

Part Numbers: 951846

UPCs: 715959684200

3 Reviews

Ships Free (Contiguous U.S.)

5 Distribution Centers, 480 Reviews

Miller Multimatic® 235 Multi-Process Welder w/ EZ-Latch™ Running Gear #951846

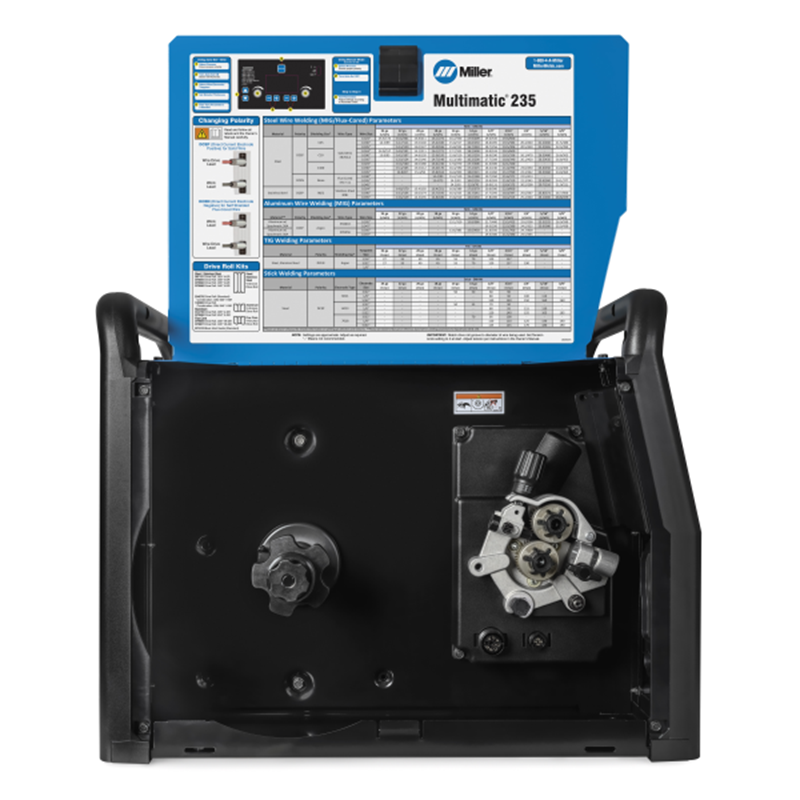

Miller Multimatic® 235 drive roll & settings

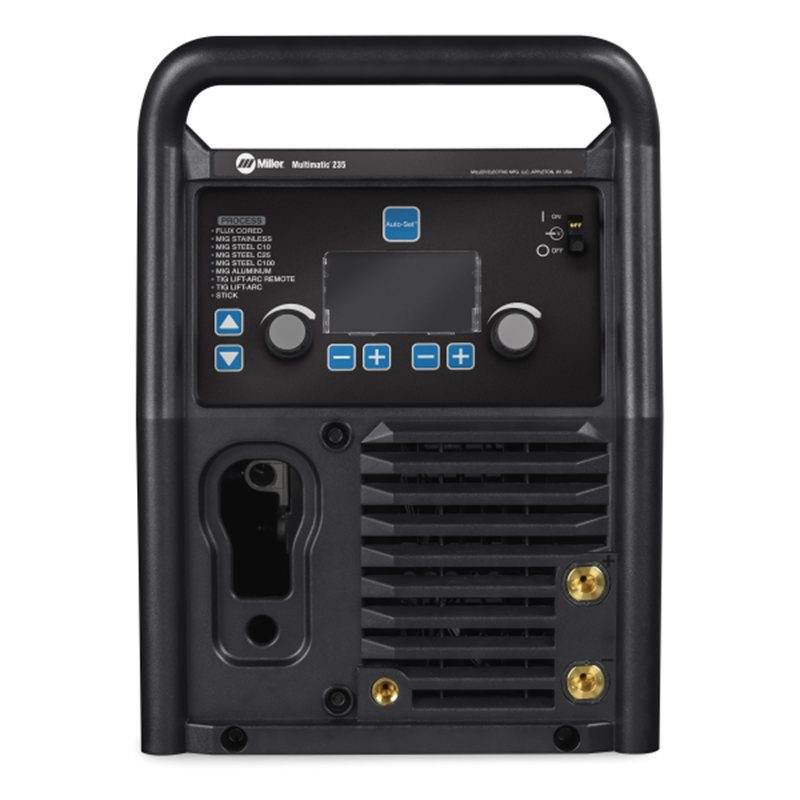

Miller Multimatic® 235 Multi-Process Welder for sale online

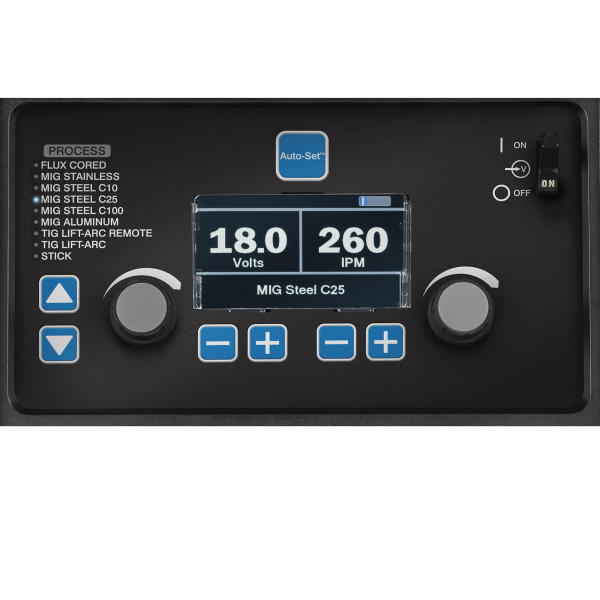

Miller Multimatic® 235 Auto-Set interface

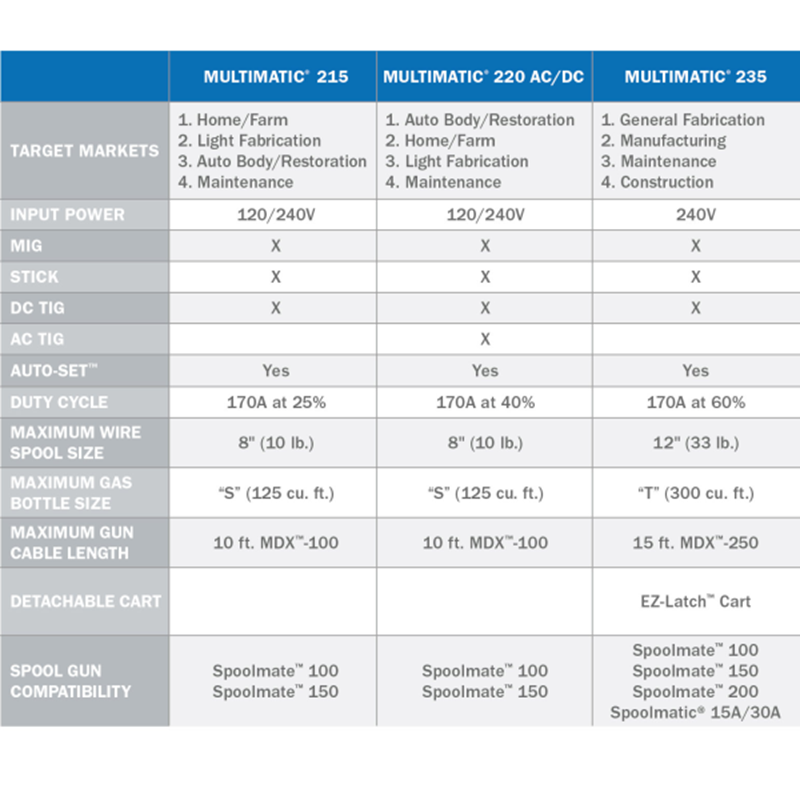

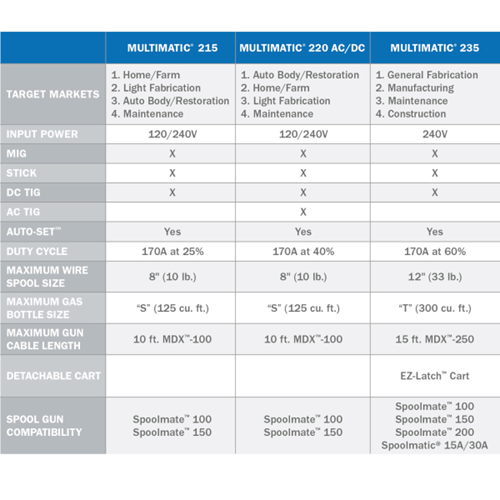

Miller Multimatic® 235 specifications chart

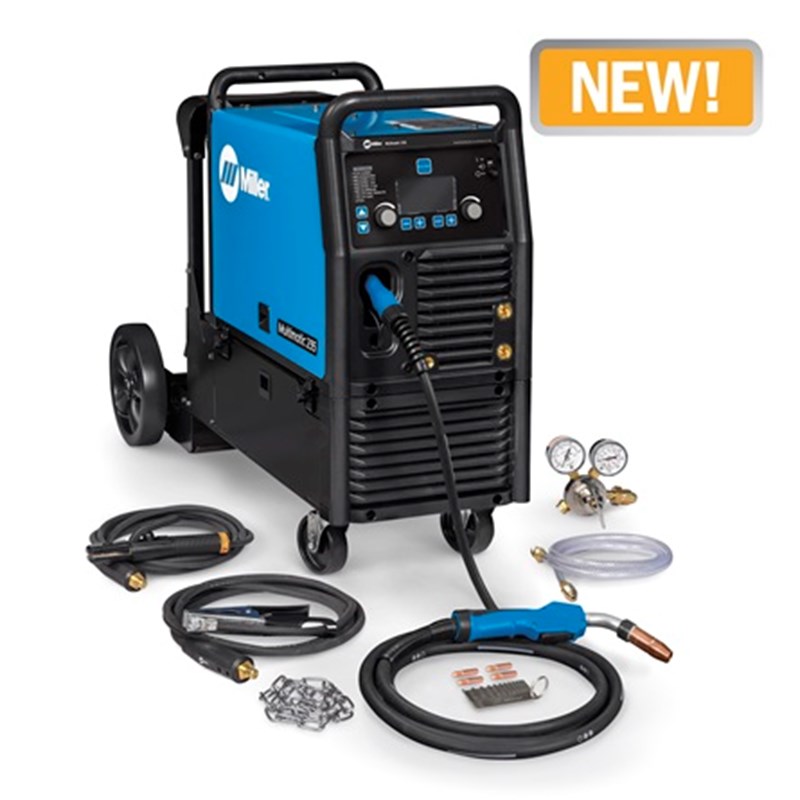

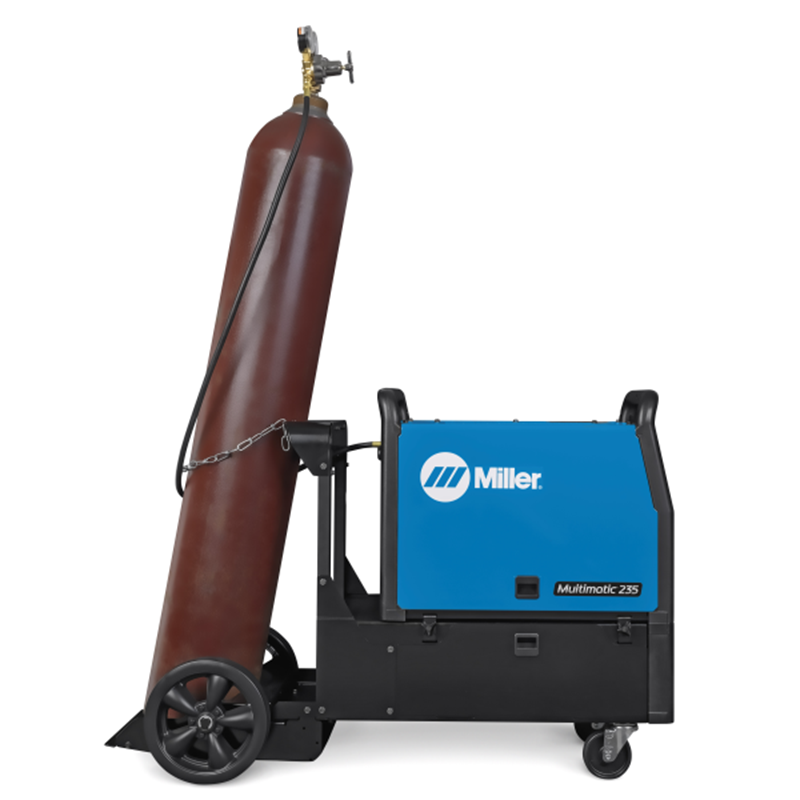

Miller Multimatic® 235 with cart and tank

Multimatic® 235 Multi-Process Welder w/ EZ-Latch™ Running Gear #951846

Part Numbers: 951846

UPCs: 715959684200

3 Reviews

$4,102.00 + Free Shipping $5,201.93*

SAVE $1,099.93

Ships Free (Contiguous U.S.)

5 Distribution Centers, 480 Reviews

Call 844-682-0205 or CHAT for more options

Multimatic® 235 Multi-Process Welder w/ ...

Included with your purchase:

FREE!

Miller Classic Series Welding Helmet wit...

FREE!

Welders Supply Magnetic Cup Holder

FREE!

Black Stallion Split Cowhide Stick Glove...

Choose Options

FREE!

Welders Supply T-Shirt & Stickers

Small

Medium

Large

1X Large

2X Large

3X Large

Design: American Welder

$4,102.00 + Free Shipping $5,201.93*

SAVE $1,099.93

Features
Specs
Documents
Videos
Accessories
Consumables
Reviews
FAQS

MIG Welding
Stick Welding
TIG Welding
Lightweight and Portable
1-Phase Input
3-Year Warranty

Multimatic® 235 Multiprocess Welder w/ EZ-Latch™ Running Gear #951846

Built for professionals in the manufacturing/fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster uptime and weld with confidence.

What's Included:

Power source with 7 ft. (2.1 m) power cord15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
Flow gauge regulator and gas hose for argon or AR/CO2 mix
Extra contact tips
.030/.035 in. (0.8/0.9 mm) reversible drive rolls
EZ-Latch™ single-cylinder running gear
Chain to secure gas cylinder
Material thickness gauge

Features:

Versatility: Multiprocess Capabilities of MIG, Flux Cored, DC Lift Arc TIG and DC Pulsed TIG
Easy-to-understand interface: 4.3-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
Auto-Set™ Elite: Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels
Portability - Machine only weighs 63 lb: Weight is reduced to make it easier to take the welder to where the work is, plus the added convenience of one machine versus two or more.
EZ-Latch™ running gear: Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability
MDX-250 MIG Gun w/ AccuLock™ MDX consumables: AccuLock liner loads from the front and locks at the front and back to ensure proper alignment for flawless wire feed path. New rubber overmold and ball-and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ MDX contact tips provide superior MIG arc performance

Browse all welding machines, Miller welders and welding safety equipment available online from Welders Supply.

This product replaces these legacy models:

Other Variations:

Miller Multimatic® 235 Multiprocess Welder w/ EZ-Latch™ Running Gear Specifications
Input Voltage	220/230/240 V 208 V
Input Phase	1-phase
Input Hz	50 / 60 Hz
Output Ranges	CC / CV
Current Type	DC
Max Open Circuit Voltage	54 VDC
Processes	Flux Cored (FCAW) MIG (GMAW) Stick (SMAW) TIG DC (GTAW-DC) Aluminum Welding
Weldable Metals	Steel Stainless Steel Aluminum
Width	13.75 in. (349 mm)
Height	19.24 in. (489 mm)
Length	24.25 in. (616 mm)
Weight	63 lb. (29 kg)
Portability	Handle(s) Running Gear / Cart (Standard)
Warranty	3 Years - Miller's True Blue Warranty

SHIPPING DIMENSIONS
Height:	11.00 Inches
Width:	13.00 Inches
Length:	21.00 Inches
Weight:	65 Lb(s) 13 Oz

Accessories

Consumables

.023 Two roll Drive Roll Kit #087131

$62.73

View

.023" Wire Contact Tip #199730 (pack of 5)

$12.35

View

.030 V-Groove Drive Roll Kit — for Solid Wire...

$62.73

View

.030" Contact Tip #186419 (pack of 5)

$12.35

View

.030" Wire Contact Tip #199387 (pack of 5)

$13.90

View

Replacement Millermatic 212 & 252 Drive Roll Kit

.030-.035 V-Groove Drive Roll Kit #204579

$67.58

View

Replacement Miller Spoolmatic and Spoolmate Drive Roll

.030-1/16" All-Wire Dual-Groove Drive Roll #1...

$59.75

View

.035 V-Groove Drive Roll Kit — for Solid Wire...

$62.73

View

.035 V-Knurl Drive Roll Kit — for Flux Cored ...

$107.05

View

.035" Contact Tip #186406 (pack of 5)

$12.35

View

199388 spoolmate 150 .035 contact tip 5 Pack

.035" Wire Contact Tip #199388 (pack of 5)

$13.90

View

.045 V-Groove Drive Roll Kit — for Solid Wire...

$62.73

View

.045 V-Knurl Drive Roll Kit — for Flux Cored ...

$107.05

View

Package of 10 Miller AccuLock MDX-100 Contact Tips replacements cheap in bulk

AccuLock MDX-100 Contact Tips #T-M023 (pack o...

$16.70

View

Adapter Cord, 10 Pin To 14 Pin 301545

$104.29

View

Miller EZ-Latch™ Dual Cylinder Rack with Elevated Gun and Cable Rack 301481 for sale online

EZ-Latch™ Dual Cylinder Rack Conversion Kit w...

$504.41

View

Miller Fastip Contact Tips #2061(86,87,88,89,90)

Fastip Contact Tips 2061(86,87,88,89,90) #206...

$2.24

View

Miller Spoolmatic 30A Spool Gun – Aluminum Wi...

$2,206.00

View

Miller® AccuLock™ MDX-250 Diffuser D-M250 (p...

$24.44

View

Miller® AccuLock™ MDX-250 MIG Nozzle N-M1200C

$28.13

View

Miller® AccuLock™ MDX-250 MIG Nozzle N-M1218C

$28.13

View

Miller® AccuLock™ MDX-250 MIG Nozzle N-M5800C

$28.13

View

Miller® AccuLock™ MDX-250 MIG Nozzle N-M5818C

$28.13

View

Miller® AccuLock™ MDX-250 MIG Nozzle N-M58XTC

$30.53

View

Miller® Heavy Duty Screw-On Tapered Nozzle Fo...

$34.10

View

Nozzle #199613

$22.73

View

1/2 in. Miller Nozzle w/ Tapered Orifice

NOZZLE, 1/2" ORIFICE, TAPERED #199615

$21.78

View

3/4 in. Miller Nozzle w/ Straight Orifice #199616

Nozzle, 3/4" Orifice, Straight #199616

$21.78

View

5/8 Miller Nozzle w/ Tapered Orifice #198855

NOZZLE, 5/8" ORIFICE TAPERED #198855 (pack of...

$43.56

View

Nozzle, Copper, 5/8" Orifice, Tapered, H.D. #...

$27.75

View

Protective Cover for Millermatic 255 & Multimatic 235/255 Welders #301521 for sale online

Protective Cover for Millermatic 255 Welders ...

$196.77

View

RCCS-14 Finger Tip Control #043688

$426.85

View

RHC-14 REMOTE HAND CONTROL W/CABLE 20 FT #242...

$461.50

View

Spoolmate 200 9 in Straight Barrel #300592

$108.95

View

Spoolmate 200 Curved Barrel Assy #300591

$141.44

View

Shop Miller Spoolmate 200 Series online with fast shipping

Spoolmate 200 Series #300497

$1,699.00

View

Spoolmate Replacement Nozzle #186405

$9.37

View

Spoolmatic 15A MIG Welding Gun #195156

$1,935.00

View

MDX™-250 MIG Welding Gun, 10ft, .030-.035 wir...

$423.51

View

Miller TIG Torch Power Adapter #195378 50-mm Dinse-style for one-piece air-cooled torch

Power Cable Connector #195378

$78.88

View

Miller TIG Welder Rotary Fingertip Control #151086

Rotary Fingertip Control, East/West, 14-pin p...

$398.49

View

Spoolmate 100 #300371

$588.00

View

Spoolmate 150 #301272

$831.00

View

TIG Contractor Kit for Multimatic 235/255 #30...

$1,053.06

View

Wireless Foot Control #301580

$1,208.14

View

Manufacturer Reviews

Richard

Home, farm and auto use mostly. The welder is a great little unit and has an impressive duty cycle. It's easy to use, easy to move around and doesn't weigh much, so it's easily portable. The "running" gear/cart is also exceptional and heavy duty, though assembly requires using self tapping screws. I used a small 1/4" impact driver just to get them started, and then hand tightened with a screwdriver. Be careful as the steel thickness doesn't allow a lot of thread contact and they can be stripped if using too much force. Components that come with the packages are more than adequate, high quality overkill for most of my applications and not the cheap stuff you often see with lesser machines. However, I did not like the "bonus" package with a welding helmet and a spool of flux-core wire. The value is just not there. My dealer, (Cyberweld), offers a discount if you do not take the "bonus offer." which is much more beneficial. Note that the unit does not come with a spool gun. My initial thoughts on a shortfalls is the dual gas piping configuration. A modification to allow selection of which gas goes to the front gas port for Aluminum MIG spool gun welding would be beneficial and more convenient. As it sits now I have to disconnect the argon hose and attach the spoolgun gas line directly to the regulator. This is easily resolved with a Y-valve, but having it internal to the machine makes the convenience of Millers two gas system more complete.

Hasson

I've been a welder for 25+years and I have always loved Miller vs. Any other manufacturers. I like Lincoln for diesel welders and 600-1000 amp for sub arc applications. ESAB makes a great wire feeder and until now they were my favorite mig/Flux Core machine. I currently have a Miller 235 multi-process machine. I've been obsessed with the syncrowave technology and I think there are no comparisons. When i switched from my Lincoln 200a mig welder to this and used it for Flux Core it was a transcending experience. Smoothest hot start ever and exquisite operation throughout each pass. Nothing else comes close. Thanks Miller. Never let me down

John the Welder

I've been welding over 40 years. I have been a state certified welder certified in MIG and TIG welding processes. I have experience in different brands and types of welders. The Miller Multimatic® 235 Multiprocess Welder is the first welder I've used with "Auto Set" feature. I found the amperage and voltage settings were right on. In most cases I didn't need to adjust them. Every new welder comes with a learning curve. The Miller Multimatic® 235 Multiprocess Welder eases you into the job by simply selecting the wire size, metal type and thickness, and the type of gas you are using. And you are ready to go. So nice, so easy.
