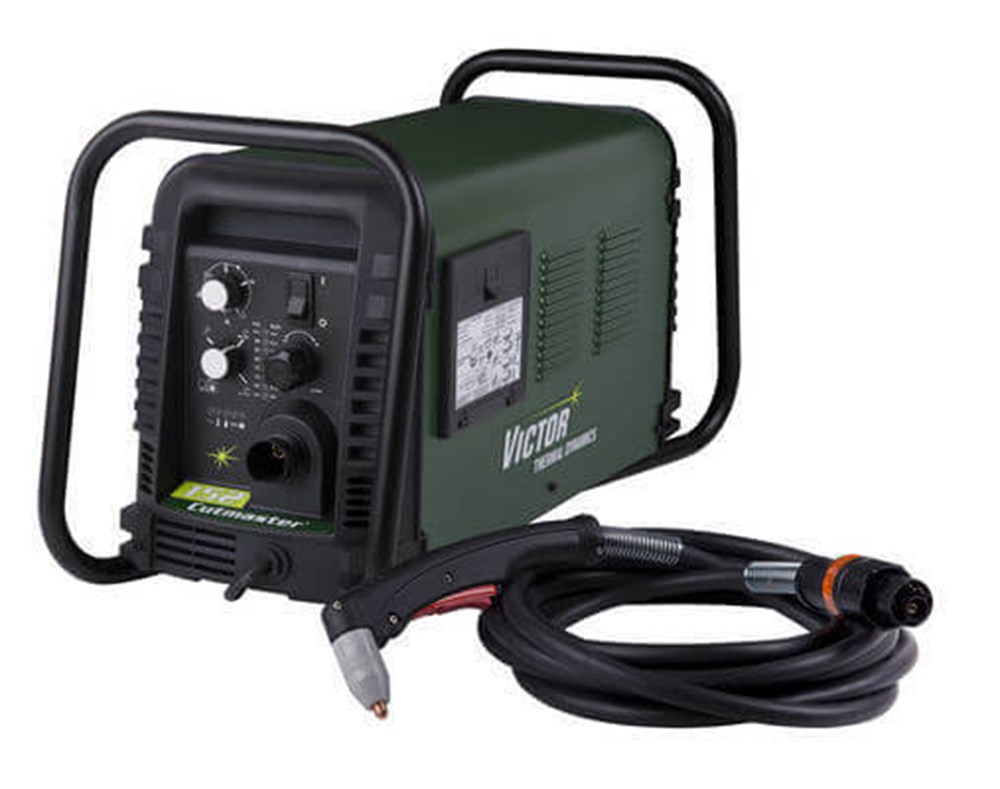

Cutmaster 152 Plasma System, 120 Amp, SL100, 75 Deg Head, 50 ft Leads, 208-230V, 1Ph, 50/60Hz Ready, Multi-Voltage/Phase Capable #1-1731-1

Part Numbers: 1-1731-1
UPCs: 0699488003254

Included with your purchase ( ) :

Cutmaster 152 Plasma System1-1731-1
Cutmaster 152 Plasma System, 120 Amp, SL...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$5,649.00 + Free Shipping $7,049.00*
SAVE $1,400.00
$5,649.00 + Free Shipping $7,049.00*
SAVE $1,400.00
Starts at $941.50/month with

Cut capacity:

1" and Higher Capacity

1" and Higher Capacity

Plasma torch:

Handheld

Handheld

Power supply:

220V 3 Phase

220V 3 Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 1¼" - 2" Cuts
  • 50' (15.2m) Lead
  • 1Torch SL100
  • 208V - 480V Single Power Supply
  • 1 & 3-Phase Input
  • 4-Year Warranty

Thermal Dynamics Cutmaster 152 Plasma System #1-1731-1

CUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 152 is the heavy weight of hand held cutting systems. This unit comes in a compact-light weight package, but don’t let that fool you. It offers enough cutting power to cut 2.

Included Features

  • TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
  • Color Coded LED’s indicate pressure status and setup errors
  • All user controls are conveniently located on the front panel
  • Lightweight design improves portability (Reduced nearly 50%)

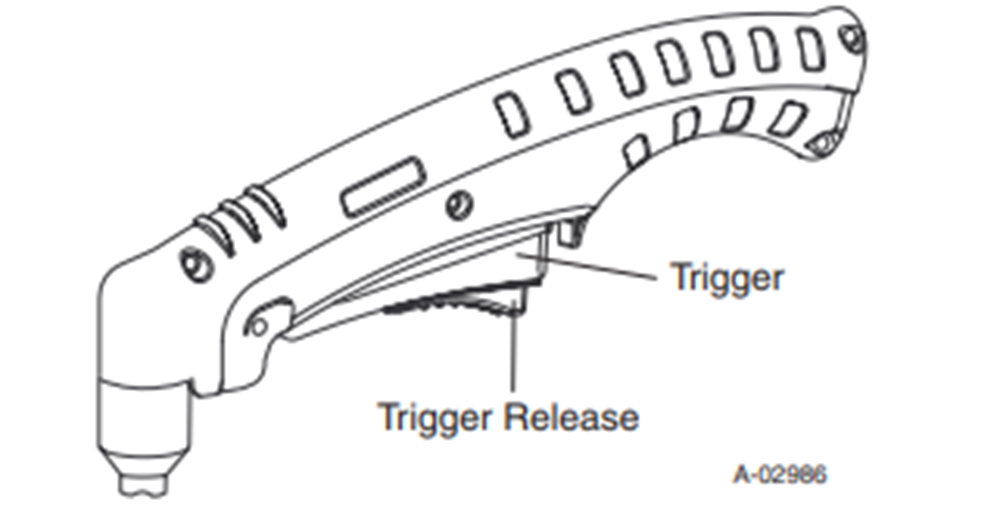

  • Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Multiple Torch Capability (Hand, Mechanized, Automation)
  • The Industry’s only 60 Amp Drag Tip
  • Convenient storage compartment for spare and consumable parts
  • Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
  • Power Supply
  • 50 ft. (15.2m) Lead
  • 1Torch SL100, 75 deg. Head
  • 10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
  • Spare Parts Kit
  • Operating Manual

Other Features

  • Front Panel LEDs indicate status conditions for maximum efficienc
  • Storage compartment for convenient access to spare parts and consumables
  • Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
  • True Guard roll bar provides easy transportation and protection for unmatched durability
  • Multi-voltage allows operation from 208 to 480 Volts in a single power supply
  • Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Lighter weight design for maximum portability
Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and Accessories

Other Versions:
1-1731-2 460V 50 Ft. Hand Torch
1-1731-5 600V 50 Ft. Hand Torch
1-1730-1 209-230V 20 Ft. Hand Torch
1-1730-2 460V 20 Ft. Hand Torch
1-1730-5 600V 20 Ft. Hand Torch

General Specifications

Process(es)

Manual Air Plasma Cutting

Industrial Applications

Heavy Fabrication



Manufacturing



Contractors

Amperage Range

20-120 Amps

Maximum Amperage Output

120A

Output Power

15.4 kW

Recommended Cut

1 1/4" (30 mm)

Maximum Cut

2" (50 mm)

Pierce Rating

1" (25 mm)

Input Voltage

208/230V 1/3 Phase 50/60 Hz

Duty Cycle (@ 40 deg C)

60% @ 120A

Amperage Draw

120A @ 230V, 1 ph

56A @ 230V, 3 ph



Pilot

Start Cartridge

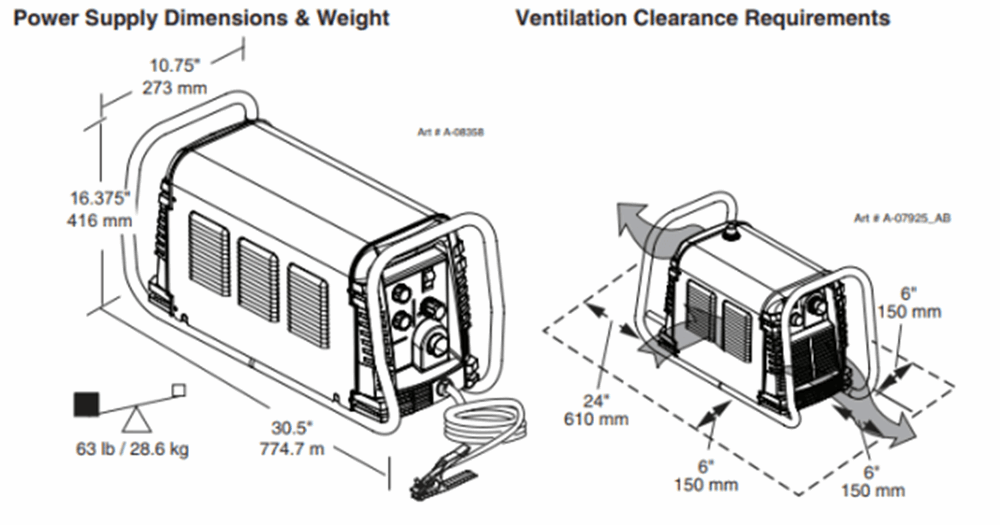

Dimensions (H x W x D)

15" (381 mm) x 12" (305 mm) x 30" (762 mm)

Weight

62 lbs (28.1kg)

Warranty (Parts & Labor)

4 Years

Certifications

IP23S



Torch Specifications

Hand, Automated & Mechanized

SL100

Air Pressure

70 psi (4.8 bar)

Flow

7.5 cfm (212 l/m)

Warranty (Parts & Labor)

1 Year

SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 12.00 Inches
Length: 30.00 Inches
Weight: 62 Lb(s) 0 Oz

Product Questions and Answers


Q - What voltage does it run on? A - It has a Multi-Voltage options that allows it to run off 230V or 460V.
Q - How thick can it cut? A - It can cut up to a maximum of 2" thick metal.

How to Install the Torch:

  1. Prepare torch.

    Prepare the system. If necessary, connect the torch to the power supply.

  2. Lock Connectors.

    Align the ATC male connector with the female receptacle. Push the male connector into the female receptacle.

  3. Secure Connection.

    Secure the connection by turning the locking nut clockwise until it clicks. DO NOT use locking nut to pull connections together.

  4. Operate torch.

    The system is now ready for use.
