Cutmaster 152 Plasma System, 120 Amp, SL100, 75 Deg Head, 50 ft Leads, 600V, 3Ph, 50/60Hz Ready #1-1731-5

$4,185.00 $5,652.00 Reduced Price You Save $1,467.00
Product Number: 1-1731-5
QTY:
Financing AVAILABLE!

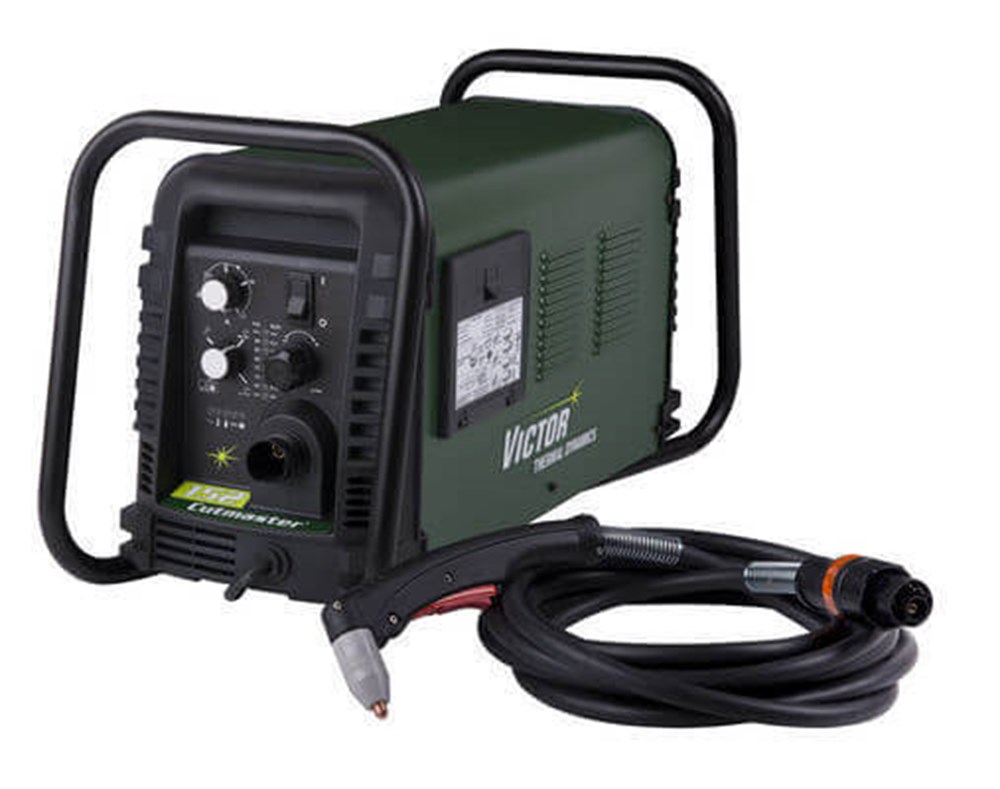

Cutmaster 152 Plasma System #1-1731-5

Setting the standard in flexibility, value and performance,the CUTMASTER® 152 is a compact, lightweight package with enough cutting power to cut 2" material with ease. The excellent Thermal Dynamics 1Torch SL100 included with this package is light and ergonomically designed to minimize hand fatigue. Order from Welders Supply online for the lowest price, plus free shipping within the continental United States.

Features
  • TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
  • Color Coded LED’s indicate pressure status and setup errors
  • All user controls are conveniently located on the front panel
  • Lightweight design improves portability (Reduced nearly 50%)
  • Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Multiple Torch Capability (Hand, Mechanized, Automation)
  • The Industry’s only 60 Amp Drag Tip
  • Convenient storage compartment for spare and consumable parts
  • Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
  • Front Panel LEDs indicate status conditions for maximum efficiency
  • Storage compartment for convenient access to spare parts and consumables
  • Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
  • True Guard roll bar provides easy transportation and protection for unmatched durability
  • Multi-voltage allows operation from 208   to 480 Volts in a single power supply
  • Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals

Included in this package:

  • 20 ft. (6.1m) Lead
  • 1Torch SL100, 75 deg. Head
  • 10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
  • Spare Parts Kit
  • Operating manual
Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and Accessories

Other Versions:
1-1731-1 208-230V 50 Ft. Hand Torch
1-1731-2 460V 50 Ft. Hand Torch
1-1730-1 209-230V 20 Ft. Hand Torch
1-1730-2 460V 20 Ft. Hand Torch
1-1730-5 600V 20 Ft. Hand Torch

General Specifications

Process(es)

Manual Air Plasma Cutting

Industrial Applications

Heavy Fabrication



Manufacturing



Contractors

Amperage Range

20-120 Amps

Maximum Amperage Output

120A

Output Power

15.4 kW

Recommended Cut

1 1/4" (30 mm)

Maximum Cut

2" (50 mm)

Pierce Rating

1" (25 mm)

Input Voltage

208/230 - 460V 1/3 Phase 50/60 Hz

400V 3 phase 50Hz

600V 3 phase 50/60Hz

Duty Cycle (@ 40 deg C)

60% @ 120A

Amperage Draw

120A @ 230V, 1 ph

56A @ 230V, 3 ph

37A @ 460V, 3 ph

Pilot

Start Cartridge

Dimensions (H x W x D)

15" (381 mm) x 12" (305 mm) x 30" (762 mm)

Weight

62 lbs (28.1kg)

Warranty (Parts & Labor)

4 Years

Certifications

IP23S



Torch Specifications

Hand, Automated & Mechanized

SL100

Air Pressure

70 psi (4.8 bar)

Flow

7.5 cfm (212 l/m)

Warranty (Parts & Labor)

1 Year

Product Questions and Answers


Q - What power supply does it need? A - It can be run on anything from 208 V to 480 V from a single power supply.
Q - What is the max cut on this? A - 2"
