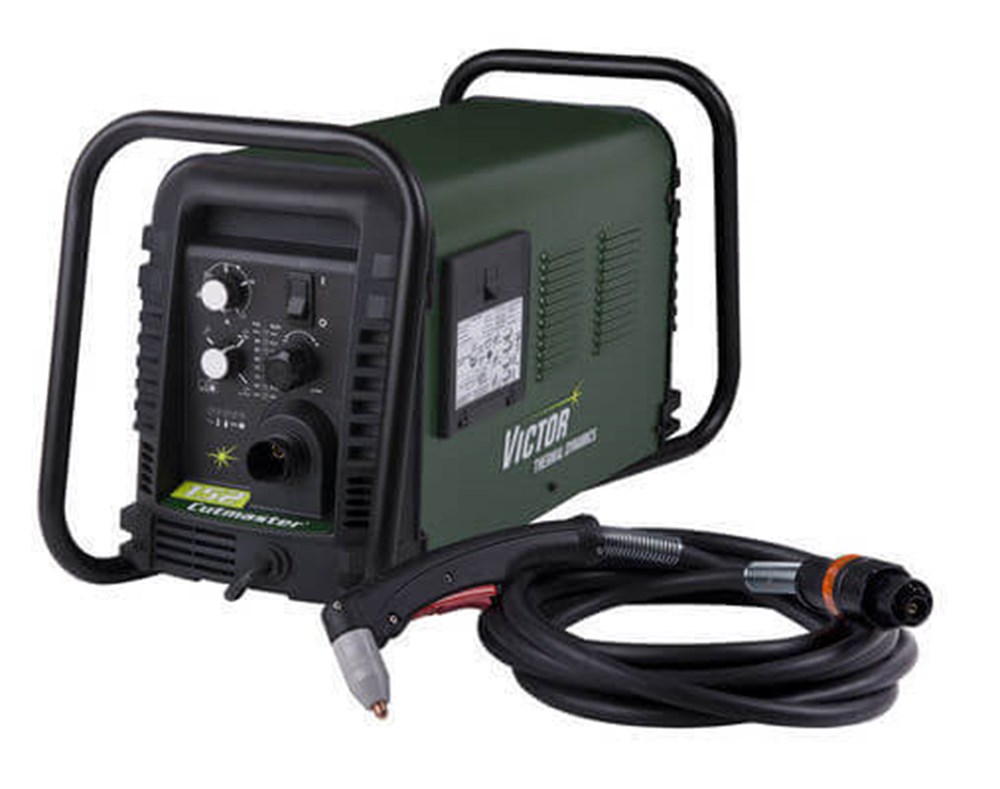

Cutmaster 152 Plasma System, 120 Amp, SL100, 75 Deg Head, 20 ft Leads, 600V, 3Ph, 50/60Hz Ready #1-1730-5
Share
Print
Worldwide manufacturer shortages are impacting delivery times. Lead times are more variable than other websites imply. We are a top distributor for Victor Technologies; nobody will get you this faster. Call 1-844-682-0205.
Documents
VideoCutmaster 152 Plasma System #1-1730-5
Setting the Standard in Flexibility, Value and Performance. The CUTMASTER® 152 is the heavy weight of hand held cutting systems. This unit comes in a compact-light weight package, but don’t let that fool you. It offers enough cutting power to cut 2.
Included Features
- TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
- Color Coded LED’s indicate pressure status and setup errors
- All user controls are conveniently located on the front panel
- Lightweight design improves portability (Reduced nearly 50%)
- Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
- Multiple Torch Capability (Hand, Mechanized, Automation)
- The Industry’s only 60 Amp Drag Tip
- Convenient storage compartment for spare and consumable parts
- Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
- Power Supply
- 20 ft. (6.1m) Lead
- 1Torch SL100, 75 deg. Head
- 10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
- Spare Parts Kit
- Operating Manual
Other Features
- Front Panel LEDs indicate status conditions for maximum efficiency
- Storage compartment for convenient access to spare parts and consumables
- Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
- True Guard roll bar provides easy transportation and protection for unmatched durability
- Multi-voltage allows operation from 208 to 480 Volts in a single power supply
- Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
- Lighter weight design for maximum portability.
Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and Accessories
General Specifications |
|
|
Process(es) |
Manual Air Plasma Cutting |
|
Industrial Applications |
Heavy Fabrication |
|
Manufacturing |
|
|
Contractors |
|
|
Amperage Range |
20-120 Amps |
|
Maximum Amperage Output |
120A |
|
Output Power |
15.4 kW |
|
Recommended Cut |
1 1/4" (30 mm) |
|
Maximum Cut |
2" (50 mm) |
|
Pierce Rating |
1" (25 mm) |
|
Input Voltage |
208/230 - 460V 1/3 Phase 50/60 Hz 400V 3 phase 50Hz 600V 3 phase 50/60Hz |
|
Duty Cycle (@ 40 deg C) |
60% @ 120A |
|
Amperage Draw |
120A @ 230V, 1 ph 56A @ 230V, 3 ph 37A @ 460V, 3 ph |
|
Pilot |
Start Cartridge |
|
Dimensions (H x W x D) |
15" (381 mm) x 12" (305 mm) x 30" (762 mm) |
|
Weight |
62 lbs (28.1kg) |
|
Warranty (Parts & Labor) |
4 Years |
|
Certifications |
IP23S |
Torch Specifications |
|
|
Hand, Automated & Mechanized |
SL100 |
|
Air Pressure |
70 psi (4.8 bar) |
|
Flow |
7.5 cfm (212 l/m) |
|
Warranty (Parts & Labor) |
1 Year |
