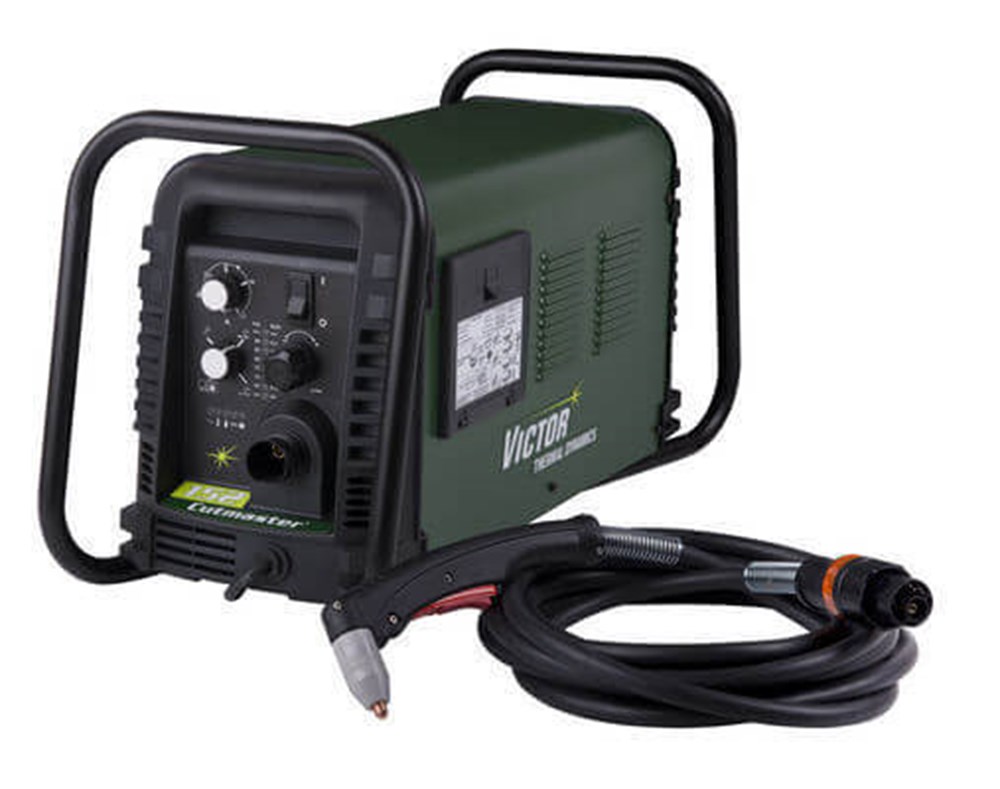

Cutmaster 152 Plasma System, 120 Amp, SL100, 75 Deg Head, 20 ft Leads, 208-230V, 1Ph, 50/60Hz Ready, Multi-Voltage/Phase Capable #1-1730-1

Part Numbers: 1-1730-1
UPCs: 0699488003247

Included with your purchase ():

Fast, FREE shipping to the lower 48 states for Cutmaster 152 Plasma System!
Cutmaster 152 Plasma System, 120 Amp, SL...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$5,499.00 + Free Shipping $6,899.00*
SAVE $1,400.00
$5,499.00 + Free Shipping $6,899.00*
SAVE $1,400.00

Cut capacity:

1" and Higher Capacity

1" and Higher Capacity

Plasma torch:

Handheld

Handheld

Power supply:

220V 3 Phase

220V 3 Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • 1 1/4" Cut Capacity
  • Multivoltage
  • Multiphase
  • 20 ft leads
  • Hand torch included

Cutmaster 152 Plasma System #1-1730-1

CUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 152 is the heavy weight of hand held cutting systems. This unit comes in a compact-light weight package, but don’t let that fool you. It offers enough cutting power to cut 2.

Specifications

  • TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
  • Color Coded LED’s indicate pressure status and setup errors
  • All user controls are conveniently located on the front panel
  • Lightweight design improves portability (Reduced nearly 50%)
  • Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Multiple Torch Capability (Hand, Mechanized, Automation)
  • The Industry’s only 60 Amp Drag Tip
  • Convenient storage compartment for spare and consumable parts
  • Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
  • Power Supply
  • 20 ft. (6.1m) Lead
  • 1Torch SL100, 75 deg. Head
  • 10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
  • Spare Parts Kit
  • Operating Manual
  • Front Panel LEDs indicate status conditions for maximum efficiency.
  • Storage compartment for convenient access to spare parts and consumables
  • True Guard roll bar provides easy transportation and protection for unmatched durability
  • Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
  • Multi-voltage allows operation from 208 to 480 Volts in a single power supply
  • Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
  • Lighter weight design for maximum portability
Shop other Plasma Cutting Machines and Plasma Cutting Consumable Parts and Accessories at Welders Supply today!

Other Versions:
1-1731-1 208-230V 50 Ft. Hand Torch
1-1731-2 460V 50 Ft. Hand Torch
1-1730-2 460V 20 Ft. Hand Torch
1-1730-5 600V 20 Ft. Hand Torch

MACHINE SPECIFICATIONS



Process(es)

Manual Air Plasma Cutting

Industrial Applications

Heavy Fabrication



Manufacturing



Contractors

Amperage Range

20-120 Amps

Maximum Amperage Output

120A

Output Power

15.4 kW

Recommended Cut

1 1/4" (30 mm)

Maximum Cut

2" (50 mm)

Pierce Rating

1" (25 mm)

Input Voltage

208/230V 1/3 Phase 50/60 Hz Ready

Duty Cycle (@ 40 deg C)

60% @ 120A

Amperage Draw

120A @ 230V, 1 ph

56A @ 230V, 3 ph

Pilot

Start Cartridge

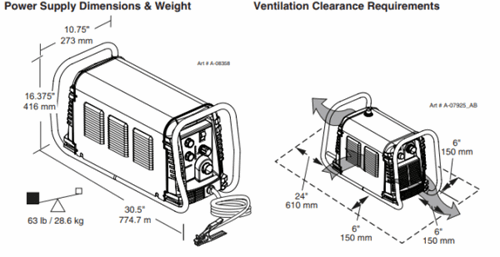

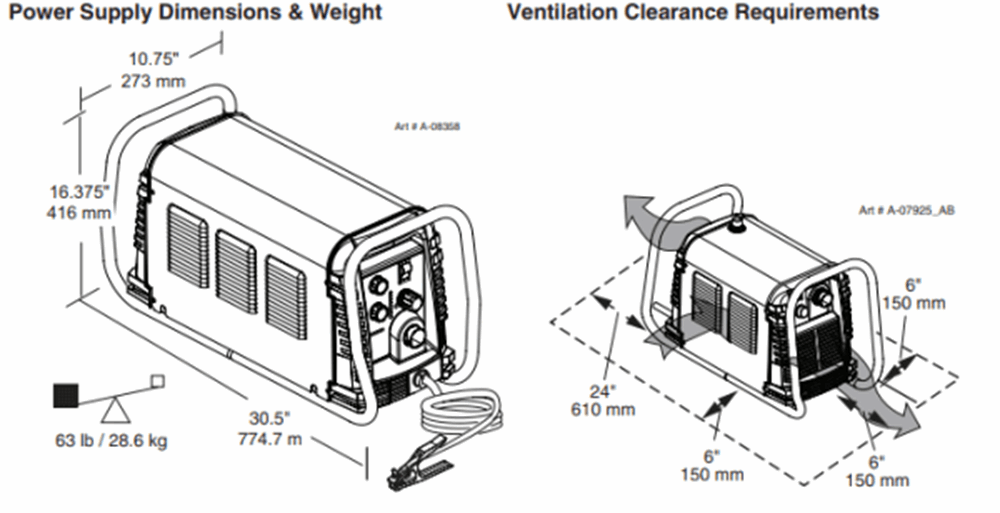

Dimensions (H x W x D)

15" (381 mm) x 12" (305 mm) x 30" (762 mm)

Weight

62 lbs (28.1kg)

Warranty (Parts & Labor)

4 Years

Certifications

IP23S

TORCH SPECIFICATIONS



Hand, Automated & Mechanized

SL100

Air Pressure

70 psi (4.8 bar)

Flow

7.5 cfm (212 l/m)

Warranty (Parts & Labor)

1 Year

SHIPPING DIMENSIONS

Height: 15.00 Inches
Width: 12.00 Inches
Length: 30.00 Inches
Weight: 62 Lb(s) 0 Oz

Product Questions and Answers


Q - Can this be used for CNC cutting? A - Yes, but you'll need their Automation Interface Kit (#9-8311), a 25 ft CNC cable (#9-1008) and the Automation Torch (#7-4001).
Q - Will this work on 230 v? A - Yes, on 230 v using the 1-phase setting it will draw 120amps, at 230 v on 3-phase it will draw 56 amps, and at 460 v on 3-phase it will draw 37 amps.
