Miller Big Blue 800 Duo Air Pak (Deutz) #907535

Part Number: 907535
1 Review

DISCONTINUED - Replaced by Miller Big Blue 800 Duo Air Pak #907752

$36,949.00
$47,033.26* Save $10,084.26
Out of Stock

Welding type:

Mig

Mig

Stick

Stick

Tig

Tig

Engine Driven

Engine Driven

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  • DEUTZ Diesel Engine
  • Ingersoll Rand Air Compressor
  • Single Phase Generator
  • Three Phase Generator
  • 1/2" Cut
  • 3-Year Miller Warranty

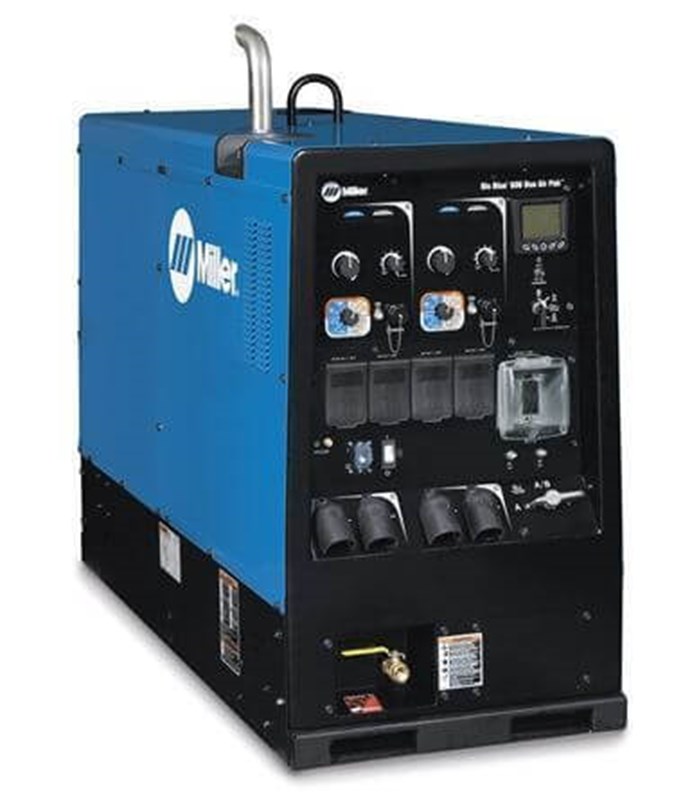

Miller Big Blue 800 Duo Air Pak (Deutz) #907535

The Big Blue 800 duo Air Pak is Miller’s most powerful and portable generator to date—and the most powerful T4F diesel welder/generator/air compressor in the industry. The heavy-duty, low-speed DEUTZ diesel engine is also the cleanest diesel power available. Rated at 800 amperage and 27,000 watts of generator power, the Big Blue 800 Duo Air Pak (Deutz) has the capability to run up to four independent welders. With more arcs and better fuel economy, it delivers an average 34% savings with a dual-operator unit versus two single-operator units.

With its robust output for both welding and power generation, the Big Blue 800 Duo Air Pak is ideal for dual-function applications on both labor-intensive job sites and locations with limited space. A truck mountable version is also available, with controls easily accessible even when mounted on the bed of a large truck.

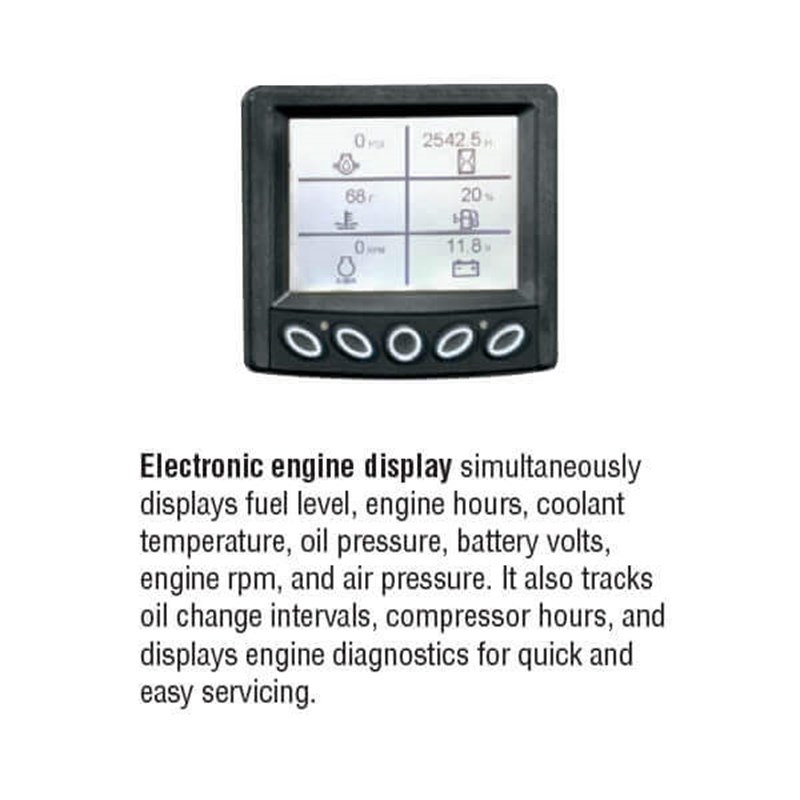

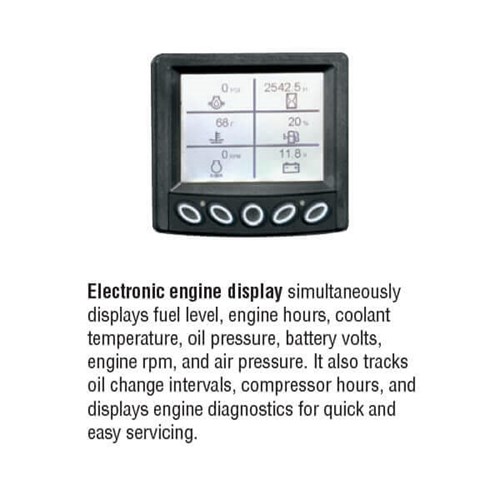

User-Friendly Electronic Engine DisplayBig Blue Air Pak Portable Welder Display

Miller’s unique electronic engine display simultaneously displays:

  • Fuel level
  • Coolant temperature
  • Oil pressure
  • Battery volts
  • Engine RPMs
  • Hours of use

In addition to monitoring all of the above, it also tracks the time between oil changes and displays engine diagnostics to facilitate routine servicing.

Clean & Green Diesel Power

The Big Blue #907535 is equipped with the DEUTZ T4F industrial diesel engine with Diesel Oxidation Catalyst (DOC) technology for cleaner air with no exhaust after-treatment maintenance required.

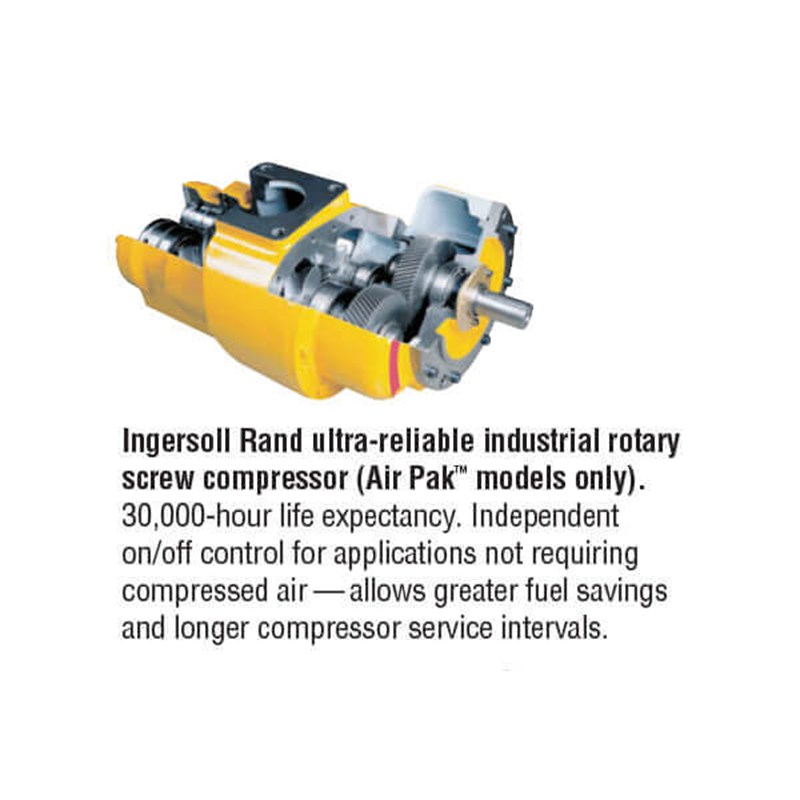

Powerful & Reliable Ingersoll Rand Air CompressorMiller Welder Air Compressor Combo Big Blue

The Big Blue 800 features an ultra-reliable Ingersoll Rand rotary screw air compressor with a 30,000-hour life expectancy. It's equipped with an independent on/off control for when you don't need compressed air. Shut it off when not needed to conserve fuel and minimize maintenance, then just flick it back on when you need compressed air.

Safety Features

  • Low OCV stick (CRD) use. Reduces open circuit to 15 volts when not in use.
  • Thermal overload protection. Prevents the machine from becoming damaged due to a duty cycle overload/excess and blockage of the airflow.
  • Remote oil drain. Easy and quick replacement of generator and compressor oil.

Welder Truck Specific Models

You may purchase the Big Blue Duo Air Pak as a welder truck-specific model. Critical controls are easily accessible from an operator on the ground when the welder is mounted in the bed of a truck. The welder truck-specific version includes standard hardware upgrades, including air cleaner restriction indicators, a lockable flame arrester fuel cap and spark arrester. A desiccant air dryer system is also available as a factory option.

WHAT'S INCLUDED

  • 120 V Block Heater
  • Lockout/Tagout Battery Disconnect Switch
  • Vandalism Lockout Kit

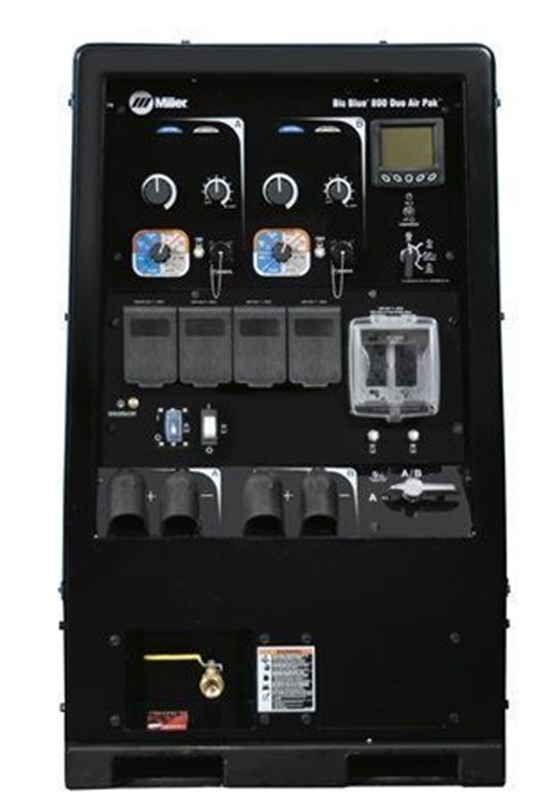

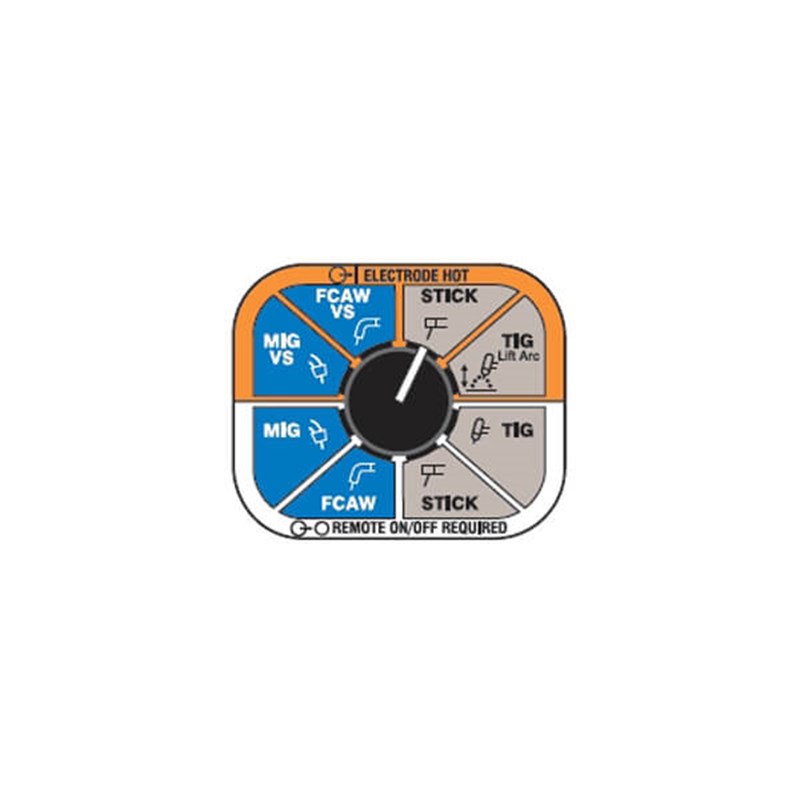

PROCESSESMiller Portable Generator Welder Controls

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Stick (SMAW)
  • Submerged Arc (SAW)
  • TIG DC (GTAW-DC)
Look at our multi-process welders for reliable equipment that can handle almost anything.
Check out these other multipurpose engine driven welderswelding machine accessories and our entire selection of welding machines available from Welders Supply Company.

DISCONTINUED

Newer Model In Stock!

Miller Big Blue® 800 Duo Air Pak™ 907752

Miller Big Blue 800 Duo Air Pak (Deutz) #907535 Specifications

Industries Interests Construction
Infrastructure
Fabrication
Maintenance and Repair - Field Operations
Work / Service Trucks
Carbon Diameter 1/2 in (12.7 mm)
Cold Weather Starting Aids Engine Block Heater
Glow Plugs
Current Type DC
Engine Brand Deutz
Engine Compliance T4F
Engine Idle Speed 1350 RPM
Portability Lift Eye (Standard)
Trailer (Optional)
Fork Pockets
Engine Weld Speed 1800 RPM
Fuel Tank Size 25 Gallon
Net Height 46 in
Fuel Type Diesel
Net Length 69.5 in
Horsepower 65.7 hp
Max Open Circuit Voltage 85 VDC
Net Weight 2095 lbs
Weldable Metals Stainless Steel
Mild Steel
Net Width 28.5 in
Rated Output Separate (Dual Outputs) 400 A at 36 VDC, 100% duty cycle
Single Phase Generator Continuous Power 12000 W
Warranty Engine Warranties
Miller's True Blue Warranty
Single Phase Generator Peak Power 15000 W
Sound Rating Idle: 71.3 dB / Weld: 78.9 dB
Three Phase Generator Continuous Power 20000 W
Three Phase Generator Peak Power 27000 W
Amperage Range 20 - 800

SHIPPING DIMENSIONS

Height: 56.00 Inches
Width: 30.00 Inches
Length: 71.00 Inches
Weight: 2146 Lb(s) 0 Oz

Manufacturer Reviews

By: Sasquatch
My company bought one of these machines and we use it daily. It's pricey but if you own a big company and need the productivity this machine will run two ln-25 pro wire feeders while using the compressor and 2 nine inch metabo grinders all at the same time. This thing is a beast. The only down side I can see is the price. But the machines are awesome great job Miller

Product Questions and Answers


Q - What air compressor is in this? A - It has an Ingersoll Rand rotary screw air compressor with a 30,000 hour service life.
Q - What engine is in this? A - It's a Deutz T4F diesel, and it's the cleanest diesel power available.

Have a question about this product? Submit your question using the form below

Related Products

3 Phase 240VAC 50 Amp Plug #254140
MILLER 3-PHASE 240 VAC, 50 A PLUG #254140
$341.85

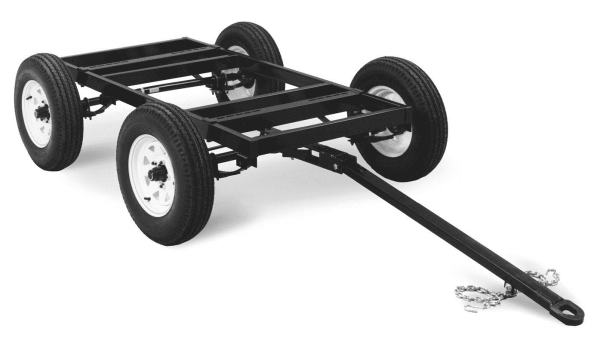

Miller 4 West Four-Wheel Steerable Off-Road Trailer #042801
Miller 4 West Four-Wheel Steerable Off-Road Trailer #042801
$8,761.00
Big Blue® 500 Pro (Deutz)/800 Duo Models Protective Cover #301113
Miller Big Blue® 500 Pro (Deutz)/800 Duo Models Protective Cover #301113
$866.00
120 or 240 VAC Single-Phase Full KVA Plug Kits for Miller Power Supplies
Miller Bobcat™ / Trailblazer® / Big Blue® Full Single-Phase Full KVA Plug Kit #1…
$124.15
$129.94

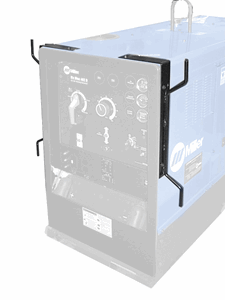

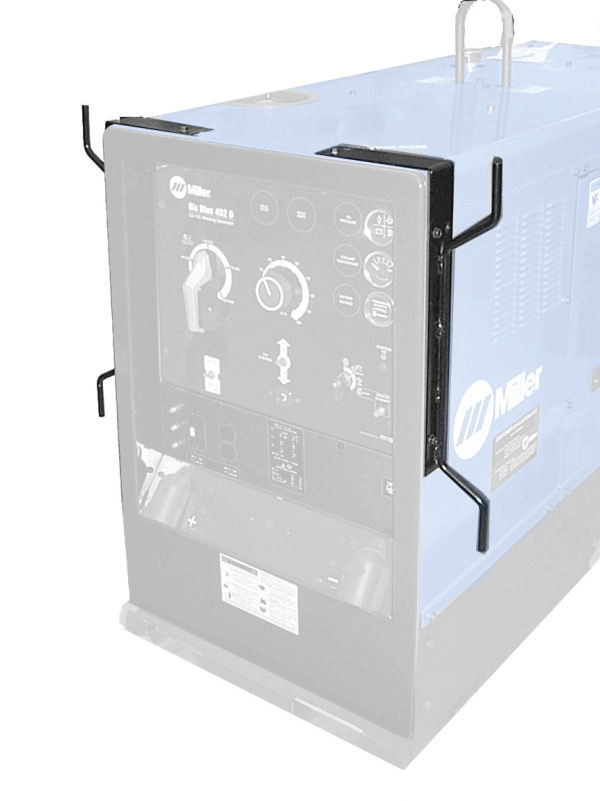

Miller Cable Holder #043946
