Miller Bobcat 225 (Kohler), GFCI part #907498
Part Number: 907498
Welding type:
Mig
Stick
Tig
Engine Driven
Material type:
Mild Steel
Stainless Steel
Documents
Videos
Multiprocess Welding
Engine Driven
Smaller & Lightweight

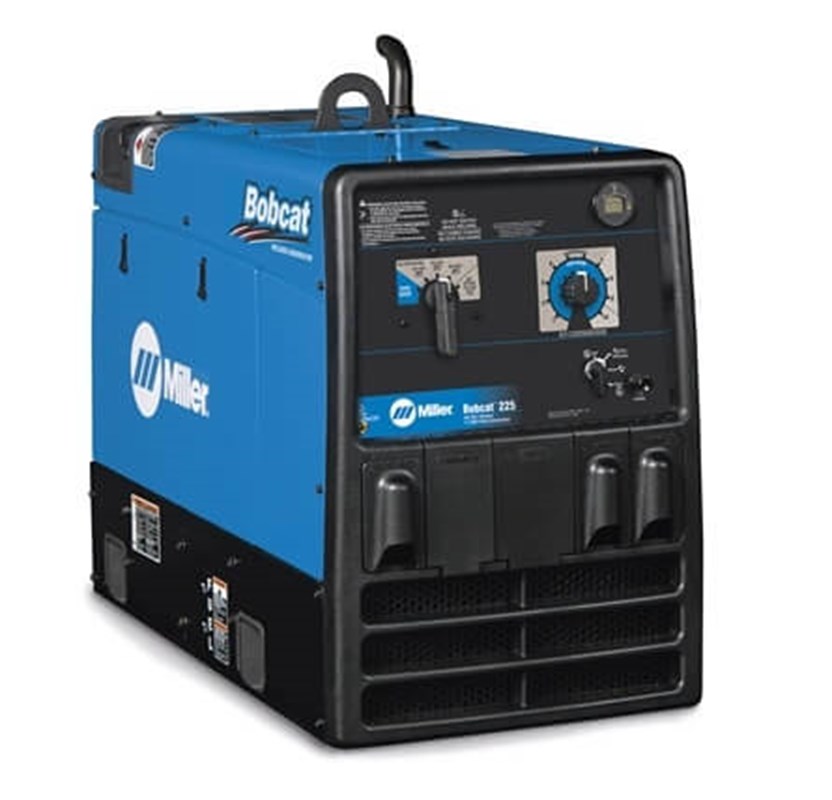

Miller Bobcat 225 (Kohler), GFCI part#907498
Miller’s Bobcat 225 is quiet, cost-effective, and a great addition to any farm, ranch, or maintenance operation. This Bobcat multiprocess welder/generator handles stick and gas welding, functions as a generator to power household lighting and appliances, and has ample power for plasma cutting.

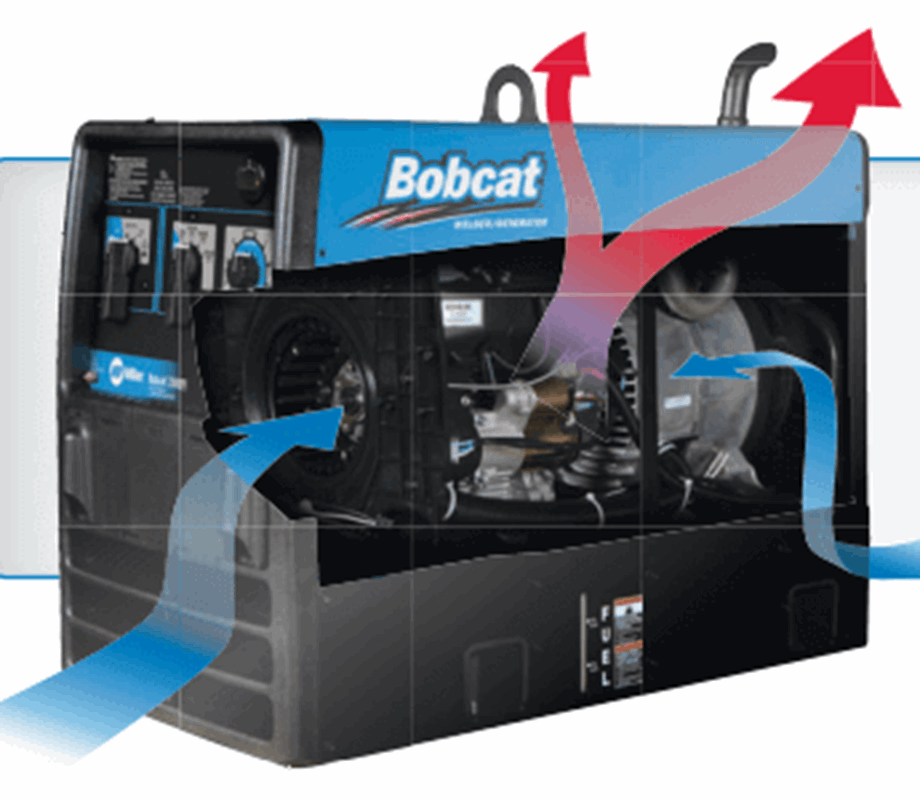

The Bobcat 225 is smaller and lighter than comparably powered machines, which saves space in your shop, on your truck, and on the job site. Its lightweight and small design also make it easy to transport. The engine is positioned to cool the hot air around the machine to maximize efficiency.
For top-of-the-line welding technology at the best price, look to Welders Supply.
Industries:
- Maintenance and Repair
- Manufacturing
- Farm and Ranch
- DIY
- Mechanical Contracting
- Commercial Truck and Trailer
For the best price on welding equipment, welding machines, and Miller products, shop Welders Supply online.
Bobcat 225 Specifications
| Welding Mode | CC/AC | CC/DC | CV/DC |
| Process | Stick/TIG | Stick/TIG | MIG/FCAW |
| Amp/Volt Ranges | 70 - 150 A |
50 - 110A 70 - 170 A 80 - 225 A |
19 - 28 V |
| Rated Output at 100% Duty Cycle (at 104°F/40°C) | 150 A at 25 V | 225 A at 25 V | 200 A at 20 V |
| Single-Phase Generator Power |
Peak: 11,000 watts Continuous: 9500 watts 120/240 VAC, 88/44 A, 60 Hz |
||
| Sound Levels at Max. Load/at 150 Amps | 73.5 dB/72 dB | ||
| Dimensions |
H: 28 in. (711 mm) H: 32.75 in. (832 mm) (to top of exhaust) W: 20 in. (508 mm) D: 40.5 in. (1029 mm) |
||
| Net Weight | 485 lb. (220 kg) | ||
|
Brand of Engine |
Kohler |
|
Engine Weld Speed |
3600 RPM |
|
Engine Idle Speed |
2300 RPM |
|
Horsepower |
23.5 hp |
|
Amperage Range |
50-225 A |
|
Weight |
485 lbs |
|
Length |
10.5” |
|
Height |
28” |
|
Width |
20” |
SHIPPING DIMENSIONS |
|
| Height: | 20.00 Inches |
| Width: | 33.00 Inches |
| Length: | 41.00 Inches |
| Weight: | 485 Lb(s) 0 Oz |
Accessories
Consumables
Manufacturer Reviews
Miller is a fabulous welder i use it on a farm for various projects welds like spreading butter im not a professional welder but this one is very easy to lay good beads. I'd recommend to anyone beginner to professional. The only thing I'd like if it had a fuel guage other than that its perfect very well built.
Product Questions and Answers
Q - What Kohler engine is in it?
A - The Kohler CH730 tas powered, four cycle.
Q - Will this TIG weld aluminum?
A - Yes, but only non-critical welding. There is no remote amperage control capability on the 225 so you can't use a foot pedal or hand remote control. Also, you'll need a HF 251 high frequency arc starter.
How to Connect Weld Output Terminals:
- Stop Engine.
Stop engine. NOTE: Failure to properly connect weld cables may damage your machine or start a fire.
- Clean Weld Cable Terminal.
Make sure that the surfaces of the weld cable terminal and copper bar are clean.
- Remove Nut.
Remove supplied nut from the weld output terminal.
- Attach Weld Output Terminal.
Slide weld cable terminal onto the weld output terminal and secure with the nut so that the terminal is tight against the copper bar.
