VideoMiller Dynasty 210 DX TIG Runner #907686001

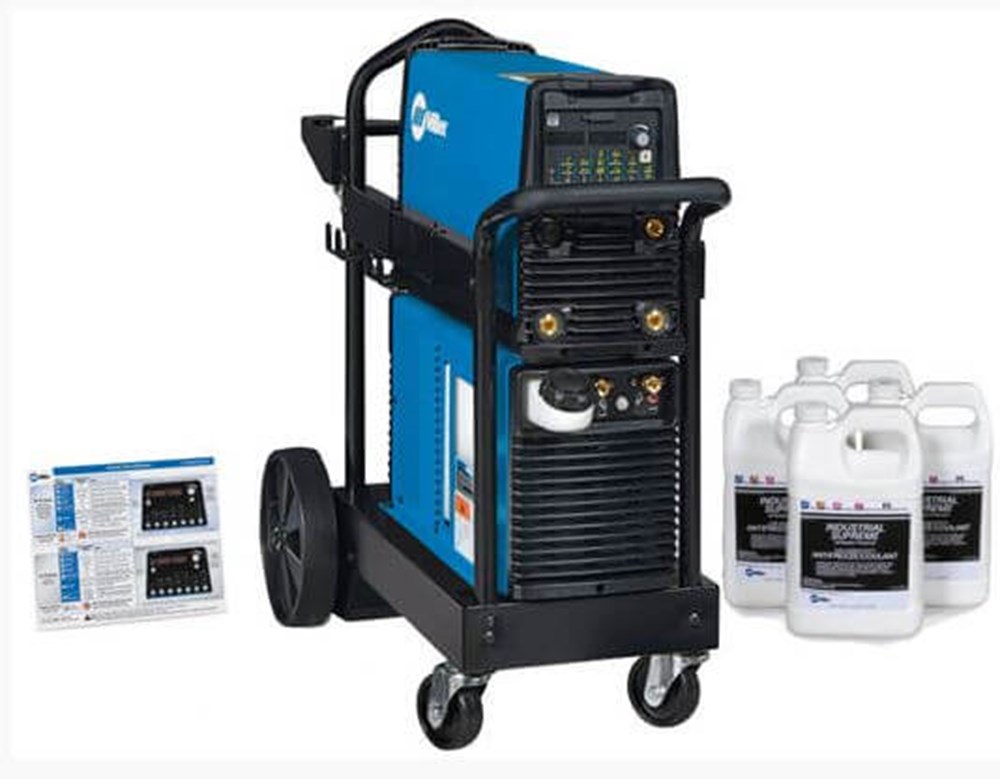

The Miller Dynasty 210 DX TIG Runner is a great package that includes a Dynasty 210 DX CPS TIG Welder and a Coolmate 1.3 water cooler. The power supply cord, shoulder strap, and eight-foot primary cord are also included, as well as four gallons of coolant and a small runner cart. This lightweight package has all the features you need for safe and precise welding.
What's Included

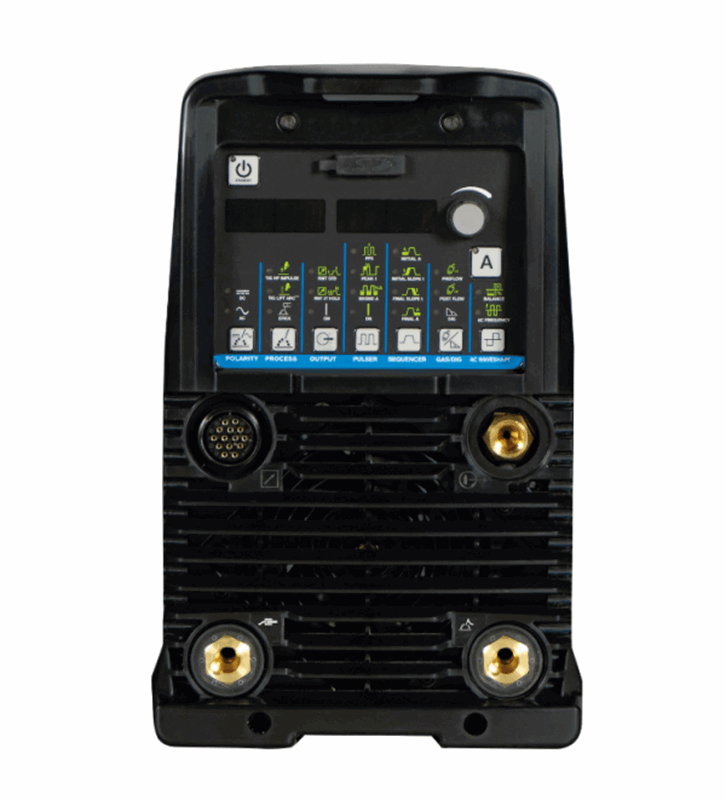

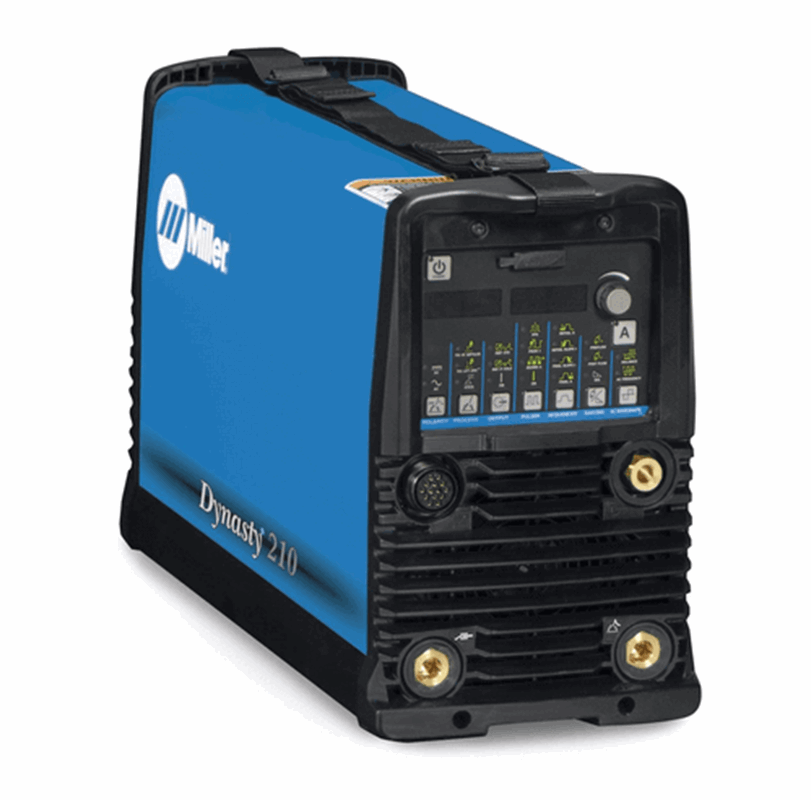

- Dynasty® 210 DX CPS TIG Welder
- Cooler Power Supply dedicated use receptacle for Coolmate™ 1.3
- Quick Reference Guide (English)
- Adjustable shoulder strap
- 8 ft (2.4 m) primary cord
- Coolmate™ 1.3 water cooler #300 972
- Coolant (4 one-gallon bottles of #043 810
- Small runner cart #300 988
Coolmate 1.3 Cooler
Dynasty® models with CPS turn Coolmate 1.3 on and off- Power indicator light
- Fluid level sight window
- Rustproof
polyethylene-molded coolant tank and filler spout - 1/4-HP
mot or is thermally protected to guard against overheating - Factory-set pressure relief valve (55 PSI) maintains consistent pressure during operation
- Efficient fin and tube heat exchanger
- Filter and coolant filling spout are conveniently located
- Brass-body, positive displacement rotary vane pump provides consistent coolant flow and pressure rating with long pump-life expectancy
Processes
- Pulsed TIG (GTAW-P)
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
- Aluminum Welding
- Air Carbon Arc Cutting and Gouging (CAC-A)
Be sure to view Welders Supply Company’s full selection of Mig, Tig, and Stick welders available at the best prices online!
General Specifications |
|
| Title | Dynasty® 210 DX 120-480 V, CPS |
| Industries Interests | Aerospace Auto / Cycle (Racing, Customizing, Restoring) Construction DIY / Home Hobbyist Farm and Ranch Heavy Equipment Manufacturing Infrastructure Manufacturing Metal Art / Sculptures Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Current Type | AC / DC |
| Input Hz | 50 / 60 Hz |
| Input Phase | 1- and 3-Phase |
| Portability | Handle(s) Running Gear / Cart (Optional) Shoulder Strap |
| Net Height | 13.6 in |
| Net Length | 22.5 in |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Max Open Circuit Voltage | 80 VDC |
| Net Weight | 50 lbs |
| Weldable Metals | Aluminum Specialty Metals Mild Steel Stainless Steel |
| Net Width | 8.6 in |
| Warranty | Miller's True Blue Warranty |
| Amperage Min | 1 A |
| Amperage Max | 210 A |
| Material Thickness | Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) Aluminum: 0.012 in. (0.3 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
| Height: | 38.00 Inches |
| Width: | 20.00 Inches |
| Length: | 44.00 Inches |
| Weight: | 173 Lb(s) 0 Oz |
Product Questions and Answers
Q - What input power does it need?
A - 120 to 480 V, 3- or 1-phase power
Q - Will this work with wireless remote pedals?
A - It's compatible with all Miller wireless remote control systems, both hand held and foot controlled.
