This product has been replaced by the Miller Trailblazer® 325 Diesel, GFCI #907799001.

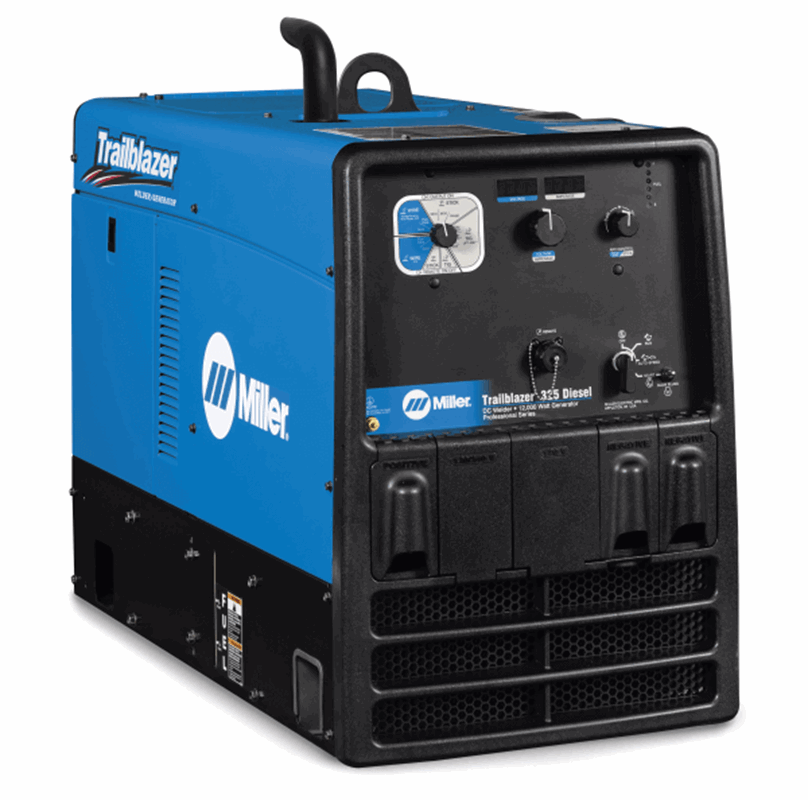

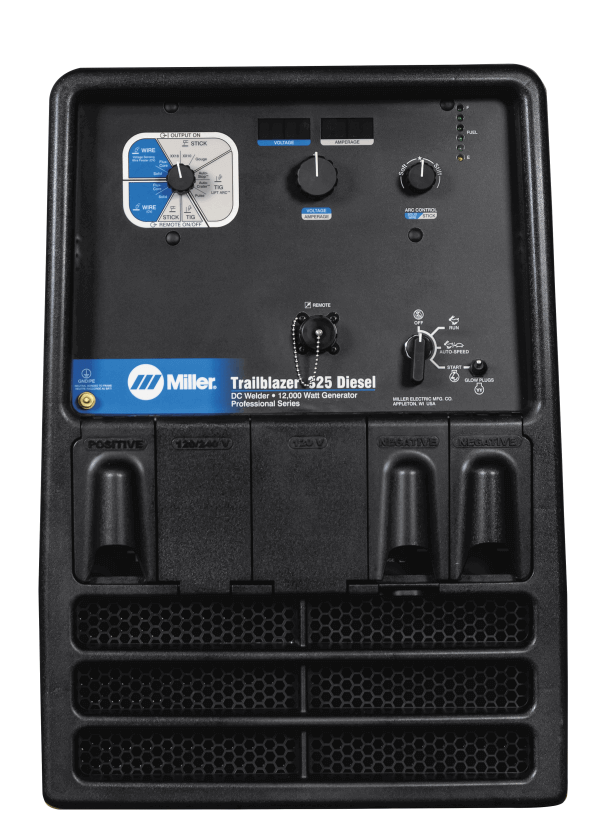

Miller Trailblazer 325 Diesel, Excel Power Part #907566002
Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. The Trailblazer exclusive technologies, Auto-Speed™ and optional Excel™ power, deliver superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise.
Unbeatable Arc Performance
Miller® Trailblazer welder/generators deliver a wider amperage output with better welding deposition rates, which means you can get jobs done faster--which saves you time and money. The Trailblazer also has precise arc control, which allows you to fine-tune the arc to match your personal preferences and quickly dial in the perfect parameters to optimize weld quality and maximize productivity across a variety of applications and welding processes.
Auto-Speed™ Technology - Matches engine speed to load, reducing fuel use and noise.
The Trailblazer matches engine speed to load, a Miller exclusive feature that reduces fuel consumption and lowers noise levels. Unlike competitive machines that operate at 3,600 rpm (max) under any load, Miller-exclusive Auto-Speed technology responds to weld requirements by automatically adjusting engine speed to one of four rpm levels so the engine never works harder than necessary. Refueling time and operating costs are reduced, which means more productivity and profitability. Plus, everyone on the job site gets a better working environment because noise levels and exhaust emissions are lowered. Auto-Speed technology is available only from Miller.
Excel™ Power (Option)
Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel Power delivers a full 2,400 watts (20 A) of 120 V inverter-based, pure sine wave power at idle. With Excel power, you can operate job site tools like grinders at quiet, fuel-saving engine speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the job site has a better working environment because noise levels and exhaust emissions are lowered. Excel power: available only from Miller.
Cleaner and Stronger Generator Power
Combined with a 24.8 horsepower engine, Miller Trailblazer welder/generators offer 12,000 watts of clean, truly usable generator power that is Accu-Rated™, not inflated: tested to deliver uninterrupted peak output for a minimum of 30 seconds for big loads, so you can get more jobs done. An independent welder and generator power system ensures no interaction between job site tools and the welding arc, while advanced generator technology virtually eliminates power spikes and other electrical imperfections — so welds are cleaner and job site tools can run without interruption, maximizing quality, productivity, and profit
More portable, uses less truck space
Miller Trailblazer welder/generators are up to 24% smaller and 11% lighter then competitive machines — which means moving them is faster and easier, for maximum productivity. And because they take up less space, Trailblazer welder/generators let work trucks carry more equipment and gear — so your work crews can be ready for anything.
Safer, more productive jobsites
Quieter job sites are safer and more productive because work crews can communicate easier and work can start earlier and end later — even in noise-sensitive areas. If your worksite needs a welder/generator, it needs a Miller Trailblazer welder/generator.
Maximum cost savings
Less money spent on fuel means more profit for you. Every Miller Trailblazer welder/generator has fuel-saving Auto-Speed technology; add optional Excel power to save even more on fuel costs and enjoy a combination of advanced, profit-enhancing features only available on a Trailblazer welder/generator.
Find more diesel powered welders for sale at Welders Supply. Check out our entire selection of welding machines, welding machine accessories and welding helmets for more great deals.
Other Versions of the Miller Trailblazer 325:
- 907754003 - Miller Trailblazer 325 (Kohler) EFI w/ CHG/JMP & EXL PWR
- 907799001 - Miller Trailblazer® 325 Diesel, GFCI
- 907797 - Miller Trailblazer® 325 (Kohler)
- 907797001 - Miller Trailblazer® 325 (Kohler), GFCI
- 907797002 - Miller Trailblazer® 325 (KOHLER) w/ Electric Fuel Pump
- 907797003 - Miller Trailblazer® 325 (Kohler) w/ Wireless Interface Control
- 907798 - Miller Trailblazer® 325 (Kohler) EFI
- 907775001 - Miller Trailblazer® 325 LP, GFCI w/ Excel Power & ArcReach®
- 907798001 - Miller Trailblazer® 325 (Kohler) EFI w/ Wireless Interface Control
- 907798005 - Miller Trailblazer® 325 (Kohler) EFI w/Battery Charge/Jump Start, Excel Power & Wireless Interface Control
- 907798002 - Miller Trailblazer® 325 (Kohler) EFI w/ Excel Power
- 907798004 - Trailblazer® 325 (Kohler) EFI w/ Battery Charge/Jump Start & Excel Power (No ArcReach)
- 907798003 - Miller Trailblazer® 325 EFI w/GFCI, Excel Power & Wireless Interface Control
PROCESSES
Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG (GTAW)
Plasma (PAC)
Title | Trailblazer® 325 Diesel, Excel™ Power |
---|---|
Industries Interests | Construction Infrastructure Farm and Ranch Maintenance and Repair - Field Operations Manufacturing Mechanical Contracting Work / Service Trucks Pipe Fabrication / Construction Railcar Cross Country Pipeline |
Cold Weather Starting Aids | Glow Plugs |
Engine Brand | Kubota |
Engine Compliance | T4F |
Engine Idle Speed | 2400 RPM |
Engine Weld Speed | 2400 RPM 2800 RPM 3200 RPM 3600 RPM |
Fuel Tank Size | 12 Gallon |
Fuel Type | Diesel |
Horsepower | 24.8 hp |
Weldable Metals | Steel Stainless Steel |
Rated Output | 325 A 33 V 100% |
Single Phase Generator Continuous Power | 10500 W |
Single Phase Generator Peak Power | 12000 W |
Sound Rating | 75 dB @ idle and 81.5 dB @ weld dB |
Current Type | DC |
Amperage Range | 10 - 325 |
Net Width | 20 in |
Net Height | 28 in |
Net Length | 45.375 in |
Net Weight | 620 lbs |
Warranty | Engine Warranties |
Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
Weld Output | CC / CV |
SHIPPING DIMENSIONS |
|
Height: | 28.00 Inches |
Width: | 34.00 Inches |
Length: | 46.00 Inches |
Weight: | 652 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Is this still available?
A - No, this model has been discontinued. The new version of it is the Trailblazer 325 Diesel, GFCI, #907755001.
